GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

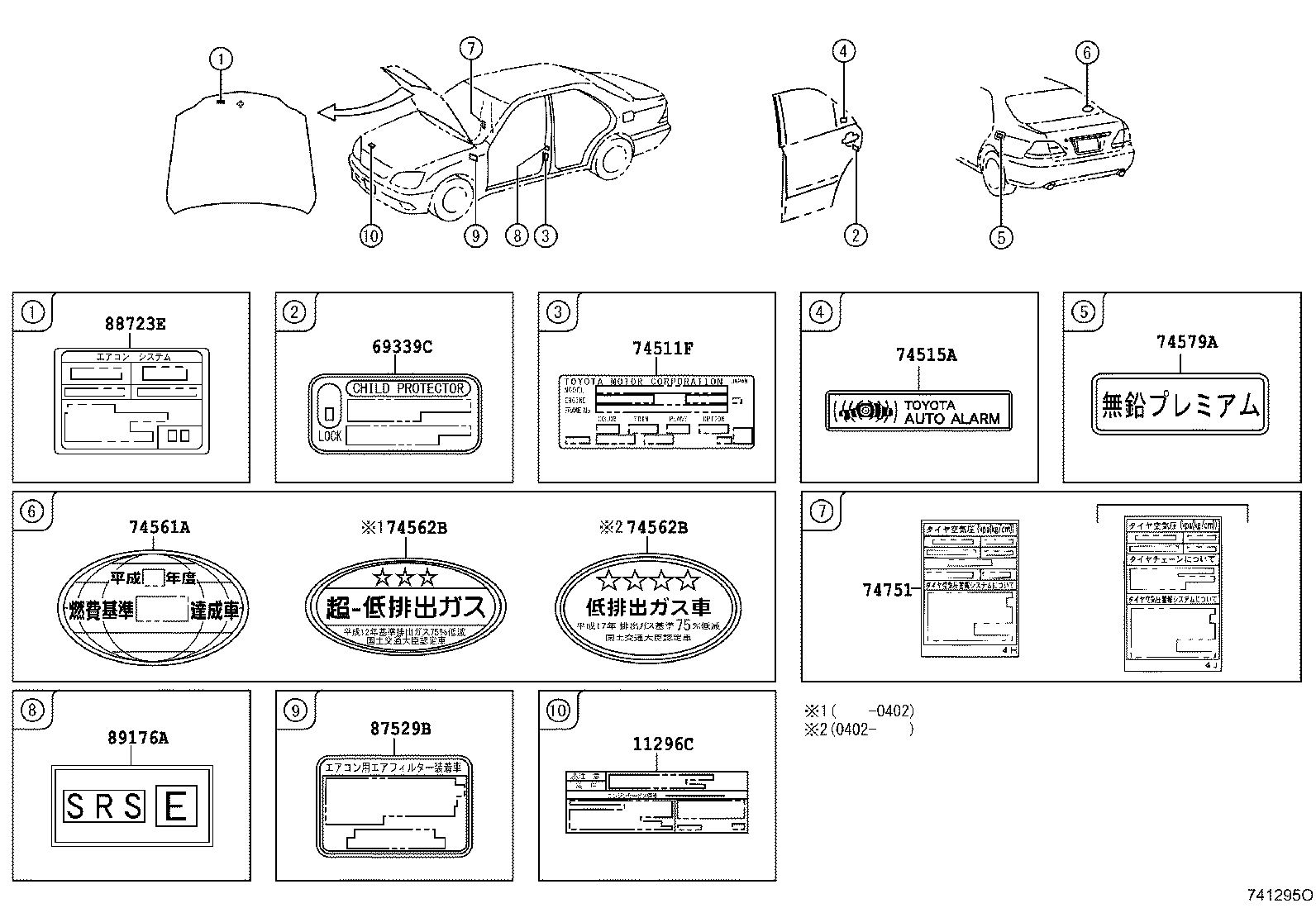

ILLUST NO. 1 OF 2(0312- )

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ & ｶﾞｲｿｳ

diagram 11296C 69339C 74511F 74515A 74561A 74562B 74562B 74579A 74751 87529B 88723E 89176A
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-31010

3GRFSE,4GRFSE..GRS18#

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-12010

GRS18#

 2
74511F - LABEL, NAME (IDENTIFICATION LASER LABEL)
74511-2B300

GRS180,181..5FC;GRS182,183,UZS18#

*111

 1
74515A - PLATE, THEFT WARNING
74515-30020

GRS180,181..5FC;GRS182,183,UZS18#

 2
74562B - LABEL, EMISSION INFORMATION
74562-40050

GRS18#

 1
74562B - LABEL, EMISSION INFORMATION
74562-40050

GRS18#

 1
74579A - LABEL, UNLEADED FUEL INFORMATION
74579-24010

GRS18#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-30650

GRS18#..ROY,ROYEX,ROYG

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

GRS18#

 1
88723E - LABEL, COOLER SERVICE CAUTION
88733-21020

GRS18#..ATH,ROY,ROYEX

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-20010

GRS18#

 1

ILLUST NO. 2 OF 2(0312- )

Click highlighted areas on diagram

ﾅｲｿｳ

diagram 74541E 89616
Part # Description Qty Price
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-30010

GRS18#..ROY,ROYEX

 1
89616 - LABEL, PUSH START INFORMATION
89616-30010

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ

 1
89616-30010

GRS18#..ATH,ROY,ROYG

 1
89616-30010

GRS181..ROYEX

Qﾊﾟｯｹｰｼﾞ&ﾊﾞｯｸﾓﾆﾀ−有り

 1
89616-30010

GRS181..ROYEX

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A)

 1
