GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

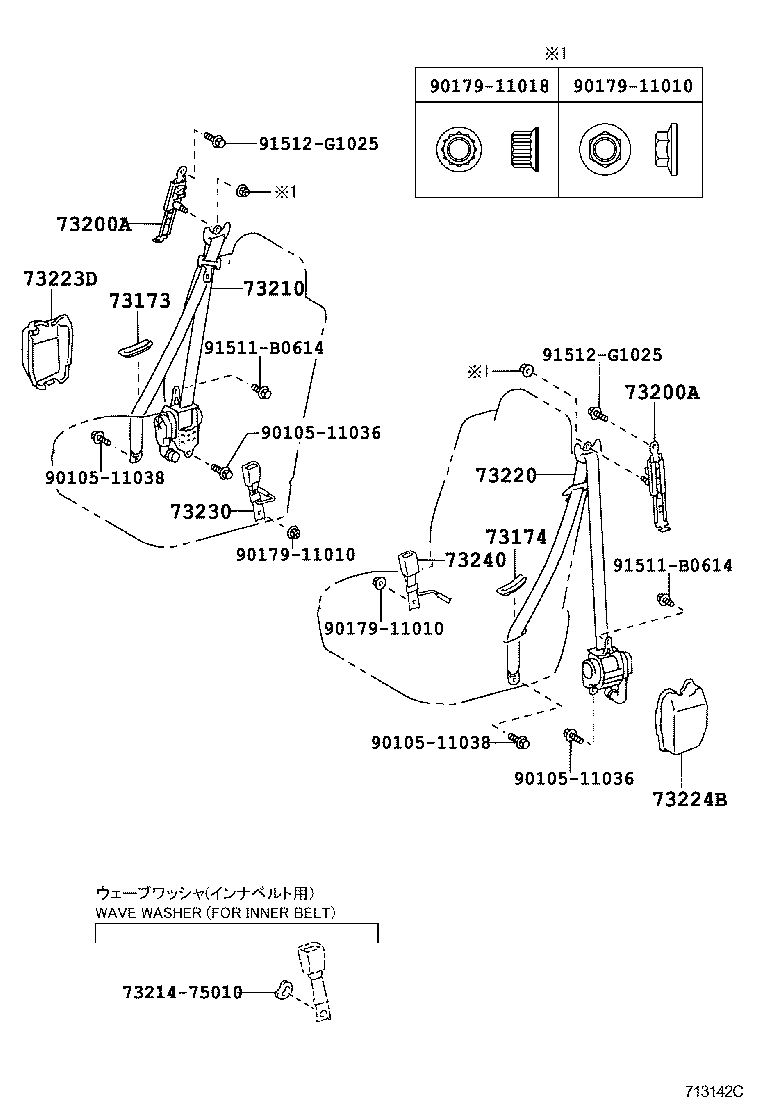

ILLUST NO. 1 OF 2(0312- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼ-ﾄ

diagram 73173 73174 73200A 73200A 73210 7321475010 73220 73223D 73224B 73230 73240 9010511036 9010511036 9010511038 9010511038 9017911010 9017911010 9017911010 9017911018 91511B0614 91511B0614 91512G1025 91512G1025
Part # Description Qty Price
73173 - COVER, FRONT SEAT BELT HOLE, RH
73173-30040B2

GRS18#

GRAY,TRIM1#

 1
73173-30040C0

GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C

BLACK,TRIM2#

 1
73173-30040A1

GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG

IVORY,TRIM0#

 1
73174 - COVER, FRONT SEAT BELT HOLE, LH
73174-30040C0

GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C

BLACK,TRIM2#

 1
73174-30040A1

GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG

IVORY,TRIM0#

 1
73174-30040B2

GRS18#

GRAY,TRIM1#

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-30080

GRS18#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-30080

GRS18#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-30890B1

GRS18#..ATH,ROY,ROYEX

GRAY,TRIM1#

 1
73210-30890A0

GRS18#..ROY,ROYEX

IVORY & NEW IVORY,TRIM0#

 1
73210-30891A0

GRS18#..ROY,ROYEX

IVORY & NEW IVORY,TRIM0#

 1
73210-30892B1

GRS18#..ATH,ROY,ROYEX

GRAY,TRIM1#

 1
73210-30892A0

GRS18#..ROY,ROYEX

IVORY,TRIM0#

 1
73210-30891B1

GRS18#..ATH,ROY,ROYEX

GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-30850B1

GRS18#..ATH,ROY,ROYEX

GRAY,TRIM1#

 1
73220-30850A0

GRS18#..ROY,ROYEX

IVORY & NEW IVORY,TRIM0#

 1
73220-30851B1

GRS18#..ATH,ROY,ROYEX

GRAY,TRIM1#

 1
73220-30852B1

GRS18#..ATH,ROY,ROYEX

GRAY,TRIM1#

 1
73220-30851A0

GRS18#..ROY,ROYEX

IVORY & NEW IVORY,TRIM0#

 1
73220-30852A0

GRS18#..ROY,ROYEX

IVORY,TRIM0#

 1
73223D - COVER, FRONT SEAT BELT RETRACTOR, RH
73223-30080

GRS18#..ATH,ROY,ROYEX

 1
73224B - COVER, FRONT SEAT BELT RETRACTOR, LH
73224-30050

GRS18#..ATH,ROY,ROYEX

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-30860A0

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0#

 1
73230-30890B0

GRS180,181..ROYEX

GRAY,TRIM1#

 1
73230-30860B0

GRS18#..ATH,ROY,ROYG

GRAY,TRIM1#

 1
73230-30860A0

GRS181..ROYEX

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0#

 1
73230-30890A0

GRS180,181..ROYEX

IVORY,TRIM0#

 1
73230-30860B0

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1#

 1
73230-30860B0

GRS181..ROYEX

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1#

 1
73230-30860C0

GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C

BLACK,TRIM2#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-30A00A0

GRS180,181..ROY,ROYEX

IVORY,TRIM0#

 1
73230-30A00B0

GRS180,181

GRAY,TRIM1#

 1
73230-30870B0

GRS180..ROY;GRS181..ROYEX

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1#

 1
73230-30870A0

GRS180..ROY;GRS181..ROYEX

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),NEW IVORY,TRIM0#

 1
Common parts
73214-75010
90105-11036
90105-11038
90179-11010
90179-11018
91511-B0614
91512-G1025

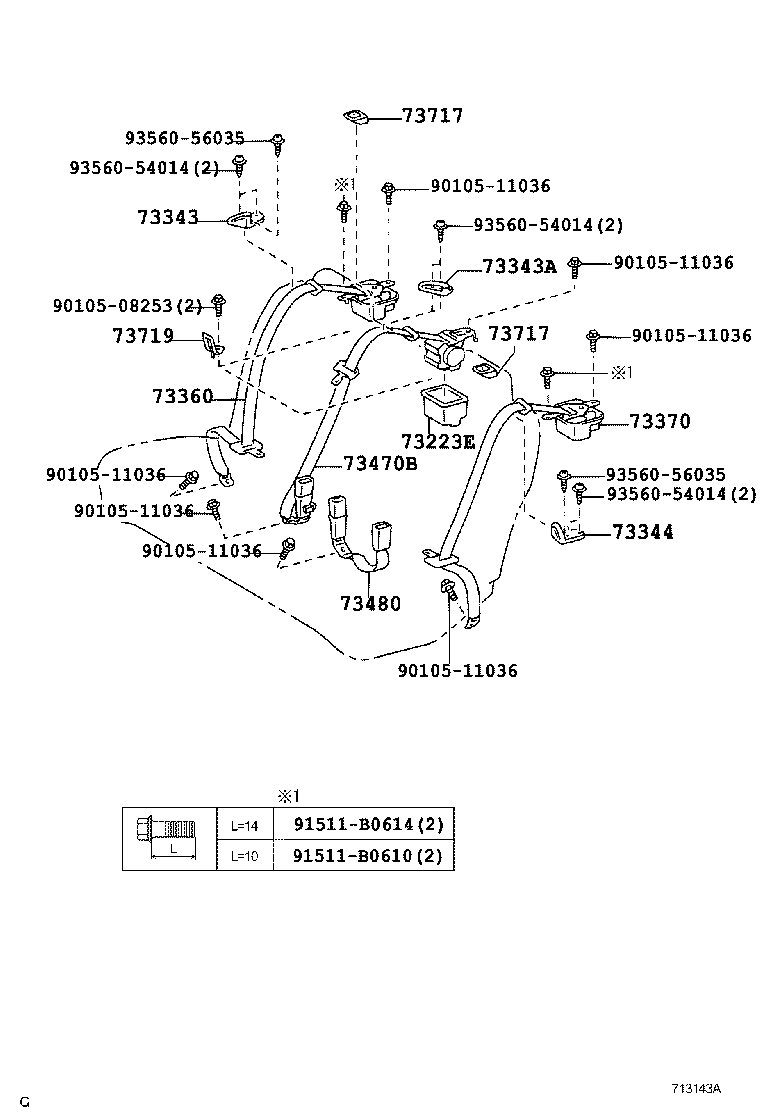

ILLUST NO. 2 OF 2(0312- )

Click highlighted areas on diagram

ﾘﾔ ｼ-ﾄ

diagram 73223E 73343 73343A 73344 73360 73370 73470B 73480 73717 73717 73719 9010508253 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 91511B0610 91511B0614 9356054014 9356054014 9356054014 9356056035 9356056035
Part # Description Qty Price
73223E - CLIP, REAR SEAT BELT RETRACTOR COVER
73223-30070

GRS18#

 1
73343 - GUIDE, REAR SEAT SHOULDER BELT, RH
73330-33010B1

GRS18#

GRAY,TRIM1#

 1
73330-33010A1

GRS18#..ROY,ROYEX,ROYG

IVORY,TRIM0#

 1
73343A - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-30060B5

GRS18#

GRAY,TRIM1#

 1
73343-30060A2

GRS18#..ROY,ROYEX,ROYG

NEW IVORY,TRIM0#

 1
73344 - GUIDE, REAR SEAT SHOULDER BELT, LH
73340-33010A2

GRS18#..ROY,ROYEX,ROYG

IVORY,TRIM0#

 1
73340-33010B1

GRS18#

GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-30420B0

GRS18#

GRAY,TRIM1#

 1
73360-30420A0

GRS18#..ROY,ROYEX,ROYG

IVORY & NEW IVORY,TRIM0#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-30230A0

GRS18#..ROY,ROYEX,ROYG

IVORY & NEW IVORY,TRIM0#

 1
73370-30230B0

GRS18#

GRAY,TRIM1#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-30010B0

GRS18#

GRAY,TRIM1#

 1
73470-30010A0

GRS18#..ROY,ROYEX,ROYG

IVORY & NEW IVORY,TRIM0#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-30250B0

GRS18#

GRAY,TRIM1#

 1
73480-30250A0

GRS18#..ROY,ROYEX,ROYG

IVORY & NEW IVORY,TRIM0#

 1
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-50020A0

GRS18#..ROY,ROYEX,ROYG

IVORY,TRIM0#

 2
73717-50020B4

GRS18#

GRAY,TRIM1#

 2
73717 - COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
73717-50020A0

GRS18#..ROY,ROYEX,ROYG

IVORY,TRIM0#

 2
73717-50020B4

GRS18#

GRAY,TRIM1#

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-30010

GRS18#

 2
Common parts
90105-08253
90105-11036
91511-B0610
91511-B0614
93560-54014
93560-56035
