GRS181-AEASH (2004)
Toyota Crown/Majesta

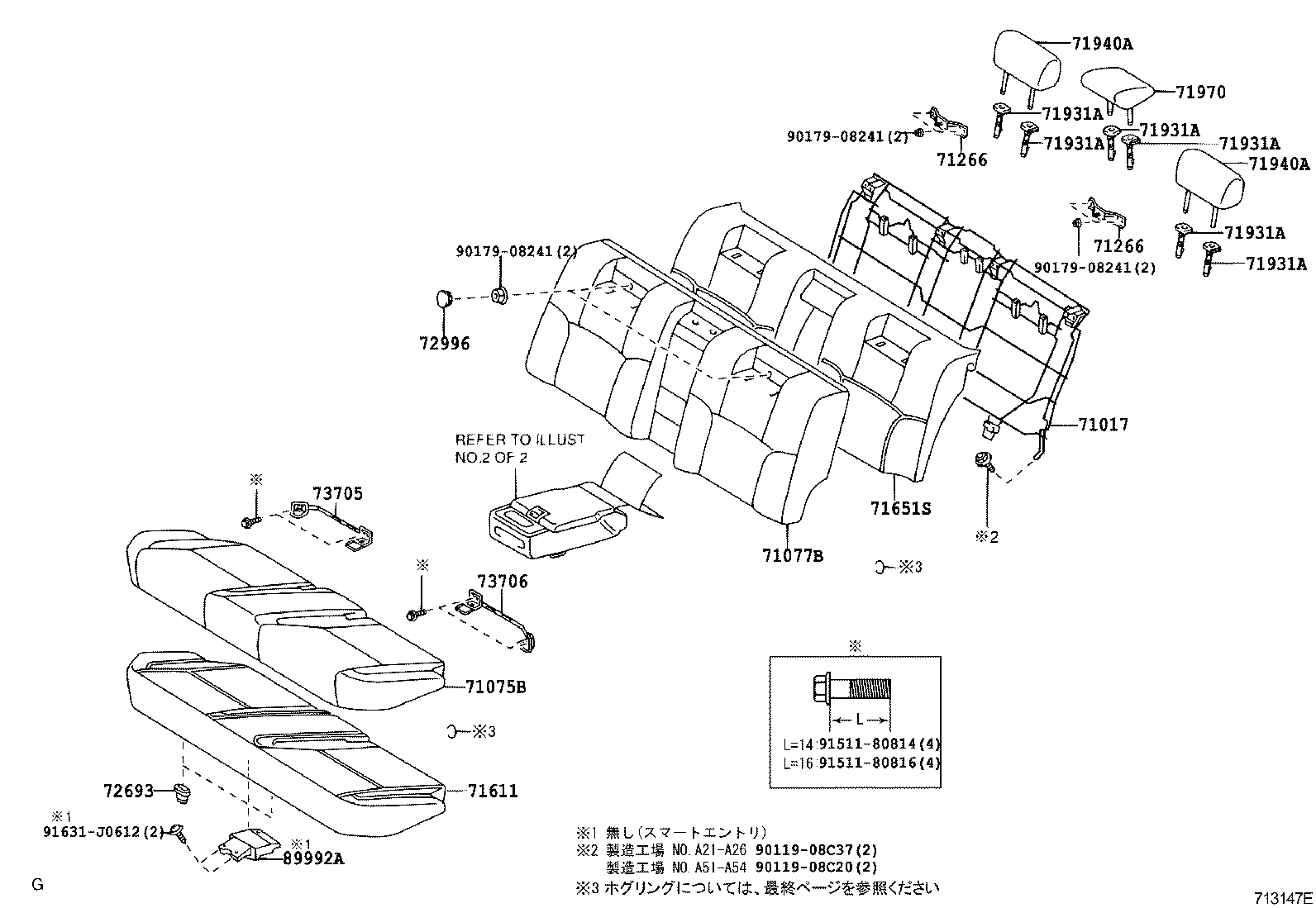

ILLUST NO. 1 OF 2(0312- )
4:2:4 ﾌﾞﾝｶﾂｼｷ ﾘﾔｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-30750 |
GRS18#..ATH,ROY,ROYEX |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-30A30A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71075-30A30A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 71075-30A50A0 |
GRS180,181..ROYEX IVORY,TRIM0# |
1 | ||
| 71075-30A30B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71075-30A30B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 71075-30A30A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 71075-30A30B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 71075-30A50B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 71266 - GUSSET, REAR SEAT BACK FRAME | ||||
| 71266-30130 |
GRS18#..ATH,ROY,ROYEX |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-30160 |
GRS18# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-30A10 |
GRS18#..ATH,ROY,ROYEX |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A6 |
GRS181,182..ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-47010A2 |
GRS18#..ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71970-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ付,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71956-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ無,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71970-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ付,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71956-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ無,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A6 |
GRS181,182..ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-47010A2 |
GRS18#..ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71970-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ付,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71956-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ無,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71970-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ付,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71956-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ無,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A6 |
GRS181,182..ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-47010A2 |
GRS18#..ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71970-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ付,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71956-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ無,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71970-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ付,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71956-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ無,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A6 |
GRS181,182..ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-47010A2 |
GRS18#..ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71970-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ付,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71956-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ無,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71970-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ付,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71956-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ無,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30A40A0 |
GRS180,181..ROYEX IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
2 | ||
| 71940-30A40B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30A40A0 |
GRS180,181..ROYEX IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
2 | ||
| 71940-30A40B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71960-30210B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 71960-30210A0 |
GRS180,181..ROYEX IVORY,TRIM0# |
1 | ||
| 71960-30270B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 71960-30270A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71960-30270A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 71960-30270A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 71960-30270B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71960-30270B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
GRS18# |
2 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-50100B2 |
GRS18#..ATH,ROY,ROYEX GRAY,TRIM1# |
2 | ||
| 72996-50100A2 |
GRS18#..ROY,ROYEX NEW IVORY,TRIM0# |
2 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-50100B2 |
GRS18#..ATH,ROY,ROYEX GRAY,TRIM1# |
2 | ||
| 72996-50100A2 |
GRS18#..ROY,ROYEX NEW IVORY,TRIM0# |
2 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-50100B2 |
GRS18#..ATH,ROY,ROYEX GRAY,TRIM1# |
2 | ||
| 72996-50100A2 |
GRS18#..ROY,ROYEX NEW IVORY,TRIM0# |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-30030 |
GRS18# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-30030 |
GRS18# |
1 | ||
| 89992A - CASE, LESS OSCILLATOR ELECTRICAL KEY | ||||
| 89992-30040 |
GRS180,181..ROYEX |
1 | ||
| Common parts | ||||
| 90119-08C20 | ||||
| 90119-08C37 | ||||
| 90159-60081 | ||||
| 90179-05004 | ||||
| 90179-08241 | ||||
| 90541-04019 | ||||
| 91511-80814 | ||||
| 91511-80816 | ||||
| 91631-J0612 | ||||
| 93560-54010 | ||||

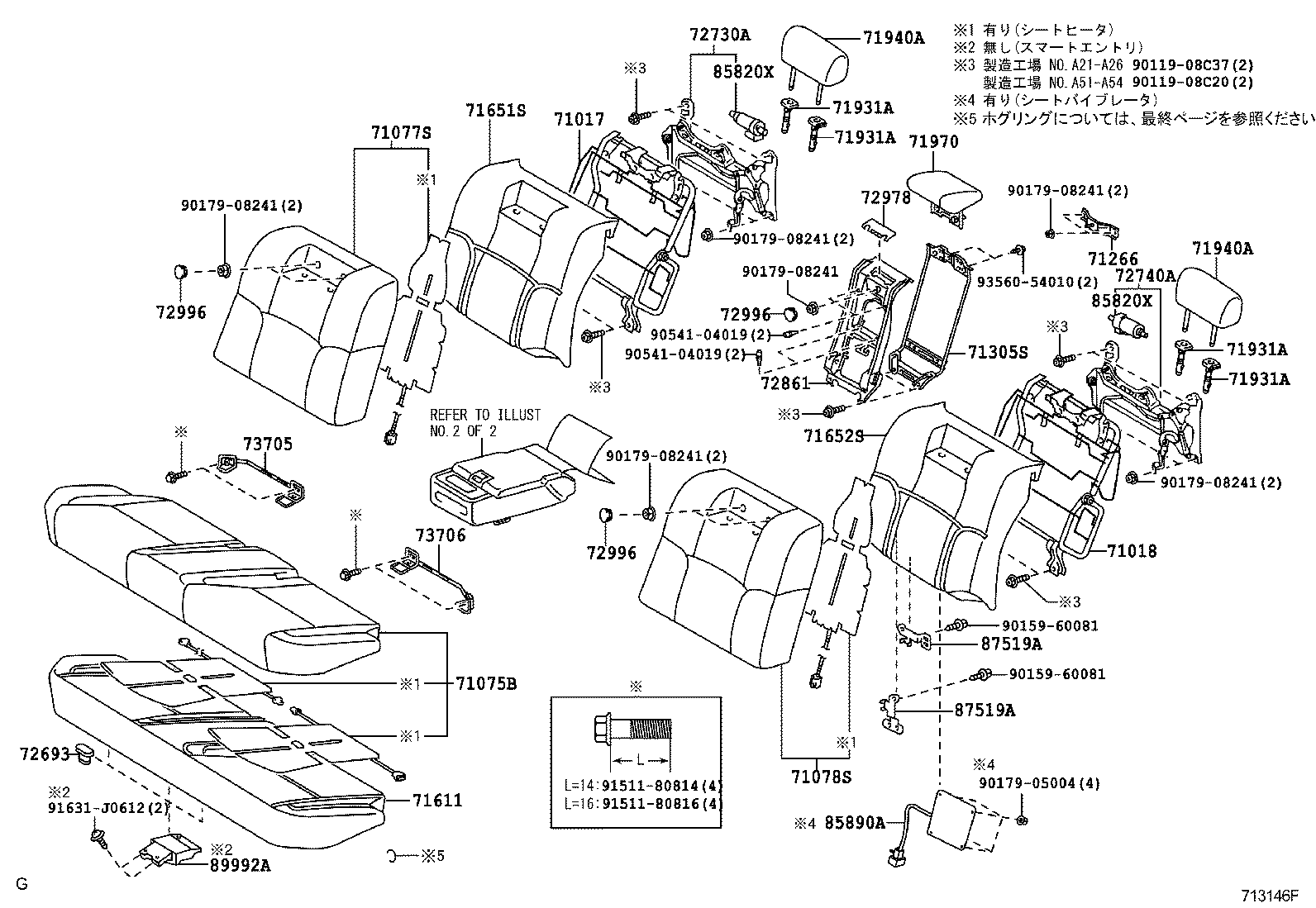

ILLUST NO. 1 OF 2(0312- )
ｺﾃｲ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-30750 |
GRS18#..ATH,ROY,ROYEX |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-30A30A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71075-30A30A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 71075-30A50A0 |
GRS180,181..ROYEX IVORY,TRIM0# |
1 | ||
| 71075-30A30B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71075-30A30B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 71075-30A30A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 71075-30A30B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 71075-30A50B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-30A50A3 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71077-30A50B1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71077-30A70B1 |
GRS181..ROYEX GRAY,TRIM1# |
1 | ||
| 71077-30A70A1 |
GRS181..ROYEX IVORY,TRIM0# |
1 | ||
| 71077-30A50A3 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 71077-30A50B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 71077-30A50A3 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 71077-30A50B1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 71266 - GUSSET, REAR SEAT BACK FRAME | ||||
| 71266-30130 |
GRS18#..ATH,ROY,ROYEX |
2 | ||
| 71266 - GUSSET, REAR SEAT BACK FRAME | ||||
| 71266-30130 |
GRS18#..ATH,ROY,ROYEX |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-30160 |
GRS18# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-30A10 |
GRS18#..ATH,ROY,ROYEX |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A6 |
GRS181,182..ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-47010A2 |
GRS18#..ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71970-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ付,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71956-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ無,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71970-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ付,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71956-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ無,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A6 |
GRS181,182..ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-47010A2 |
GRS18#..ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71970-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ付,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71956-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ無,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71970-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ付,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71956-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ無,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A6 |
GRS181,182..ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-47010A2 |
GRS18#..ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71970-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ付,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71956-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ無,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71970-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ付,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71956-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ無,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A6 |
GRS181,182..ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-47010A2 |
GRS18#..ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71970-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ付,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71956-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ無,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71970-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ付,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71956-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ無,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A6 |
GRS181,182..ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-47010A2 |
GRS18#..ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71970-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ付,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71956-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ無,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71970-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ付,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71956-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ無,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010A6 |
GRS181,182..ROY,ROYEX,ROYG ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71931-47010P2 |
GRS181;GRS182..ROY,ROYG ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-47010A2 |
GRS18#..ROY,ROYEX,ROYG ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71930-47010B9 |
GRS18# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71970-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ付,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71956-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ無,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71970-47010A1 |
GRS18#..ROY,ROYEX ﾛｯｸ付,IVORY,TRIM0#,ｾﾝﾀ |
1 | ||
| 71956-47010B9 |
GRS18#..ATH,ROY,ROYEX ﾛｯｸ無,GRAY,TRIM1#,ｾﾝﾀ |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30A40A0 |
GRS180,181..ROYEX IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
2 | ||
| 71940-30A40B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30A40A0 |
GRS180,181..ROYEX IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
2 | ||
| 71940-30A40B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
2 | ||
| 71940-30A20A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
2 | ||
| 71940-30A20B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71960-30210B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 71960-30210A0 |
GRS180,181..ROYEX IVORY,TRIM0# |
1 | ||
| 71960-30270B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 71960-30270A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
1 | ||
| 71960-30270A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 71960-30270A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 71960-30270B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 71960-30270B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
GRS18# |
2 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-50100B2 |
GRS18#..ATH,ROY,ROYEX GRAY,TRIM1# |
2 | ||
| 72996-50100A2 |
GRS18#..ROY,ROYEX NEW IVORY,TRIM0# |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-30030 |
GRS18# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-30030 |
GRS18# |
1 | ||
| 89992A - CASE, LESS OSCILLATOR ELECTRICAL KEY | ||||
| 89992-30040 |
GRS180,181..ROYEX |
1 | ||
| Common parts | ||||
| 90119-08C20 | ||||
| 90119-08C37 | ||||
| 90179-08241 | ||||
| 91511-80814 | ||||
| 91511-80816 | ||||
| 91631-J0612 | ||||

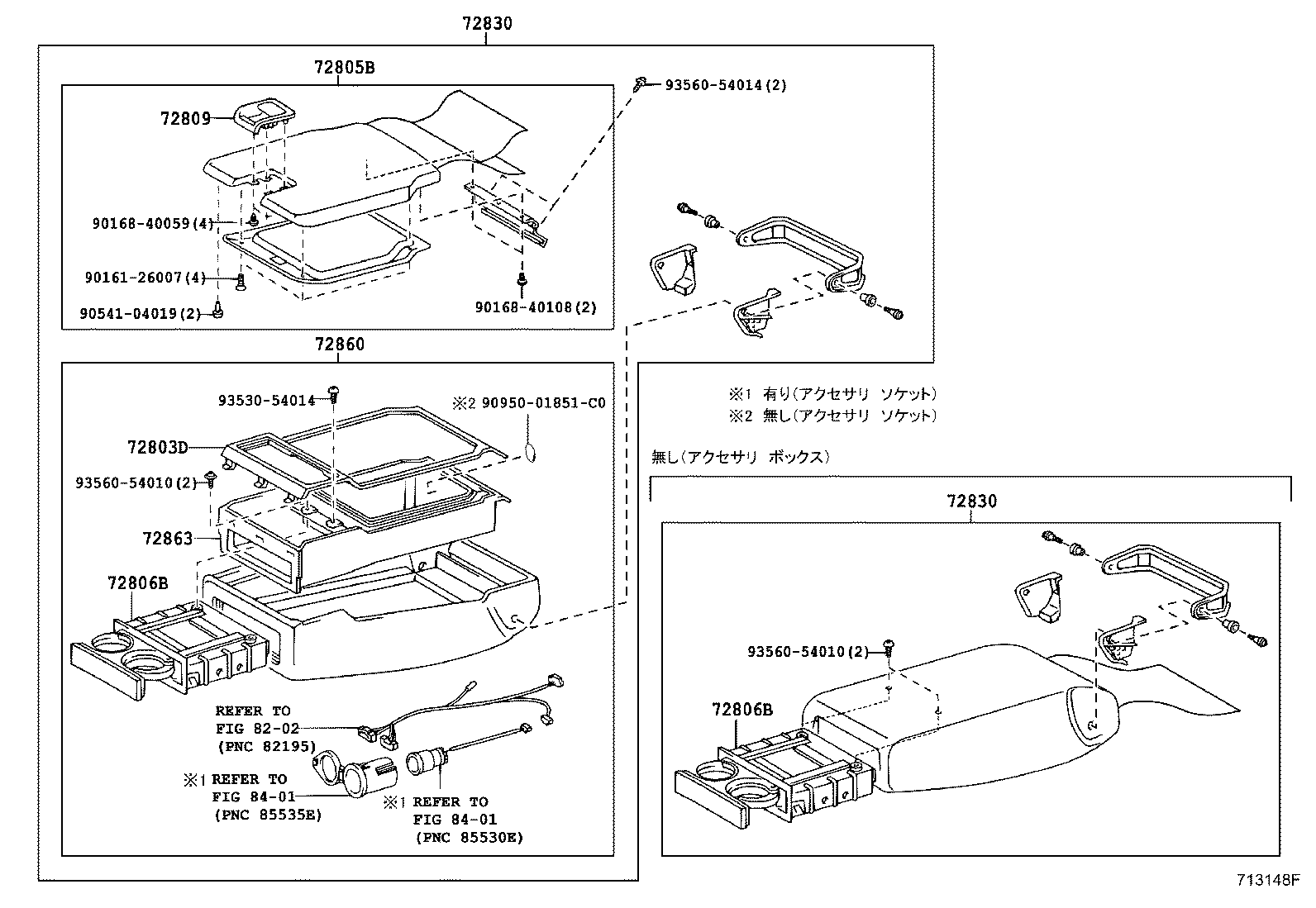

ILLUST NO. 2 OF 2(0312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72805B - DOOR SUB-ASSY, REAR SEAT CENTER ARMREST | ||||
| 72805-30300A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 72805-30300B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 72805-30300A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
1 | ||
| 72805-30300B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 72805-30300A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 72805-30300B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-30090A0 |
GRS18#..ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 72806-30090B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-30090A0 |
GRS18#..ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 72806-30090B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 72809 - LOCK SUB-ASSY, CENTER ARMREST | ||||
| 72809-30030B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 72809-30030A0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
1 | ||
| 72809-30030B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 72809-30030A0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 72809-30030B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 72809-30030B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 72809-30030A0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30A60A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY & NEW IVORY,TRIM0# |
1 | ||
| 72830-30A80A1 |
GRS180,181..ROYEX IVORY,TRIM0# |
1 | ||
| 72830-30A60B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 72830-30A60A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY & NEW IVORY,TRIM0# |
1 | ||
| 72830-30A60B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 72830-30A60A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 72830-30A80B1 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 72830-30A60B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30A60A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY & NEW IVORY,TRIM0# |
1 | ||
| 72830-30A80A1 |
GRS180,181..ROYEX IVORY,TRIM0# |
1 | ||
| 72830-30A60B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 72830-30A60A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY & NEW IVORY,TRIM0# |
1 | ||
| 72830-30A60B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 72830-30A60A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 72830-30A80B1 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 72830-30A60B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 72860 - BOX ASSY, REAR SEAT CENTER ARMREST | ||||
| 72860-30340A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),IVORY,TRIM0# |
1 | ||
| 72860-30340A1 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 72860-30340B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 72860-30340B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ),GRAY,TRIM1# |
1 | ||
| 72860-30340A1 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 72860-30340B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 72863 - BOX, REAR SEAT CENTER ARMREST | ||||
| 72863-30070 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 72863-30070 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| 72863-30070 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 72863-30070 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&SRSｴｱﾊﾞｯｸﾞ−有り(運転席+助手席+ひざ+ｻｲﾄﾞ+ｶｰﾃﾝｼｰﾙﾄﾞ) |
1 | ||
| Common parts | ||||
| 90161-26007 | ||||
| 90168-40059 | ||||
| 90168-40108 | ||||
| 90541-04019 | ||||
| 90950-01851C0 | ||||
| 93530-54014 | ||||
| 93560-54010 | ||||
| 93560-54014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
(0312- )

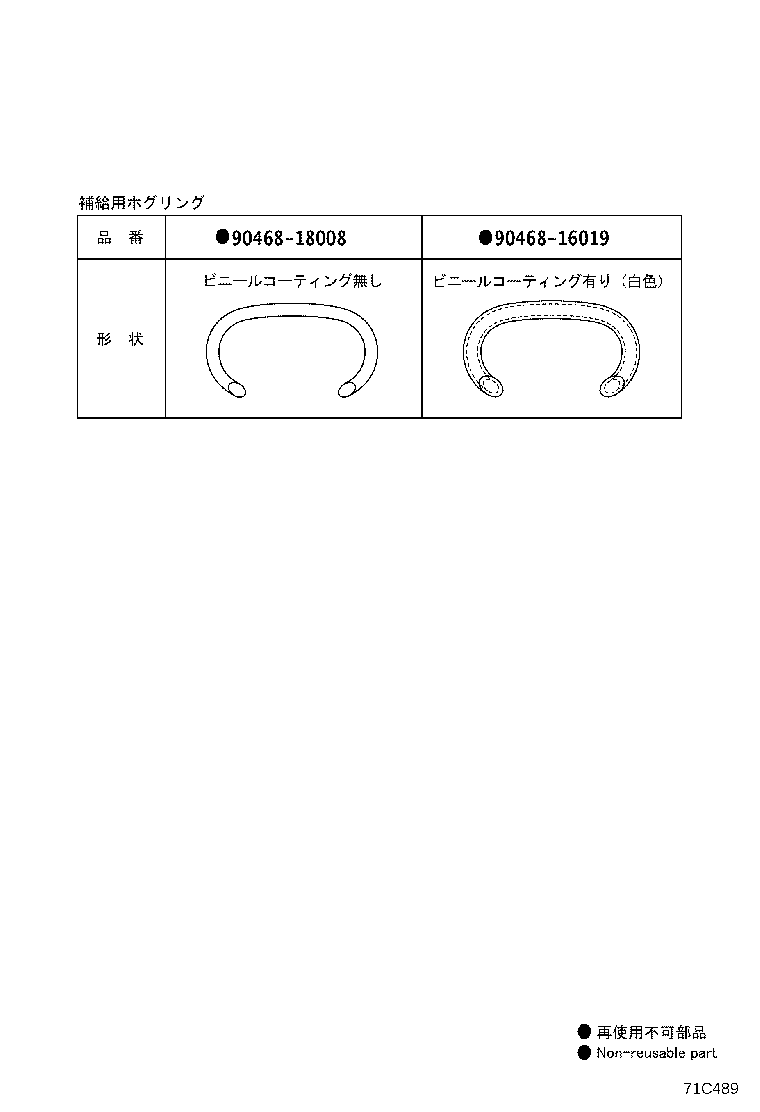

ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
