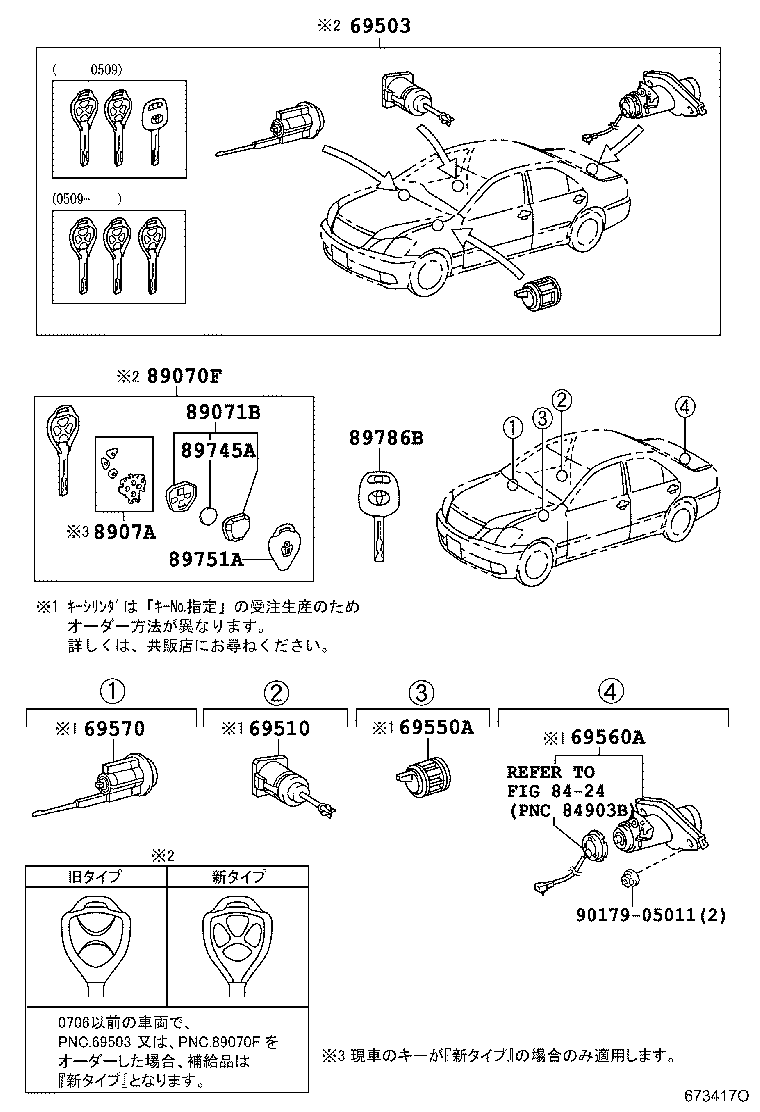

GRS181-AEASH (2004)
Toyota Crown/Majesta
(0312- )GRS18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-30A10 |
GRS180,181..ROYEX |
1 | ||
| 69005-30A20 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 69005-30A20 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-30280 |
GRS18# |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-30150 |
GRS18# |
1 | ||
| 69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69560-50080 |
GRS18# |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-60160 |
GRS180,181..ROYEX |
1 | ||
| 89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY) | ||||
| 89070-30690 |
GRS180,181..ROYEX |
1 | ||
| 89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL | ||||
| 89071-30080 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
2 | ||
| 89071-30080 |
GRS180,181..ROYEX |
2 | ||
| 8907A - SWITCH SET, TRANSMITTER | ||||
| 8907A-33020 |
GRS18# |
2 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
GRS180,181..ROYEX |
1 | ||
| 89745-50020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 89745-48030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89745-50020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-30020 |
GRS180,181..ROYEX |
2 | ||
| 89751-30070 |
GRS18#..ATH,ROY,ROYG |
3 | ||
| 89751-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
2 | ||
| 89751-30070 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
3 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-50180 |
GRS180,181..ROYEX ｶｯﾄｷｰ |
1 | ||
| Common parts | ||||
| 90179-05011 | ||||
| Linked diagrams | ||||
| 8424 | ||||

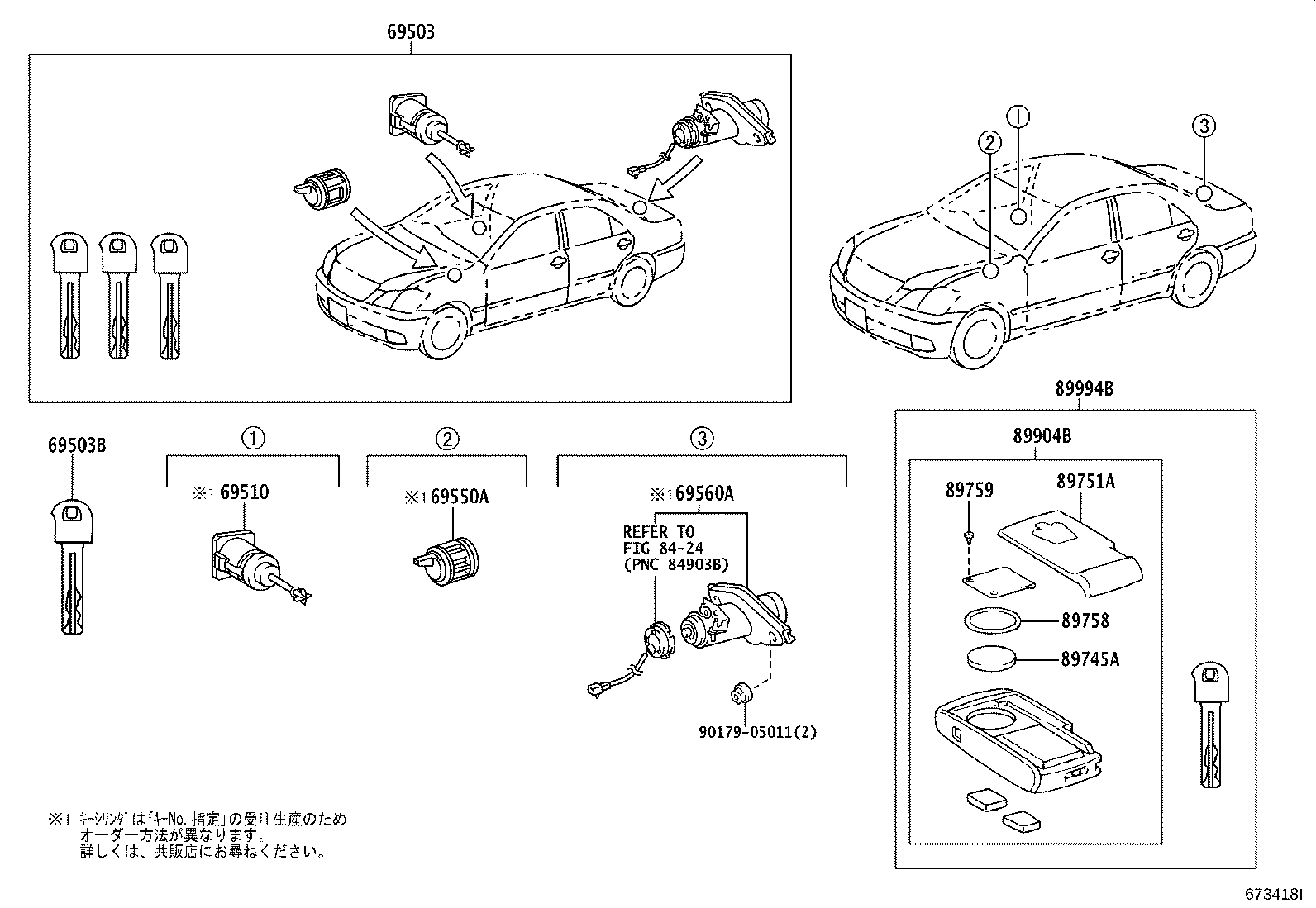

(0312-0509)GRS18# ; (0406-0606)UZS18#
ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-30A10 |
GRS180,181..ROYEX |
1 | ||
| 69005-30A20 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 69005-30A20 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69503B - KEY, CUT | ||||
| 69515-30270 |
GRS181..ROYEX ﾏｽﾀｰｷｰ,W(*68),Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69515-30270 |
GRS18#..ATH,ROY,ROYG ﾏｽﾀｰｷｰ,W(*68) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-30280 |
GRS18# |
1 | ||
| 69550A - CYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 69550-30150 |
GRS18# |
1 | ||
| 69560A - CYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK | ||||
| 69560-50080 |
GRS18# |
1 | ||
| 89745A - BATTERY, TRANSMITTER | ||||
| 89745-48030 |
GRS180,181..ROYEX |
1 | ||
| 89745-50020 |
GRS180..5FC..(ATH,ROY);GRS181,182,183,UZS18#..A,ATH,C,ROY,ROYG |
1 | ||
| 89745-48030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89745-50020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 89751A - COVER, TRANSMITTER HOUSING | ||||
| 89751-30020 |
GRS180,181..ROYEX |
2 | ||
| 89751-30070 |
GRS18#..ATH,ROY,ROYG |
3 | ||
| 89751-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
2 | ||
| 89751-30070 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
3 | ||
| 89758 - PACKING, DOOR CONTROL TRANSMITTER | ||||
| 89758-30010 |
GRS18#..ATH,ROY,ROYG |
3 | ||
| 89758-30010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
3 | ||
| 89759 - SCREW, DOOR CONTROL TRANSMITTER | ||||
| 89759-30010 |
GRS18#..ATH,ROY,ROYG |
6 | ||
| 89759-40010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
6 | ||
| 89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY | ||||
| 89904-30080 |
GRS18#..ATH,ROY,ROYG ｽﾏｰﾄ機能無し(ｻﾌﾞｷｰ) |
1 | ||
| 89904-30070 |
GRS18#..ATH,ROY,ROYG ｽﾏｰﾄ機能有り(ﾏｽﾀｰｷｰ) |
1 | ||
| 89904-30070 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ｽﾏｰﾄ機能有り(ﾏｽﾀｰｷｰ) |
1 | ||
| 89904-30080 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ｽﾏｰﾄ機能無し(ｻﾌﾞｷｰ) |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-30050 |
GRS18#..ATH,ROY,ROYG ｽﾏｰﾄｷｰ用 |
2 | ||
| 89994-30060 |
GRS18#..ATH,ROY,ROYG ﾜｲﾔﾚｽﾄﾞｱﾛｯｸｷｰ用 |
1 | ||
| 89994-30050 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ｽﾏｰﾄｷｰ用 |
2 | ||
| 89994-30060 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,ﾜｲﾔﾚｽﾄﾞｱﾛｯｸｷｰ用 |
1 | ||
| Common parts | ||||
| 90179-05011 | ||||
| Linked diagrams | ||||
| 8424 | ||||
