GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

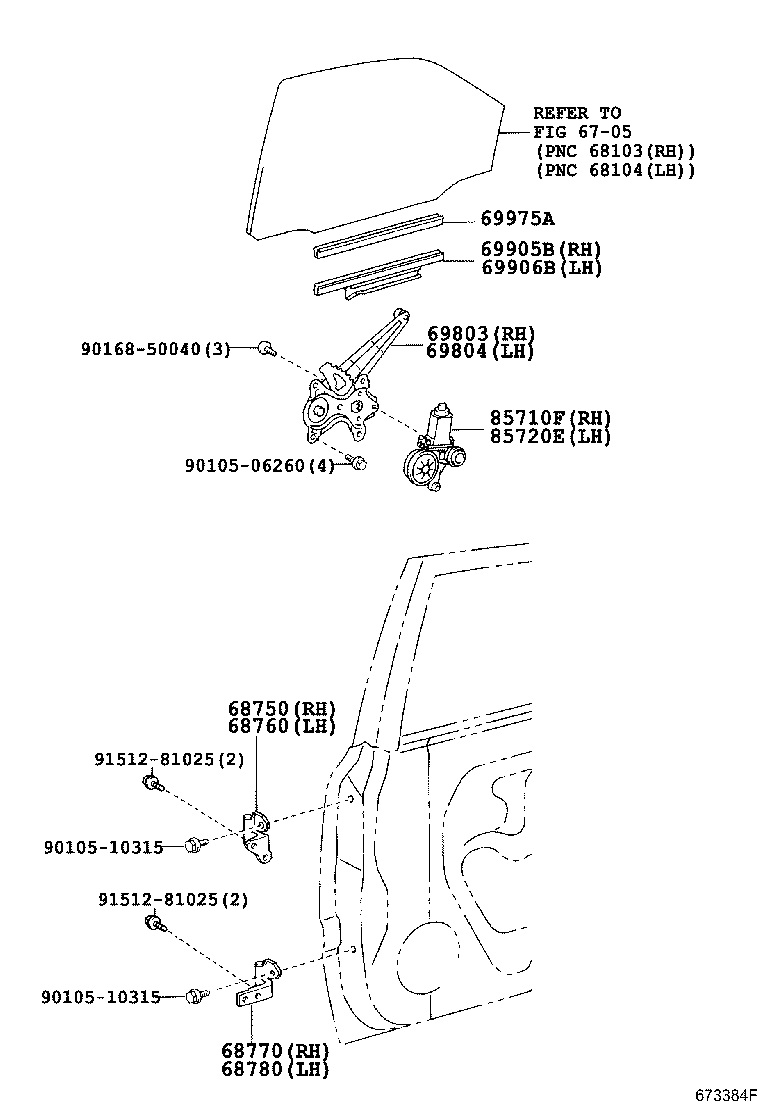

Click highlighted areas on diagram

diagram 6705 68750 68760 68770 68780 69803 69804 69905B 69906B 69975A 85710F 85720E 9010506260 9010510315 9010510315 9016850040 9151281025 9151281025
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-30120

GRS180,181..5FC;GRS182,183,UZS18#

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-30130

GRS18#

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-30120

GRS18#

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-30130

GRS18#

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-22200

GRS18#

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-22200

GRS18#

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-22060

GRS180,181..5FC;GRS182,183,UZS18#

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-22050

GRS180,181..5FC;GRS182,183,UZS18#

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-60040

GRS180,181..5FC;GRS182,183,UZS18#

 2
85710F - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-58010

GRS18#

 1
85720E - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-58010

GRS18#

 1
Common parts
90105-06260
90105-10315
90168-50040
91512-81025
Linked diagrams
6705
