GRS181-AEASH (2004)
Toyota Crown/Majesta
(0312-0509)GRS18# ; (0312-0606)UZS18#

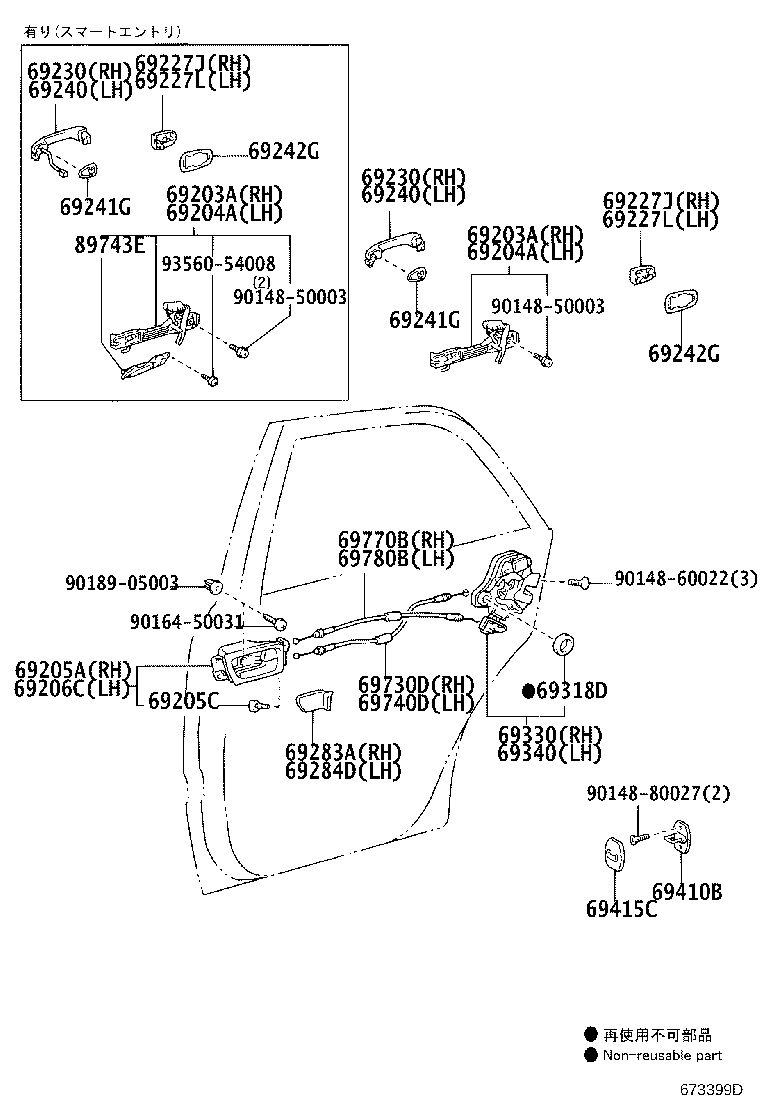

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-30010 |
GRS180,181..ROYEX |
1 | ||
| 69203-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 69203-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-30010 |
GRS180,181..ROYEX |
1 | ||
| 69203-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 69203-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 69204-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69204-30010 |
GRS180,181..ROYEX |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 69204-30020 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69204-30010 |
GRS180,181..ROYEX |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-30170A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 69205-30170C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 69205-30170B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GRS18# |
4 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-30170A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 69206-30170B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 69206-30170C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69207-30040B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69207-30040A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69227-30070 |
GRS180,181..ROYEX *CR |
1 | ||
| 69207-30040C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69207-30040B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69207-30040B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69207-30040C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69207-30040A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69207-30040A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69207-30040J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69207-30040D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69207-30040A3 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69207-30040B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69207-30040B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69207-30040B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69207-30040A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69227-30070 |
GRS180,181..ROYEX *CR |
1 | ||
| 69207-30040C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69207-30040B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69207-30040B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69207-30040C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69207-30040A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69207-30040A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69207-30040J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69207-30040D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69207-30040A3 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69207-30040B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69207-30040B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69207-30040A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69207-30040B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69207-30040B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69207-30040C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69207-30040B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69207-30040D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69207-30040J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69227-30070 |
GRS180,181..ROYEX *CR |
1 | ||
| 69207-30040A3 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69207-30040B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69207-30040A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69207-30040B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69207-30040C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69207-30040A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69207-30040A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69207-30040B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69207-30040B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69207-30040C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69207-30040B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69207-30040D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69207-30040J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69227-30070 |
GRS180,181..ROYEX *CR |
1 | ||
| 69207-30040A3 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69207-30040B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69207-30040A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69207-30040B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69207-30040C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69207-30040A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-30290A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69210-58010 |
GRS180,181..ROYEX ﾒｯｷ |
1 | ||
| 69210-30290B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69210-30290B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69210-30290B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69210-30290D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69210-30290C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69210-30290A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69210-30290J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69210-30290C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69210-30290A4 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69210-30290B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-30290A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69210-58010 |
GRS180,181..ROYEX ﾒｯｷ |
1 | ||
| 69210-30290B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69210-30290B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69210-30290B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69210-30290D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69210-30290C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69210-30290A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69210-30290J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69210-30290C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69210-30290A4 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69210-30290B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69210-30290A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69210-58010 |
GRS180,181..ROYEX ﾒｯｷ |
1 | ||
| 69210-30290B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69210-30290J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69210-30290A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69210-30290A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69210-30290C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69210-30290B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69210-30290B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69210-30290B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69210-30290A4 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69210-30290D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69210-30290A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69210-58010 |
GRS180,181..ROYEX ﾒｯｷ |
1 | ||
| 69210-30290B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69210-30290J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69210-30290A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69210-30290A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69210-30290C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69210-30290B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69210-30290B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69210-30290B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69210-30290A4 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69210-30290D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
GRS18# |
2 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
GRS18# |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
GRS18# |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
GRS18# |
2 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-33020B3 |
GRS18# GRAY,TRIM1# |
1 | ||
| 69283-33020A1 |
GRS18#..ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-33020A1 |
GRS18#..ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 69284-33020B3 |
GRS18# GRAY,TRIM1# |
1 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GRS18# |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-30480 |
GRS18# |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-30530 |
GRS18# |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-33020 |
GRS18# |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-33010 |
GRS18# |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-30140 |
GRS18# |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-30140 |
GRS18# |
1 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-30270 |
GRS18# |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-30270 |
GRS18# |
1 | ||
| 89743E - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-30130 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,左側 |
1 | ||
| 89743-68010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,右側 |
1 | ||
| 89743-30130 |
GRS18#..ATH,ROY,ROYG 左側 |
1 | ||
| 89743-68010 |
GRS18#..ATH,ROY,ROYG 右側 |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
| 93560-54008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
