GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

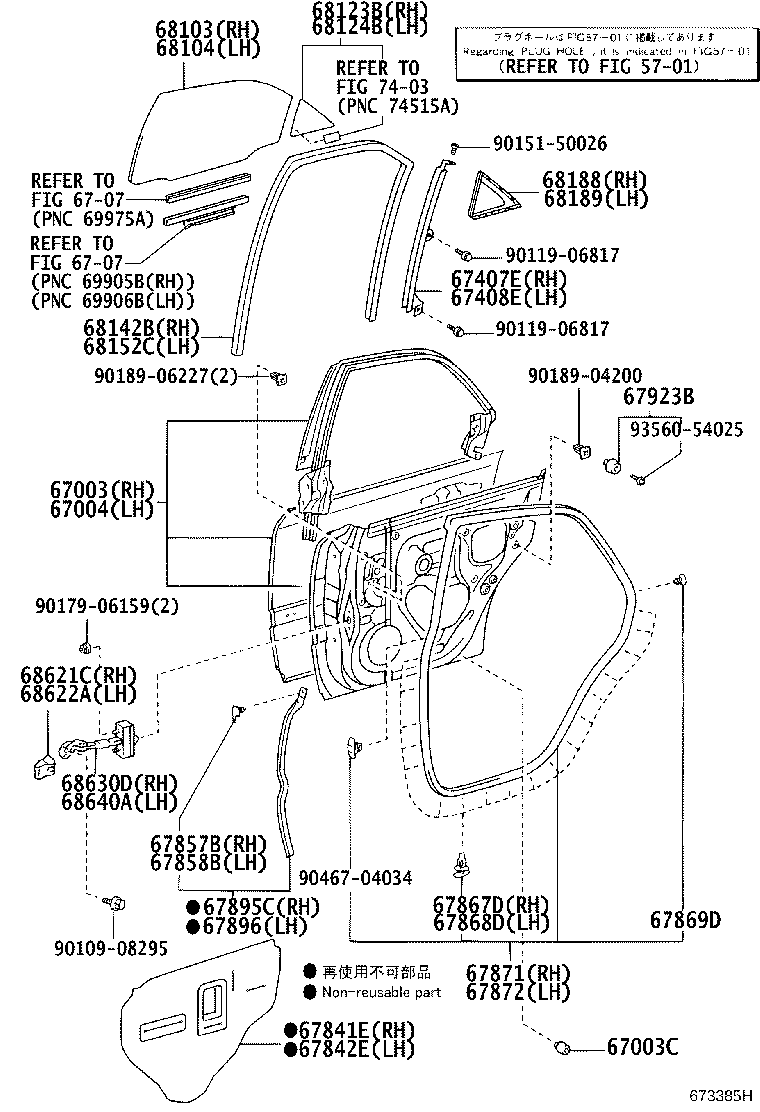

ILLUST NO. 1 OF 2(0312- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 5701 67003 67003C 67004 6707 6707 67407E 67408E 67841E 67842E 67857B 67858B 67867D 67868D 67869D 67871 67872 67895C 67896 67923B 68103 68104 68123B 68124B 68142B 68152C 68188 68189 68621C 68622A 68630D 68640A 7403 9010908295 9011906817 9011906817 9015150026 9017906159 9018904200 9018906227 9046704034 9356054025
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-30590

GRS18#

 1
67003C - CUSHION, REAR DOOR PANEL
90541-09069

GRS18#

 2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-30590

GRS18#

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-30180

GRS18#

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-30170

GRS18#

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-30410

GRS18#

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-30270

GRS18#

 1
67857B - PROTECTOR, REAR DOOR PANEL, RH
67857-30030

GRS18#

 1
67858B - PROTECTOR, REAR DOOR PANEL, LH
67858-30040

GRS18#

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150

GRS18#

 18
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

GRS18#

 18
67869D - CLIP, DOOR WEATHERSTRIP
90467-05017C0

GRS180,181..5FC;GRS182,183,UZS18#

BLACK

 2
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-30230

GRS18#

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-30230

GRS18#

 1
67895C - WEATHERSTRIP, REAR DOOR, NO.3 RH
67895-30010

GRS18#

 1
67896 - WEATHERSTRIP, REAR DOOR, NO.3 LH
67896-30010

GRS18#

 1
67923B - CUSHION, REAR DOOR STIFFENER, NO.1
67923-24030

GRS18#

 2
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-30740

GRS18#

*UVCT,厚さ=4.0,ｸｰﾙｸﾞﾘｰﾝ

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-30660

GRS18#

*UVCT,厚さ=4.0,ｸｰﾙｸﾞﾘｰﾝ

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-30560

GRS18#

*UVCT,厚さ=4.0,ｸｰﾙｸﾞﾘｰﾝ

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-30500

GRS18#

*UVCT,厚さ=4.0,ｸｰﾙｸﾞﾘｰﾝ

 1
68142B - RUN, REAR DOOR WINDOW, RH
68142-30180

GRS18#

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-30080

GRS18#

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-30150

GRS18#

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-30130

GRS18#

 1
68621C - COVER, REAR DOOR CHECK, RH
68621-33010

GRS18#

 1
68622A - COVER, REAR DOOR CHECK, LH
68622-33010

GRS18#

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-30190

GRS18#

 1
68640A - CHECK ASSY, REAR DOOR, LH
68640-30090

GRS18#

 1
Common parts
90109-08295
90119-06817
90151-50026
90179-06159
90189-04200
90189-06227
90467-04034
93560-54025
Linked diagrams
5701
6707
7403

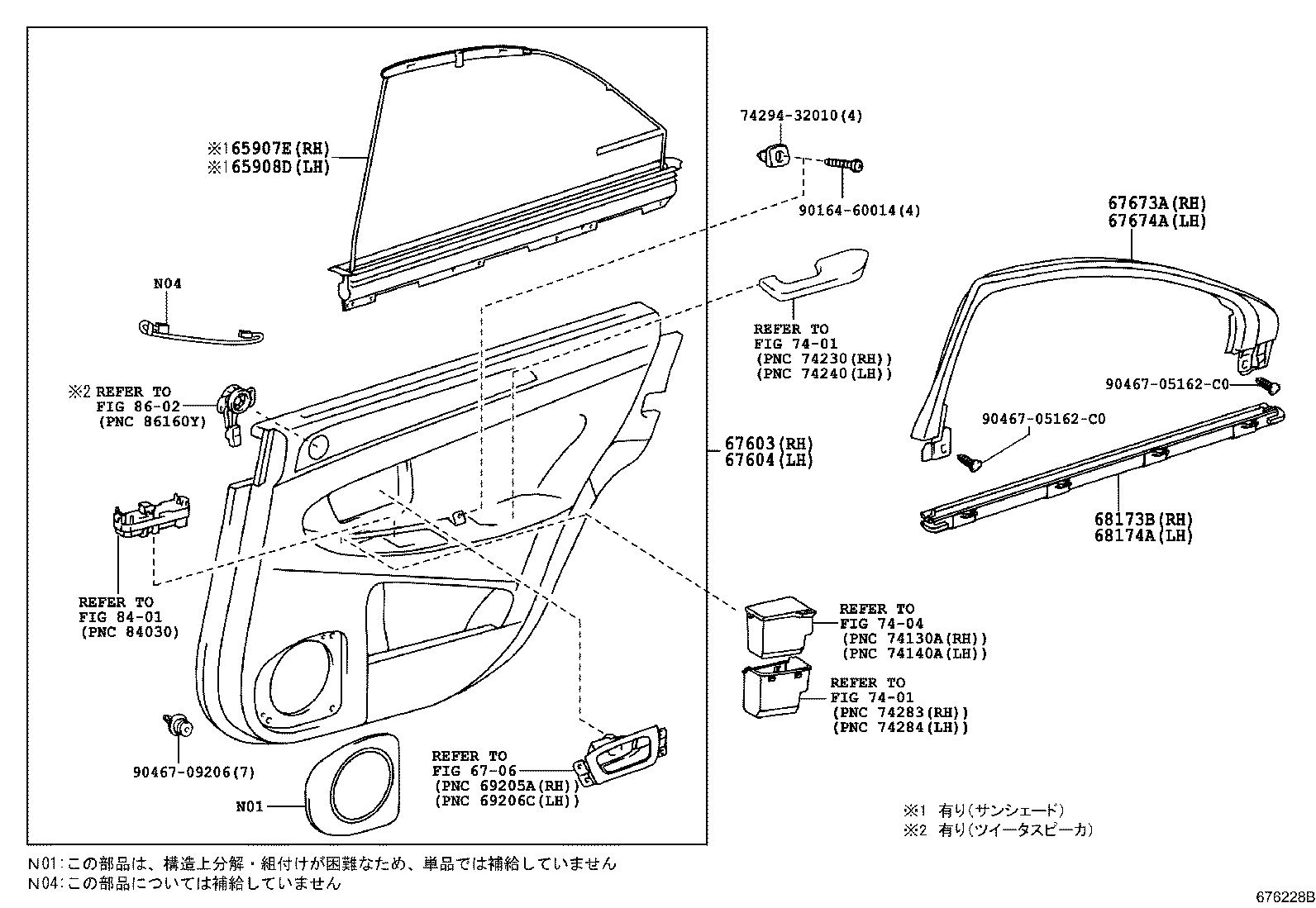

ILLUST NO. 2 OF 2(0312-0509)GRS18# ; (0509-0802)GRS18#

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 65907E 65908D 6706 67603 67604 67673A 67674A 68173B 68174A 7401 7401 7404 7429432010 8401 8602 9016460014 9046705162C0 9046705162C0 9046709206
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67010-30110B0

GRS180,181..ROYEX

GRAY,TRIM1#

 1
67010-30110A0

GRS180,181..ROYEX

IVORY,TRIM0#

 1
67630-30A30A0

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶﾞｰﾄﾞ織物,IVORY,TRIM0#

 1
67630-30A30B0

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶﾞｰﾄﾞ織物,GRAY,TRIM1#

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-30A30A0

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶﾞｰﾄﾞ織物,IVORY,TRIM0#

 1
67020-30110B0

GRS180,181..ROYEX

GRAY,TRIM1#

 1
67020-30110A0

GRS180,181..ROYEX

IVORY,TRIM0#

 1
67640-30A30B0

GRS180,181..ROYEX

Qﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶﾞｰﾄﾞ織物,GRAY,TRIM1#

 1
67673A - GARNISH, REAR DOOR FRAME, RH
67673-30050

GRS18#..ATH,ROY,ROYEX

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-30050

GRS18#..ATH,ROY,ROYEX

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-30160

GRS180,181..5FC;GRS182,183,UZS18#

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-30120

GRS180,181..5FC;GRS182,183,UZS18#

 1
Common parts
74294-32010
90164-60014
90467-05162C0
90467-09206
Linked diagrams
6706
7401
7404
8401
8602
