GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

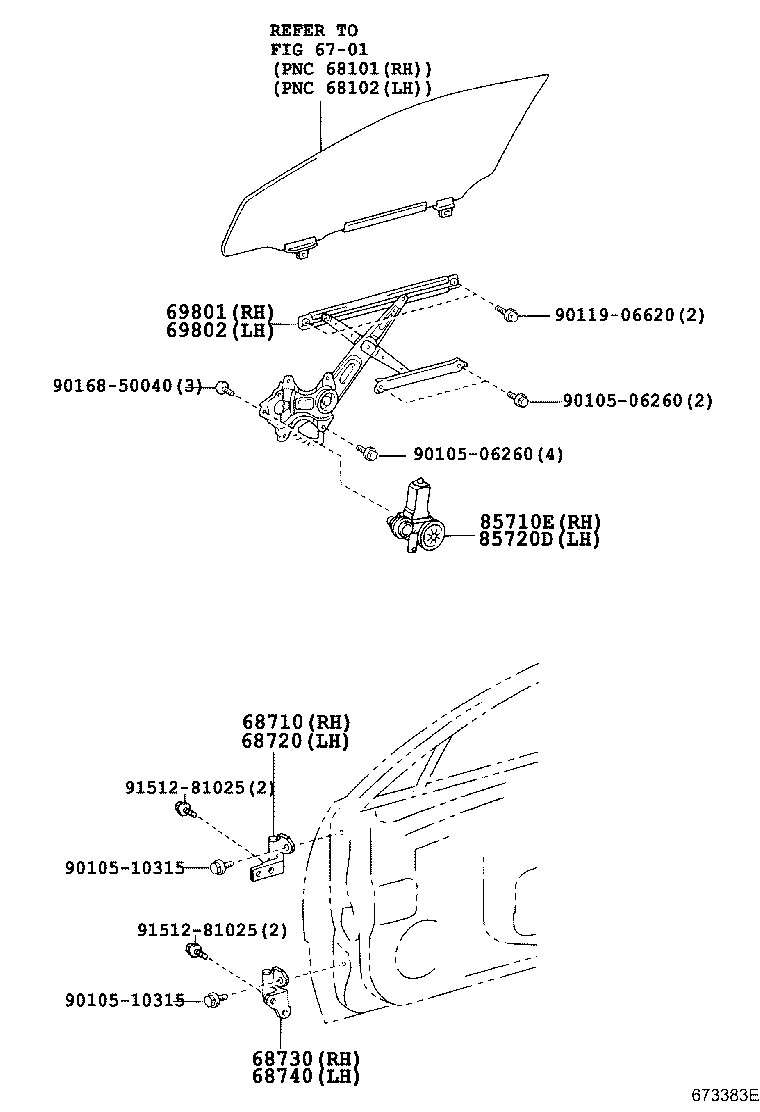

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69801 69802 85710E 85720D 9010506260 9010506260 9010510315 9010510315 9011906620 9016850040 9151281025 9151281025
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-30190

GRS180,181..5FC;GRS182,183,UZS18#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-30110

GRS18#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-30160

GRS18#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-30060

GRS18#

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-30260

GRS18#

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-30260

GRS18#

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-58010

GRS18#

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-58010

GRS18#

 1
Common parts
90105-06260
90105-10315
90119-06620
90168-50040
91512-81025
Linked diagrams
6701
