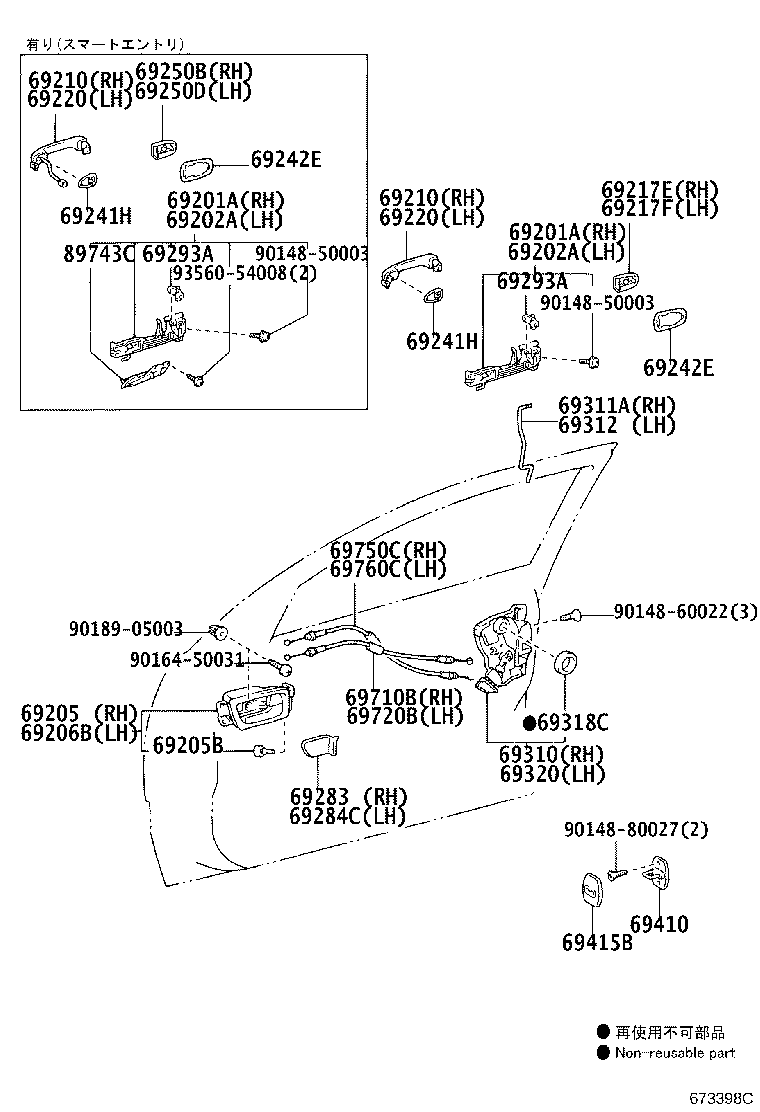

GRS181-AEASH (2004)
Toyota Crown/Majesta
(0312-0509)GRS18# ; (0312-0606)UZS18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-30030 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 69201-30020 |
GRS180,181..ROYEX |
1 | ||
| 69201-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-30030 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 69201-30020 |
GRS180,181..ROYEX |
1 | ||
| 69201-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-30030 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 69202-30020 |
GRS180,181..ROYEX |
1 | ||
| 69202-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-30030 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 69202-30020 |
GRS180,181..ROYEX |
1 | ||
| 69202-30030 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30170C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 69205-30170B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 69205-30170A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GRS18# |
4 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30170B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 69206-30170A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 69206-30170C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-30290B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69210-30290B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69210-30290A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69210-30290C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69210-58010 |
GRS180,181..ROYEX ﾒｯｷ |
1 | ||
| 69210-30290B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69210-30290B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69210-30290A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69210-30290A4 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69210-30290B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69210-30290J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69210-30290D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-30290B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69210-30290B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69210-30290A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69210-30290C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69210-58010 |
GRS180,181..ROYEX ﾒｯｷ |
1 | ||
| 69210-30290B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69210-30290B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69210-30290A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69210-30290A4 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69210-30290B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69210-30290J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69210-30290D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-58010 |
GRS180,181..ROYEX *CR |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-30040 |
GRS180,181..ROYEX *CR |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-30290C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69210-30290A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69210-30290B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69210-30290A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69210-30290B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69210-30290J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69210-30290C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69210-58010 |
GRS180,181..ROYEX ﾒｯｷ |
1 | ||
| 69210-30290B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69210-30290A4 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69210-30290D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69210-30290B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-30290C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69210-30290A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69210-30290B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69210-30290A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69210-30290B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69210-30290A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69210-30290J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69210-30290C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69210-58010 |
GRS180,181..ROYEX ﾒｯｷ |
1 | ||
| 69210-30290B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69210-30290A4 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69210-30290D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69210-30290B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
GRS18# |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-28060 |
GRS18# |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
GRS18# |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-60030 |
GRS18# |
2 | ||
| 69250B - COVER ASSY, DOOR OUTSIDE HANDLE | ||||
| 69250-30010B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69250-30010B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69250-30010A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69250-30010B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69250-30010A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69250-30010C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69250-30010J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69250-30010B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69250-30010A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69250-30010D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69250-30010C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69250-30010A5 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69250-30010B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69250D - COVER ASSY, DOOR OUTSIDE HANDLE, LH | ||||
| 69250-30020B0 |
GRS18#..ATH,ROY,ROYG SILVER ME.,1C0 |
1 | ||
| 69250-30020B1 |
GRS18#..ATH,ROY,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 69250-30020C0 |
GRS18#..ATH,ROY,ROYG BLACK,202 |
1 | ||
| 69250-30020A1 |
GRS18#..ATH,ROY,ROYG WHITE PEARL CS.,062 |
1 | ||
| 69250-30020A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SUPER WHITE 2,040 |
1 | ||
| 69250-30020A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,WHITE PEARL CS.,062 |
1 | ||
| 69250-30020J0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,DARK BLUE MC.,8P8 |
1 | ||
| 69250-30020B1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SATIN PEARL MC.,1F3 |
1 | ||
| 69250-30020B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,SILVER ME.,1C0 |
1 | ||
| 69250-30020B2 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7 |
1 | ||
| 69250-30020C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK,202 |
1 | ||
| 69250-30020A4 |
GRS181..ROYEX;GRS180,182,183..ROY ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067 |
1 | ||
| 69250-30020D0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACKISH RED MC.,3R0 |
1 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-33020B3 |
GRS18# GRAY,TRIM1# |
1 | ||
| 69283-33020A1 |
GRS18#..ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-33020B3 |
GRS18# GRAY,TRIM1# |
1 | ||
| 69284-33020A1 |
GRS18#..ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
GRS18# 右側 |
1 | ||
| 69293-12040 |
GRS18# 左側 |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
GRS18# 右側 |
1 | ||
| 69293-12040 |
GRS18# 左側 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-3A130 |
GRS18# |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-30110 |
GRS18# |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-30110 |
GRS18# |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GRS18# |
2 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-30A00 |
GRS18# |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-33020 |
GRS18# |
2 | ||
| 69415B - COVER, DOOR LOCK STRIKER, FRONT | ||||
| 69415-33010 |
GRS18# |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-30190 |
GRS18# |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-30190 |
GRS18# |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-30150 |
GRS18# |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-30150 |
GRS18# |
1 | ||
| 89743C - BRACKET, ELECTRICAL KEY WIRE HARNESS | ||||
| 89743-30130 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,左側 |
1 | ||
| 89743-30130 |
GRS18#..ATH,ROY,ROYG 左側 |
1 | ||
| 89743-68010 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,右側 |
1 | ||
| 89743-68010 |
GRS18#..ATH,ROY,ROYG 右側 |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
| 93560-54008 | ||||
