GRS181-AEASH (2004)
Toyota Crown/Majesta

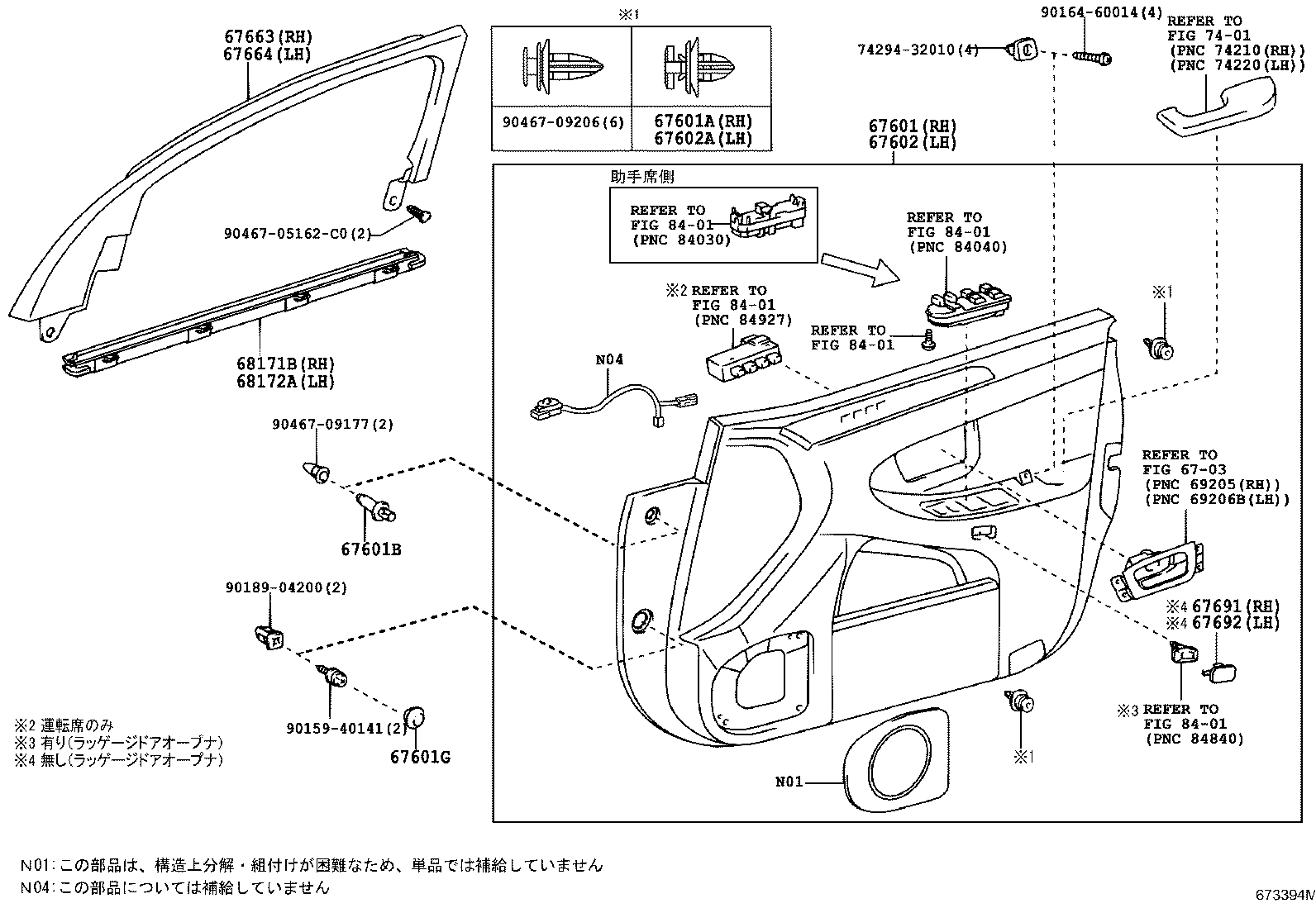

ILLUST NO. 2 OF 3(0312-0509)GRS18# ; (0406-0606)UZS18# ; (0509-)GRS18# ; (0606- )UZS18#
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-30A10A0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶﾞｰﾄﾞ織物,IVORY,TRIM0# |
1 | ||
| 67610-30A10B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶﾞｰﾄﾞ織物,GRAY,TRIM1# |
1 | ||
| 67650-3F200A0 |
GRS180,181..ROYEX IVORY,TRIM0# |
1 | ||
| 67650-3F200B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-32120 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07066A5 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 90467-0706622 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 90467-07066P8 |
GRS18# GRAY,TRIM1# |
2 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01800C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
2 | ||
| 90950-01800P3 |
GRS18# GRAY,TRIM1# |
2 | ||
| 90950-01800A2 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-30A00B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 67620-30A00A0 |
GRS180,181..ROYEX IVORY,TRIM0# |
1 | ||
| 67620-30A30A0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶﾞｰﾄﾞ織物,IVORY,TRIM0# |
1 | ||
| 67620-30A30B0 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ&ｼｰﾄ表皮−ｼﾞｬｶﾞｰﾄﾞ織物,GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-32120 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 67663 - GARNISH, DOOR FRAME, UPPER RH | ||||
| 67663-30050 |
GRS18# |
1 | ||
| 67664 - GARNISH, DOOR FRAME, UPPER LH | ||||
| 67664-30050 |
GRS18# |
1 | ||
| 67691 - COVER, FRONT DOOR INNER TRIM, RH | ||||
| 67692-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 67692 - COVER, FRONT DOOR INNER TRIM, LH | ||||
| 67692-30020B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 67692-30020C0 |
GRS180..5FC..ATH;GRS181,182,UZS18#..A,ATH,C BLACK,TRIM2# |
1 | ||
| 67692-30020A0 |
GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-30150 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-30120 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| Common parts | ||||
| 74294-32010 | ||||
| 90159-40141 | ||||
| 90164-60014 | ||||
| 90189-04200 | ||||
| 90467-05162C0 | ||||
| 90467-09177 | ||||
| 90467-09206 | ||||
| Linked diagrams | ||||
| 6703 | ||||
| 7401 | ||||
| 8401 | ||||

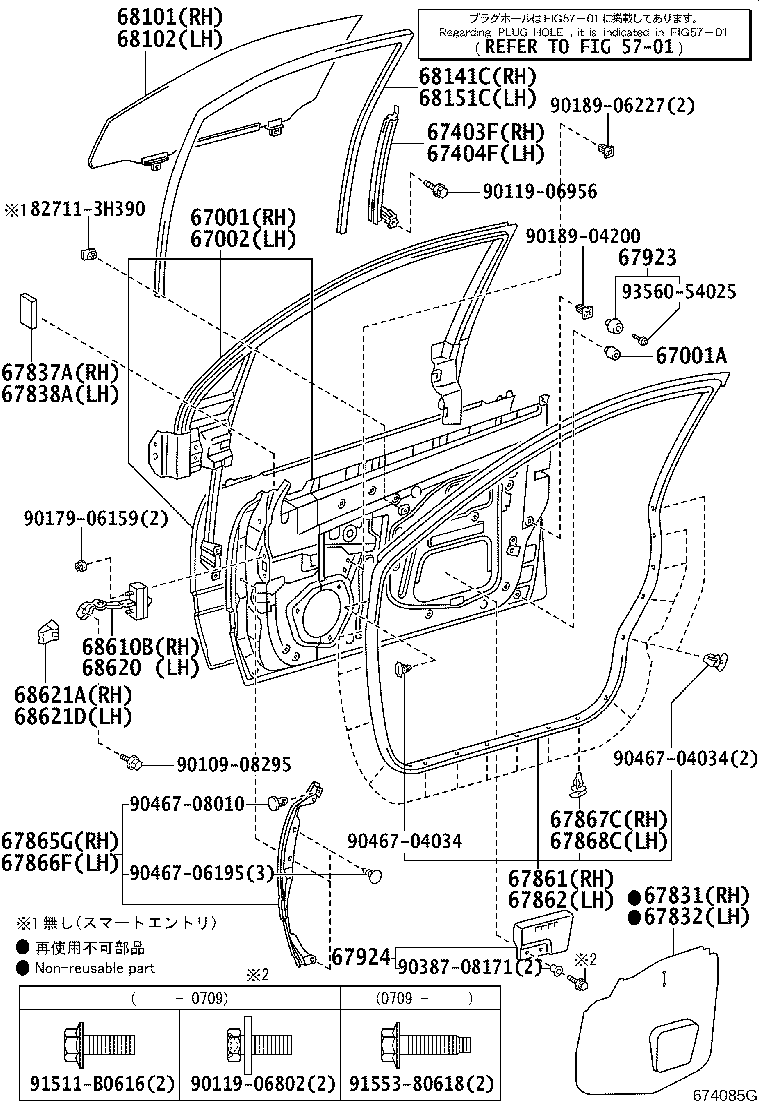

ILLUST NO. 1 OF 3(0408- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-30831 |
GRS18# |
1 | ||
| 67001-30830 |
GRS18#,UZS18# |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
GRS18# |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-30A01 |
GRS18# |
1 | ||
| 67002-30A00 |
GRS18#,UZS18# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-30170 |
GRS18# |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-30170 |
GRS18# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-30410 |
GRS18# |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-30260 |
GRS18# |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-51010 |
GRS18# |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67837-51010 |
GRS18# |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-30270 |
GRS18# |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-30270 |
GRS18# |
1 | ||
| 67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-30030 |
GRS18# |
1 | ||
| 67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-30030 |
GRS18# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GRS181 |
16 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GRS181 |
16 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-24030 |
GRS18# |
2 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67923-30100 |
GRS18# 右側 |
1 | ||
| 67924-30070 |
GRS18# 左側 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-30760 |
GRS180,181..5FC;GRS182,183,UZS18# *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-30760 |
GRS180,181..5FC;GRS182,183,UZS18# *UVCT,厚さ=5.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-30330 |
GRS18#,UZS18# |
1 | ||
| 68141-30331 |
GRS18# |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-30170 |
GRS18#,UZS18# |
1 | ||
| 68151-30171 |
GRS18# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-30170 |
GRS18# |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-30090 |
GRS18# |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-33010 |
GRS18# |
1 | ||
| 68621D - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-33010 |
GRS18# |
1 | ||
| Common parts | ||||
| 82711-3H390 | ||||
| 90109-08295 | ||||
| 90119-06802 | ||||
| 90119-06956 | ||||
| 90179-06159 | ||||
| 90189-04200 | ||||
| 90189-06227 | ||||
| 90387-08171 | ||||
| 90467-04034 | ||||
| 90467-06195 | ||||
| 90467-08010 | ||||
| 91511-B0616 | ||||
| 91553-80618 | ||||
| 93560-54025 | ||||
| Linked diagrams | ||||
| 5701 | ||||
