GRS181-AEASH (2004)
Toyota Crown/Majesta

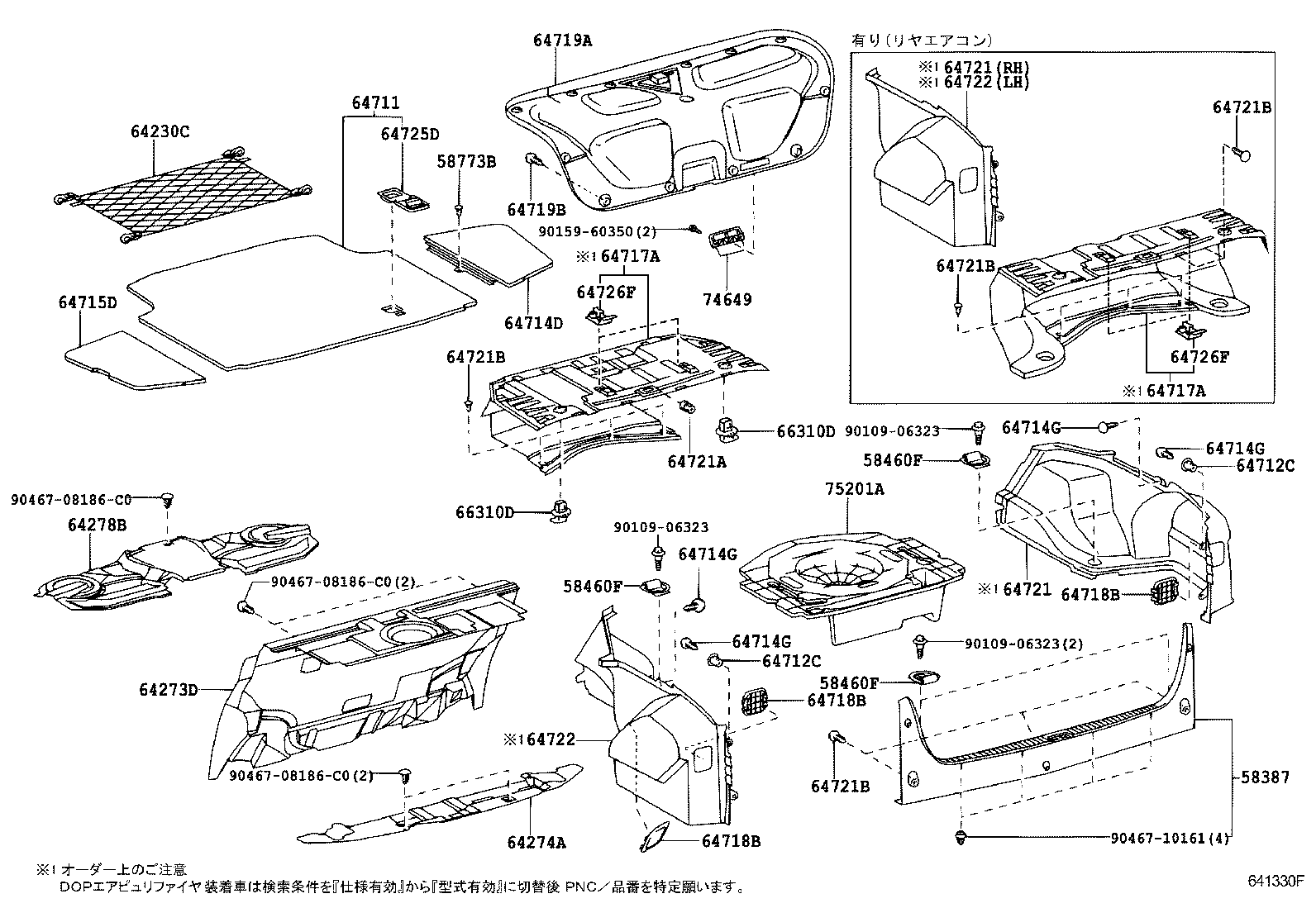

ILLUST NO. 1 OF 2(0312- )GRS18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-30140C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
1 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRS180,181..5FC;GRS182,183,UZS18# |
4 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRS180,181..5FC;GRS182,183,UZS18# |
4 | ||
| 58460F - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33010 |
GRS180,181..5FC;GRS182,183,UZS18# |
4 | ||
| 58773B - CLIP(FOR LUGGAGE COMPARTMENT SIDE COVER) | ||||
| 90467-08186C0 |
GRS180,181..5FC;GRS182,183,UZS18# BLACK |
1 | ||
| 64230C - NET ASSY, ROOM PARTITION | ||||
| 64230-30030 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 64273D - PAD, ROOM PARTITION, NO.1 | ||||
| 64273-30100 |
GRS18#..ATH,ROY,ROYEX |
1 | ||
| 64274A - PAD, ROOM PARTITION, NO.2 | ||||
| 64274-30050 |
GRS18# |
1 | ||
| 64278B - PAD, ROOM PARTITION, NO.3 | ||||
| 64278-30010 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64701-30020C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-12069 |
GRS180,181..5FC;GRS182,183,UZS18# |
2 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-12069 |
GRS180,181..5FC;GRS182,183,UZS18# |
2 | ||
| 64714D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH | ||||
| 64714-30450C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
1 | ||
| 64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) | ||||
| 90467-08186C0 |
GRS18# BLACK |
2 | ||
| 64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) | ||||
| 90467-08186C0 |
GRS18# BLACK |
2 | ||
| 64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) | ||||
| 90467-08186C0 |
GRS18# BLACK |
2 | ||
| 64714G - CLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) | ||||
| 90467-08186C0 |
GRS18# BLACK |
2 | ||
| 64715D - COVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH | ||||
| 64715-30310C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-30110C0 |
GRS18#..ROY,ROYEX BLACK,TRIM0#,1# |
1 | ||
| 64075-30120C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64075-30120C0 |
GRS18#..ROY ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64075-30121C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64075-30121C0 |
GRS180,181..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,BLACK,TRIM0#,1# |
1 | ||
| 64075-30121C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK,TRIM0#,1# |
1 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-30110C0 |
GRS18#..ROY,ROYEX BLACK,TRIM0#,1# |
1 | ||
| 64075-30120C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64075-30120C0 |
GRS18#..ROY ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64075-30121C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64075-30121C0 |
GRS180,181..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,BLACK,TRIM0#,1# |
1 | ||
| 64075-30121C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK,TRIM0#,1# |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
GRS180,181..5FC;GRS182,183,UZS18# |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
GRS180,181..5FC;GRS182,183,UZS18# |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
GRS180,181..5FC;GRS182,183,UZS18# |
3 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-30160C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C0 |
GRS18# BLACK |
13 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-30150C0 |
GRS18#..ROY,ROYEX BLACK,TRIM0#,1# |
1 | ||
| 64721-30160C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64721-30160C0 |
GRS18#..ROY ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64721-30161C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64721-30161C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK,TRIM0#,1# |
1 | ||
| 64721-30161C0 |
GRS180,181..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,BLACK,TRIM0#,1# |
1 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-30150C0 |
GRS18#..ROY,ROYEX BLACK,TRIM0#,1# |
1 | ||
| 64721-30160C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64721-30160C0 |
GRS18#..ROY ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64721-30161C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64721-30161C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK,TRIM0#,1# |
1 | ||
| 64721-30161C0 |
GRS180,181..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,BLACK,TRIM0#,1# |
1 | ||
| 64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) | ||||
| 90467-05145 |
GRS180,181..5FC;GRS182,183,UZS186..A,ATH,ROY |
1 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-08186C0 |
GRS180,181..5FC;GRS182,183,UZS186..A,ATH,ROY BLACK |
8 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-08186C0 |
GRS180,181..5FC;GRS182,183,UZS186..A,ATH,ROY BLACK |
8 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-08186C0 |
GRS180,181..5FC;GRS182,183,UZS186..A,ATH,ROY BLACK |
8 | ||
| 64721B - COVER, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 90467-08186C0 |
GRS180,181..5FC;GRS182,183,UZS186..A,ATH,ROY BLACK |
8 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-30070C0 |
GRS18#..ROY,ROYEX BLACK,TRIM0#,1# |
1 | ||
| 64722-30080C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64722-30080C0 |
GRS18#..ROY ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64722-30081C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64722-30081C0 |
GRS180,181..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,BLACK,TRIM0#,1# |
1 | ||
| 64722-30081C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK,TRIM0#,1# |
1 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-30070C0 |
GRS18#..ROY,ROYEX BLACK,TRIM0#,1# |
1 | ||
| 64722-30080C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64722-30080C0 |
GRS18#..ROY ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64722-30081C0 |
GRS18#..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP),BLACK,TRIM0#,1# |
1 | ||
| 64722-30081C0 |
GRS180,181..ROY,ROYEX ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,BLACK,TRIM0#,1# |
1 | ||
| 64722-30081C0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ&ﾘﾔｴｱｺﾝ−有り(ｴｱﾋﾟｭﾘﾌｧｲﾔ=DOP)&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK,TRIM0#,1# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-50071 |
GRS18# |
1 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64726-30060C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
2 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64726-30060C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
2 | ||
| 66310D - HOOK ASSY, ROPE | ||||
| 66311-30010C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
2 | ||
| 66310D - HOOK ASSY, ROPE | ||||
| 66311-30010C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
2 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 75201A - BOX, TOOL | ||||
| 75201-30050C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM0#,1# |
1 | ||
| Common parts | ||||
| 90109-06323 | ||||
| 90159-60350 | ||||
| 90467-08186C0 | ||||
| 90467-10161 | ||||

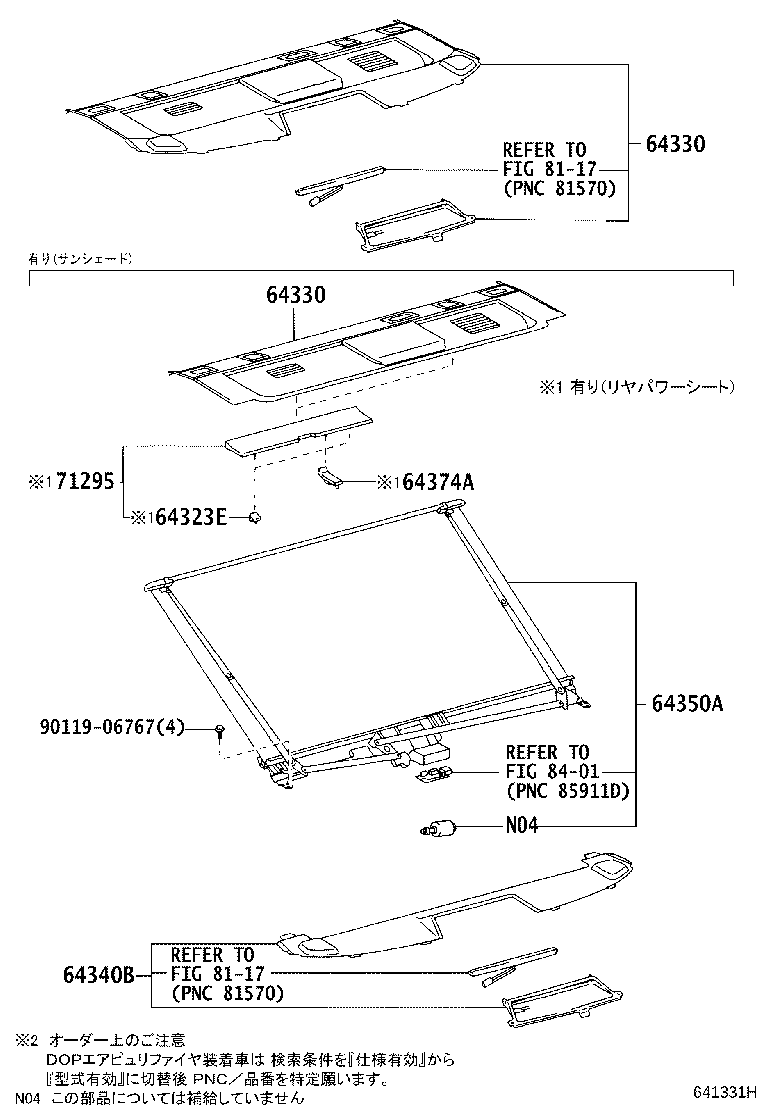

ILLUST NO. 2 OF 2(0312- )GRS18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-30A00A0 |
GRS180,181..ROY,ROYEX IVORY,TRIM0# |
1 | ||
| 64330-30A10A0 |
GRS180,181..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,IVORY,TRIM0# |
1 | ||
| 64330-30A10B0 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,GRAY,TRIM1# |
1 | ||
| 64330-30A00B0 |
GRS180,181 GRAY,TRIM1# |
1 | ||
| 64330-30A10A0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,IVORY,TRIM0# |
1 | ||
| 64330-30A10B0 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,GRAY,TRIM1# |
1 | ||
| 64330-30A40A0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 64330-30A40B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-30A00A0 |
GRS180,181..ROY,ROYEX IVORY,TRIM0# |
1 | ||
| 64330-30A10A0 |
GRS180,181..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,IVORY,TRIM0# |
1 | ||
| 64330-30A10B0 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,GRAY,TRIM1# |
1 | ||
| 64330-30A00B0 |
GRS180,181 GRAY,TRIM1# |
1 | ||
| 64330-30A10A0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,IVORY,TRIM0# |
1 | ||
| 64330-30A10B0 |
GRS180,181 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,GRAY,TRIM1# |
1 | ||
| 64330-30A40A0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 64330-30A40B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 64340B - PANEL ASSY, PACKAGE TRAY TRIM, NO.2 | ||||
| 64340-30030B0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),GRAY,TRIM1# |
1 | ||
| 64340-30030A0 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),IVORY,TRIM0# |
1 | ||
| 64350A - SHADE ASSY, REAR WINDOW | ||||
| 64350-30030 |
GRS181..ROYEX ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A) |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8117 | ||||
| 8401 | ||||
