GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

Click highlighted areas on diagram

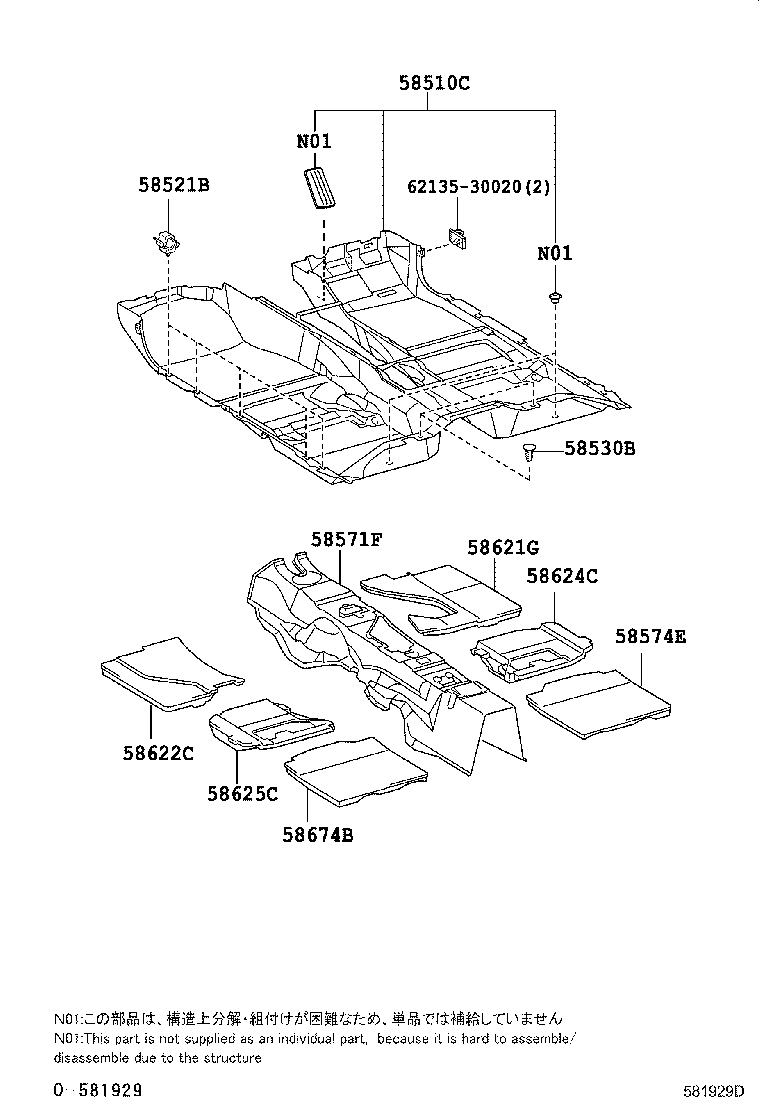

diagram 58510C 58521B 58530B 58571F 58574E 58621G 58622C 58624C 58625C 58674B 6213530020
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-3K610B0

GRS181,183

GRAY,TRIM1#

 1
58510-3K610A0

GRS181,183,UZS187..C,ROY,ROYEX

IVORY,TRIM0#

 1
58521B - HOOK, FLOOR CARPET
58521-30140

GRS180,181..5FC;GRS182,183,UZS18#

 12
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-05164B8

GRS180,181..5FC;GRS182,183,UZS18#

LT.GRAY

 2
58571F - PAD, FRONT FLOOR, FRONT
58571-30020

GRS181,183

 1
58574E - PAD, REAR FLOOR SILENCER, NO.1
58673-30020

GRS180,181..5FC;GRS182,183,UZS18#

 1
58621G - PAD, FRONT FLOOR SILENCER, RH
58621-30150

GRS180,181..5FC;GRS182,183,UZS18#

 1
58622C - PAD, FRONT FLOOR SILENCER, LH
58622-30170

GRS181,183,UZS187

 1
58624C - PAD, CENTER FLOOR SILENCER, RH
58624-30130

GRS180,181..5FC;GRS182,183,UZS18#

 1
58625C - PAD, CENTER FLOOR SILENCER, LH
58625-30080

GRS180,181..5FC;GRS182,183,UZS18#

 1
58674B - PAD, REAR FLOOR SILENCER, NO.2
58674-30020

GRS180,181..5FC;GRS182,183,UZS18#

 1
Common parts
62135-30020
