GRS181-AEASH (2004)
Toyota Crown/Majesta

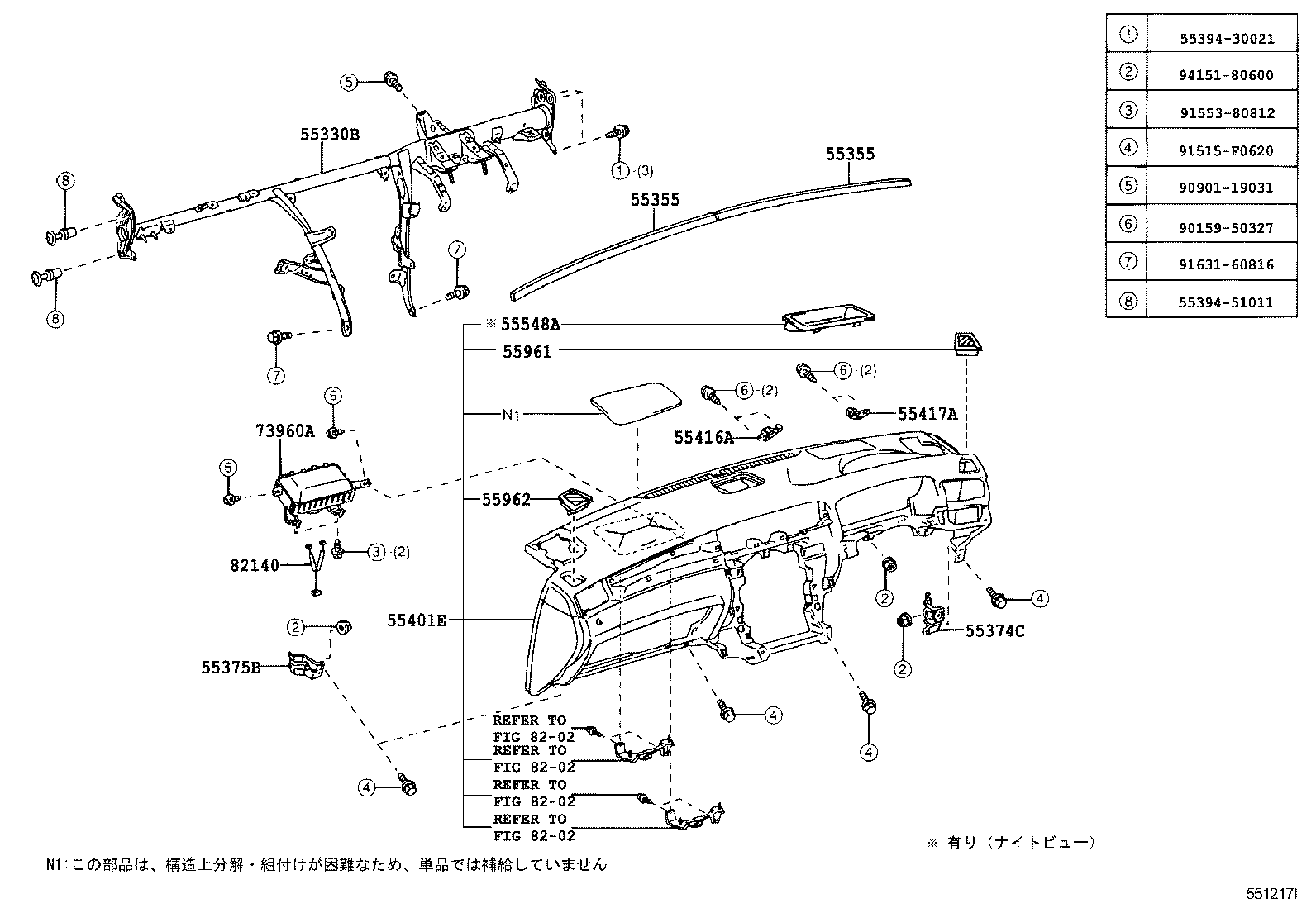

ILLUST NO. 1 OF 2(0312- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-30320 |
GRS181,183,UZS187 |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30060 |
GRS18# |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30060 |
GRS18# |
2 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-30250 |
GRS18# |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-30140 |
GRS18# |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-30660C1 |
GRS18# BLACK & GRAY,TRIM1# |
1 | ||
| 55401-30660E1 |
GRS18#..ROY,ROYEX,ROYG ORCHID BROWN,TRIM0# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-30150 |
GRS18# |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-30070 |
GRS18# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-30140E0 |
GRS18#..ROY,ROYEX,ROYG ORCHID BROWN,TRIM0# |
1 | ||
| 55961-30140C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-30120C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM1# |
1 | ||
| 55962-30120E0 |
GRS18#..ROY,ROYEX,ROYG ORCHID BROWN,TRIM0# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-30070 |
GRS18# |
1 | ||
| 82140 - WIRE ASSY, INSTRUMENT PANEL | ||||
| 82140-30020 |
GRS18# |
1 | ||
| Common parts | ||||
| 55394-30021 | ||||
| 55394-51011 | ||||
| 90159-50327 | ||||
| 90901-19031 | ||||
| 91515-F0620 | ||||
| 91553-80812 | ||||
| 91631-60816 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

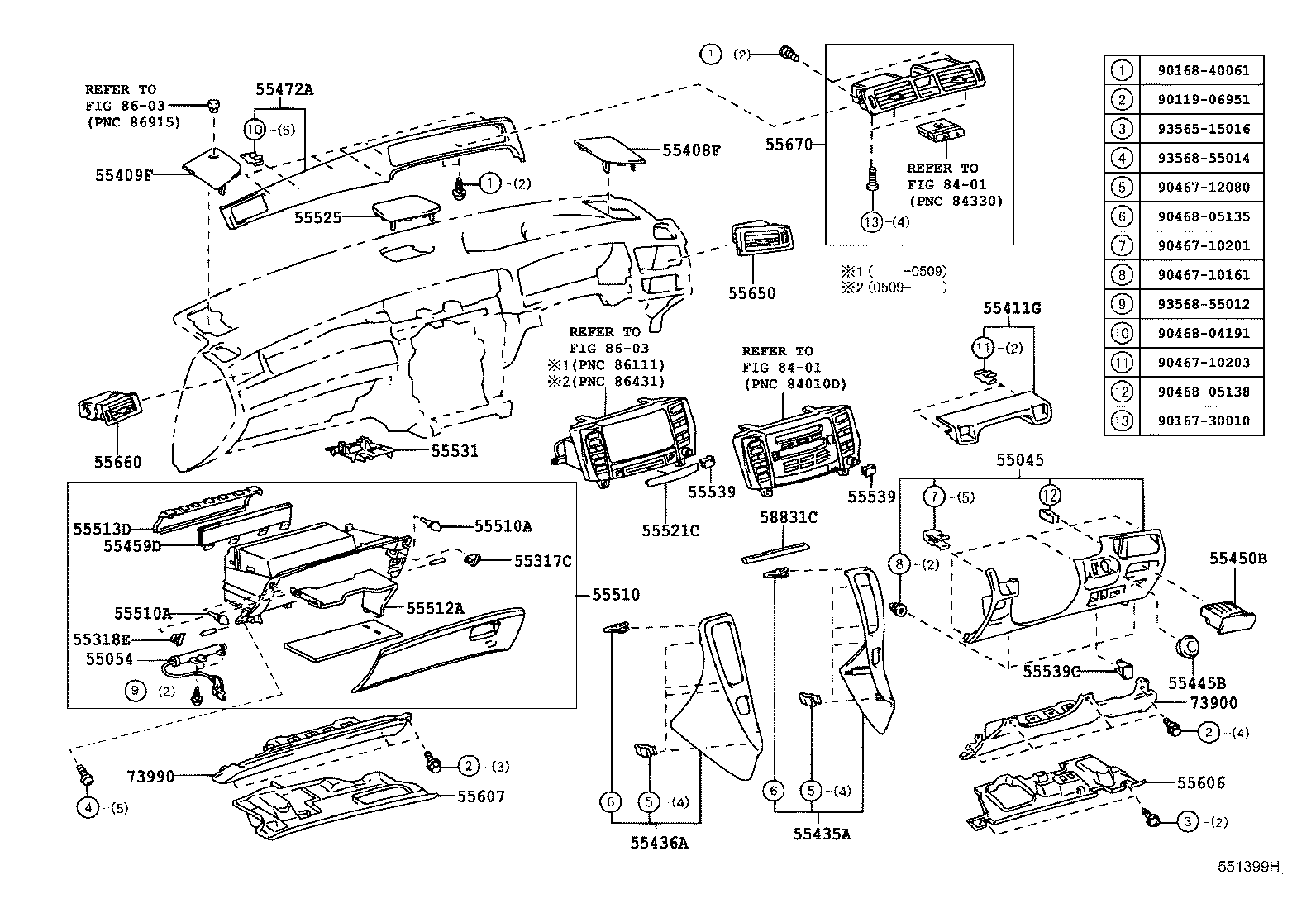

ILLUST NO. 2 OF 2(0312- )GRS18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-30160B0 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 55045-30150B0 |
GRS18#..ATH,ROY,ROYG GRAY,TRIM1# |
1 | ||
| 55045-30150A0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,NEW IVORY,TRIM0# |
1 | ||
| 55045-30150B0 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 55045-30160A0 |
GRS180,181..ROYEX NEW IVORY,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-30030 |
GRS18# |
1 | ||
| 55317C - PATCH, INSTRUMENT SIDE, LOWER RH | ||||
| 55317-30040 |
GRS18#,UZS18# |
1 | ||
| 55317-30041 |
GRS18# |
1 | ||
| 55318E - PATCH, INSTRUMENT SIDE, LOWER LH | ||||
| 55318-30060 |
GRS18#,UZS18# |
1 | ||
| 55318-30061 |
GRS18# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-30090E0 |
GRS18#..ROY,ROYEX,ROYG ORCHID BROWN,TRIM0# |
1 | ||
| 55408-30090C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,TRIM1# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-30190C0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK,TRIM1# |
1 | ||
| 55409-30190E0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,ORCHID BROWN,TRIM0# |
1 | ||
| 55409-30210C0 |
GRS18#..ROY,ROYEX BLACK,TRIM1# |
1 | ||
| 55409-30210E0 |
GRS18#..ROY,ROYEX ORCHID BROWN,TRIM0# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55404-30870 |
GRS18# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-30190A0 |
GRS18#..ROY,ROYEX,ROYG NEW IVORY,TRIM0# |
1 | ||
| 55435-30190B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-30100A0 |
GRS18#..ROY,ROYEX,ROYG NEW IVORY,TRIM0# |
1 | ||
| 55436-30100B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-51020B6 |
GRS180,181..ROYEX GRAY,TRIM1# |
1 | ||
| 55445-51020A1 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,IVORY,TRIM0# |
1 | ||
| 55445-51020A1 |
GRS180,181..ROYEX IVORY,TRIM0# |
1 | ||
| 55445-51020B6 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ,GRAY,TRIM1# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-30040A0 |
GRS18#..ROY,ROYEX,ROYG NEW IVORY,TRIM0# |
1 | ||
| 55450-30040B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48020 |
GRS18# |
1 | ||
| 55472A - MOULDING, INSTRUMENT CLUSTER, NO.2 | ||||
| 55472-30080E0 |
GRS18#..ROY,ROYEX,ROYG LT.BROWN,TRIM0# |
1 | ||
| 55472-30080B0 |
GRS18#..ROY,ROYEX,ROYG GRAY,TRIM1# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30350A0 |
GRS18#..ROY,ROYEX,ROYG IVORY,TRIM0# |
1 | ||
| 55550-30350B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
GRS18# |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
GRS18# |
2 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-30110 |
GRS18# |
1 | ||
| 55513D - PLATE, GLOVE COMPARTMENT, NO.2 | ||||
| 55513-30100 |
GRS18# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-30180 |
GRS181;GRS180..ATH,ROY 寒冷地仕様&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 55521-30180 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 55521-30180 |
GRS181;GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD |
1 | ||
| 55521-30180 |
GRS181;GRS180..ATH,ROY 寒冷地仕様&ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55510-30110C0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,BLACK,TRIM1# |
1 | ||
| 55510-30110C0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,BLACK,TRIM1# |
1 | ||
| 55525-30050C0 |
GRS180,181..ROY,ROYEX BLACK,TRIM1# |
1 | ||
| 55510-30110E0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD,ORCHID BROWN,TRIM0# |
1 | ||
| 55525-30050E0 |
GRS180,181..ROY,ROYEX ORCHID BROWN,TRIM0# |
1 | ||
| 55510-30110E0 |
GRS180..ROY;GRS181..ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD,ORCHID BROWN,TRIM0# |
1 | ||
| 55531 - PANEL, GLOVE COMPARTMENT | ||||
| 55531-30210 |
GRS18#..ATH,ROY,ROYEX |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-30170 |
GRS18# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-30170 |
GRS18# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-44010B3 |
GRS18#..ROY,ROYEX GRAY,TRIM1# |
2 | ||
| 55539-44010A1 |
GRS18#..ROY,ROYEX IVORY,TRIM0# |
2 | ||
| 55539-44010C0 |
GRS180..5FC..ATH;GRS181,182,UZS186..A,ATH BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-30230 |
GRS18# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30270 |
GRS18# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30250B0 |
GRS18#..ROY,ROYEX,ROYG GRAY,TRIM1# |
1 | ||
| 55650-30250E0 |
GRS18#..ROY,ROYEX,ROYG LT.BROWN,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30390 |
GRS18# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30410 |
GRS180,181..ROYEX |
1 | ||
| 55670-30420 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 55670-30420 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 58831C - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-30170A0 |
GRS18#..ROY,ROYEX,ROYG NEW IVORY,TRIM0# |
1 | ||
| 58831-30170B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-30010B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 73900-30010A0 |
GRS18#..ROY,ROYEX,ROYG NEW IVORY,TRIM0# |
1 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-30010B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 73990-30010A0 |
GRS18#..ROY,ROYEX,ROYG NEW IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90167-30010 | ||||
| 90168-40061 | ||||
| 90467-10161 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-04191 | ||||
| 90468-05135 | ||||
| 90468-05138 | ||||
| 93565-15016 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||
