GRS181-AEASH (2004)
Toyota Crown/Majesta
Production
Aug 2004
-
Sep 2005
Engine
4GRFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0312-0509)GRS18# ; (0406-0606)UZS18#

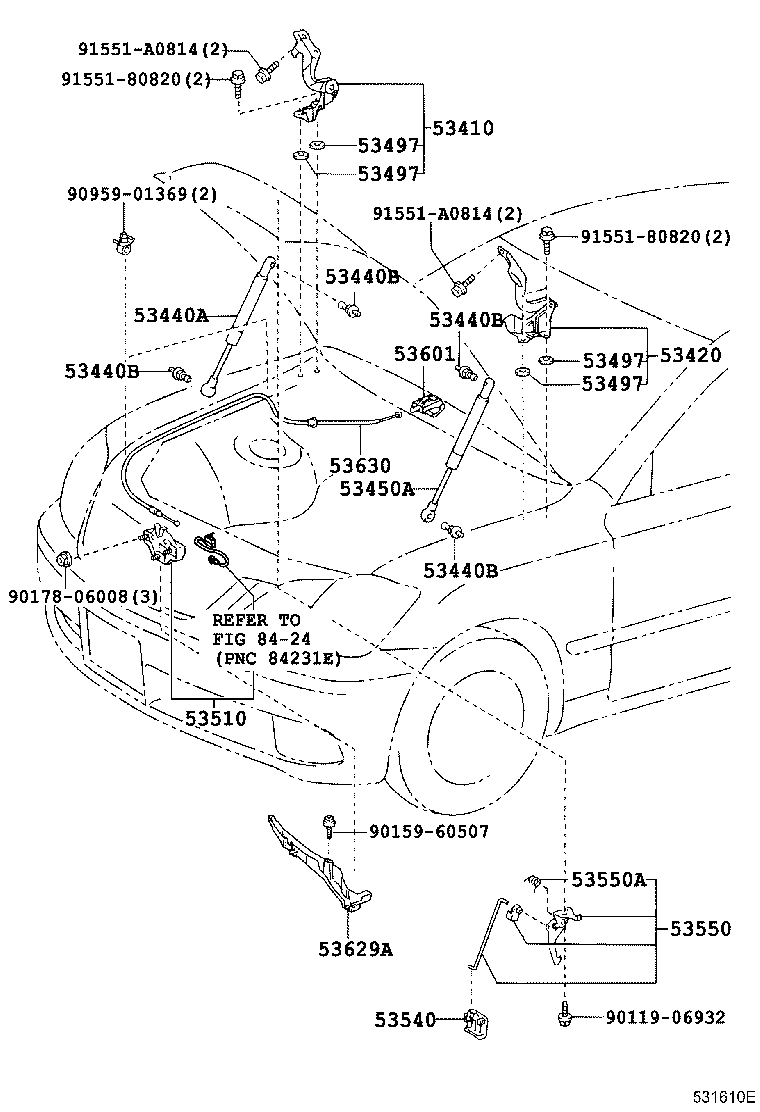

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-30190 |
GRS18#,UZS18# 無し(ﾊﾟｯﾄﾞ) |
1 | ||
| 53410-30170 |
GRS18#,UZS18# ﾊﾟｯﾄﾞ厚さ=1.0 |
1 | ||
| 53410-30180 |
GRS18#,UZS18# ﾊﾟｯﾄﾞ厚さ=2.0 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-30190 |
GRS18#,UZS18# 無し(ﾊﾟｯﾄﾞ) |
1 | ||
| 53420-30180 |
GRS18#,UZS18# ﾊﾟｯﾄﾞ厚さ=2.0 |
1 | ||
| 53420-30170 |
GRS18#,UZS18# ﾊﾟｯﾄﾞ厚さ=1.0 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-0W050 |
GRS18# |
1 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-24030 |
GRS18# 製造工場NO.A21−A26 |
4 | ||
| 68961-50010 |
GRS18# 製造工場NO.A51−A54 |
4 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-24030 |
GRS18# 製造工場NO.A21−A26 |
4 | ||
| 68961-50010 |
GRS18# 製造工場NO.A51−A54 |
4 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-24030 |
GRS18# 製造工場NO.A21−A26 |
4 | ||
| 68961-50010 |
GRS18# 製造工場NO.A51−A54 |
4 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-24030 |
GRS18# 製造工場NO.A21−A26 |
4 | ||
| 68961-50010 |
GRS18# 製造工場NO.A51−A54 |
4 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-0W030 |
GRS18# |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
GRS18#,UZS18# 厚さ=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
GRS18#,UZS18# 厚さ=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
GRS18#,UZS18# 厚さ=1.0 |
4 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-50020 |
GRS18#,UZS18# 厚さ=1.0 |
4 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-30310 |
GRS18#,UZS18# |
1 | ||
| 53540 - LEVER ASSY, AUXILIARY CATCH RELEASE | ||||
| 53540-30030 |
GRS18#,UZS18#..A,C,ROY,ROYEX,ROYG |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-30110 |
GRS18# |
1 | ||
| 53550A - SPRING, TORSION(FOR HOOD LOCK HOOK) | ||||
| 90508-18102 |
GRS18#,UZS18# |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-52010C0 |
GRS18#,UZS18# BLACK |
1 | ||
| 53629A - COVER, HOOD LOCK CONTROL CABLE | ||||
| 53629-30030 |
GRS18#,UZS18# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-30300 |
GRS18#,UZS18# |
1 | ||
| Common parts | ||||
| 90119-06932 | ||||
| 90159-60507 | ||||
| 90178-06008 | ||||
| 90959-01369 | ||||
| 91551-80820 | ||||
| 91551-A0814 | ||||
| Linked diagrams | ||||
| 8424 | ||||
