GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

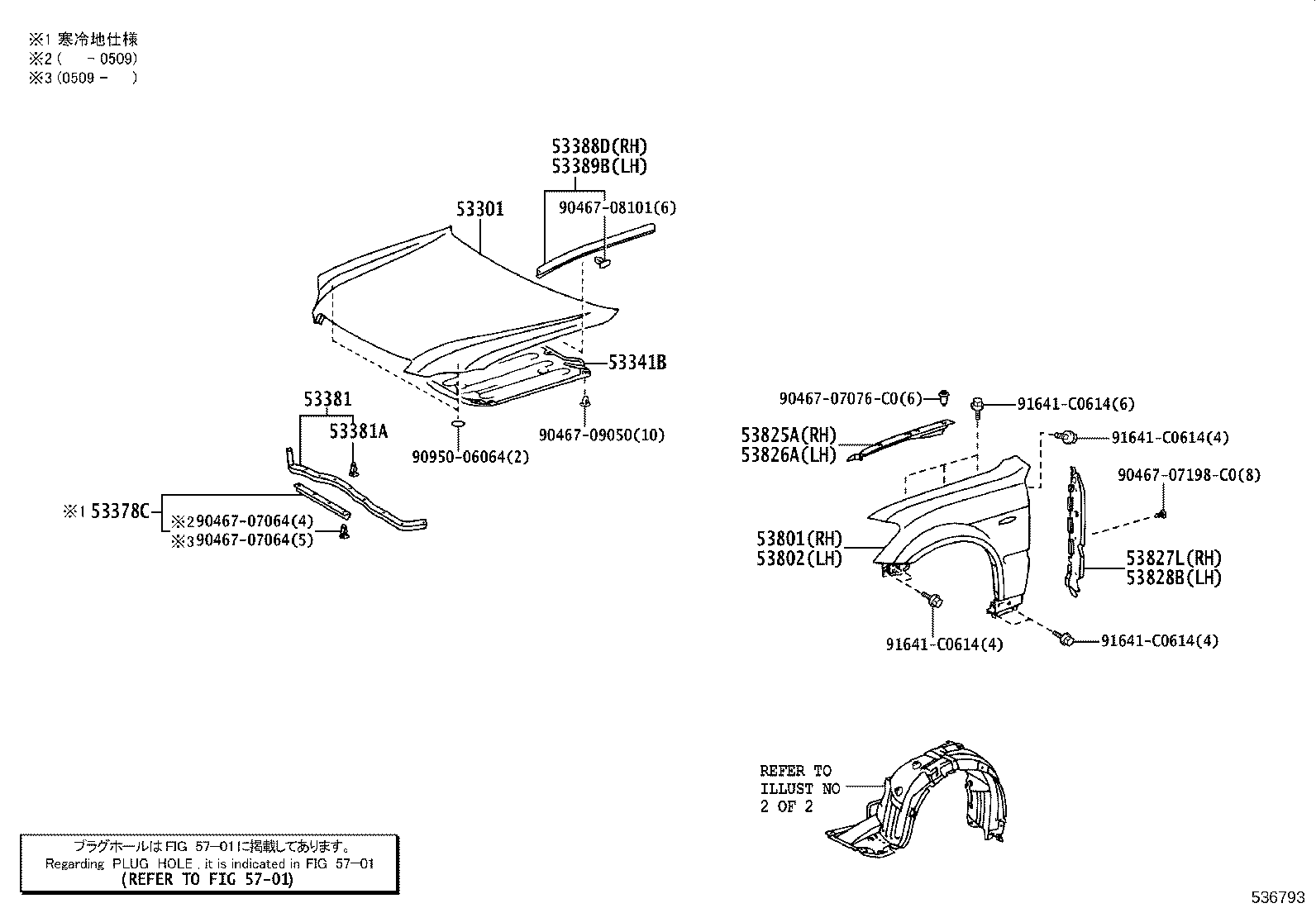

ILLUST NO. 1 OF 2(0312- )GRS18#

Click highlighted areas on diagram

diagram 53301 53341B 53378C 53381 53381A 53388D 53389B 53801 53802 53825A 53826A 53827L 53828B 5701 9046707064 9046707064 9046707076C0 9046707198C0 9046708101 9046709050 9095006064 91641C0614 91641C0614 91641C0614 91641C0614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-30420

GRS18#

 1
53341B - INSULATOR, HOOD
53341-30250

GRS18#

 1
53378C - SEAL, HOOD AIR INTAKE DUCT
53378-30090

GRS18#,UZS18#

寒冷地仕様

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-30220

GRS18#,UZS18#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-07064

GRS18#,UZS18#

 10
53388D - SEAL, HOOD TO FRONT FENDER, RH
53388-30040

GRS18#

 1
53389B - SEAL, HOOD TO FRONT FENDER, LH
53388-30040

GRS18#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-30A00

GRS18#

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-30A00

GRS18#

 1
53825A - PROTECTOR, FRONT FENDER, UPPER RH
53825-30121

GRS18#

 1
53825-30120

GRS18#

 1
53826A - PROTECTOR, FRONT FENDER, UPPER LH
53826-30120

GRS18#

 1
53826-30121

GRS18#

 1
53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-30030

GRS18#,UZS18#

 1
53828B - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-30040

GRS18#,UZS18#

 1
Common parts
90467-07064
90467-07076C0
90467-07198C0
90467-08101
90467-09050
90950-06064
91641-C0614
Linked diagrams
5701

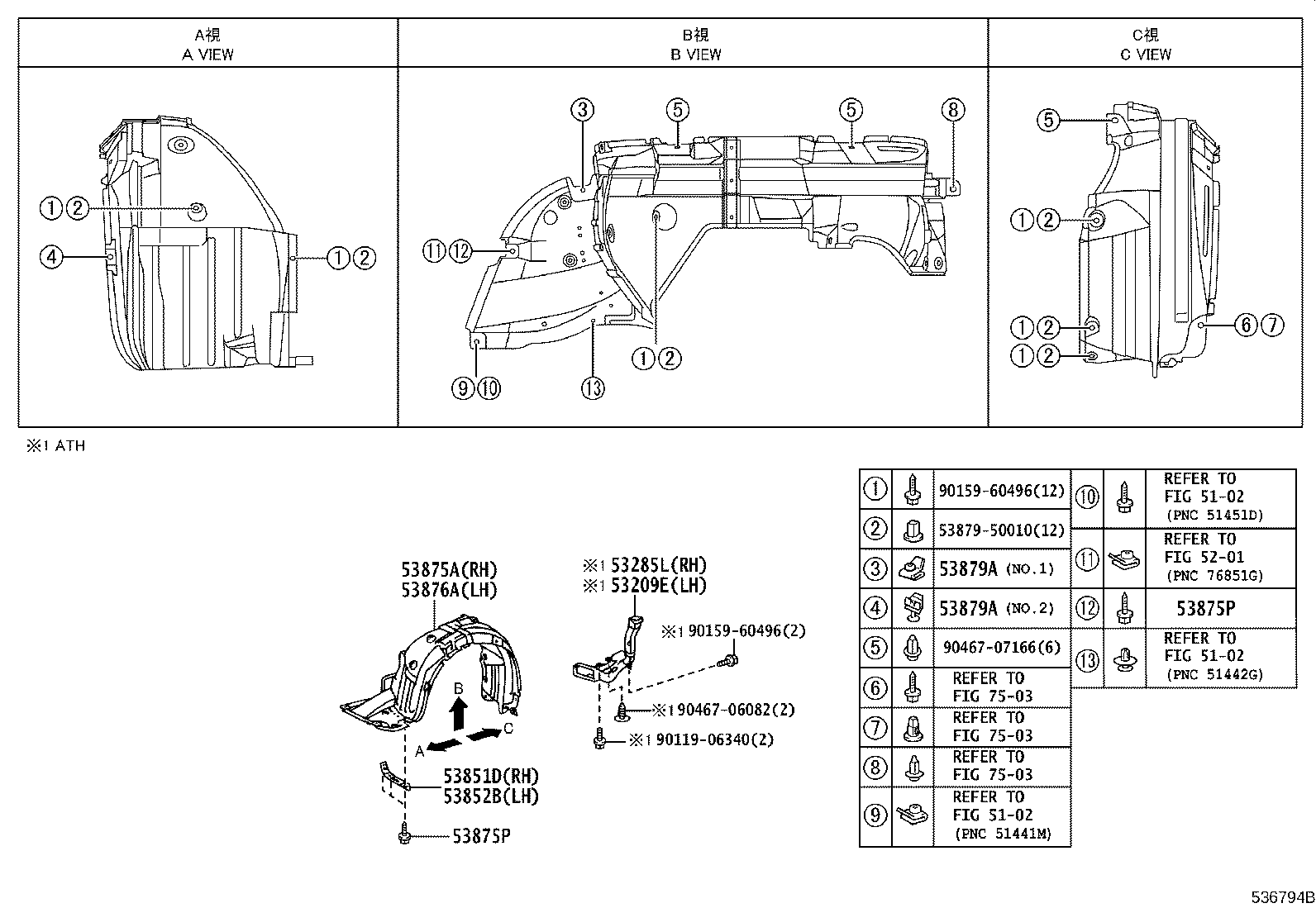

ILLUST NO. 2 OF 2(0312- )GRS18#

Click highlighted areas on diagram

ﾌｴﾝﾀﾞﾗｲﾅ

diagram 5102 5102 5102 5201 53209E 53285L 53851D 53852B 53875A 53875P 53875P 53876A 5387950010 53879A 53879A 7503 7503 7503 9011906340 9015960496 9015960496 9046706082 9046707166
Part # Description Qty Price
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-30050

GRS18#

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-30050

GRS18#

 1
53875A - LINER, FRONT FENDER, RH
53805-30050

GRS18#..ROY,ROYEX,ROYG

 1
53875P - SCREW, NO.1
90159-60477

GRS180,181..5FC;GRS182,183,UZS18#

 10
53875P - SCREW, NO.1
90159-60477

GRS180,181..5FC;GRS182,183,UZS18#

 10
53876A - LINER, FRONT FENDER, LH
53806-30060

GRS18#..ROY,ROYEX,ROYG

 1
53879A - RETAINER, FRONT FENDER LINER
53879-28010

GRS18#

NO.2

 2
53879-17020

GRS18#

NO.1

 1
53879-17020

GRS18#

NO.1

 2
53879A - RETAINER, FRONT FENDER LINER
53879-28010

GRS18#

NO.2

 2
53879-17020

GRS18#

NO.1

 1
53879-17020

GRS18#

NO.1

 2
Common parts
53879-50010
90119-06340
90159-60496
90467-06082
90467-07166
Linked diagrams
5102
5201
7503
