GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0509)GRS18#

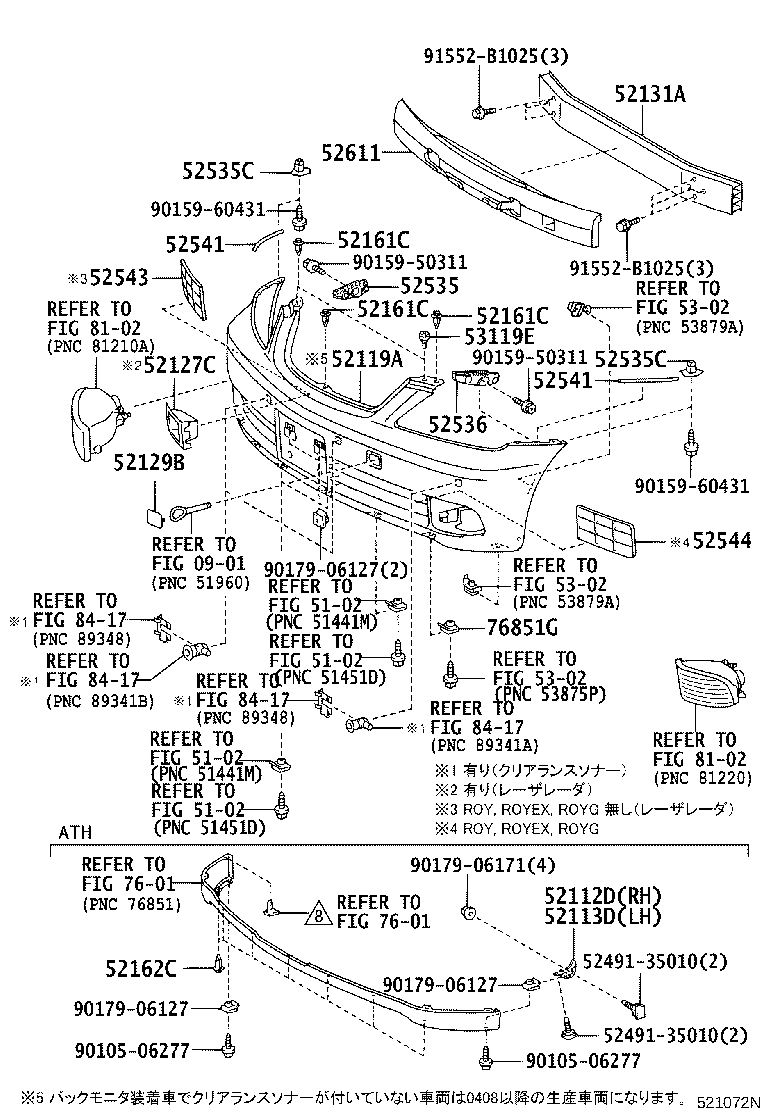

Click highlighted areas on diagram

diagram 0901 5102 5102 5102 5102 52112D 52113D 52119A 52127C 52129B 52131A 52161C 52161C 52161C 52162C 5249135010 5249135010 52535 52535C 52535C 52536 52541 52541 52543 52544 52611 5302 5302 5302 53119E 7601 7601 76851G 8102 8102 8417 8417 8417 8417 9010506277 9010506277 9015950311 9015950311 9015960431 9015960431 9017906127 9017906127 9017906127 9017906171 91552B1025 91552B1025
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-30510A0

GRS18#..ROY,ROYEX,ROYG

SUPER WHITE 2,040

 1
52119-30510J0

GRS18#..ROY,ROYEX,ROYG

DARK BLUE MC.,8P8

 1
52119-30510B1

GRS18#..ROY,ROYEX,ROYG

SATIN PEARL MC.,1F3

 1
52119-30510D0

GRS18#..ROY,ROYEX,ROYG

BLACKISH RED MC.,3R0

 1
52119-30510C0

GRS18#..ROY,ROYEX,ROYG

BLACK,202

 1
52119-30510B0

GRS18#..ROY,ROYEX,ROYG

SILVER ME.,1C0

 1
52119-30510A1

GRS18#..ROY,ROYEX,ROYG

WHITE PEARL CS.,062

 1
52119-30511A0

GRS18#..ROY,ROYEX,ROYG

SUPER WHITE 2,040,無し(ｸﾘｱﾗﾝｽｿﾅｰ)

 1
52119-30511A1

GRS18#..ROY,ROYEX,ROYG

WHITE PEARL CS.,062,無し(ｸﾘｱﾗﾝｽｿﾅｰ)

 1
52119-30511D0

GRS18#..ROY,ROYEX,ROYG

BLACKISH RED MC.,3R0,無し(ｸﾘｱﾗﾝｽｿﾅｰ)

 1
52119-30511C0

GRS18#..ROY,ROYEX,ROYG

BLACK,202,無し(ｸﾘｱﾗﾝｽｿﾅｰ)

 1
52119-30521A0

GRS18#..ROY,ROYEX,ROYG

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040

 1
52119-30521C0

GRS18#..ROY,ROYEX,ROYG

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202

 1
52119-30511B1

GRS18#..ROY,ROYEX,ROYG

PREMIUM SILVER PEARL,1F3,無し(ｸﾘｱﾗﾝｽｿﾅｰ)

 1
52119-30521B0

GRS18#..ROY,ROYEX,ROYG

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1C0

 1
52119-30521A1

GRS18#..ROY,ROYEX,ROYG

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,062

 1
52119-30511J0

GRS18#..ROY,ROYEX,ROYG

DARK BLUE MC.,8P8,無し(ｸﾘｱﾗﾝｽｿﾅｰ)

 1
52119-30521B1

GRS18#..ROY,ROYEX,ROYG

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PREMIUM SILVER PEARL,1F3

 1
52119-30521J0

GRS18#..ROY,ROYEX,ROYG

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DARK BLUE MC.,8P8

 1
52119-30521D0

GRS18#..ROY,ROYEX,ROYG

ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACKISH RED MC.,3R0

 1
52119-30511B0

GRS18#..ROY,ROYEX,ROYG

SILVER ME.,1C0,無し(ｸﾘｱﾗﾝｽｿﾅｰ)

 1
52119-30511A3

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067,無し(ｸﾘｱﾗﾝｽｿﾅ[)

 1
52119-30511B2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7,無し(ｸﾘｱﾗﾝｽｿﾅｰ)

 1
52129B - COVER, FRONT BUMPER, LOWER
52129-30040A0

GRS18#..ROY,ROYEX,ROYG

SUPER WHITE 2,040

 1
52129-30040A1

GRS180,181..5FC;GRS182,183,UZS18#

WHITE PEARL CS.,062

 1
52129-30040B2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),SILVER ME.,1F7

 1
52129-30040J0

GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG

DARK BLUE MC.,8P8

 1
52129-30040A2

GRS181..ROYEX;GRS180,182,183..ROY

ﾌﾟﾚﾐｱﾑ50THｴﾃﾞｨｼｮﾝ *(A),VANILLA WHITE,067

 1
52129-30040B1

GRS180,181..5FC;GRS182,183,UZS18#

PREMIUM SILVER PEARL,1F3

 1
52129-30040C0

GRS180,181..5FC;GRS182,183,UZS18#

BLACK,202

 1
52129-30040B0

GRS180,181..5FC;GRS182,183,UZS18#

SILVER ME.,1C0

 1
52129-30040D0

GRS180..5FC..(ROY,ROYEX);GRS181,182,183,UZS18#..A,C,ROY,ROYEX,ROYG

BLACKISH RED MC.,3R0

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-30250

GRS180,181..5FC;GRS182,183,UZS18#

 1
52161C - PIECE, FRONT BUMPER
52161-16010

GRS180,181..5FC;GRS182,183,UZS18#

 3
52161C - PIECE, FRONT BUMPER
52161-16010

GRS180,181..5FC;GRS182,183,UZS18#

 3
52161C - PIECE, FRONT BUMPER
52161-16010

GRS180,181..5FC;GRS182,183,UZS18#

 3
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30170

GRS18#

 1
52535C - RETAINER, FRONT BUMPER SIDE
52535-30150

GRS18#

 2
52535C - RETAINER, FRONT BUMPER SIDE
52535-30150

GRS18#

 2
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-30160

GRS18#

 1
52541 - PROTECTOR, FRONT BUMPER
52541-30090

GRS18#

 2
52541 - PROTECTOR, FRONT BUMPER
52541-30090

GRS18#

 2
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-30100

GRS18#..ROY,ROYEX,ROYG

 1
52544 - SEAL, FRONT BUMPER SIDE, LH
52544-30060

GRS18#..ROY,ROYEX,ROYG

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-30270

GRS18#

 1
52611-30271

GRS18#

 1
53119E - PROTECTOR, RADIATOR GRILLE
53119-12150

GRS180,181..5FC;GRS182,183,UZS18#

 2
Common parts
52491-35010
90105-06277
90159-50311
90159-60431
90179-06127
90179-06171
91552-B1025
Linked diagrams
0901
5102
5302
7601
8102
8417
