GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0312- )GRS181,183,UZS187

Click highlighted areas on diagram

diagram 51100G 51206A 51967B 51968B 52271D 52273A 52274A 52275A 52277B 52278C 52283 52285 52286 52295 52296 5701 9011908A87 9011910806 9011912247 9011912247 9011916017 9017814012 9095101005
Part # Description Qty Price
51100G - FRAME ASSY, FRONT
51100-30670

GRS181,183

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-30080

GRS18#

 1
51967B - HOOK, TRANSPORT, REAR RH
51967-30050

GRS180,181..5FC;GRS182,183,UZS18#

 1
51967-30060

GRS180,181..5FC;GRS182,183,UZS18#

寒冷地仕様

 1
51968B - HOOK, TRANSPORT, REAR LH
51968-30060

GRS180,181..5FC;GRS182,183,UZS18#

 1
51968-30070

GRS180,181..5FC;GRS182,183,UZS18#

寒冷地仕様

 1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-30100

GRS18#..ROY,ROYEX,ROYG

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-30080

GRS18#..ROY,ROYEX,ROYG

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-30080

GRS18#..ROY,ROYEX,ROYG

 1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-30110

GRS18#..ROY,ROYEX,ROYG

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-30060

GRS18#..ROY,ROYEX,ROYG

 2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-30050

GRS18#..ROY,ROYEX,ROYG

 2
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-30060

GRS18#..ROY,ROYEX,ROYG

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30021

GRS18#..ROY,ROYEX,ROYG

 2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-30010

GRS18#,UZS18#..A,C,ROY,ROYEX,ROYG

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-30030

GRS18#..ROY,ROYEX,ROYG

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-30030

GRS18#..ROY,ROYEX,ROYG

 1
Common parts
90119-08A87
90119-10806
90119-12247
90119-16017
90178-14012
90951-01005
Linked diagrams
5701

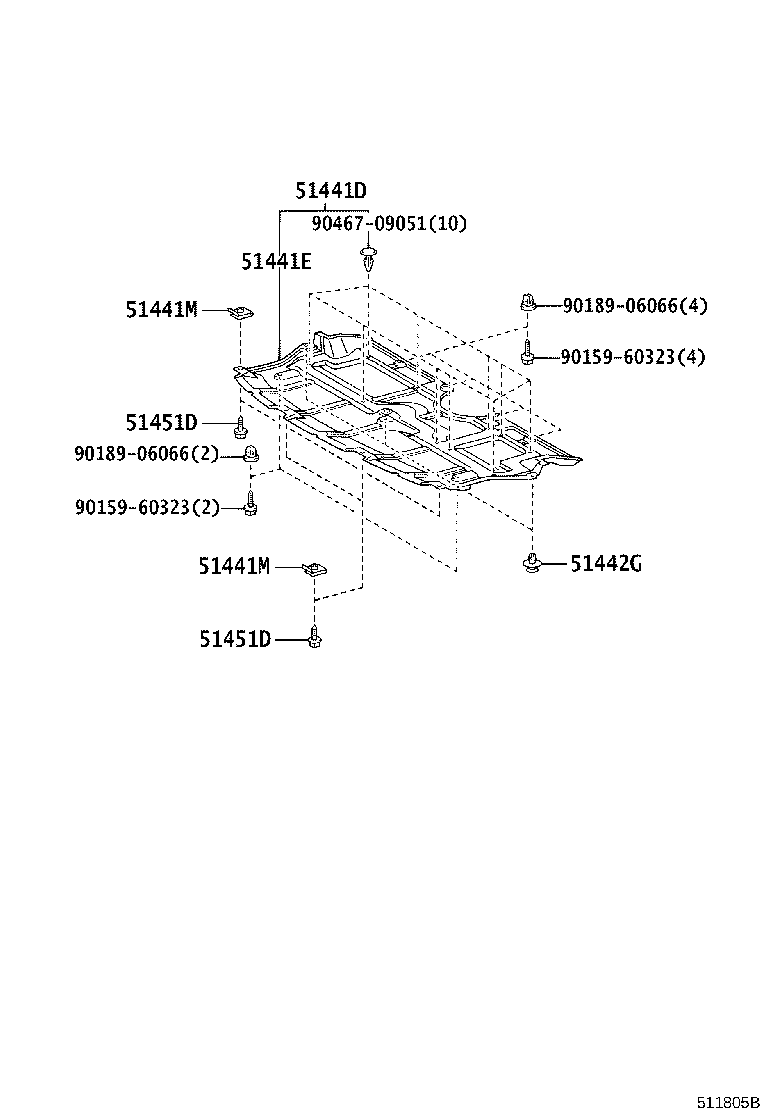

ILLUST NO. 2 OF 2(0312- )GRS181,183,UZS187

Click highlighted areas on diagram

ｱﾝﾀﾞ ｶﾊﾞ-

diagram 51441D 51441E 51441M 51441M 51442G 51451D 51451D 9015960323 9015960323 9018906066 9018906066 9046709051
Part # Description Qty Price
51441D - COVER, ENGINE UNDER
51410-30040

GRS181,183

 1
51441E - COVER, MOTOR UNDER, NO.1
51441-30340

GRS181,183

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07166

GRS180,181..5FC;GRS182,183,UZS18#

 3
51451D - SCREW, NO.1
90159-60477

GRS180,181..5FC;GRS182,183,UZS18#

 4
51451D - SCREW, NO.1
90159-60477

GRS180,181..5FC;GRS182,183,UZS18#

 4
Common parts
90159-60323
90189-06066
90467-09051
