GRS181-AEASH (2004)
Toyota Crown/Majesta
Production
Aug 2004
-
Sep 2005
Engine
4GRFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0312- )GRS180,181,182,183,UZS18#

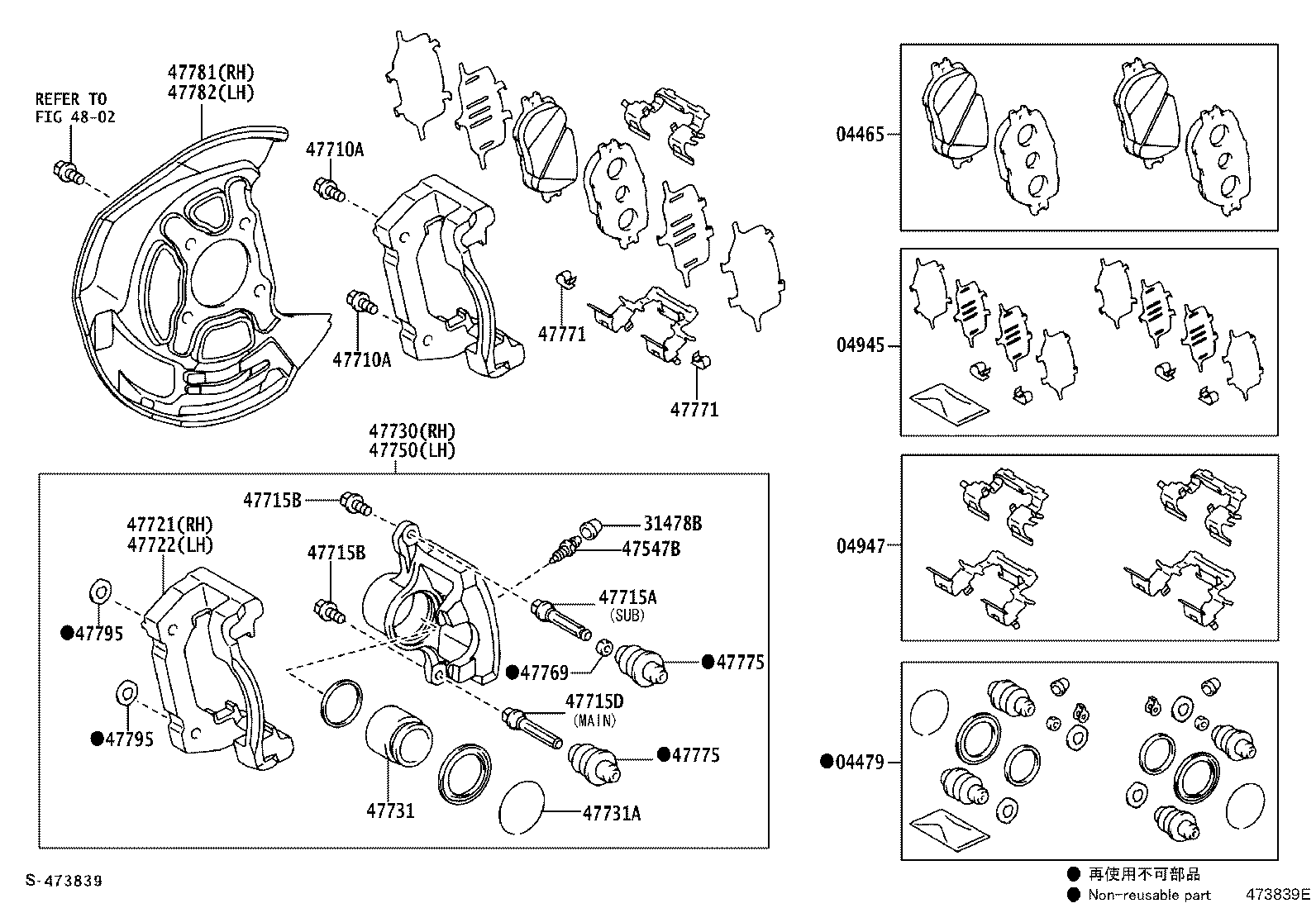

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-30330 |
GRS18#..ROY,ROYEX,ROYG ﾏｰｸ NBK D6893H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-30110 |
GRS18# |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-30170 |
GRS18#..ROY,ROYEX,ROYG |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-30140 |
GRS18#..ROY,ROYEX,ROYG |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
GRS18# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-27030 |
GRS18# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91552-K1240 |
GRS18# *12−1.25PX40−30 |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 91552-K1240 |
GRS18# *12−1.25PX40−30 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-22070 |
GRS18# |
2 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
GRS18# |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
GRS18# |
4 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-33050 |
GRS18# |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-30520 |
GRS18#..ROY,ROYEX,ROYG |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-30520 |
GRS18#..ROY,ROYEX,ROYG |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-30520 |
GRS18#..ROY,ROYEX,ROYG |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-33070 |
GRS18# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90520-86005 |
GRS18# |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-30520 |
GRS18#..ROY,ROYEX,ROYG |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
GRS18# |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-30090 |
GRS18# |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-30090 |
GRS18# |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30070 |
GRS18# |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-30070 |
GRS18# |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-30230 |
GRS181,183 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-30230 |
GRS181,183 |
1 | ||
| 47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1 | ||||
| 47795-30520 |
GRS18# |
4 | ||
| 47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1 | ||||
| 47795-30520 |
GRS18# |
4 | ||
| Linked diagrams | ||||
| 4802 | ||||
