GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0509)GRS18#

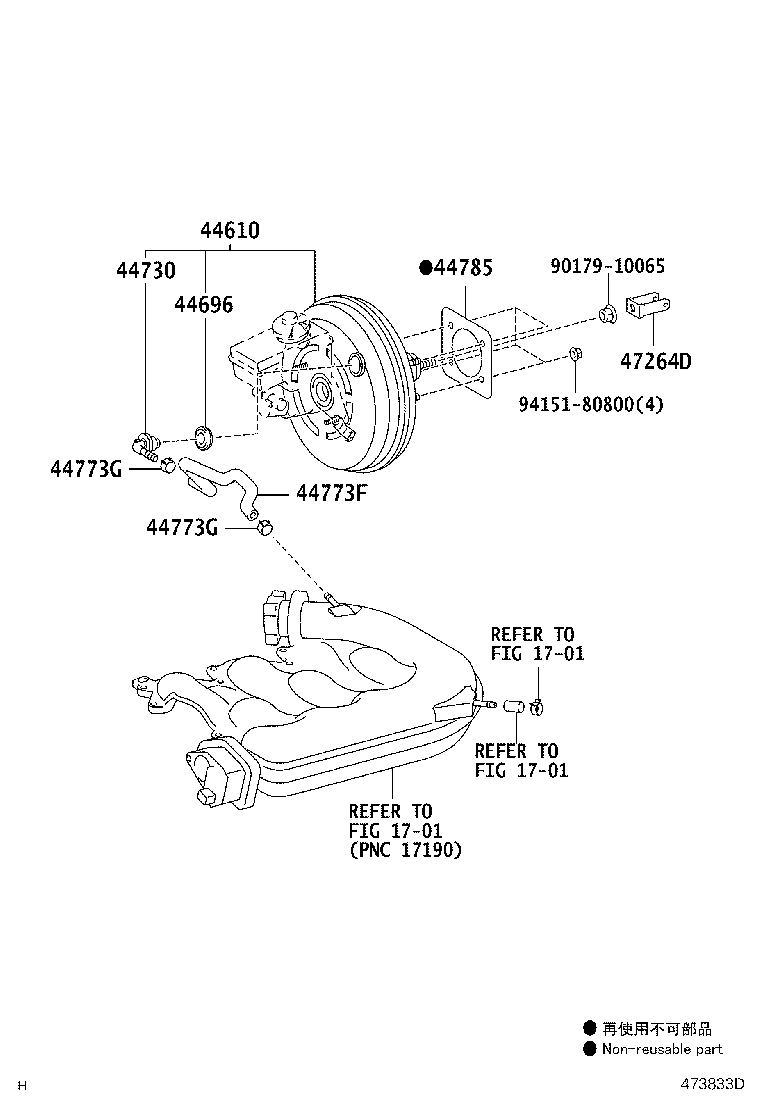

Click highlighted areas on diagram

diagram 1701 1701 1701 44610 44696 44730 44773F 44773G 44773G 44785 47264D 9017910065 9415180800
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-30A00

GRS18#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

GRS18#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070

GRS180,181..5FC;GRS182,183,UZS187

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-30550

GRS18#

 1
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

GRS18#

 2
44773G - CLIP(FOR UNION TO CHECK VALVE HOSE)
90467-16014

GRS18#

 2
44785 - GASKET, BRAKE BOOSTER
44785-47010

GRS18#

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-30060

GRS18#

 1
Common parts
90179-10065
94151-80800
Linked diagrams
1701
