GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )

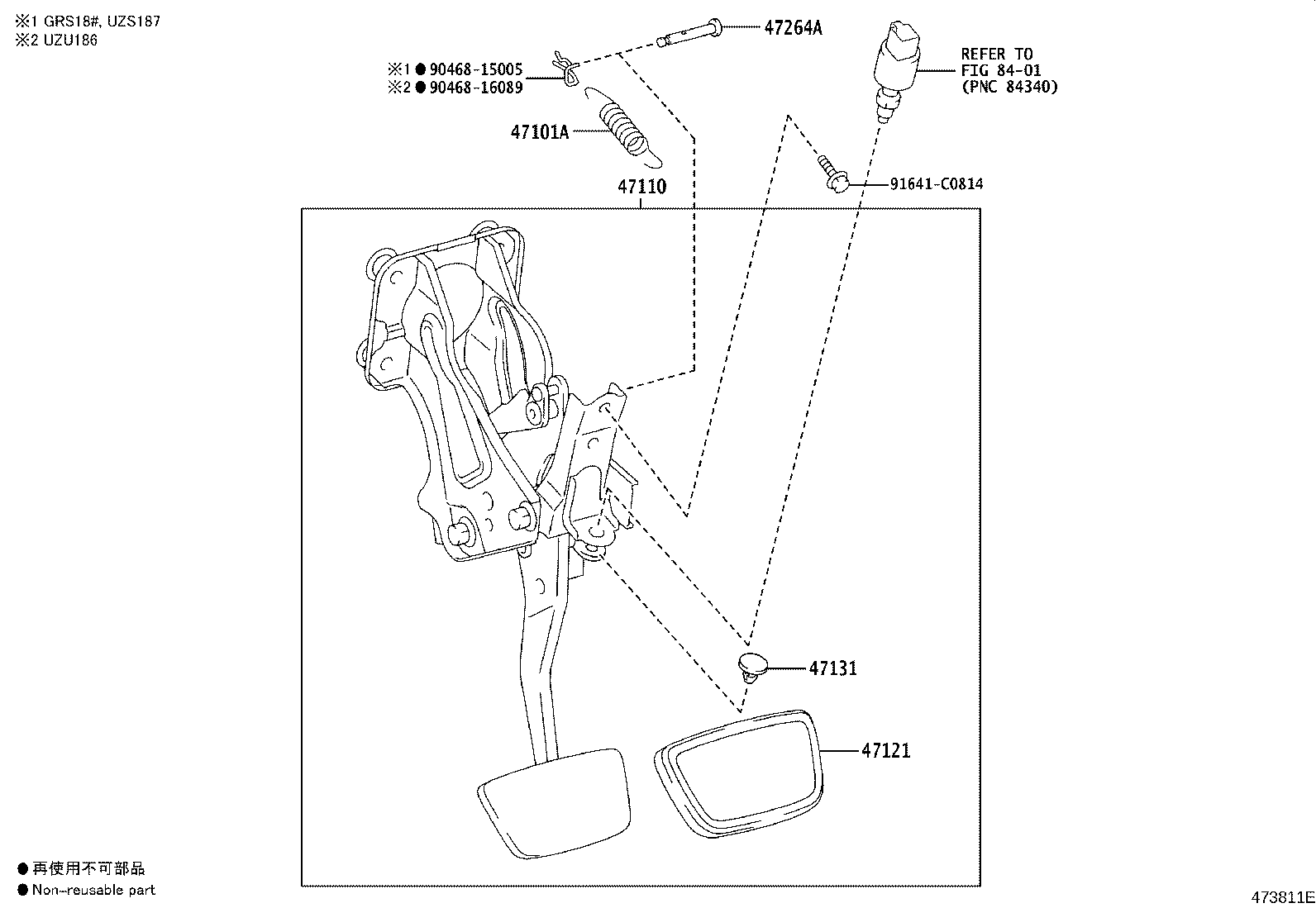

Click highlighted areas on diagram

diagram 47101A 47110 47121 47131 47264A 8401 9046815005 9046816089 91641C0814
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-13009

GRS18#

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-30400

GRS180,181..5FC;GRS182,183,UZS187

 1
47121 - PAD, BRAKE PEDAL
47121-50020

GRS18#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

GRS180,181..5FC;GRS182,183,UZS18#

 1
47264A - PIN(FOR PUSH ROD)
90249-06180

GRS18#

 1
Common parts
90468-15005
90468-16089
91641-C0814
Linked diagrams
8401
