GRS181-AEASH (2004)
Toyota Crown/Majesta
Production
Aug 2004
-
Sep 2005
Engine
4GRFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

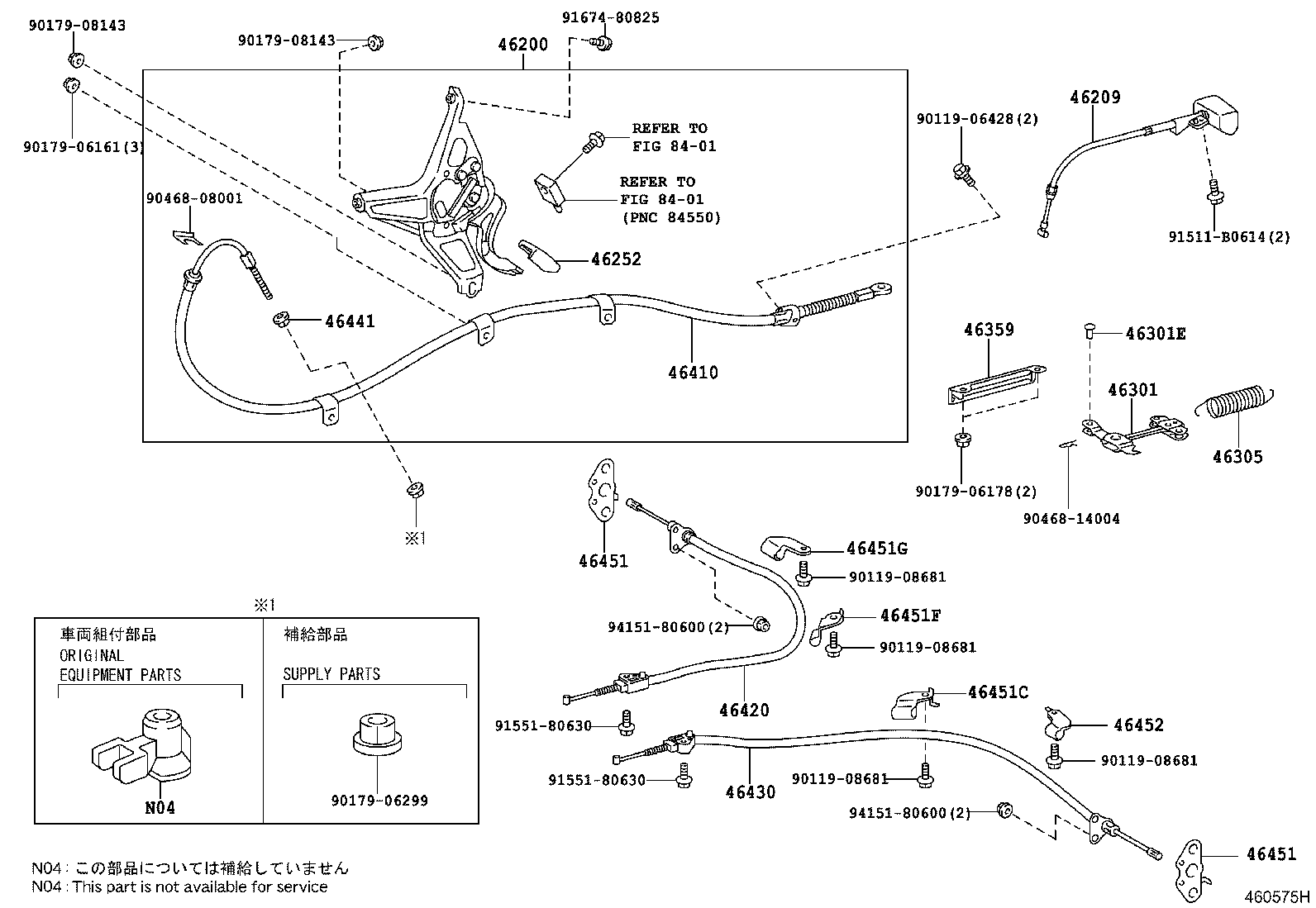

ILLUST NO. 1 OF 2(0312- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-30390 |
GRS18# |
1 | ||
| 46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE | ||||
| 46209-30200A0 |
GRS18#..ROY,ROYEX,ROYG NEW IVORY,TRIM0# |
1 | ||
| 46209-30200B0 |
GRS18# GRAY,TRIM1# |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-30010 |
GRS18# |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-30270 |
GRS18# |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08059 |
GRS18# |
1 | ||
| 46305 - SPRING, PARKING BRAKE RETURN W/DAMPER | ||||
| 46305-30030 |
GRS18# |
1 | ||
| 46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER | ||||
| 46359-30160 |
GRS18# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-30740 |
GRS18# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-30550 |
GRS18# |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-30150 |
GRS18# |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-51010 |
GRS18# |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-50050 |
GRS18# |
2 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-50050 |
GRS18# |
2 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-30180 |
GRS18# |
1 | ||
| 46451F - BRACKET, CABLE SUPPORT | ||||
| 46451-30170 |
GRS18# |
1 | ||
| 46451G - BRACKET, CABLE SUPPORT | ||||
| 46451-30190 |
GRS18# |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46451-30200 |
GRS18# |
1 | ||
| Common parts | ||||
| 90119-06428 | ||||
| 90119-08681 | ||||
| 90179-06161 | ||||
| 90179-06178 | ||||
| 90179-06299 | ||||
| 90179-08143 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 91511-B0614 | ||||
| 91551-80630 | ||||
| 91674-80825 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

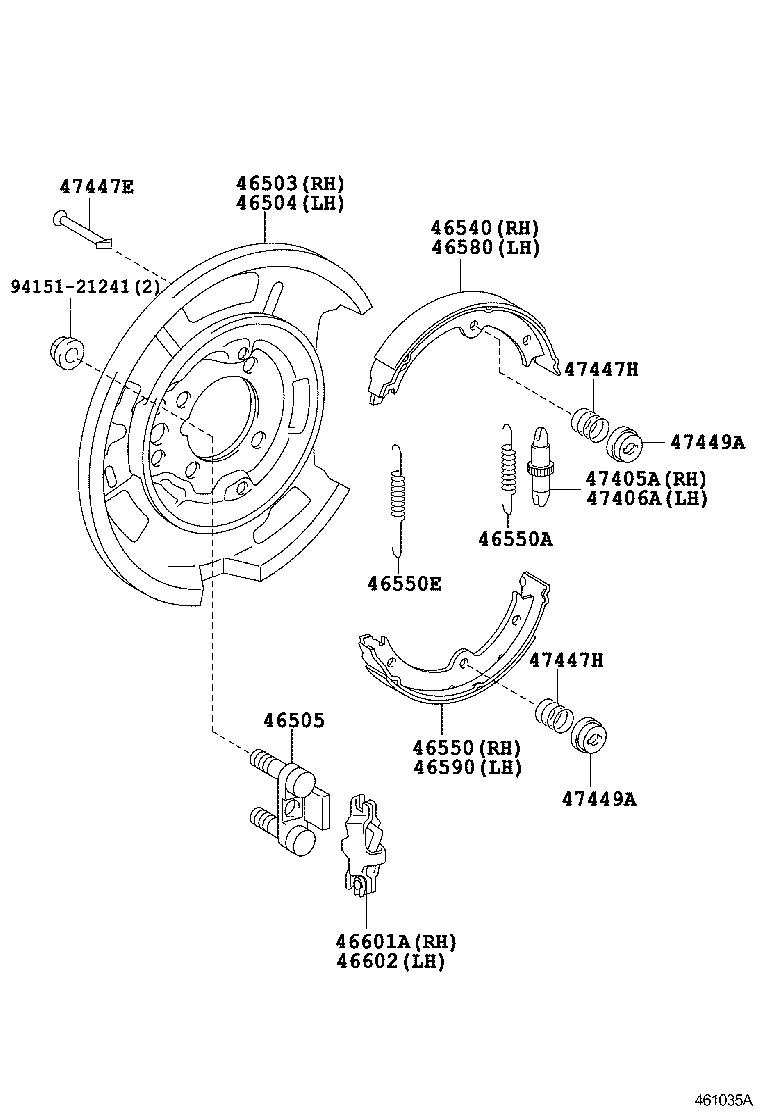

ILLUST NO. 2 OF 2(0312- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-30230 |
GRS18#..ROY,ROYEX,ROYG |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-30230 |
GRS18#..ROY,ROYEX,ROYG |
1 | ||
| 46505 - BLOCK SUB-ASSY, PARKING BRAKE ANCHOR | ||||
| 46505-50010 |
GRS18# |
2 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46530-30020 |
GRS18# |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46530-30020 |
GRS18# |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14080 |
GRS18# |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-23052 |
GRS18# |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46530-30020 |
GRS18# |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46530-30020 |
GRS18# |
1 | ||
| 46601A - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH | ||||
| 46601-50011 |
GRS18# |
1 | ||
| 46602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH | ||||
| 46602-50011 |
GRS18# |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-32010 |
GRS18# |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-32010 |
GRS18# |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-10020 |
GRS18# |
4 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
GRS18# |
4 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
GRS18# |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GRS18# |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GRS18# |
4 | ||
| Common parts | ||||
| 94151-21241 | ||||
