GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )GRS181,183,UZS187

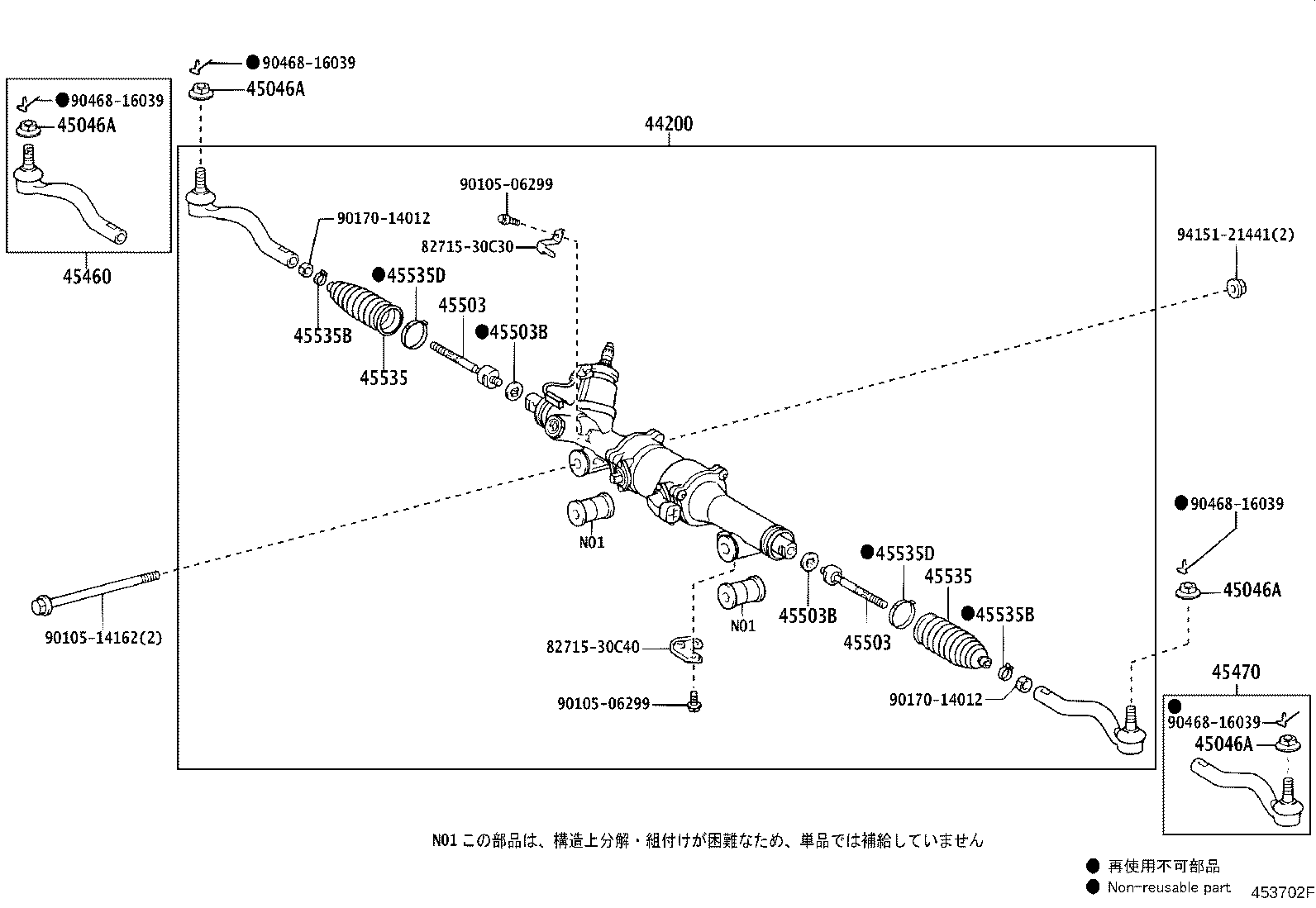

Click highlighted areas on diagram

diagram 44200 45046A 45046A 45046A 45046A 45460 45470 45503 45503 45503B 45503B 45535 45535 45535B 45535B 45535D 45535D 8271530C30 8271530C40 9010506299 9010506299 9010514162 9017014012 9017014012 9046816039 9046816039 9046816039 9046816039 9415121441
Part # Description Qty Price
44200 - LINK ASSY, POWER STEERING
44200-30310

GRS181,183,UZS187

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90178-12017

GRS181,183

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90178-12017

GRS181,183

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90178-12017

GRS181,183

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90178-12017

GRS181,183

 2
45460 - ROD ASSY, TIE, RH
45460-39715

GRS181,183

 1
45470 - ROD ASSY, TIE, LH
45470-39255

GRS181,183

 1
45503 - END SUB-ASSY, STEERING RACK
45503-30080

GRS181,183

 2
45503 - END SUB-ASSY, STEERING RACK
45503-30080

GRS181,183

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14011

GRS18#

外径=40

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14011

GRS18#

外径=40

 2
45535 - BOOT, STEERING RACK, NO.1
45535-30030

GRS18#

 2
45535 - BOOT, STEERING RACK, NO.1
45535-30030

GRS18#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

GRS18#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19019

GRS18#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-55016

GRS18#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-55016

GRS18#

 2
Common parts
82715-30C30
82715-30C40
90105-06299
90105-14162
90170-14012
90468-16039
94151-21441
