GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )GRS181,183,UZS187

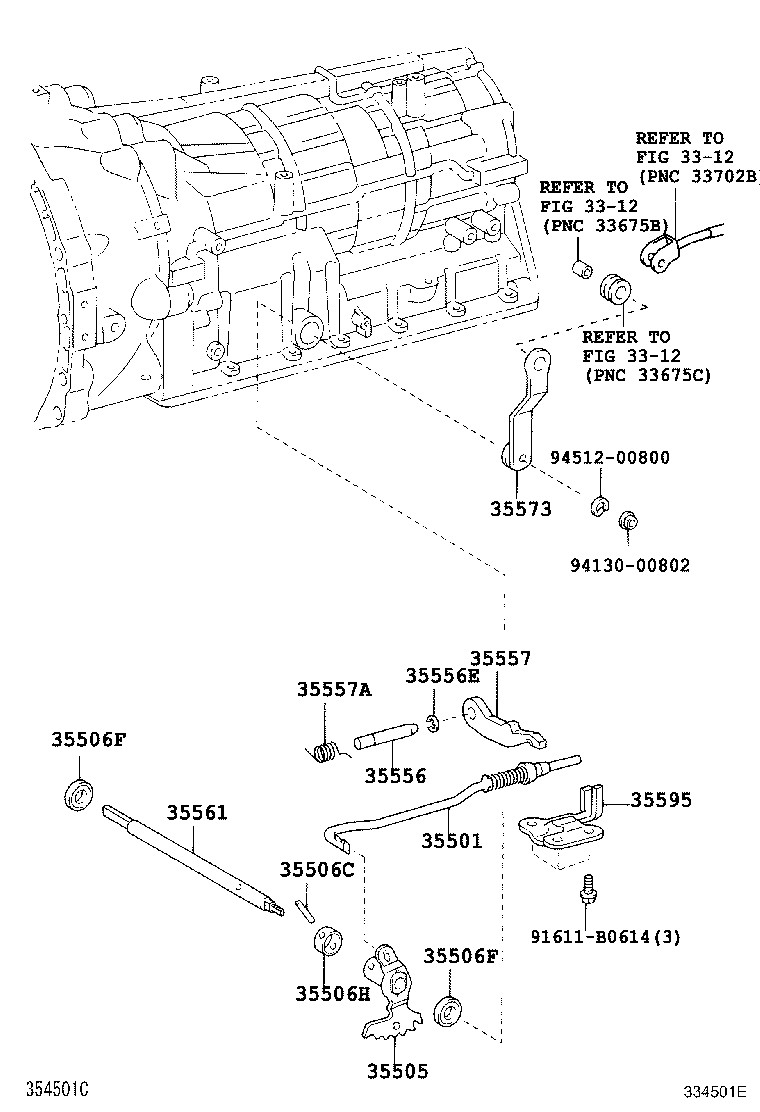

Click highlighted areas on diagram

A750H,A760H,A761H

diagram 3312 3312 3312 35501 35505 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35561 35573 35595 91611B0614 9413000802 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-50010

GRS18#

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-60050

GRS180,181

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

GRS180,181..5FC;GRS182,183,UZS18#

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

GRS18#

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

GRS18#

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20025

GRS18#

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-60020

GRS18#

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

GRS18#

 1
35557 - PAWL, PARKING LOCK
35590-50010

GRS18#

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90949-03130

GRS18#

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-60030

GRS181,183,UZS187

 1
35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH
35573-30060

GRS181,183

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-50010

GRS18#

 1
Common parts
91611-B0614
94130-00802
94512-00800
Linked diagrams
3312
