GRS181-AEASH (2004)
Toyota Crown/Majesta
Production
Aug 2004
-
Sep 2005
Engine
4GRFSE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0312- )

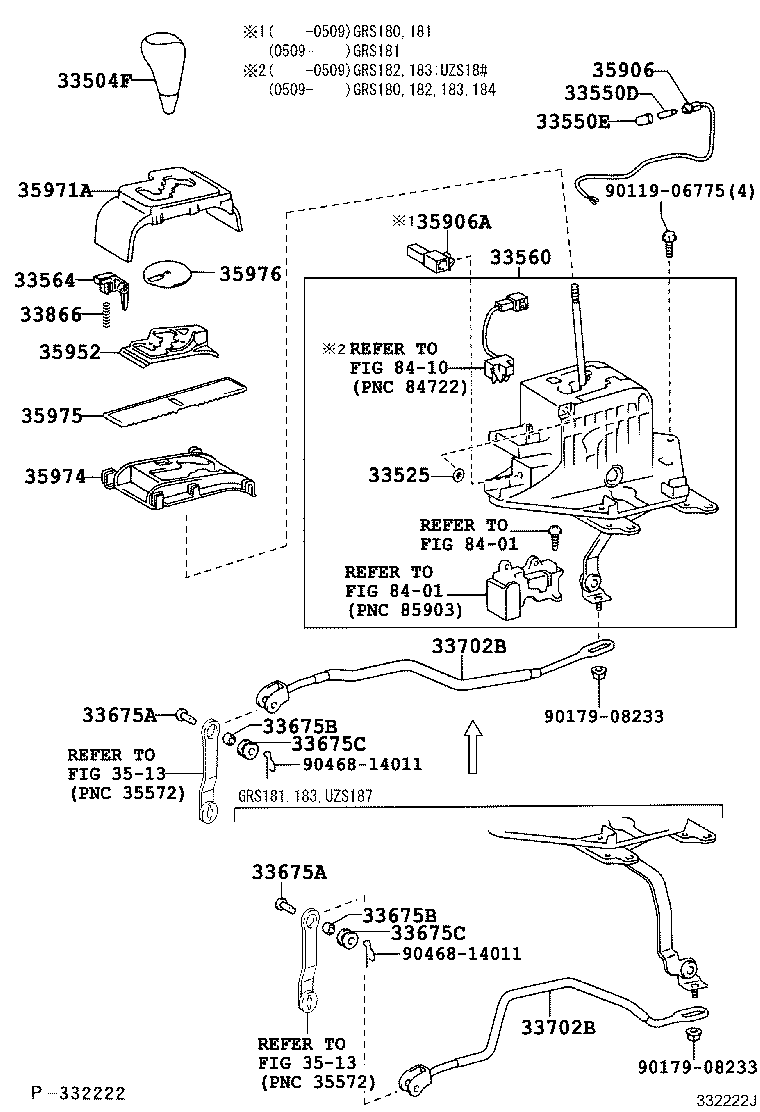

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-22170C0 |
GRS180,181..ROYEX BLACK,TRIM1# |
1 | ||
| 33504-30310C8 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,BLACK/GRAY,TRIM1# |
1 | ||
| 33504-22170E0 |
GRS180,181..ROYEX ORCHID BROWN,TRIM0# |
1 | ||
| 33504-30310E5 |
GRS180,181..ROYEX Qﾊﾟｯｹｰｼﾞ,ORCHID BROWN/LT.BROWN,TRIM0# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
GRS18# 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
GRS18# |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-30130 |
GRS181..ROYEX Qﾊﾟｯｹｰｼﾞ |
1 | ||
| 33560-30140 |
GRS181..ROYEX |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-30140 |
GRS18# |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 33726-35010 |
GRS18#,UZS18# |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 33726-35010 |
GRS18#,UZS18# |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90560-08091 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 33675B - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90560-08091 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17013 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 33675C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17013 |
GRS180,181..5FC;GRS182,183,UZS18# |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-30600 |
GRS181,183 |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-30600 |
GRS181,183 |
1 | ||
| 33866 - SPRING, SHIFT LOCK RELEASE | ||||
| 33866-50010 |
GRS18# |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-30140 |
GRS18# |
1 | ||
| 35906A - HOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE) | ||||
| 90980-12364 |
GRS180,181 |
1 | ||
| 35952 - LENS, POSITION INDICATOR | ||||
| 35952-30090 |
GRS180,181 |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-30430 |
GRS180,181 |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-30130 |
GRS18# |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-50030 |
GRS18# |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-50020 |
GRS18# |
1 | ||
| Common parts | ||||
| 90119-06775 | ||||
| 90179-08233 | ||||
| 90468-14011 | ||||
| Linked diagrams | ||||
| 3513 | ||||
| 8401 | ||||
| 8410 | ||||
