GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )2GRFSE,3GRFSE,4GRFSE

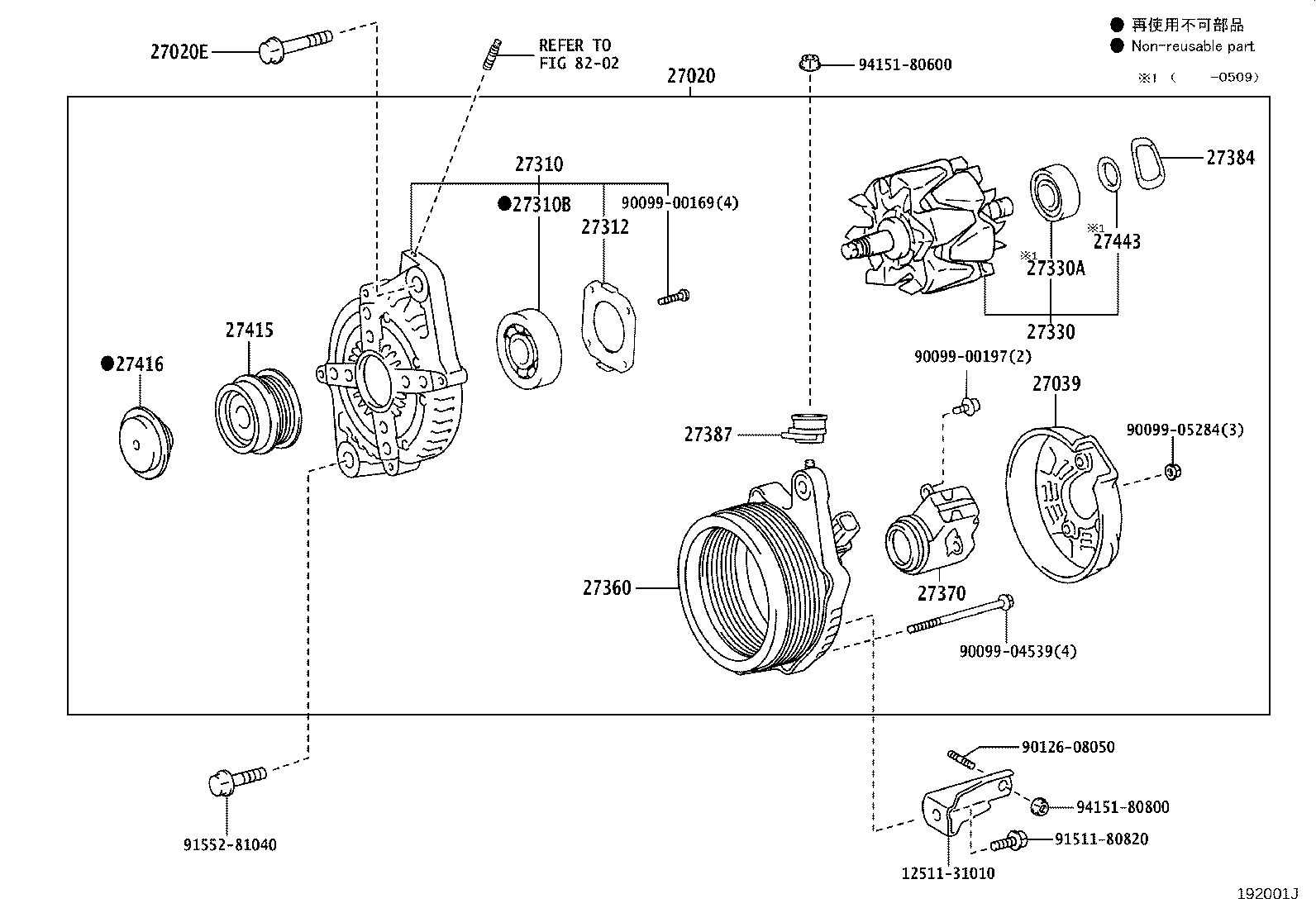

Click highlighted areas on diagram

12V 130A

diagram 1251131010 27020 27020E 27039 27310 27310B 27312 27330 27330A 27360 27370 27384 27387 27415 27416 27443 8202 9009900169 9009900197 9009904539 9009905284 9012608050 9151180820 9155281040 9415180600 9415180800
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-31030

3GRFSE,4GRFSE..GRS18#

12V 130A

 1
27020E - BOLT(FOR ALTERNATOR)
91552-81070

3GRFSE,4GRFSE..GRS18#

 1
27039 - COVER, ALTERNATOR REAR END
27039-27060

3GRFSE,4GRFSE..GRS18#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-31220

3GRFSE,4GRFSE..GRS18#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10142

4GRFSE..GRS180,181..5FC;3GRFSE,3UZFE..GRS182,183,UZS18#

 1
27312 - PLATE, RETAINER
27312-72100

3GRFSE,4GRFSE..GRS18#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-33090

3GRFSE..GRS182,183;4GRFSE..GRS180,181..5FC

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3GRFSE,4GRFSE..GRS18#

 1
27360 - COIL ASSY, ALTERNATOR
27360-31220

3GRFSE,4GRFSE..GRS18#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

3GRFSE,4GRFSE..GRS18#

 1
27384 - WASHER
27384-50030

3GRFSE,4GRFSE..GRS18#

 1
27387 - INSULATOR, TERMINAL
27387-20130

3GRFSE,4GRFSE..GRS18#

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W010

3GRFSE,4GRFSE..GRS18#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W010

3GRFSE,4GRFSE..GRS18#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3GRFSE,4GRFSE..GRS18#

 1
Common parts
12511-31010
90099-00169
90099-00197
90099-04539
90099-05284
90126-08050
91511-80820
91552-81040
94151-80600
94151-80800
Linked diagrams
8202
