GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )2GRFSE,3GRFSE,4GRFSE

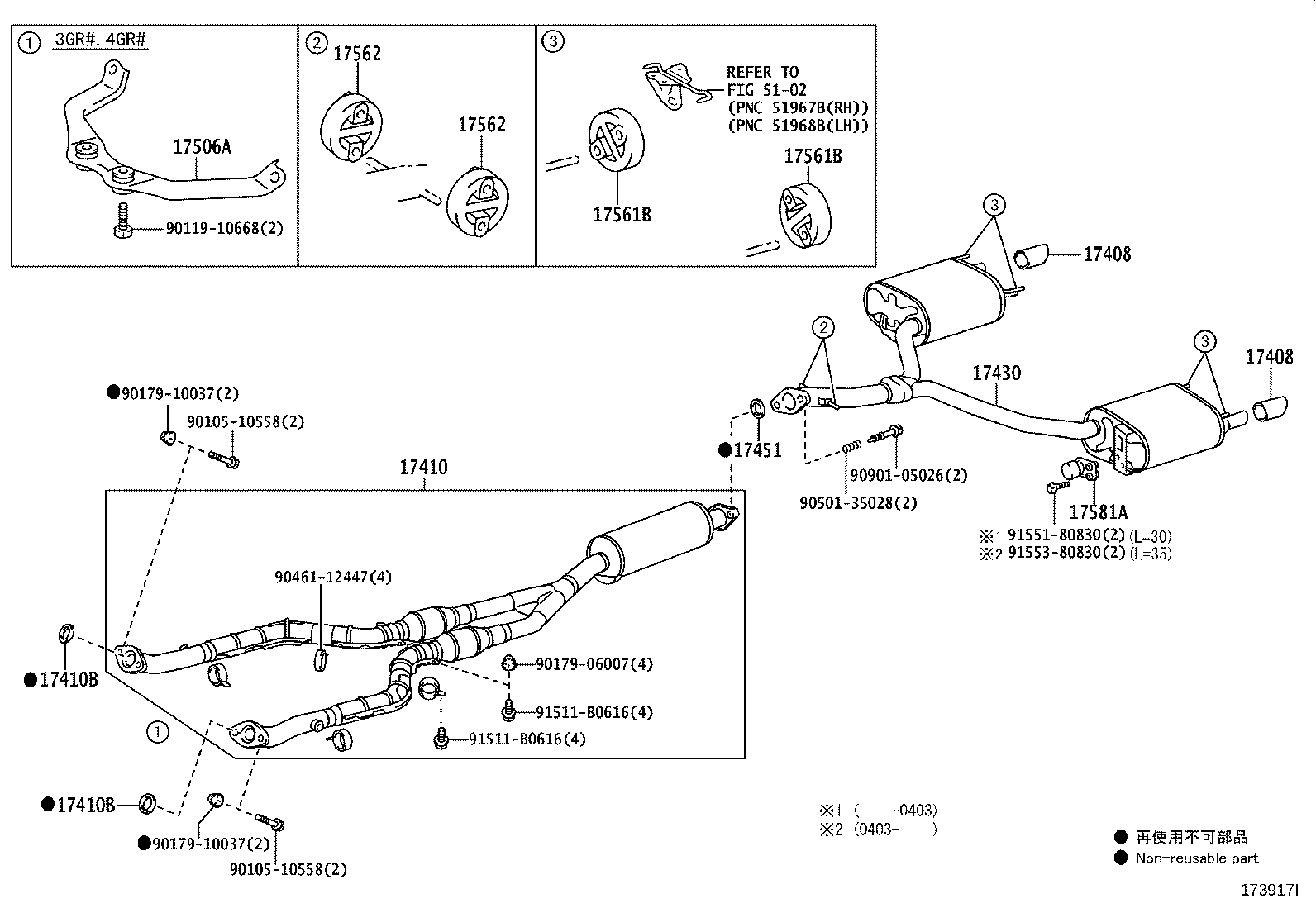

Click highlighted areas on diagram

diagram 17408 17408 17410 17410B 17410B 17430 17451 17506A 17561B 17561B 17562 17562 17581A 5102 9010510558 9010510558 9011910668 9017906007 9017910037 9017910037 9046112447 9050135028 9090105026 91511B0616 91511B0616 9155180830 9155380830
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-74080

3GRFSE,4GRFSE,3UZFE..GRS18#,UZS18#

 2
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-74080

3GRFSE,4GRFSE,3UZFE..GRS18#,UZS18#

 2
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31510

4GRFSE..GRS181

 1
17410B - GASKET, EXHAUST PIPE
90917-06078

3GRFSE,4GRFSE..GRS18#

 2
17410B - GASKET, EXHAUST PIPE
90917-06078

3GRFSE,4GRFSE..GRS18#

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31430

3GRFSE,4GRFSE..GRS18#

 1
17451 - GASKET, EXHAUST PIPE
17451-31010

3GRFSE,4GRFSE,3UZFE..GRS18#,UZS18#

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-31040

3GRFSE,4GRFSE..GRS181,183

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-11160

3GRFSE,4GRFSE,3UZFE..GRS18#,UZS18#

 4
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-11160

3GRFSE,4GRFSE,3UZFE..GRS18#,UZS18#

 4
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-46040

3GRFSE,4GRFSE,3UZFE..GRS18#,UZS18#

 2
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-46040

3GRFSE,4GRFSE,3UZFE..GRS18#,UZS18#

 2
17581A - DAMPER, EXHAUST PIPE
17581-46140

3GRFSE,4GRFSE,3UZFE..GRS18#,UZS18#

 1
Common parts
90105-10558
90119-10668
90179-06007
90179-10037
90461-12447
90501-35028
90901-05026
91511-B0616
91551-80830
91553-80830
Linked diagrams
5102
