GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0509)3GRFSE,4GRFSE

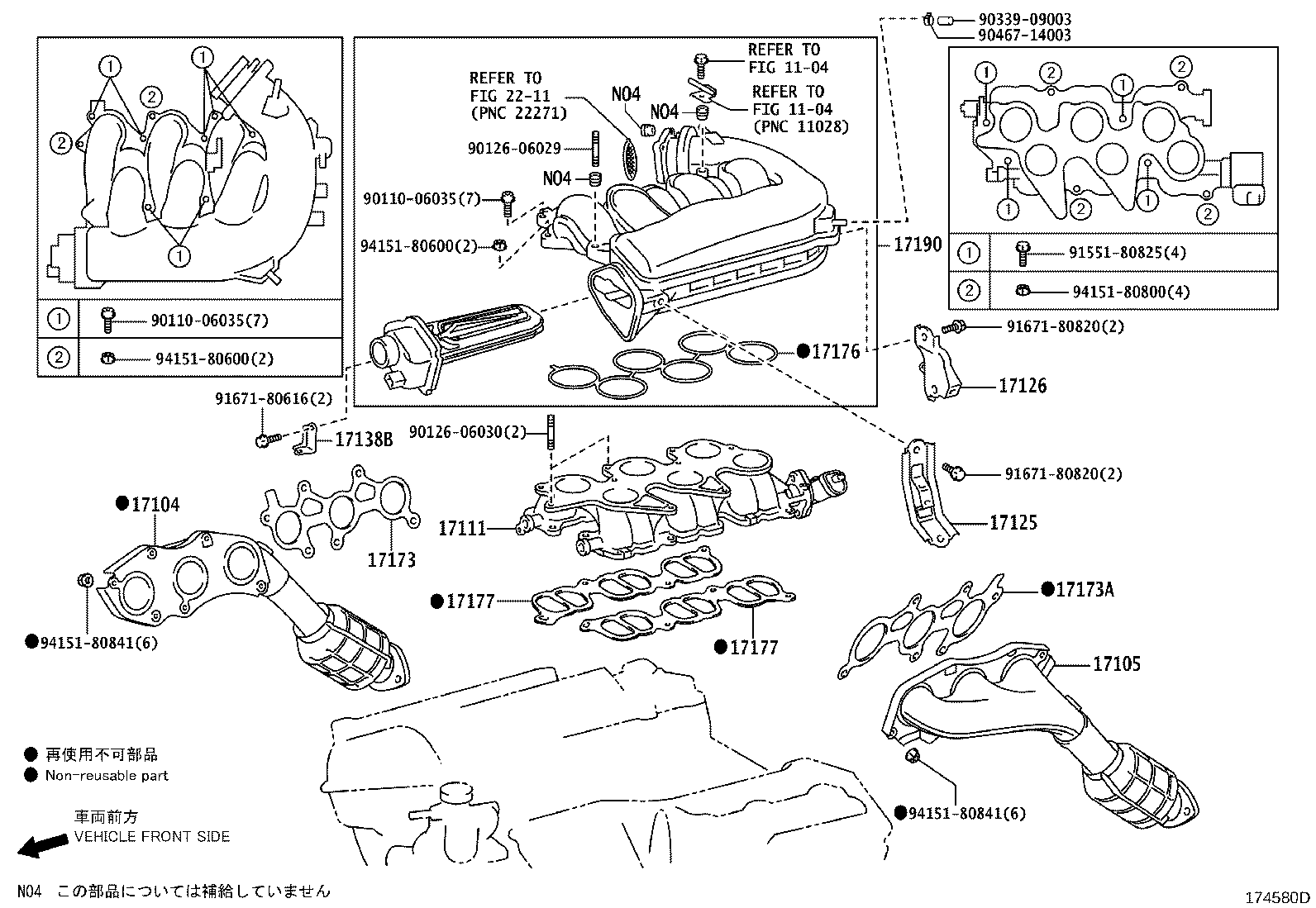

Click highlighted areas on diagram

diagram 1104 1104 17104 17105 17111 17125 17126 17138B 17173 17173A 17176 17177 17177 17190 2211 9011006035 9011006035 9012606029 9012606030 9033909003 9046714003 9155180825 9167180616 9167180820 9167180820 9415180600 9415180600 9415180800 9415180841 9415180841
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31040

4GRFSE..GRS181

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31040

4GRFSE..GRS181

 1
17111 - MANIFOLD, INTAKE
17120-31010

3GRFSE,4GRFSE..GRS18#

 1
17125 - STAY, SURGE TANK, NO.1
17125-31020

3GRFSE,4GRFSE..GRS18#

 1
17126 - STAY, SURGE TANK, NO.2
17126-31020

3GRFSE,4GRFSE..GRS18#

 1
17138B - STAY, INTAKE MANIFOLD
17138-31010

3GRFSE,4GRFSE..GRS18#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31020

3GRFSE,4GRFSE..GRS18#

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-31020

3GRFSE,4GRFSE..GRS18#

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31020

3GRFSE,4GRFSE..GRS18#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31020

3GRFSE,4GRFSE..GRS18#

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31020

3GRFSE,4GRFSE..GRS18#

 2
17190 - TANK ASSY, INTAKE AIR SURGE
17190-31020

3GRFSE,4GRFSE..GRS18#

 1
Common parts
90110-06035
90126-06029
90126-06030
90339-09003
90467-14003
91551-80825
91671-80616
91671-80820
94151-80600
94151-80800
94151-80841
Linked diagrams
1104
2211
