GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0802)2GRFSE,3GRFSE,4GRFSE

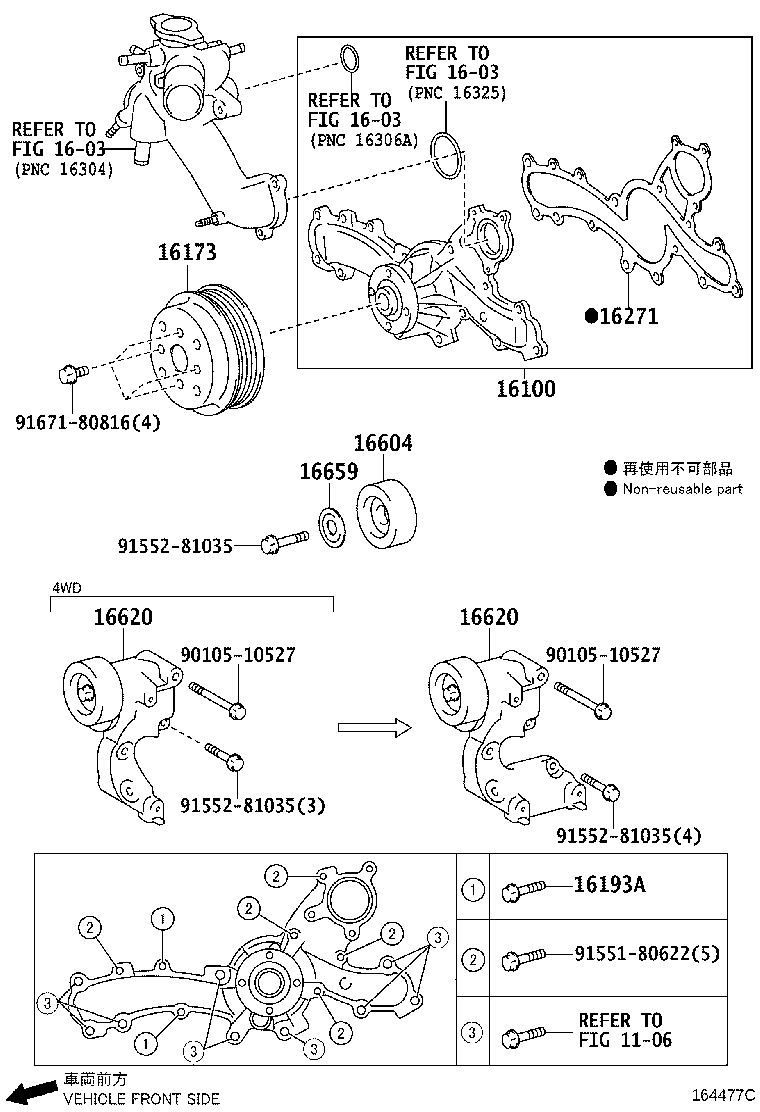

Click highlighted areas on diagram

diagram 1106 1603 1603 1603 16100 16173 16193A 16271 16604 16620 16620 16659 9010510527 9010510527 9155180622 9155281035 9155281035 9155281035 9167180816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39435

3GRFSE,4GRFSE..GRS18#

 1
16173 - PULLEY, WATER PUMP
16173-31010

3GRFSE,4GRFSE..GRS18#

 1
16193A - BOLT(FOR WATER PUMP COVER)
16193-31080

3GRFSE,4GRFSE..GRS18#

 2
16271 - GASKET, WATER PUMP
16271-31020

3GRFSE,4GRFSE..GRS18#

 1
16604 - PULLEY SUB-ASSY, IDLER, NO.2
16604-31010

3GRFSE,4GRFSE..GRS18#

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-31031

4GRFSE..GRS181

 1
16620-31030

4GRFSE..GRS181

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-31031

4GRFSE..GRS181

 1
16620-31030

4GRFSE..GRS181

 1
16659 - PLATE, IDLER PULLEY COVER, NO.2
16659-31011

3GRFSE,4GRFSE..GRS18#

 1
Common parts
90105-10527
91551-80622
91552-81035
91671-80816
Linked diagrams
1106
1603
