GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312- )2GRFSE,3GRFSE,4GRFSE

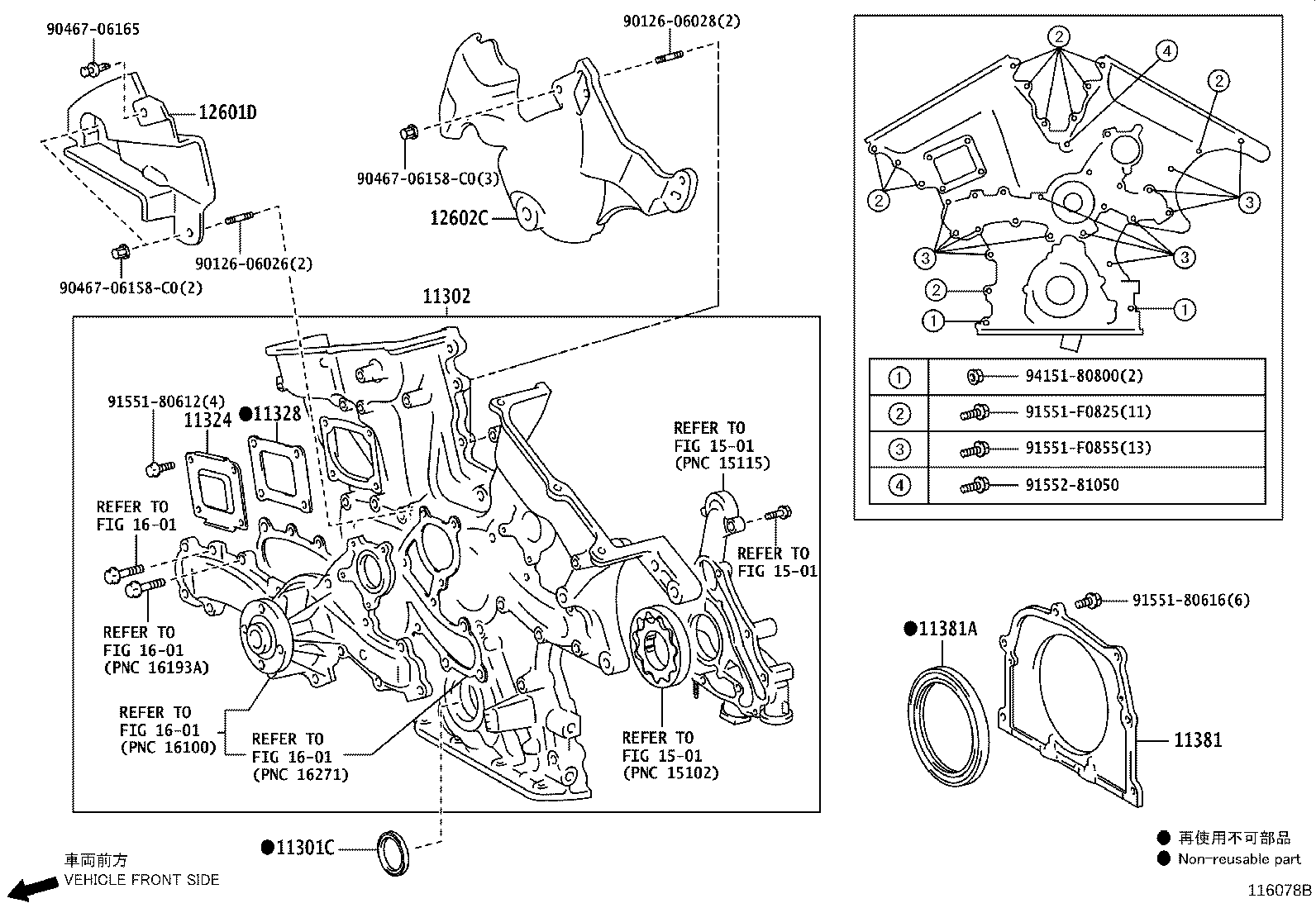

Click highlighted areas on diagram

diagram 11301C 11302 11324 11328 11381 11381A 12601D 12602C 1501 1501 1501 1601 1601 1601 1601 9012606026 9012606028 9046706158C0 9046706158C0 9046706165 9155180612 9155180616 91551F0825 91551F0855 9155281050 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42037

3GRFSE,4GRFSE..GRS18#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-31041

3GRFSE,4GRFSE..GRS18#

 1
11310-31040

3GRFSE,4GRFSE..GRS18#

 1
11324 - PLATE, TIMING CHAIN COVER
11324-31020

3GRFSE,4GRFSE..GRS18#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31030

3GRFSE,4GRFSE..GRS18#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31021

3GRFSE,4GRFSE..GRS18#

 1
11381-31020

3GRFSE,4GRFSE..GRS18#

 1
11381A - SEAL, ENGINE REAR OIL
90311-92006

3GRFSE,4GRFSE..GRS18#

 1
12601D - COVER, ENGINE, NO.1
12601-31010

3GRFSE,4GRFSE..GRS18#

 1
12602C - COVER, ENGINE, NO.2
12602-31010

3GRFSE,4GRFSE..GRS18#

 1
12602-31012

3GRFSE,4GRFSE..GRS18#

 1
Common parts
90126-06026
90126-06028
90467-06158C0
90467-06165
91551-80612
91551-80616
91551-F0825
91551-F0855
91552-81050
94151-80800
Linked diagrams
1501
1601
