GRS181-AEASH (2004)

Toyota Crown/Majesta

Production Aug 2004 - Sep 2005
Engine 4GRFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0312-0802)3GRFSE,4GRFSE..GRS181,183

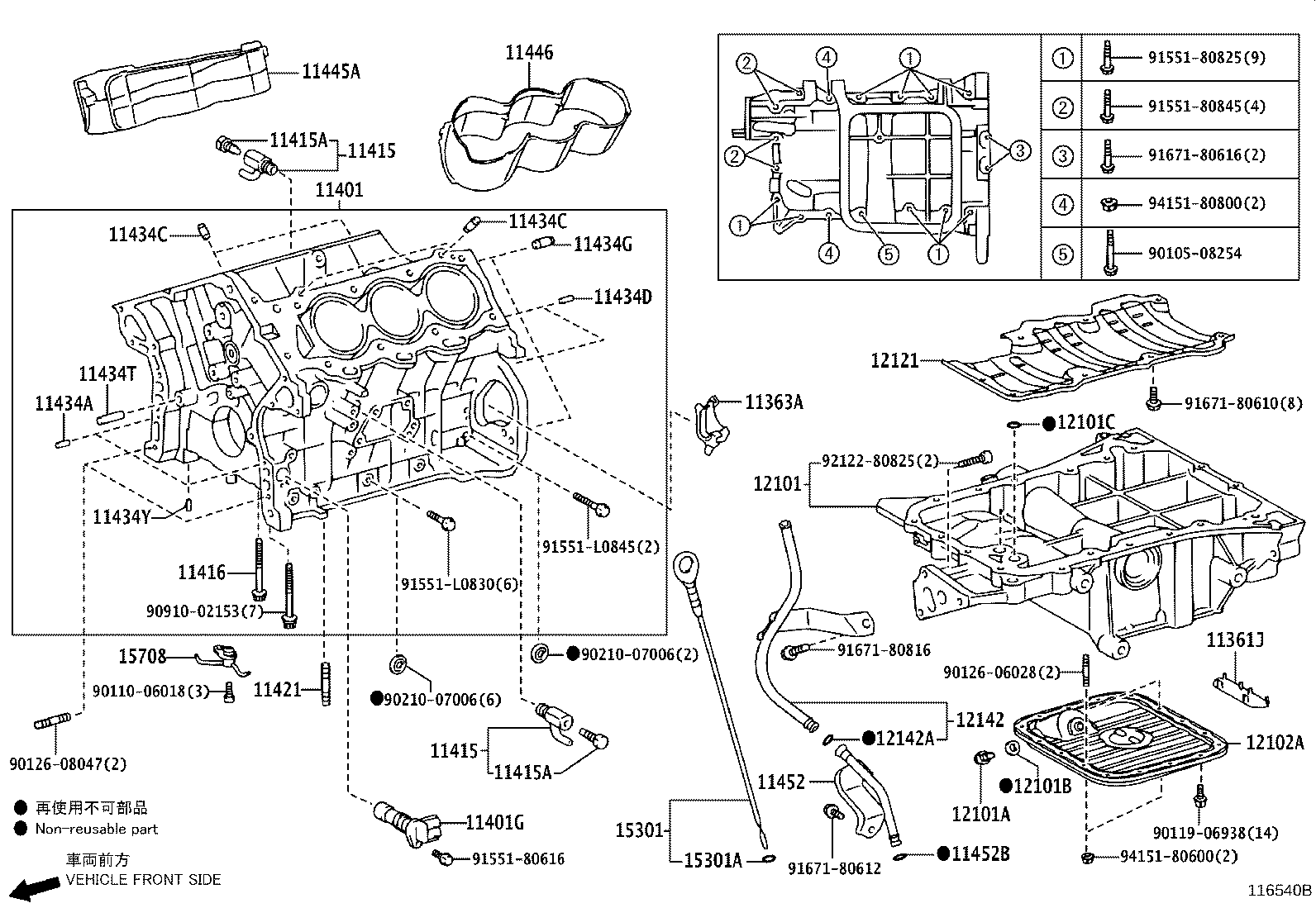

Click highlighted areas on diagram

diagram 11361J 11363A 11401 11401G 11415 11415 11415A 11415A 11416 11421 11434A 11434C 11434C 11434D 11434G 11434T 11434Y 11445A 11446 11452 11452B 12101 12101A 12101B 12101C 12102A 12121 12142 12142A 15301 15301A 15708 9010508254 9011006018 9011906938 9012606028 9012608047 9021007006 9021007006 9091002153 9155180616 9155180825 9155180845 91551L0830 91551L0845 9167180610 9167180612 9167180616 9167180816 9212280825 9415180600 9415180800
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-31040

3GRFSE,4GRFSE..GRS181,183

 1
11363A - COVER, FLYWHEEL HOUSING SIDE
11363-31010

3GRFSE,4GRFSE..GRS18#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80758

4GRFSE..GRS180,181

 1
11401-80710

4GRFSE..GRS180,181

 1
11401G - SENSOR, CRANK POSITION
90919-05057

3GRFSE,4GRFSE..GRS18#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

4GRFSE..GRS180,181

 2
90910-09125

4GRFSE..GRS180,181

 2
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09129

4GRFSE..GRS180,181

 2
90910-09125

4GRFSE..GRS180,181

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

3GRFSE,4GRFSE..GRS18#

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

3GRFSE,4GRFSE..GRS18#

 2
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02154

3GRFSE,4GRFSE..GRS18#

 9
11421 - BOLT, STUD(FOR OIL PAN)
90126-08051

3GRFSE,4GRFSE..GRS18#

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

3GRFSE,4GRFSE..GRS18#

長さ=12,外径=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

3GRFSE,4GRFSE..GRS18#

長さ=18,外径=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

3GRFSE,4GRFSE..GRS18#

長さ=18,外径=8

 4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097

3GRFSE,4GRFSE..GRS18#

長さ=12,外径=4.0

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

3GRFSE,4GRFSE..GRS18#

 2
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90250-10030

3GRFSE,4GRFSE..GRS18#

 1
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

3GRFSE,4GRFSE..GRS18#

 2
11445A - SPACER, CYLINDER BLOCK WATER JACKET, RH
11445-31020

4GRFSE..GRS180,181

 1
11446 - SPACER, CYLINDER BLOCK WATER JACKET, LH
11446-31020

4GRFSE..GRS180,181

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-31050

3GRFSE,4GRFSE..GRS181,183

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
90301-12018

3GRFSE,4GRFSE..GRS18#

 1
12101 - PAN SUB-ASSY, OIL
12101-31110

3GRFSE,4GRFSE..GRS181,183

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

3GRFSE,4GRFSE..GRS18#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

3GRFSE,4GRFSE..GRS18#

 1
12101C - RING, O(FOR OIL PAN)
12151-31010

3GRFSE,4GRFSE..GRS18#

 2
12102A - PAN SUB-ASSY, OIL, NO.2
12102-31040

3GRFSE,4GRFSE..GRS181,183

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-31060

4GRFSE..GRS180,181

 1
12142 - GUIDE, OIL LEVEL GAGE, NO.2
12142-31020

3GRFSE,4GRFSE..GRS181,183

 1
12142A - RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
96721-19010

3GRFSE,4GRFSE..GRS18#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-31070

3GRFSE,4GRFSE..GRS181,183

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

3GRFSE,4GRFSE..GRS18#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31010

3GRFSE,4GRFSE..GRS18#

 3
Common parts
90105-08254
90110-06018
90119-06938
90126-06028
90126-08047
90210-07006
90910-02153
91551-80616
91551-80825
91551-80845
91551-L0830
91551-L0845
91671-80610
91671-80612
91671-80616
91671-80816
92122-80825
94151-80600
94151-80800
