GRS180-AETSH (2005)
Toyota Crown/Majesta
(0509- )ROY,ROYEX,ROYG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30510A0 |
GRS18#..ROY,ROYEX,ROYG SUPER WHITE 2,040 |
1 | ||
| 52119-30510J0 |
GRS18#..ROY,ROYEX,ROYG DARK BLUE MC.,8P8 |
1 | ||
| 52119-30510B1 |
GRS18#..ROY,ROYEX,ROYG SATIN PEARL MC.,1F3 |
1 | ||
| 52119-30510D0 |
GRS18#..ROY,ROYEX,ROYG BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30520A1 |
GRS180..ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り,WHITE PEARL CS.,062,有りiｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-30520B0 |
GRS180..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り,SILVER ME.,1C0,有り(ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-30510C0 |
GRS18#..ROY,ROYEX,ROYG BLACK,202 |
1 | ||
| 52119-30510B0 |
GRS18#..ROY,ROYEX,ROYG SILVER ME.,1C0 |
1 | ||
| 52119-30520B1 |
GRS180..ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り,SATIN PEARL MC.,1F3,有りiｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-30520A0 |
GRS180..ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り,SUPER WHITE 2,040,有り(Nﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-30520A1 |
GRS180..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り,WHITE PEARL CS.,062,有り(ｸﾘAﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-30510A1 |
GRS18#..ROY,ROYEX,ROYG WHITE PEARL CS.,062 |
1 | ||
| 52119-30520A0 |
GRS180..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り,SUPER WHITE 2,040,有り(ｸﾘｱ宴塔Xｿﾅｰ) |
1 | ||
| 52119-30520B0 |
GRS180..ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り,SILVER ME.,1C0,有り(ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-30520B1 |
GRS180..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り,SATIN PEARL MC.,1F3,有り(ｸﾘAﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-30520C0 |
GRS180..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り,BLACK,202,有り(ｸﾘｱﾗﾝｽｿiｰ) |
1 | ||
| 52119-30520D0 |
GRS180..ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り,BLACKISH RED MC.,3R0,有り(ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-30520C0 |
GRS180..ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り,BLACK,202,有り(ｸﾘｱﾗ塔Xｿﾅｰ) |
1 | ||
| 52119-30520J0 |
GRS180..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り,DARK BLUE MC.,8P8,有り(ｸﾘｱ宴塔Xｿﾅｰ) |
1 | ||
| 52119-30520D0 |
GRS180..ROY,ROYEX ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り,BLACKISH RED MC.,3R0,有り(ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-30520J0 |
GRS180..ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り,DARK BLUE MC.,8P8,有り(Nﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 52119-30511D0 |
GRS181..ROYEX;GRS180,182,183..ROY 60TH ｽﾍﾟｼｬﾙ ｴﾃﾞｨｼｮﾝ *(T),BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30511A0 |
GRS180,181,182,183..ROY,ROYEX,ROYG SUPER WHITE 2,040 |
1 | ||
| 52119-30521D0 |
GRS181..ROYEX;GRS180,182,183..ROY 60TH ｽﾍﾟｼｬﾙ ｴﾃﾞｨｼｮﾝ *(T)&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30511J1 |
GRS180,181,182,183..ROY,ROYEX,ROYG DK.BLUE MC.,8S6 |
1 | ||
| 52119-30521A1 |
GRS180,181,182,183..ROY,ROYEX,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,062 |
1 | ||
| 52119-30511B2 |
GRS180,181,182,183..ROY,ROYEX,ROYG SILVER ME.,1F7 |
1 | ||
| 52119-30511B1 |
GRS180,181,182,183..ROY,ROYEX,ROYG PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30521B2 |
GRS180,181,182,183..ROY,ROYEX,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-30521B1 |
GRS180,181,182,183..ROY,ROYEX,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52119-30511A1 |
GRS180,181,182,183..ROY,ROYEX,ROYG WHITE PEARL CS.,062 |
1 | ||
| 52119-30521A0 |
GRS180,181,182,183..ROY,ROYEX,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
1 | ||
| 52119-30511C0 |
GRS180,181,182,183..ROY,ROYEX,ROYG BLACK,202 |
1 | ||
| 52119-30511B3 |
GRS180,181,182,183..ROY,ROYEX,ROYG QUARTZ GRAY PM.,1G4 |
1 | ||
| 52119-30521C0 |
GRS180,181,182,183..ROY,ROYEX,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-30521D1 |
GRS180,181,182,183..ROY,ROYEX,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,GINGER RED M.M.,3R6 |
1 | ||
| 52119-30521J1 |
GRS180,181,182,183..ROY,ROYEX,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.BLUE MC.,8S6 |
1 | ||
| 52119-30521B3 |
GRS180,181,182,183..ROY,ROYEX,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,QUARTZ GRAY PM.,1G4 |
1 | ||
| 52119-30511D1 |
GRS180,181,182,183..ROY,ROYEX,ROYG GINGER RED M.M.,3R6 |
1 | ||
| 52119-30521D0 |
GRS180,181,182,183..ROY,ROYEX,ROYG ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACKISH RED MC.,3R0 |
1 | ||
| 52119-30511D0 |
GRS180,181,182,183..ROY,ROYEX,ROYG BLACKISH RED MC.,3R0 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-30040A0 |
GRS18#..ROY,ROYEX,ROYG SUPER WHITE 2,040 |
1 | ||
| 52129-30040B2 |
GRS18# SILVER ME.,1F7 |
1 | ||
| 52129-30040D0 |
GRS181;GRS180,182,183,184..ATH,ROY 60TH ｽﾍﾟｼｬﾙ ｴﾃﾞｨｼｮﾝ *(T),BLACKISH RED MC.,3R0 |
1 | ||
| 52129-30040D1 |
GRS18# GINGER RED M.M.,3R6 |
1 | ||
| 52129-30040C0 |
GRS18# BLACK,202 |
1 | ||
| 52129-30040D0 |
GRS18# BLACKISH RED MC.,3R0 |
1 | ||
| 52129-30040J2 |
GRS180,181,182,183..ROY,ROYEX,ROYG DK.BLUE MC.,8S6 |
1 | ||
| 52129-30040B1 |
GRS18# PREMIUM SILVER PEARL,1F3 |
1 | ||
| 52129-30040A1 |
GRS18# WHITE PEARL CS.,062 |
1 | ||
| 52129-30040A0 |
GRS180,181,182,183..ROY,ROYEX,ROYG SUPER WHITE 2,040 |
1 | ||
| 52129-30040B3 |
GRS18# QUARTZ GRAY PM.,1G4 |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30250 |
GRS18# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
3 | ||
| 52161-16010 |
GRS180 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
3 | ||
| 52161-16010 |
GRS18# |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
3 | ||
| 52161-16010 |
GRS180 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
3 | ||
| 52161-16010 |
GRS18# |
3 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
3 | ||
| 52161-16010 |
GRS180 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
3 | ||
| 52161-16010 |
GRS18# |
3 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30180 |
GRS18# |
1 | ||
| 52535-30170 |
GRS18# |
1 | ||
| 52535-30170 |
GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 52535-30170 |
GRS180 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-30150 |
GRS18# |
2 | ||
| 52535-50060 |
GRS18# |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-30150 |
GRS18# |
2 | ||
| 52535-50060 |
GRS18# |
2 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30160 |
GRS180 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 52536-30160 |
GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 52536-30160 |
GRS18# |
1 | ||
| 52536-30170 |
GRS18# |
1 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-30090 |
GRS18# |
2 | ||
| 52541-30090 |
GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
2 | ||
| 52541-30130 |
GRS180,181,182,183..ROY,ROYEX,ROYG |
2 | ||
| 52541-30090 |
GRS180 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-30090 |
GRS18# |
2 | ||
| 52541-30090 |
GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
2 | ||
| 52541-30130 |
GRS180,181,182,183..ROY,ROYEX,ROYG |
2 | ||
| 52541-30090 |
GRS180 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
2 | ||
| 52543 - SEAL, FRONT BUMPER SIDE, RH | ||||
| 52543-30100 |
GRS180,181,182,183..ROY,ROYEX,ROYG |
1 | ||
| 52543-30100 |
GRS18#..ROY,ROYEX,ROYG |
1 | ||
| 52544 - SEAL, FRONT BUMPER SIDE, LH | ||||
| 52544-30060 |
GRS180,181,182,183..ROY,ROYEX,ROYG |
1 | ||
| 52544-30060 |
GRS18#..ROY,ROYEX,ROYG |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30270 |
GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 52611-30270 |
GRS180 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
1 | ||
| 52611-30271 |
GRS18# |
1 | ||
| 52611-30270 |
GRS18# |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-12150 |
GRS180..ATH,ROY ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−高精細DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
2 | ||
| 53119-12150 |
GRS180 ﾅﾋﾞｹﾞｰｼｮﾝ付EMV−DVD&ﾊﾞｯｸﾓﾆﾀ−有り |
2 | ||
| 53119-12150 |
GRS18# |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90179-06127 | ||||
| 91552-B1025 | ||||

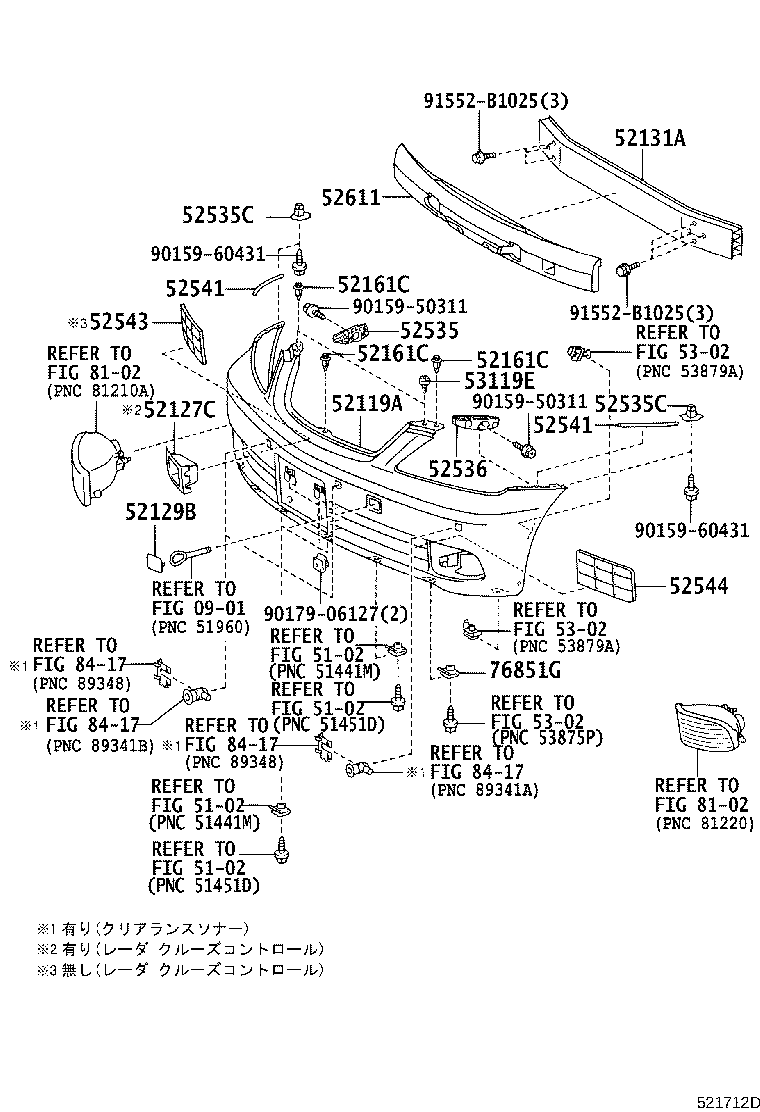

| Linked diagrams | ||||
| 0901 | ||||
| 5102 | ||||
| 5302 | ||||
| 8102 | ||||
| 8417 | ||||
