GRS180-AETQH (2005)
Toyota Crown/Majesta
(0312-0802)GRS18#
ﾅｼ(ｽﾏ-ﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-30400 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89740-30010 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89740-30010 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89741-30310 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-48020 |
GRS18# |
1 | ||
| 89747-48020 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89747-48020 |
GRS18# |
1 | ||
| 89747-48020 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
(0509-0802)GRS18#
ｱﾘ(ｽﾏ-ﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741B - RECEIVER, DOOR CONTROL, NO.2 | ||||
| 89740-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89740-30121 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89740-30120 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89740-30020 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89740-30120 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89740-30121 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1 | ||||
| 89746-30110 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30111 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30112 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30010 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2 | ||||
| 89746-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30121 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30122 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30120 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746E - HARNESS, ELECTRICAL KEY WIRE, NO.3 | ||||
| 89746-30130 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30131 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30030 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746F - HARNESS, ELECTRICAL KEY WIRE, NO.4 | ||||
| 89746-30130 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30131 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89746-30030 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-48020 |
GRS18# |
1 | ||
| 89747-48020 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89747-48020 |
GRS18# |
1 | ||
| 89747-48020 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-30080 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89990-30010 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89990-30080 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89990-30081 |
GRS180..ROY Fﾊﾟｯｹｰｼﾞ(個人ﾀｸｼｰ用) |
1 | ||
| 89990-30081 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30020 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30010 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30030 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾘﾔ |
2 | ||
| 89991-30040 |
GRS18#..ATH,ROY,ROYG 左側 |
2 | ||
| 89991-30050 |
GRS18#..ATH,ROY,ROYG 右側 |
2 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30020 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30010 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30030 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾘﾔ |
2 | ||
| 89991-30040 |
GRS18#..ATH,ROY,ROYG 左側 |
2 | ||
| 89991-30050 |
GRS18#..ATH,ROY,ROYG 右側 |
2 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30020 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30010 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30030 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾘﾔ |
2 | ||
| 89991-30040 |
GRS18#..ATH,ROY,ROYG 左側 |
2 | ||
| 89991-30050 |
GRS18#..ATH,ROY,ROYG 右側 |
2 | ||
| 89991 - OSCILLATOR, DOOR ELECTRICAL KEY | ||||
| 89991-30020 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ左側 |
1 | ||
| 89991-30010 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾌﾛﾝﾄ右側 |
1 | ||
| 89991-30030 |
GRS18#,UZS18#..A,ATH,C,ROY,ROYG ﾘﾔ |
2 | ||
| 89991-30040 |
GRS18#..ATH,ROY,ROYG 左側 |
2 | ||
| 89991-30050 |
GRS18#..ATH,ROY,ROYG 右側 |
2 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-30010 |
GRS18#..ATH,ROY,ROYG NO.1 |
1 | ||
| 89992-30110 |
GRS18#..ATH,ROY,ROYG NO.3 |
1 | ||
| 89992-30020 |
GRS18#..ATH,ROY,ROYG NO.2 |
1 | ||
| 89992-30100 |
GRS18#..ATH,ROY,ROYG NO.2 |
1 | ||
| 89992-30090 |
GRS18#..ATH,ROY,ROYG NO.1 |
1 | ||
| 89992-30030 |
GRS18#..ATH,ROY,ROYG NO.3 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-30010 |
GRS18#..ATH,ROY,ROYG NO.1 |
1 | ||
| 89992-30110 |
GRS18#..ATH,ROY,ROYG NO.3 |
1 | ||
| 89992-30020 |
GRS18#..ATH,ROY,ROYG NO.2 |
1 | ||
| 89992-30100 |
GRS18#..ATH,ROY,ROYG NO.2 |
1 | ||
| 89992-30090 |
GRS18#..ATH,ROY,ROYG NO.1 |
1 | ||
| 89992-30030 |
GRS18#..ATH,ROY,ROYG NO.3 |
1 | ||
| 89992 - OSCILLATOR, INDOOR ELECTRICAL KEY | ||||
| 89992-30010 |
GRS18#..ATH,ROY,ROYG NO.1 |
1 | ||
| 89992-30110 |
GRS18#..ATH,ROY,ROYG NO.3 |
1 | ||
| 89992-30020 |
GRS18#..ATH,ROY,ROYG NO.2 |
1 | ||
| 89992-30100 |
GRS18#..ATH,ROY,ROYG NO.2 |
1 | ||
| 89992-30090 |
GRS18#..ATH,ROY,ROYG NO.1 |
1 | ||
| 89992-30030 |
GRS18#..ATH,ROY,ROYG NO.3 |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-30020 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| 89997-41010 |
GRS18#..ATH,ROY,ROYG |
1 | ||
| Common parts | ||||
| 90159-40202 | ||||
| 90179-06274 | ||||
| 91631-J0612 | ||||
| 93219-14010 | ||||

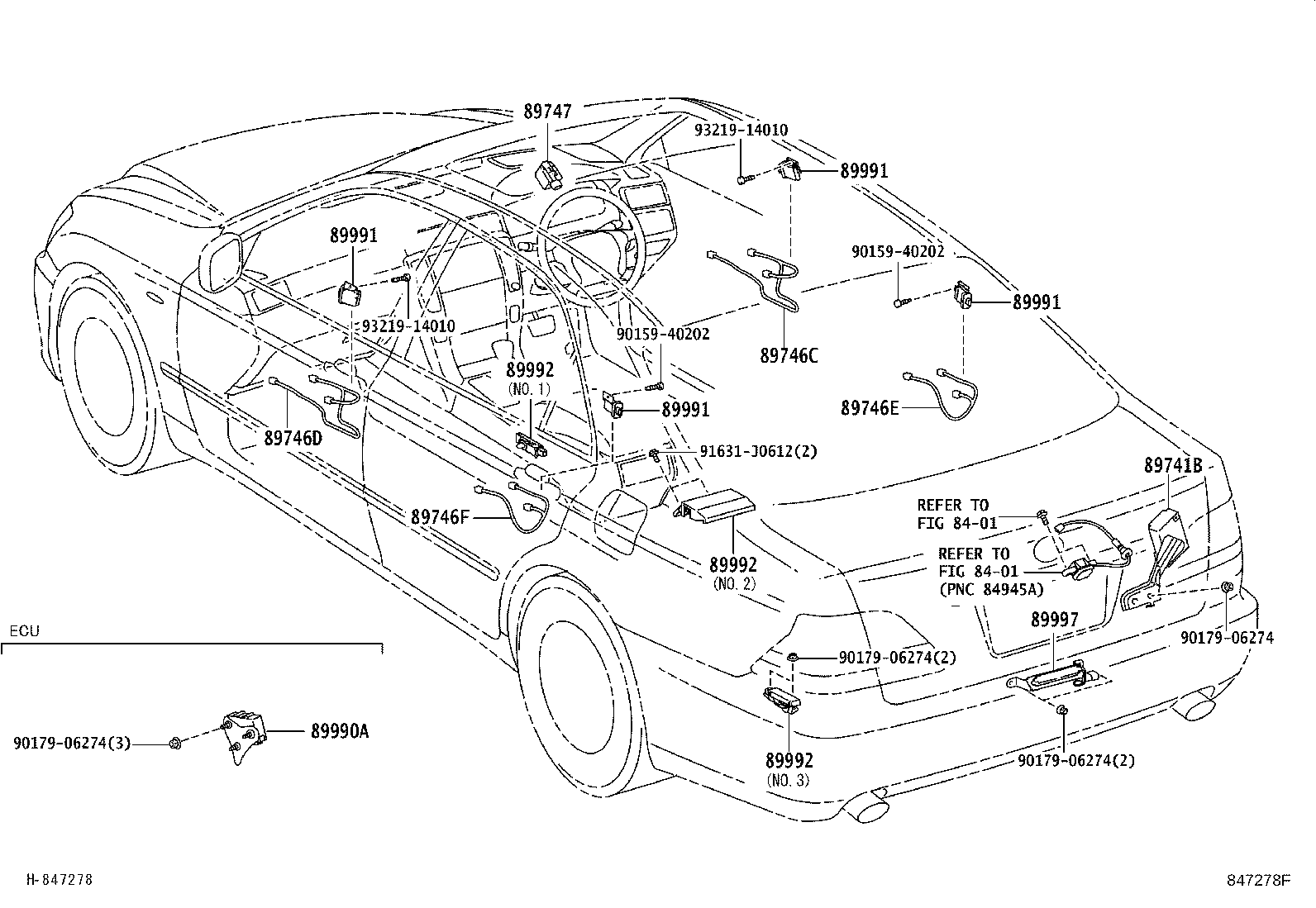

| Linked diagrams | ||||
| 8401 | ||||
