GRS180-AETQH (2005)
Toyota Crown/Majesta

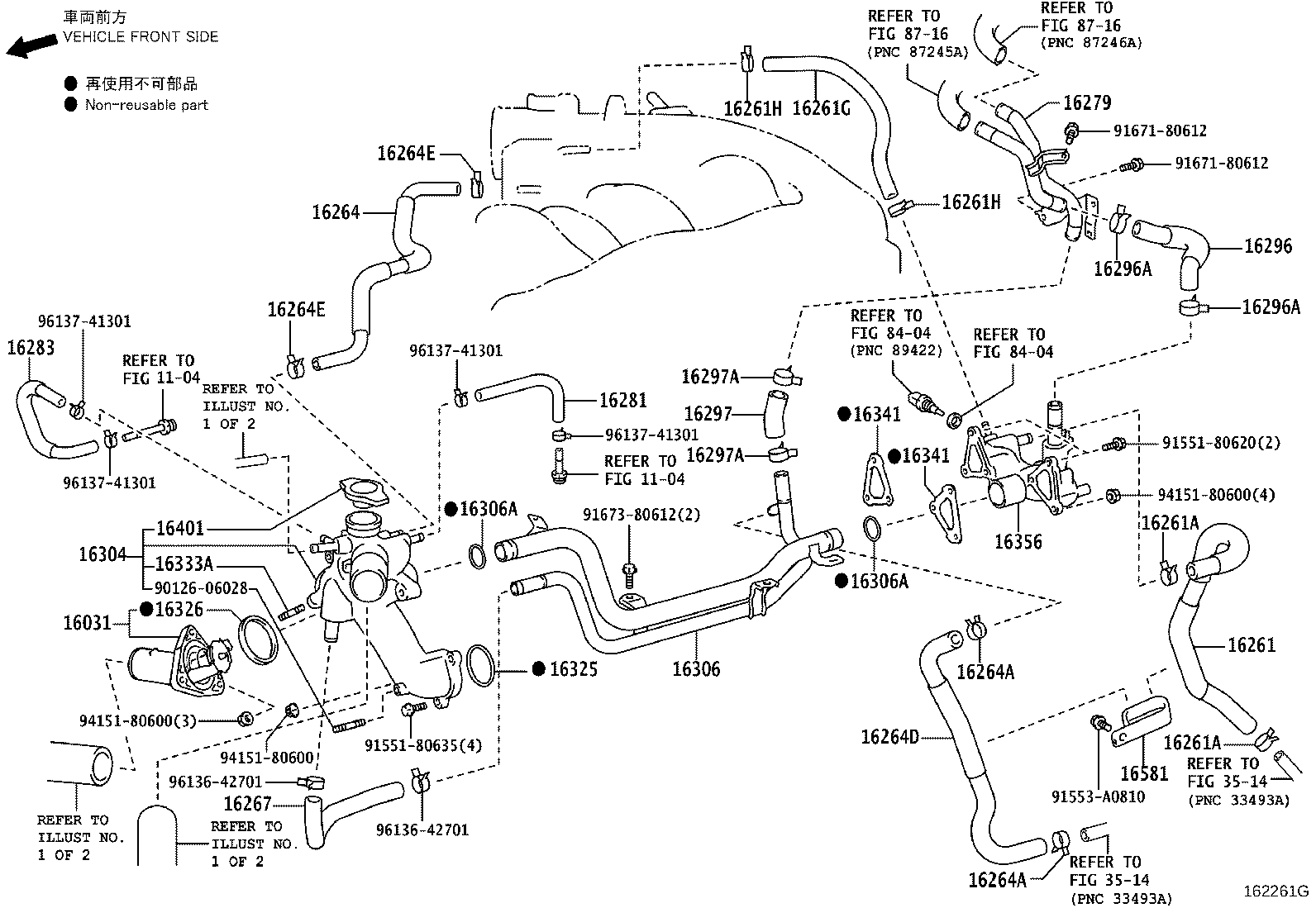

ILLUST NO. 2 OF 2(0509- )2GRFSE,3GRFSE,4GRFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-31020 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16031-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31040 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16261-31040 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-52101 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96136-52101 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-52101 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96136-52101 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-31071 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16261-31030 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-51501 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96137-51501 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96137-51501 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96137-51501 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31060 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16264-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52101 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96136-52101 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-52101 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96136-52101 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16264D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31030 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16264-31030 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-51501 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96137-51501 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16264E - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-51501 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96137-51501 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16267-31021 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-31010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16279-31050 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16281-31021 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-31010 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16283-31010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-31040 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16296-31010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42701 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96136-42701 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42701 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96136-42701 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-31030 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16297-31010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42701 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96136-42701 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42701 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96136-42701 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-31033 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16304-31032 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16304-31030 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16306 - PIPE SUB-ASSY, WATER OUTLET | ||||
| 16306-31030 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16306-31030 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16306-31031 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16306A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 96761-35025 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96761-35025 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16306A - RING, O(FOR WATER OUTLET PIPE) | ||||
| 96761-35025 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 96761-35025 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-31010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16325-31010 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16326-31020 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16333A - BOLT, STUD(FOR WATER OUTLET HOUSING) | ||||
| 92122-80618 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
3 | ||
| 92122-80618 |
3GRFSE,4GRFSE..GRS18# |
3 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16341-31010 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16341-31010 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-31021 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16356-31020 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-5B630 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16401-75440 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-31010 |
3GRFSE,4GRFSE..GRS18# |
1 | ||
| 16581-31010 |
2GRFSE,3GRFSE,4GRFSE..GRS18# |
1 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91553-A0810 | ||||
| 91671-80612 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| 96136-42701 | ||||
| 96137-41301 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 3514 | ||||
| 8404 | ||||
| 8716 | ||||
