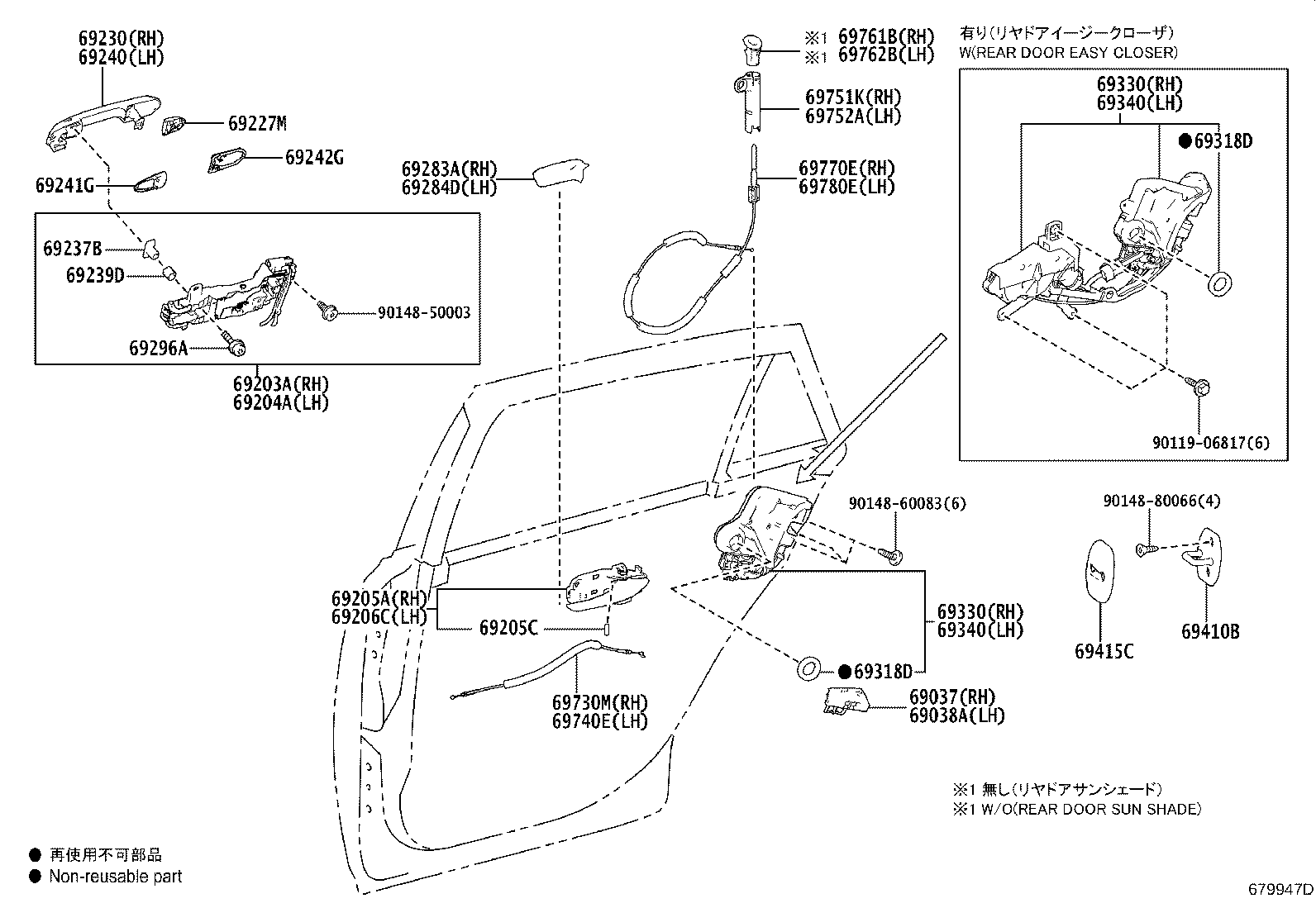

GWS224-AEXPB (2018)
Toyota Crown/Hybrid
(1806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69037 - COVER SUB-ASSY, REAR DOOR LOCK, RH | ||||
| 69037-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69038A - COVER SUB-ASSY, REAR DOOR LOCK, LH | ||||
| 69038-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-30090 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-30090 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 69275-30070 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69227M - COVER, REAR DOOR OUTSIDE HANDLE | ||||
| 69227-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-30370G0 |
GWS224..S ALUMINA JADE ME.,6W4 |
1 | ||
| 69210-30390G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV ALUMINA JADE ME.,6W4 |
1 | ||
| 69210-30370B0 |
GWS224..S SILVER ME.,1F7 |
1 | ||
| 69210-30370C1 |
GWS224..S PRECIOUS BLACK,219 |
1 | ||
| 69210-30370C0 |
GWS224..S BLACK,202 |
1 | ||
| 69210-30370A0 |
GWS224..S WHITE PEARL CS.,062 |
1 | ||
| 69210-30370B1 |
GWS224..S PRECIOUS SILVER,1J6 |
1 | ||
| 69210-30370B2 |
GWS224..S PRECIOUS GALENA,1K5 |
1 | ||
| 69210-30370E0 |
GWS224..S ORANGE ME.,4R8 |
1 | ||
| 69210-30390B0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV SILVER ME.,1F7 |
1 | ||
| 69210-30370J0 |
GWS224..S DK.BLUE MC.,8S6 |
1 | ||
| 69210-30370J2 |
GWS224..S PURE BLUE ME.,8Y1 |
1 | ||
| 69210-30390B1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV PRECIOUS SILVER,1J6 |
1 | ||
| 69210-30390J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV PURE BLUE ME.,8Y1 |
1 | ||
| 69210-30390C1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV PRECIOUS BLACK,219 |
1 | ||
| 69210-30390C0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV BLACK,202 |
1 | ||
| 69210-30390A0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV WHITE PEARL CS.,062 |
1 | ||
| 69210-30390E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV ORANGE ME.,4R8 |
1 | ||
| 69210-30390B2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV PRECIOUS GALENA,1K5 |
1 | ||
| 69210-30390J0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV DK.BLUE MC.,8S6 |
1 | ||
| 69210-30370D1 |
GWS224..S RICH RED CS. GF.,3U2 |
1 | ||
| 69210-30370D0 |
GWS224..S DEEP RED M.M.,3R9 |
1 | ||
| 69210-30370J1 |
GWS224..S DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30390D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV DEEP RED M.M.,3R9 |
1 | ||
| 69210-30390J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30390D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV RICH RED CS. GF.,3U2 |
1 | ||
| 69237B - NUT, REAR DOOR HANDLE | ||||
| 69237-62010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69239D - BUSH, REAR DOOR HANDLE | ||||
| 69239-47010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69210-30370G0 |
GWS224..S ALUMINA JADE ME.,6W4 |
1 | ||
| 69210-30390G0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV ALUMINA JADE ME.,6W4 |
1 | ||
| 69210-30370A0 |
GWS224..S WHITE PEARL CS.,062 |
1 | ||
| 69210-30370C1 |
GWS224..S PRECIOUS BLACK,219 |
1 | ||
| 69210-30370B0 |
GWS224..S SILVER ME.,1F7 |
1 | ||
| 69210-30390A0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV WHITE PEARL CS.,062 |
1 | ||
| 69210-30370C0 |
GWS224..S BLACK,202 |
1 | ||
| 69210-30370B1 |
GWS224..S PRECIOUS SILVER,1J6 |
1 | ||
| 69210-30370B2 |
GWS224..S PRECIOUS GALENA,1K5 |
1 | ||
| 69210-30370J2 |
GWS224..S PURE BLUE ME.,8Y1 |
1 | ||
| 69210-30390B2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV PRECIOUS GALENA,1K5 |
1 | ||
| 69210-30390E0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV ORANGE ME.,4R8 |
1 | ||
| 69210-30370J0 |
GWS224..S DK.BLUE MC.,8S6 |
1 | ||
| 69210-30390B0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV SILVER ME.,1F7 |
1 | ||
| 69210-30390J0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV DK.BLUE MC.,8S6 |
1 | ||
| 69210-30370E0 |
GWS224..S ORANGE ME.,4R8 |
1 | ||
| 69210-30390C1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV PRECIOUS BLACK,219 |
1 | ||
| 69210-30390C0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV BLACK,202 |
1 | ||
| 69210-30390B1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV PRECIOUS SILVER,1J6 |
1 | ||
| 69210-30390J2 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV PURE BLUE ME.,8Y1 |
1 | ||
| 69210-30370D1 |
GWS224..S RICH RED CS. GF.,3U2 |
1 | ||
| 69210-30390D0 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV DEEP RED M.M.,3R9 |
1 | ||
| 69210-30370D0 |
GWS224..S DEEP RED M.M.,3R9 |
1 | ||
| 69210-30370J1 |
GWS224..S DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30390J1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV DK.BLUE M.M.,8W7 |
1 | ||
| 69210-30390D1 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV RICH RED CS. GF.,3U2 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-30130 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-30110 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30070E1 |
GWS224..S;ARS220,AZSH2#..B,G,GF NEUTRAL BEIGE,TRIM4# |
1 | ||
| 69283-30070C1 |
GWS224..S;ARS220,AZSH2#..B,G,GF,RSB BLACK,TRIM2#,3# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30070C1 |
GWS224..S;ARS220,AZSH2#..B,G,GF,RSB BLACK,TRIM2#,3# |
1 | ||
| 69284-30070E1 |
GWS224..S;ARS220,AZSH2#..B,G,GF NEUTRAL BEIGE,TRIM4# |
1 | ||
| 69296A - SCREW, DOOR INSIDE HANDLE | ||||
| 69296-30010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69318D - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-30560 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF |
1 | ||
| 69050-30570 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-30560 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF |
1 | ||
| 69050-30570 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-30620 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 69060-30610 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-30620 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 69060-30610 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-33030 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-60020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 69730M - CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER | ||||
| 69730-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69740E - CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER | ||||
| 69730-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69751K - HOLDER, DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-50010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69752A - HOLDER, DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-50010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69761B - BEZEL, REAR DOOR LOCK CONTROL KNOB, RH | ||||
| 69761-30030C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 69762B - BEZEL, REAR DOOR LOCK CONTROL KNOB, LH | ||||
| 69761-30030C0 |
ARS220,AZSH2#,GWS224..B,G,GF,S,SF BLACK,TRIM2#,3#,4# |
4 | ||
| 69761-30030C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 69770E - CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK K | ||||
| 69770-30370 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 69780E - CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK K | ||||
| 69770-30370 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 90119-06817 | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-80066 | ||||
