GWS224-AEXEB (2018)
Toyota Crown/Hybrid

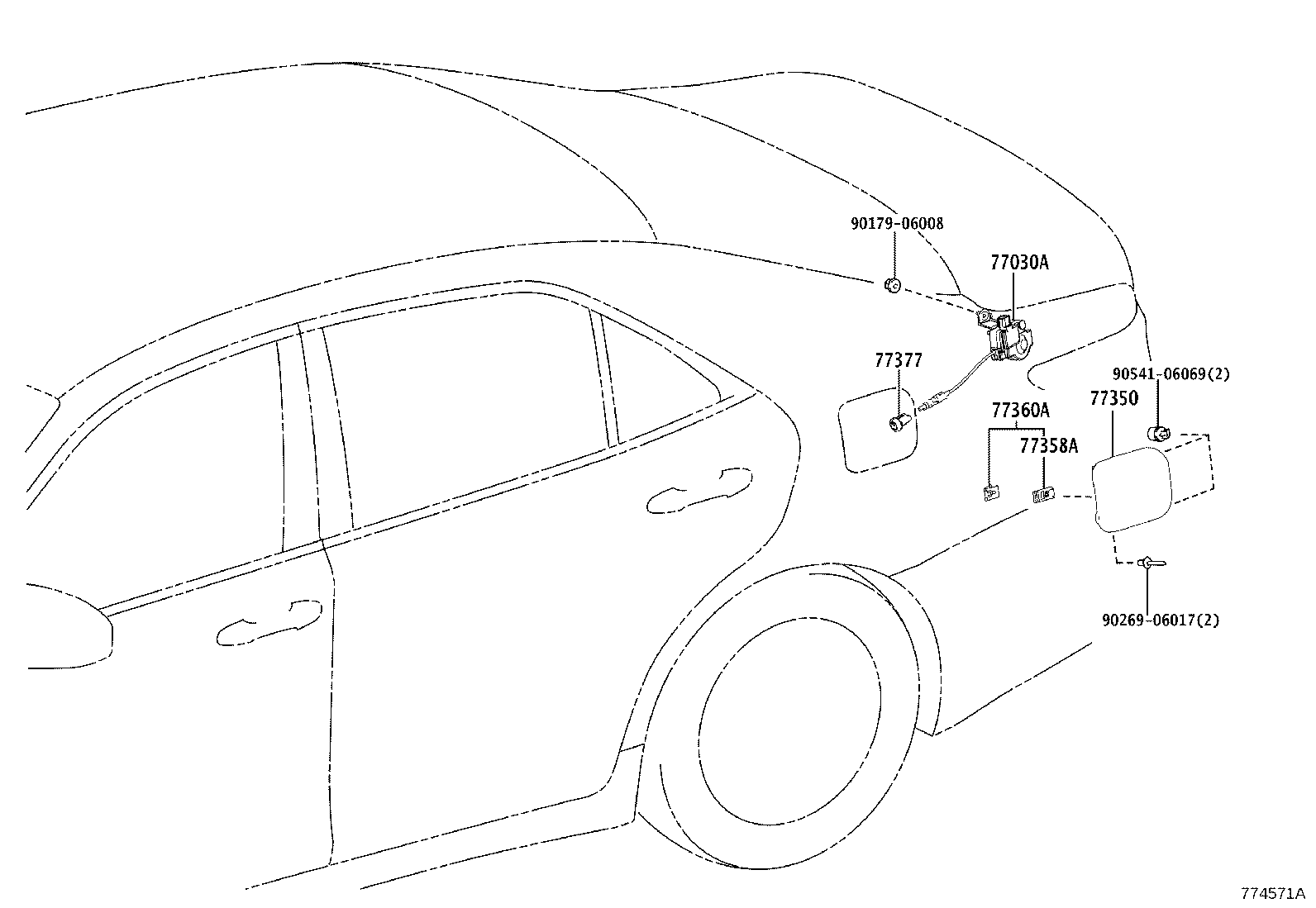

ILLUST NO. 3 OF 3(1806- )
ﾌｭｰｴﾙﾘｯﾄﾞｵｰﾌﾟﾅ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-30200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-30440 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-30060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 90179-06008 | ||||
| 90269-06017 | ||||
| 90541-06069 | ||||

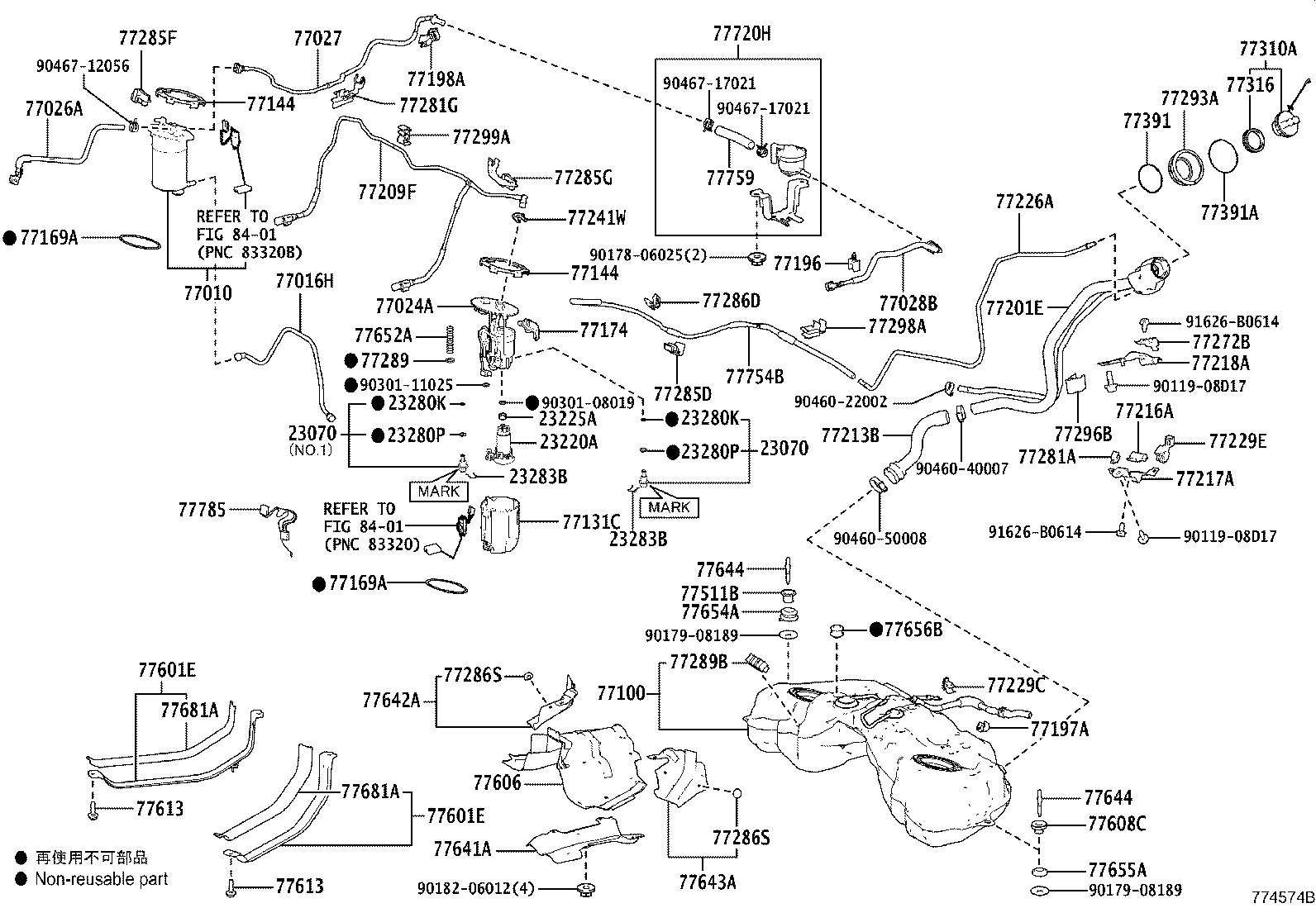

ILLUST NO. 1 OF 3(1806- )GWS224
ﾌｭｰｴﾙﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-36010 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 ﾏｰｸ 23070−36010 |
1 | ||
| 23070-31030 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 ﾏｰｸ 23070−31030 |
1 | ||
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-36010 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 ﾏｰｸ 23070−36010 |
1 | ||
| 23070-31030 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 ﾏｰｸ 23070−31030 |
1 | ||
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-31330 |
8ARFTS,8GRFXS..ARS220,GWS224 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 |
2 | ||
| 23280P - RING, O(FOR FUEL PRESSURE REGULATOR), NO.3 | ||||
| 90301-15024 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 |
2 | ||
| 23280P - RING, O(FOR FUEL PRESSURE REGULATOR), NO.3 | ||||
| 90301-15024 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 |
2 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-30040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77016H - TUBE SUB-ASSY, FUEL RETURN VENT | ||||
| 77016-30090 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-53100 |
ARS220,GWS224 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-30100 |
GWS224 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-30200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77028B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.3 | ||||
| 77028-30110 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30650 |
ARS220,GWS224 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-30100 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-53020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-30070 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77198A - CLAMP, EVAPORATION VENT TUBE, NO.3 | ||||
| 77198-30050 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-30561 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77201-30560 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-30390 |
GWS224 |
1 | ||
| 77209-30391 |
GWS224 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-30240 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-30090 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-30160 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-50010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-30130 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-30100 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-30090 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-50020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-30160 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30300 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30390 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30180 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-30120 |
ARS220,GWS224 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-30120 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-58010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-30090 |
ARS220,GWS224 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-30020 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77511B - BRACKET, FUEL TANK | ||||
| 77511-48030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-53041 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-53041 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-30220 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-30160 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-30040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77643A - PROTECTOR, FUEL TANK, NO.3 | ||||
| 77643-30030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-48010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-48010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-30090 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77655-30080 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-30030 |
ARS220,AZSH2#,GWS224 |
5 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-30030 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-30030 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77720H - VALVE ASSY, FUEL OUTLET | ||||
| 77720-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-30050 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-30050 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-48060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90178-06025 | ||||
| 90179-08189 | ||||
| 90182-06012 | ||||
| 90301-08019 | ||||
| 90301-11025 | ||||
| 90460-22002 | ||||
| 90460-40007 | ||||
| 90460-50008 | ||||
| 90467-12056 | ||||
| 90467-17021 | ||||
| 91626-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 3(1806- )GWS224
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251J - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-30680 |
GWS224 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-30610 |
AZSH20,GWS224 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-30600 |
GWS224 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-11070 |
AZSH2#,GWS224 |
1 | ||
| 77282 - BRACKET, FUEL MAIN TUBE, NO.2 | ||||
| 77281-30170 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77281-11040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77282 - BRACKET, FUEL MAIN TUBE, NO.2 | ||||
| 77281-30170 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77281-11040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-11061 |
GWS224 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-50060 |
GWS224 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-52100 |
GWS224 |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77289-11010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77289-30200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
AZSH20,GWS224 |
3 | ||
| 77299-30100 |
AZSH20,GWS224 |
3 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-11030 |
AZSH2#,GWS224 |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-30130 |
GWS224 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
