GWS224-AEXAB (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine 8GRFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

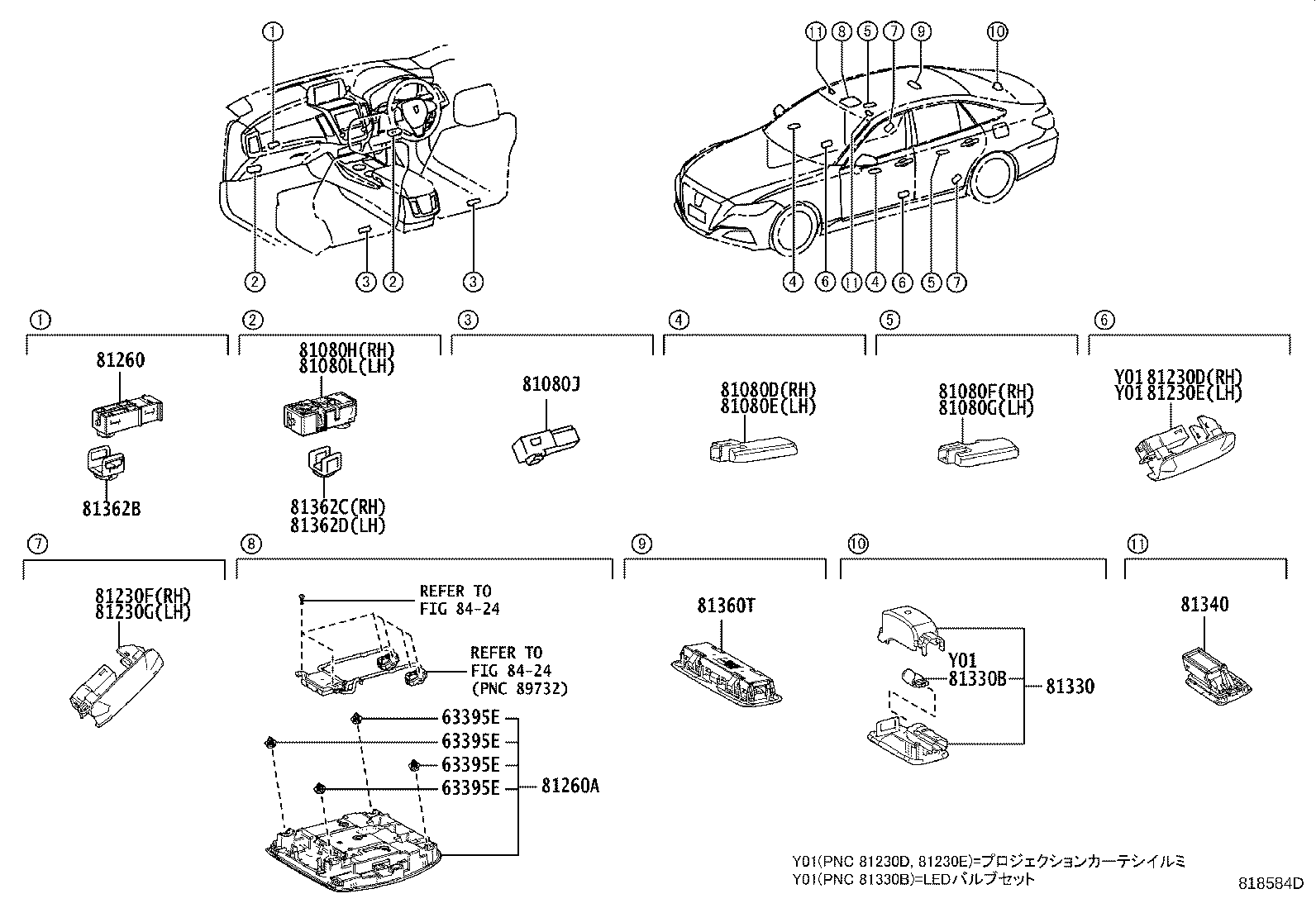

Click highlighted areas on diagram

diagram 63395E 63395E 63395E 63395E 81080D 81080E 81080F 81080G 81080H 81080J 81080L 81230D 81230E 81230F 81230G 81260 81260A 81330 81330B 81340 81360T 81362B 81362C 81362D 8424 8424
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

ARS220,AZSH2#,GWS224

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

ARS220,AZSH2#,GWS224

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

ARS220,AZSH2#,GWS224

 4
63395E - CLIP(FOR MAP LAMP)
90467-09240

ARS220,AZSH2#,GWS224

 4
81080D - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080-30140

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV

 1
81080E - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080-30150

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV

 1
81080F - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080-30140

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV

 1
81080G - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080-30150

ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RSADF,RSADV

 1
81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81081-60050

ARS220,AZSH2#,GWS224

 1
81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81081-60050

ARS220,AZSH2#,GWS224

 1
81230D - LAMP ASSY, FRONT DOOR COURTESY, RH
81230-11030

ARS220,AZSH2#,GWS224

 1
81230E - LAMP ASSY, FRONT DOOR COURTESY, LH
81230-11030

ARS220,AZSH2#,GWS224

 1
81230F - LAMP ASSY, REAR DOOR COURTESY, RH
81230-11030

ARS220,AZSH2#,GWS224

 1
81230G - LAMP ASSY, REAR DOOR COURTESY, LH
81230-11030

ARS220,AZSH2#,GWS224

 1
81260 - LAMP ASSY, GLOVE BOX
81081-60050

ARS220,AZSH2#,GWS224

 1
81260A - LAMP ASSY, MAP
81208-30060C0

GWS224..S;ARS220,AZSH2#..G,GF

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM2#,3#

 1
81208-30070C0

ARS220,AZSH2#,GWS224..RSADF,RSADV

BLACK,TRIM0#,2#,3#,4#,8#

 1
81208-30060C0

ARS220,AZSH2#,GWS224..RSADF,RSADV

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,2#,3#,4#,8#

 1
81208-30070C0

GWS224..S;ARS220,AZSH2#..G,GF

BLACK,TRIM2#,3#

 1
81208-30060E0

GWS224..GEXEC,S;ARS220,AZSH2#..G,GEXEF,GF

ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM4#

 1
81208-30100C0

GWS224..S;ARS220,AZSH2#..G,GF

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM2#,3#

 1
81208-30100C0

ARS220,AZSH2#,GWS224..RSADF,RSADV

ﾑｰﾝﾙｰﾌ−有り,BLACK,TRIM0#,2#,3#,4#,8#

 1
81208-30110C0

GWS224..S;ARS220,AZSH2#..G,GF

BLACK,TRIM2#,3#

 1
81208-30110C0

ARS220,AZSH2#,GWS224..RSADF,RSADV

BLACK,TRIM0#,2#,3#,4#,8#

 1
81208-30070E0

GWS224..GEXEC,S;ARS220,AZSH2#..G,GEXEF,GF

NEUTRAL BEIGE,TRIM4#

 1
81208-30100E0

GWS224..GEXEC,S;ARS220,AZSH2#..G,GEXEF,GF

ﾑｰﾝﾙｰﾌ−有り,NEUTRAL BEIGE,TRIM4#

 1
81208-30110E0

GWS224..GEXEC,S;ARS220,AZSH2#..G,GEXEF,GF

NEUTRAL BEIGE,TRIM4#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81250-30210

ARS220,AZSH2#,GWS224

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
99132-12050

ARS220,AZSH2#,GWS224

12V 5W

 1
81340 - LAMP ASSY, VANITY
81340-50260

ARS220,AZSH2#,GWS224

 2
81360T - LAMP ASSY, SPOT
81360-33070C0

ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF

BLACK,TRIM0#,2#,3#,4#,8#

 1
81360-33070E0

GWS224..GEXEC,S;ARS220,AZSH2#..B,G,GEXEF,GF

NEUTRAL BEIGE,TRIM4#

 1
81360-33070C0

GWS224..S;ARS220,AZSH2#..B,G,GF,RSB

BLACK,TRIM2#,3#

 1
81362B - LENS, INTERIOR ILLUMINATION LAMP
81362-60030

ARS220,AZSH2#,GWS224

 1
81362C - LENS, INTERIOR ILLUMINATION LAMP, RH
81362-60030

ARS220,AZSH2#,GWS224

 1
81362D - LENS, INTERIOR ILLUMINATION LAMP, LH
81362-60030

ARS220,AZSH2#,GWS224

 1
Linked diagrams
8424
