GWS214-AEXZB (2013)
Toyota Crown/Hybrid

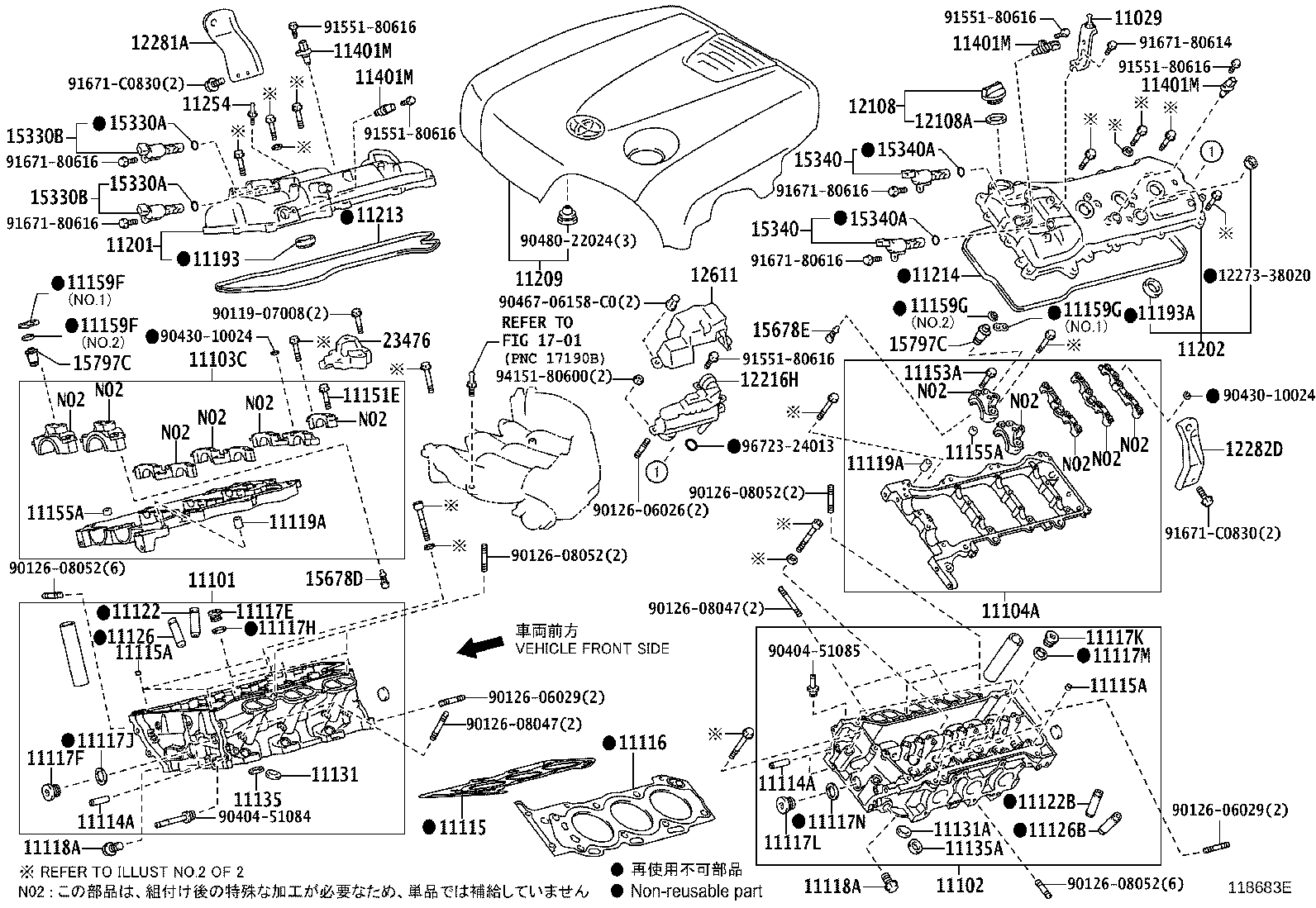

ILLUST NO. 1 OF 2(1309- )2GRFXE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11029 - BRACKET SUB-ASSY, V-BANK COVER | ||||
| 11029-31060 |
2GRFXE..GWS214 |
1 | ||
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-39788 |
2GRFXE..GWS214 |
1 | ||
| 11101-39786 |
2GRFXE..GWS214 |
1 | ||
| 11101-39787 |
2GRFXE..GWS214 |
1 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-39256 |
2GRFXE..GWS214 |
1 | ||
| 11102-39257 |
2GRFXE..GWS214 |
1 | ||
| 11102-39258 |
2GRFXE..GWS214 |
1 | ||
| 11103C - HOUSING SUB-ASSY, CAMSHAFT, RH | ||||
| 11103-31040 |
2GRFXE..GWS214 |
1 | ||
| 11104A - HOUSING SUB-ASSY, CAMSHAFT, LH | ||||
| 11104-31051 |
2GRFXE..GWS214 |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-08028 |
2GR#,4GRFSE..GRS21#,GWS214 長さ=34,外径=8 |
4 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-08028 |
2GR#,4GRFSE..GRS21#,GWS214 長さ=34,外径=8 |
4 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-31100 |
2GRFXE..GWS214 |
1 | ||
| 11115A - PIN, RING | ||||
| 90253-11021 |
2GRFXE..GWS214 |
4 | ||
| 11115A - PIN, RING | ||||
| 90253-11021 |
2GRFXE..GWS214 |
4 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-31080 |
2GRFXE..GWS214 |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-20012 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2 | ||||
| 90341-27006 |
2GR#,4GRFSE..GRS21#,GWS214 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-20004 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 11117J - GASKET(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-27005 |
2GR#,4GRFSE..GRS21#,GWS214 |
1 | ||
| 11117K - PLUG, W/HEAD STRAIGHT SCREW, LH NO.1 | ||||
| 90341-20012 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 11117L - PLUG, W/HEAD STRAIGHT SCREW, LH NO.2 | ||||
| 90341-27006 |
2GR#,4GRFSE..GRS21#,GWS214 |
1 | ||
| 11117M - GASKET(FOR WATER HOLE NO.2) | ||||
| 90430-20004 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 11117N - GASKET(FOR CYLINDER HEAD SCREW PLUG NO.2) | ||||
| 90430-27005 |
2GR#,4GRFSE..GRS21#,GWS214 |
1 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-16026 |
2GRFXE..GWS214 |
2 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-16026 |
2GRFXE..GWS214 |
2 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-05021 |
2GR#,4GRFSE..GRS21#,GWS214 長さ=13.8,外径=5.0 |
3 | ||
| 11119A - PIN, STRAIGHT, NO.1 | ||||
| 90250-05021 |
2GR#,4GRFSE..GRS21#,GWS214 長さ=13.8,外径=5.0 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-31060 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11122-31050 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11123-31060 |
2GR#..GRS214,GWS214 O/S 0.05 |
6 | ||
| 11123-31050 |
2GR#..GRS214,GWS214 O/S 0.05 |
6 | ||
| 11122-31070 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11123-31070 |
2GR#..GRS214,GWS214 O/S 0.05 |
6 | ||
| 11122B - BUSH, INTAKE VALVE GUIDE, NO.2 | ||||
| 11122-31050 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11123-31060 |
2GR#..GRS214,GWS214 O/S 0.05 |
6 | ||
| 11122-31070 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11123-31050 |
2GR#..GRS214,GWS214 O/S 0.05 |
6 | ||
| 11123-31070 |
2GR#..GRS214,GWS214 O/S 0.05 |
6 | ||
| 11122-31060 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-31030 |
2GR#,4GRFSE..GRS21#,GWS214 O/S 0.05 |
6 | ||
| 11126-31030 |
2GR#,4GRFSE..GRS21#,GWS214 STD |
6 | ||
| 11126B - BUSH, EXHAUST VALVE GUIDE, NO.2 | ||||
| 11126-31030 |
2GR#,4GRFSE..GRS21#,GWS214 STD |
6 | ||
| 11127-31030 |
2GR#,4GRFSE..GRS21#,GWS214 O/S 0.05 |
6 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-31050 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11132-31050 |
2GR#..GRS214,GWS214 O/S 0.03 |
6 | ||
| 11131A - SEAT, INTAKE VALVE, NO.2 | ||||
| 11131-31050 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11132-31050 |
2GR#..GRS214,GWS214 O/S 0.03 |
6 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-31090 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11136-31090 |
2GR#..GRS214,GWS214 O/S 0.03 |
6 | ||
| 11135-31100 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11136-31100 |
2GR#..GRS214,GWS214 O/S 0.03 |
6 | ||
| 11135A - SEAT, EXHAUST VALVE, NO.2 | ||||
| 11135-31090 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11136-31090 |
2GR#..GRS214,GWS214 O/S 0.03 |
6 | ||
| 11135-31100 |
2GR#..GRS214,GWS214 STD |
6 | ||
| 11136-31100 |
2GR#..GRS214,GWS214 O/S 0.03 |
6 | ||
| 11151E - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1) | ||||
| 90119-07009 |
2GRFXE..GWS214 |
7 | ||
| 11153A - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1) | ||||
| 90119-07009 |
2GR#,4GRFSE..GRS21#,GWS214 |
8 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2GRFXE..GWS214 |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-11021 |
2GRFXE..GWS214 |
10 | ||
| 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||||
| 11159-31020 |
2GRFXE..GWS214 NO.2 |
2 | ||
| 11159-31010 |
2GRFXE..GWS214 NO.1 |
2 | ||
| 11159F - GASKET, CAMSHAFT BEARING CAP OIL HOLE, RH | ||||
| 11159-31020 |
2GRFXE..GWS214 NO.2 |
2 | ||
| 11159-31010 |
2GRFXE..GWS214 NO.1 |
2 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-31010 |
2GRFXE..GWS214 NO.1 |
2 | ||
| 11159-31020 |
2GRFXE..GWS214 NO.2 |
2 | ||
| 11159G - GASKET, CAMSHAFT BEARING CAP OIL HOLE, LH | ||||
| 11159-31010 |
2GRFXE..GWS214 NO.1 |
2 | ||
| 11159-31020 |
2GRFXE..GWS214 NO.2 |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-70010 |
2GR#,4GRFSE..GRS21#,GWS214 |
3 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-70010 |
2GR#,4GRFSE..GRS21#,GWS214 |
3 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-31280 |
2GRFXE..GWS214 |
1 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-31060 |
2GRFXE..GWS214 |
1 | ||
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-31370 |
2GRFXE..GWS214 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-31060 |
2GRFXE..GWS214 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-31040 |
2GRFXE..GWS214 |
1 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-31020 |
2GRFXE..GWS214 |
1 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GRFXE..GWS214 |
4 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GRFXE..GWS214 |
4 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GRFXE..GWS214 |
4 | ||
| 11401M - SENSOR, CRANK POSITION, NO.2 | ||||
| 90919-05060 |
2GRFXE..GWS214 |
4 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-38010 |
2GR#,4GRFSE..GRS21#,GWS214 |
1 | ||
| 12180-21010 |
2GR#,4GRFSE..GRS21#,GWS214 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2GR#,4GRFSE..GRS21#,GWS214 |
1 | ||
| 90430-35001 |
2GR#,4GRFSE..GRS21#,GWS214 |
1 | ||
| 12216H - SEPARATOR, CASE, NO.2 | ||||
| 12216-31030 |
2GRFXE..GWS214 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-31130 |
2GRFXE..GWS214 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-31140 |
2GRFXE..GWS214 |
1 | ||
| 12611 - COVER, ENGINE, NO.1 | ||||
| 12611-31020 |
2GRFXE..GWS214 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15330-38010 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15330-38010 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15330-38010 |
2GRFXE..GWS214 |
2 | ||
| 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15330-38010 |
2GRFXE..GWS214 |
2 | ||
| 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 15340A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 15678D - FILTER, OIL CONTROL VALVE, RH | ||||
| 15678-31020 |
2GRFXE..GWS214 |
2 | ||
| 15678E - FILTER, OIL CONTROL VALVE, LH | ||||
| 15678-31020 |
2GRFXE..GWS214 |
2 | ||
| 15797C - VALVE, OIL CHECK | ||||
| 15797-31020 |
2GRFXE..GWS214 |
2 | ||
| 15797C - VALVE, OIL CHECK | ||||
| 15797-31020 |
2GRFXE..GWS214 |
2 | ||
| 23476 - HOUSING, FUEL PUMP LIFTER | ||||
| 23476-31010 |
2GRFXE..GWS214 |
1 | ||
| Common parts | ||||
| 12273-38020 | ||||
| 90119-07008 | ||||
| 90126-06026 | ||||
| 90126-06029 | ||||
| 90126-08047 | ||||
| 90126-08052 | ||||
| 90404-51084 | ||||
| 90404-51085 | ||||
| 90430-10024 | ||||
| 90467-06158C0 | ||||
| 90480-22024 | ||||
| 91551-80616 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-C0830 | ||||
| 94151-80600 | ||||
| 96723-24013 | ||||
| Linked diagrams | ||||
| 1701 | ||||

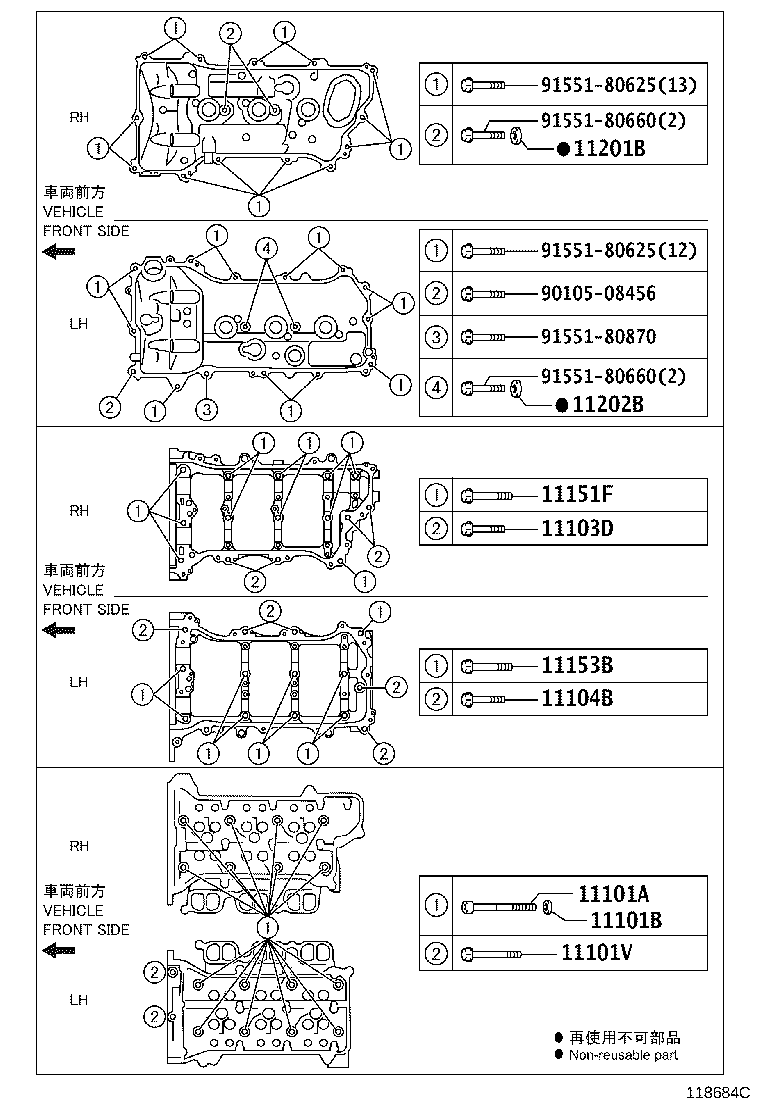

ILLUST NO. 2 OF 2(1309- )2GRFXE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02162 |
2GR#..GRS214,GWS214 |
16 | ||
| 90910-02164 |
2GR#..GRS214,GWS214 |
16 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 |
2GR#,4GRFSE..GRS21#,GWS214 |
16 | ||
| 11101V - BOLT(FOR CYLINDER HEAD SET SUB) | ||||
| 90105-10521 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 11103D - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH) | ||||
| 90105-08465 |
2GR#,4GRFSE..GRS21#,GWS214 |
4 | ||
| 11104B - BOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, LH) | ||||
| 90105-08465 |
2GRFXE..GWS214 |
5 | ||
| 11151F - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.2) | ||||
| 90105-08464 |
2GRFXE..GWS214 |
11 | ||
| 11153B - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.2) | ||||
| 90105-08464 |
2GR#,4GRFSE..GRS21#,GWS214 |
9 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-06013 |
2GR#,4GRFSE..GRS21#,GWS214 |
2 | ||
| 11202B - WASHER, SEAL(FOR CYLINDER HEAD COVER, LH) | ||||
| 90210-06013 |
2GRFXE..GWS214 |
2 | ||
| Common parts | ||||
| 90105-08456 | ||||
| 91551-80625 | ||||
| 91551-80660 | ||||
| 91551-80870 | ||||
