GRS214-AEZYH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 2GRFSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210

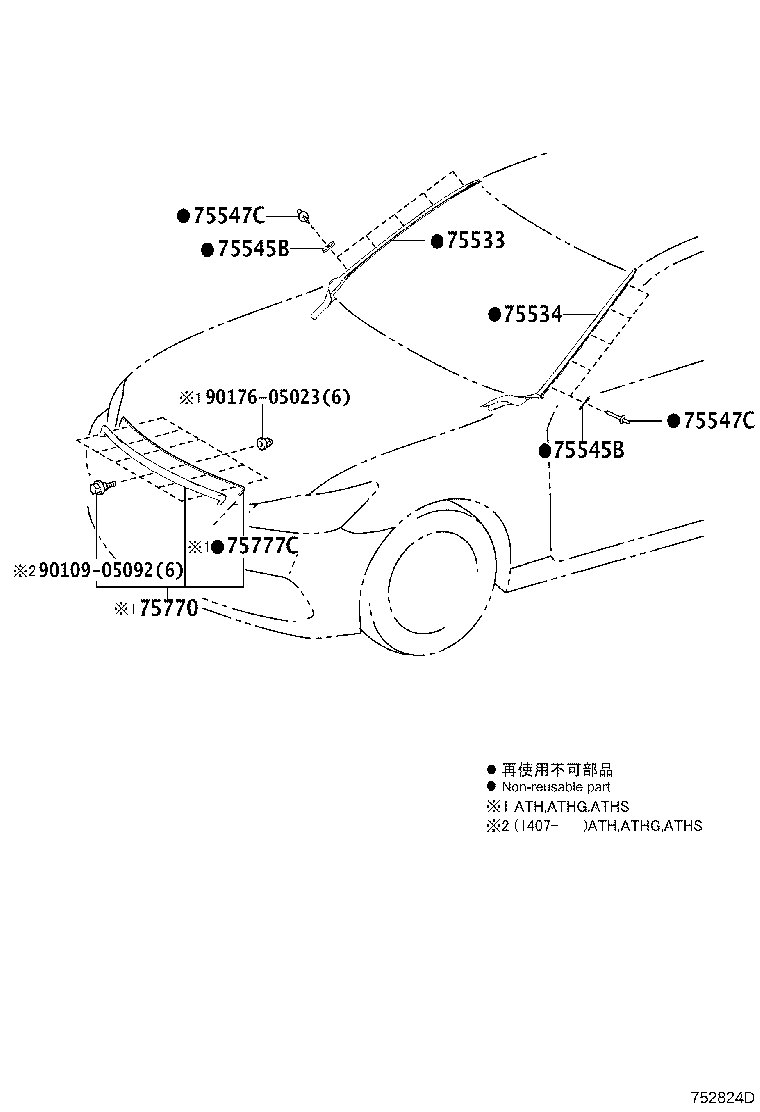

Click highlighted areas on diagram

diagram 75533 75534 75545B 75545B 75547C 75547C 75770 75777C 9010905092 9017605023
Part # Description Qty Price
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75535-30260

AWS21#,GRS21#,GWS214

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75536-30060

AWS21#,GRS21#,GWS214

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-30170

AWS21#,GRS21#,GWS214

 10
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-30170

AWS21#,GRS21#,GWS214

 10
75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-51021

AWS21#,GRS21#,GWS214

 10
75547C - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75547-51021

AWS21#,GRS21#,GWS214

 10
75770 - MOULDING ASSY, HOOD, FRONT
75770-30350

AWS210,211,GRS21#..ATH,ATHG,ATHS

ﾒｯｷ

 1
75777C - PAD, HOOD FRONT MOULDING
75777-30290

AWS210,211,GRS21#..ATH,ATHG,ATHS

 1
Common parts
90109-05092
90176-05023
