GRS214-AEZYH (2012)
Toyota Crown/Hybrid
ILLUST NO. 1 OF 3(1212- )
ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-30140 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR | ||||
| 51219-30050 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 51224A - PLATE, FRONT SUSPENSION MENBER BRACE | ||||
| 51224-30030 |
AWS210,GRS210,214,GWS214 |
2 | ||
| 52255B - BRACE, FRONT SUSPENSION MEMBER | ||||
| 52255-30050 |
AWS210,GRS210,214,GWS214 |
1 | ||
| Common parts | ||||
| 90119-10636 | ||||
| 90119-16021 | ||||
| 90119-16022 | ||||
| 90178-14012 | ||||
| 90951-01006 | ||||
| 90951-01007 | ||||
| 91673-L0625 | ||||
| Linked diagrams | ||||
| 4802 | ||||
| 5305 | ||||

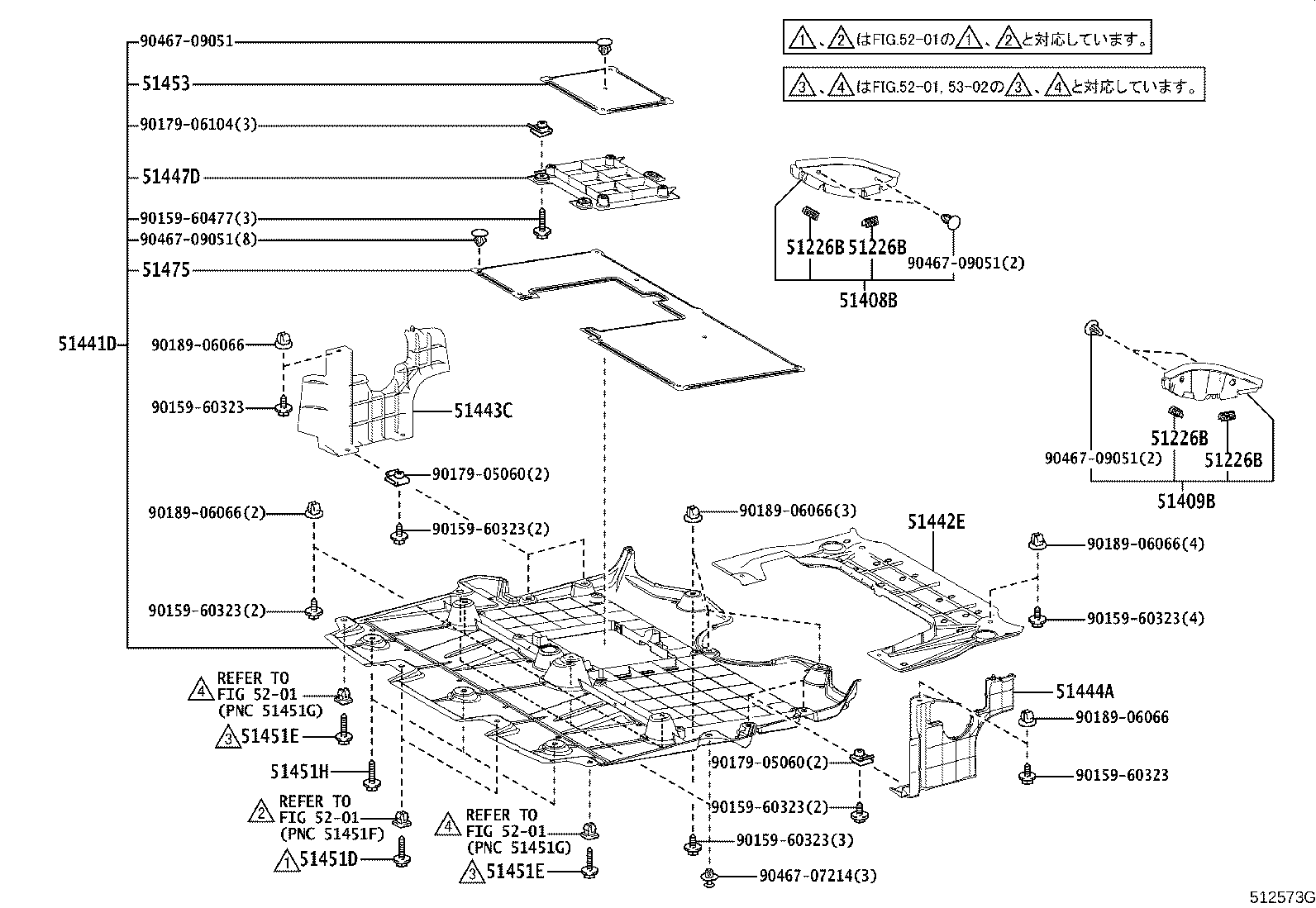

ILLUST NO. 3 OF 3(1212- )ARS210,GRS210,214
ｱﾝﾀﾞｶﾊﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51226B - PLATE, FRONT SUSPENSION MEMBER, NO.2 | ||||
| 51226-30020 |
AWS210,GRS210,214,GWS214 |
4 | ||
| 51226B - PLATE, FRONT SUSPENSION MEMBER, NO.2 | ||||
| 51226-30020 |
AWS210,GRS210,214,GWS214 |
4 | ||
| 51226B - PLATE, FRONT SUSPENSION MEMBER, NO.2 | ||||
| 51226-30020 |
AWS210,GRS210,214,GWS214 |
4 | ||
| 51226B - PLATE, FRONT SUSPENSION MEMBER, NO.2 | ||||
| 51226-30020 |
AWS210,GRS210,214,GWS214 |
4 | ||
| 51408B - COVER SUB-ASSY, ENGINE UNDER, RH | ||||
| 51408-30060 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 51409B - COVER SUB-ASSY, ENGINE UNDER, LH | ||||
| 51409-30060 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51410-30180 |
AWS210,GRS210,214 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-30210 |
GRS210,214 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-30141 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-30171 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51447-30150 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
AWS210,211,GRS21#,GWS214 |
2 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60477 |
AWS210,211,GRS21#,GWS214 |
2 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60477 |
AWS210,211,GRS21#,GWS214 |
2 | ||
| 51451H - SCREW, NO.3 | ||||
| 90159-60477 |
AWS210,211,GRS21#,GWS214 |
3 | ||
| 51453 - SILENCER, ENGINE UNDER COVER, FRONT | ||||
| 51453-30060 |
AWS210,GRS210,214,GWS214 |
1 | ||
| 51475 - SILENCER, ENGINE UNDER COVER, NO.5 | ||||
| 51475-30140 |
AWS210,GRS210,214 |
1 | ||
| Common parts | ||||
| 90159-60323 | ||||
| 90159-60477 | ||||
| 90179-05060 | ||||
| 90179-06104 | ||||
| 90189-06066 | ||||
| 90467-07214 | ||||
| 90467-09051 | ||||
| Linked diagrams | ||||
| 5201 | ||||

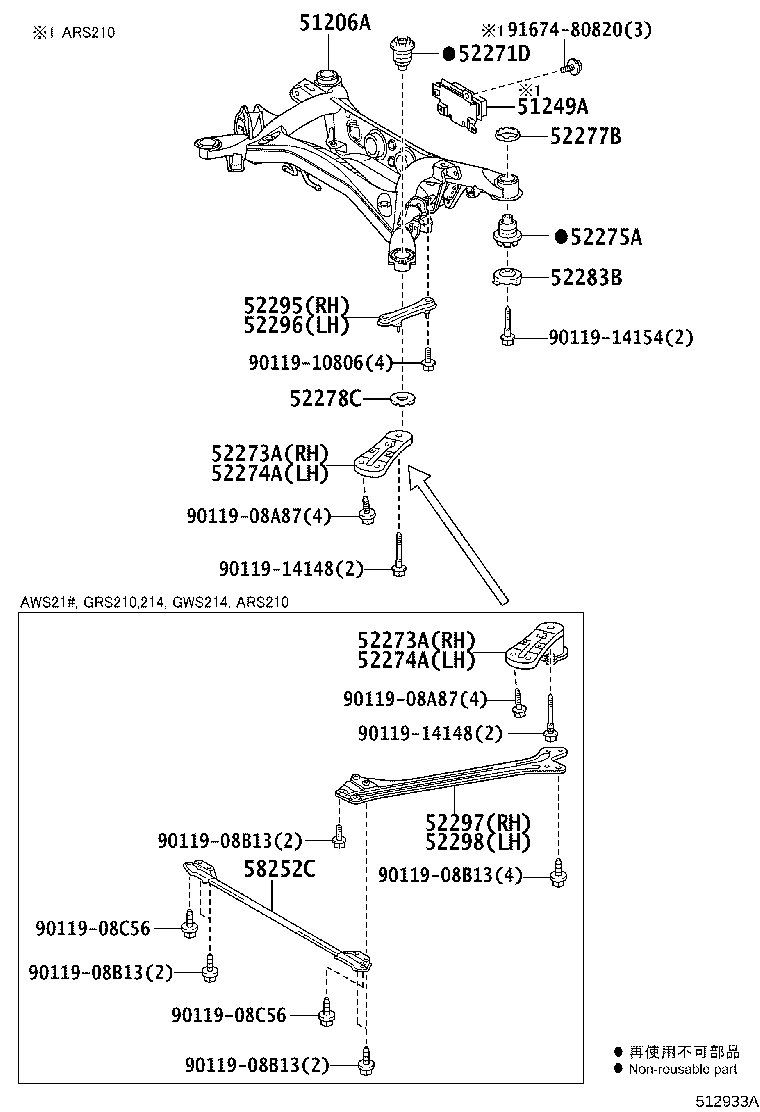

ILLUST NO. 2 OF 3(1212- )
ﾘﾔｻｽﾍﾟﾝｼｮﾝﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-30160 |
AWS21#,GRS214,GWS214 |
1 | ||
| 51206-30101 |
AWS21#,GRS214,GWS214 |
1 | ||
| 51206-30161 |
AWS21#,GRS214,GWS214 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-30120 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-30070 |
AWS21#,GRS210,214,GWS214 |
1 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-30070 |
AWS21#,GRS210,214,GWS214 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-30050 |
AWS21#,GRS210,214,GWS214 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-30050 |
AWS21#,GRS210,214,GWS214 |
1 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-30130 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-30070 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52278-30080 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52283B - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-30060 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52295 - BRACE, REAR SUSPENSION MEMBER, RH | ||||
| 52295-30030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 52296 - BRACE, REAR SUSPENSION MEMBER, LH | ||||
| 52295-30030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-30040 |
AWS21#,GRS210,214,GWS214 |
1 | ||
| 52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52298-30040 |
AWS21#,GRS210,214,GWS214 |
1 | ||
| 58252C - BRACE, FLOOR PANEL, REAR NO.1 | ||||
| 58252-30050 |
AWS21#,GRS210,214,GWS214 |
1 | ||
| 58252-WY020 |
AWS210,GRS210,214 |
1 | ||
| Common parts | ||||
| 90119-08A87 | ||||
| 90119-08B13 | ||||
| 90119-08C56 | ||||
| 90119-10806 | ||||
| 90119-14148 | ||||
| 90119-14154 | ||||
| 91674-80820 | ||||
