GRS214-AEZYH (2012)
Toyota Crown/Hybrid
Production
Dec 2012
-
Sep 2015
Engine
2GRFSE
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1212- )GRS214 ; (1509- )ARS210

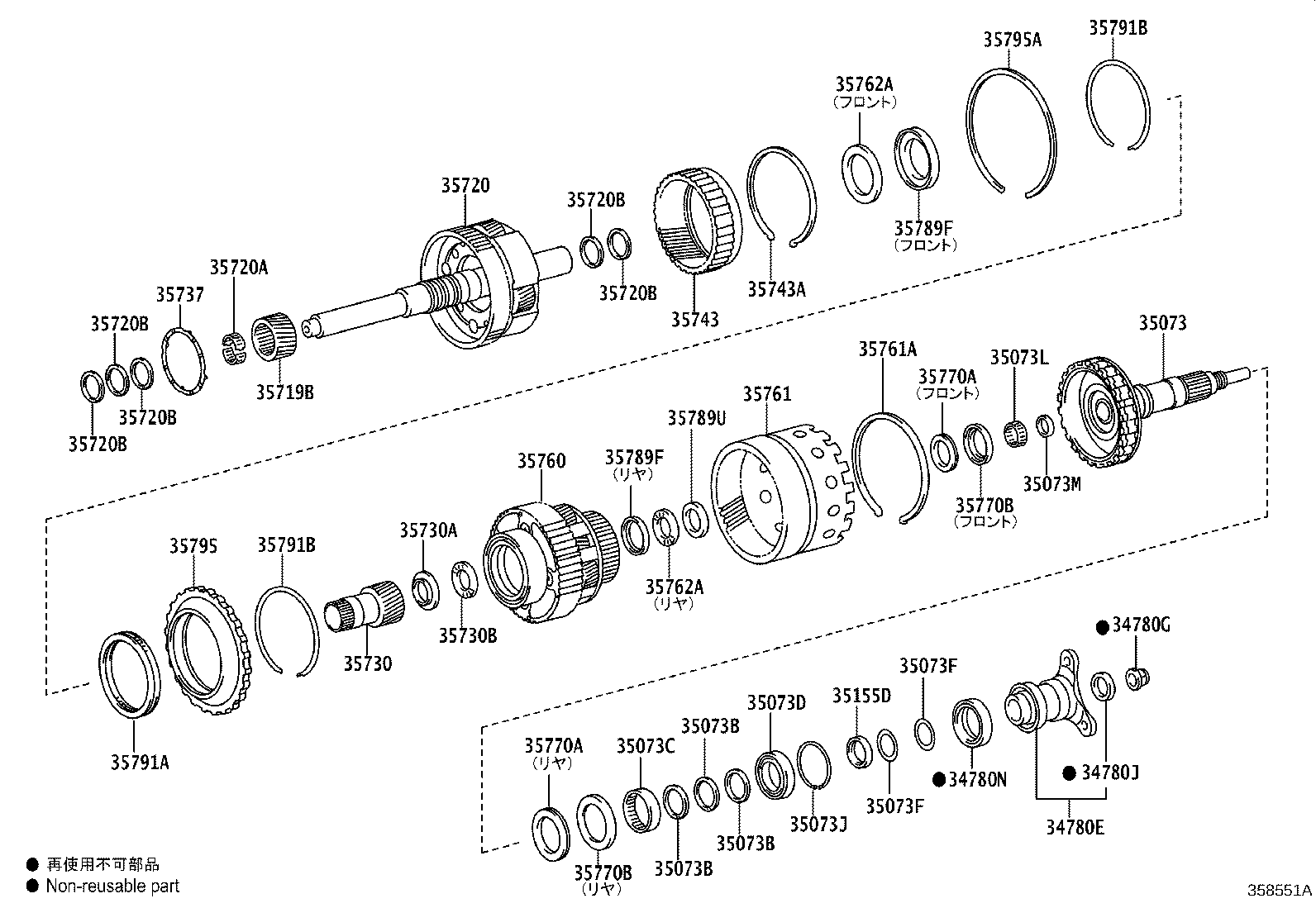

Click highlighted areas on diagram
AA81E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34780E - YOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION) | ||||
| 34780-50040 |
GRS214 |
1 | ||
| 34780G - NUT (FOR ATM FRANGE YOKE) | ||||
| 90179-22030 |
GRS214 |
1 | ||
| 34780J - SEAL, TYPE V OIL (FOR FRANGE YOKE) | ||||
| 90312-33001 |
GRS214 |
1 | ||
| 34780N - SEAL, TYPE T OIL (FOR FRANGE YOKE) | ||||
| 90311-50038 |
GRS214 |
1 | ||
| 35073 - SHAFT SUB-ASSY, OUTPUT | ||||
| 35073-50010 |
GRS214 |
1 | ||
| 35073B - RING, O (FOR OUTPUT SHAFT) | ||||
| 35617-50060 |
GRS214 |
3 | ||
| 35073B - RING, O (FOR OUTPUT SHAFT) | ||||
| 35617-50060 |
GRS214 |
3 | ||
| 35073B - RING, O (FOR OUTPUT SHAFT) | ||||
| 35617-50060 |
GRS214 |
3 | ||
| 35073C - BEARING, RADIAL BALL (FOR OUTPUT SHAFT FRONT) | ||||
| 90364-53002 |
GRS214 |
1 | ||
| 35073D - BEARING, RADIAL BALL (FOR OUTPUT SHAFT REAR) | ||||
| 90363-42001 |
GRS214 |
1 | ||
| 35073F - SPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90560-39004 |
GRS214 厚さ=0.8 |
2 | ||
| 35073F - SPACER, NO.1 (FOR OUTPUT SHAFT REAR BEARING) | ||||
| 90560-39004 |
GRS214 厚さ=0.8 |
2 | ||
| 35073J - RING, HOLE SNAP (FOR OUTPUT SHAFT) | ||||
| 90521-76006 |
GRS214 |
1 | ||
| 35073L - BEARING, NEEDLE ROLLER (FOR OUTPUT SHAFT) | ||||
| 90364-29003 |
GRS214 |
1 | ||
| 35073M - PLUG, TIGHT (FOR OUTPUT SHAFT) | ||||
| 90331-24003 |
GRS214 |
1 | ||
| 35155D - SLEEVE, REAR COVER | ||||
| 35155-50090 |
GRS214 厚さ=1.80 |
1 | ||
| 35155-50080 |
GRS214 厚さ=1.75 |
1 | ||
| 35155-50120 |
GRS214 厚さ=1.95 |
1 | ||
| 35155-50100 |
GRS214 厚さ=1.85 |
1 | ||
| 35155-50190 |
GRS214 厚さ=2.30 |
1 | ||
| 35155-50110 |
GRS214 厚さ=1.90 |
1 | ||
| 35155-50200 |
GRS214 厚さ=2.35 |
1 | ||
| 35155-50180 |
GRS214 厚さ=2.25 |
1 | ||
| 35155-50150 |
GRS214 厚さ=2.10 |
1 | ||
| 35155-50170 |
GRS214 厚さ=2.20 |
1 | ||
| 35155-50230 |
GRS214 厚さ=1.70 |
1 | ||
| 35155-50210 |
GRS214 厚さ=2.40 |
1 | ||
| 35155-50140 |
GRS214 厚さ=2.05 |
1 | ||
| 35155-50160 |
GRS214 厚さ=2.15 |
1 | ||
| 35155-50130 |
GRS214 厚さ=2.00 |
1 | ||
| 35719B - GEAR, PLANETARY SUN | ||||
| 35719-50040 |
GRS214 |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-30130 |
GRS214 |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90364-31012 |
GRS214 |
1 | ||
| 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) | ||||
| 35617-50050 |
GRS214 |
5 | ||
| 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) | ||||
| 35617-50050 |
GRS214 |
5 | ||
| 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) | ||||
| 35617-50050 |
GRS214 |
5 | ||
| 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) | ||||
| 35617-50050 |
GRS214 |
5 | ||
| 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) | ||||
| 35617-50050 |
GRS214 |
5 | ||
| 35730 - GEAR ASSY, REAR PLANETARY SUN | ||||
| 35707-50010 |
GRS214 |
1 | ||
| 35730A - RACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR) | ||||
| 35789-50190 |
GRS214 |
1 | ||
| 35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G | ||||
| 90374-31010 |
GRS214 |
1 | ||
| 35737 - WASHER, PLANETARY CARRIER THRUST | ||||
| 35737-50020 |
GRS214 |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-50030 |
GRS214 |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90521-99148 |
GRS214 |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-50040 |
GRS214 |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-50030 |
GRS214 |
1 | ||
| 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90521-99147 |
GRS214 |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-28016 |
GRS214 ﾘﾔ |
1 | ||
| 90374-71001 |
GRS214 ﾌﾛﾝﾄ |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-28016 |
GRS214 ﾘﾔ |
1 | ||
| 90374-71001 |
GRS214 ﾌﾛﾝﾄ |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-30017 |
GRS214 ﾌﾛﾝﾄ |
1 | ||
| 90374-58002 |
GRS214 ﾘﾔ |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-30017 |
GRS214 ﾌﾛﾝﾄ |
1 | ||
| 90374-58002 |
GRS214 ﾘﾔ |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-50220 |
GRS214 ﾌﾛﾝﾄ |
1 | ||
| 35789-50230 |
GRS214 ﾘﾔ |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-50220 |
GRS214 ﾌﾛﾝﾄ |
1 | ||
| 35789-50230 |
GRS214 ﾘﾔ |
1 | ||
| 35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) | ||||
| 35789-50200 |
GRS214 ﾘﾔ |
1 | ||
| 35789-50180 |
GRS214 ﾌﾛﾝﾄ |
1 | ||
| 35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) | ||||
| 35789-50200 |
GRS214 ﾘﾔ |
1 | ||
| 35789-50180 |
GRS214 ﾌﾛﾝﾄ |
1 | ||
| 35789U - RACE, THRUST BEARING | ||||
| 35789-50210 |
GRS214 |
1 | ||
| 35791A - CLUTCH, 1 WAY, NO.1 | ||||
| 35791-50030 |
GRS214 |
1 | ||
| 35791B - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-99143 |
GRS214 |
2 | ||
| 35791B - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-99143 |
GRS214 |
2 | ||
| 35795 - RACE, 1 WAY CLUTCH OUTER | ||||
| 35795-50020 |
GRS214 |
1 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99137 |
GRS214 |
1 | ||
