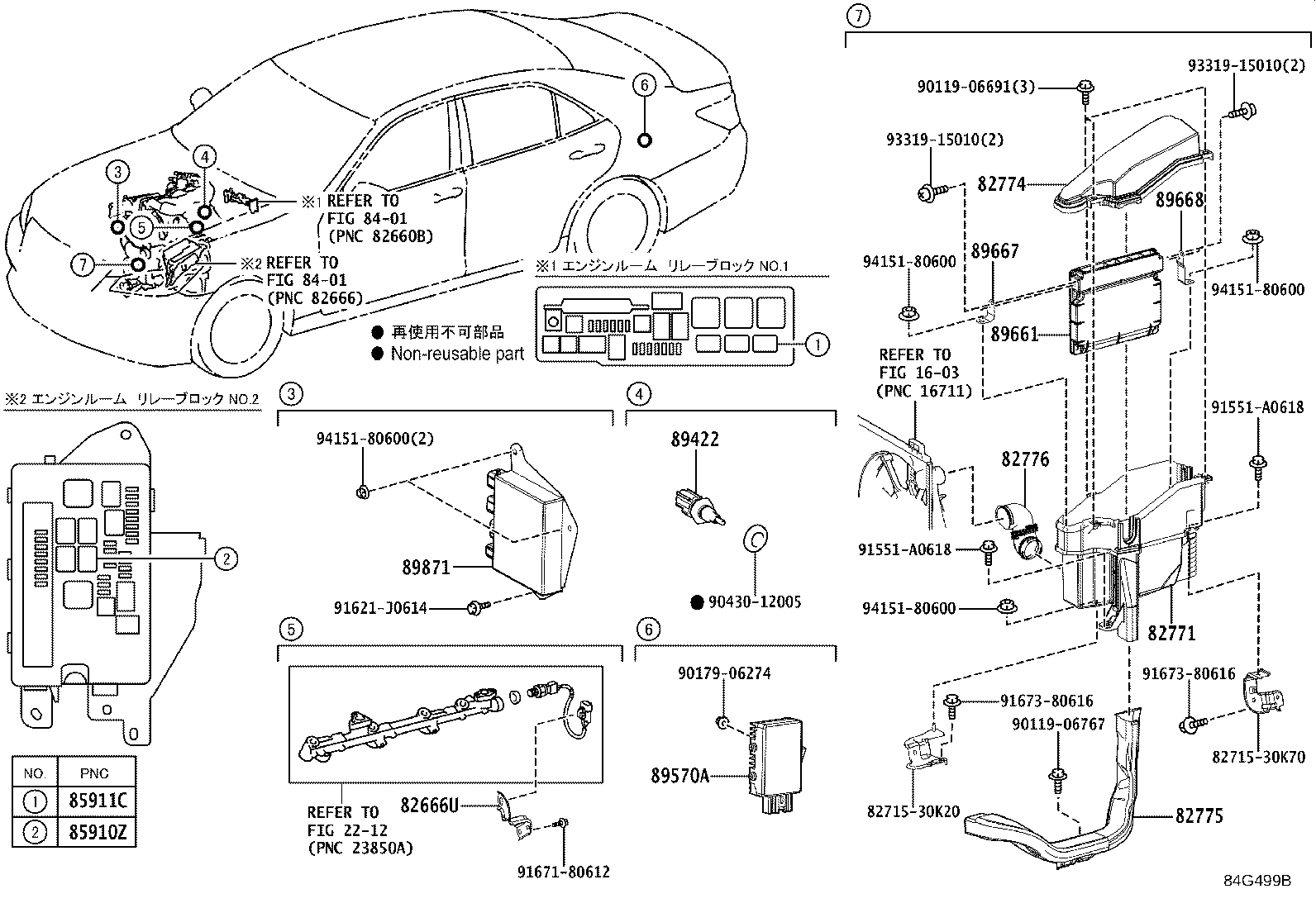

Toyota Crown/hybrid GRS214 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
82666U - HOLDER, CONNECTOR
82666-30780	GRS21#	09/2015 - 04/2018	1
82666-30780	GRS21#	12/2012 - 09/2015	1
82771 - BOX, ENGINE ROOM ECU
82771-30060	GRS21#	09/2015 - 04/2018	1
82771-30060	GRS21#	12/2012 - 09/2015	1
82774 - COVER, ENGINE ROOM ECU
82774-30060	GRS21#	12/2012 - 09/2015	1
82774-30060	GRS21#	09/2015 - 04/2018	1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-30130	GRS21#	09/2015 - 04/2018	1
82776-30130	GRS21#	12/2012 - 09/2015	1
85910Z - RELAY, INJECTION (FOR EFI)
90987-02027	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
90987-02027	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
85911C - RELAY, EFI 2
90987-02027	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
90987-02027	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	ARS210,AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
89422-33030	AWS21#,GRS21#,GWS214	12/2012 - 09/2015	1
89570A - COMPUTER ASSY, FUEL PUMP CONTROL
89570-30300	AWS21#,GRS21#,GWS214	09/2015 - 04/2018	1
89661 - COMPUTER, ENGINE CONTROL
89661-30L00	GRS214 DENSO	12/2012 - 09/2015	1
89661-3AD50	GRS214	08/2016 - 04/2018	1
89661-30L00	GRS214	09/2015 - 08/2016	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30300	GRS21#	12/2012 - 09/2015	1
89667-30300	GRS21#	09/2015 - 04/2018	1
89871 - DRIVER, INJECTOR
89871-53010	GRS21#	12/2012 - 09/2015	1
89871-53010	GRS21#	09/2015 - 04/2018	1
Common parts
82715-30K20
82715-30K70
90119-06691
90119-06767
90179-06274
90430-12005
91551-A0618
91621-J0614
91671-80612
91673-80616
93319-15010
94151-80600
Linked diagrams
1603
2212
8401

GRS214-AEZYH (2015)
