GRS214-AEZYH (2015)
Toyota Crown/Hybrid
ILLUST NO. 6 OF 8(1509- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33220 |
GRS214 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-33230 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 84140-33230 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84140-33231 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 84140-33220 |
ARS210,GRS214 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-33221 |
ARS210,GRS214 ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-30300C0 |
GRS214..ATHG BLACK,TRIM2# |
1 | ||
| 84250-30550C0 |
AWS210,211,GRS21#..ATHG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 84250-30580C0 |
ARS210,AWS210,211,GRS211,214..ATHG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM0#,2#,4# |
1 | ||
| 84250-30620C0 |
ARS210,AWS21#,GRS211,214,GWS214..ATHG,MJ BLACK,TRIM0#,2#,4# |
1 | ||
| 84250-30590C0 |
ARS210,GRS214..ATHG BLACK,TRIM0#,2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12010 |
ARS210,GRS21# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-30170 |
GRS214 |
1 | ||
| 84307-30170 |
GRS214 |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-30020 |
GRS214 |
1 | ||
| 84523-30020 |
ARS210,GRS214 |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-12130 |
ARS210,GRS214 右側 |
1 | ||
| 84610-12130 |
GRS214 右側 |
1 | ||
| 84610-30120 |
ARS210,GRS214 左側 |
1 | ||
| 84610-30120 |
GRS214 左側 |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-12130 |
ARS210,GRS214 右側 |
1 | ||
| 84610-12130 |
GRS214 右側 |
1 | ||
| 84610-30120 |
ARS210,GRS214 左側 |
1 | ||
| 84610-30120 |
GRS214 左側 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33500 |
AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG |
1 | ||
| 84652-30700 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 84652-33500 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GRS210,211..ATHG,ROYG;AWS21#,GRS214,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 89235-33010 |
AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG;ARS210,AWS215,GRS210,211,GWS214..ATHG,MJ,ROYG |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-33020 |
GRS214,GWS214 |
1 | ||
| 8924B-33020 |
GRS214,GWS214 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

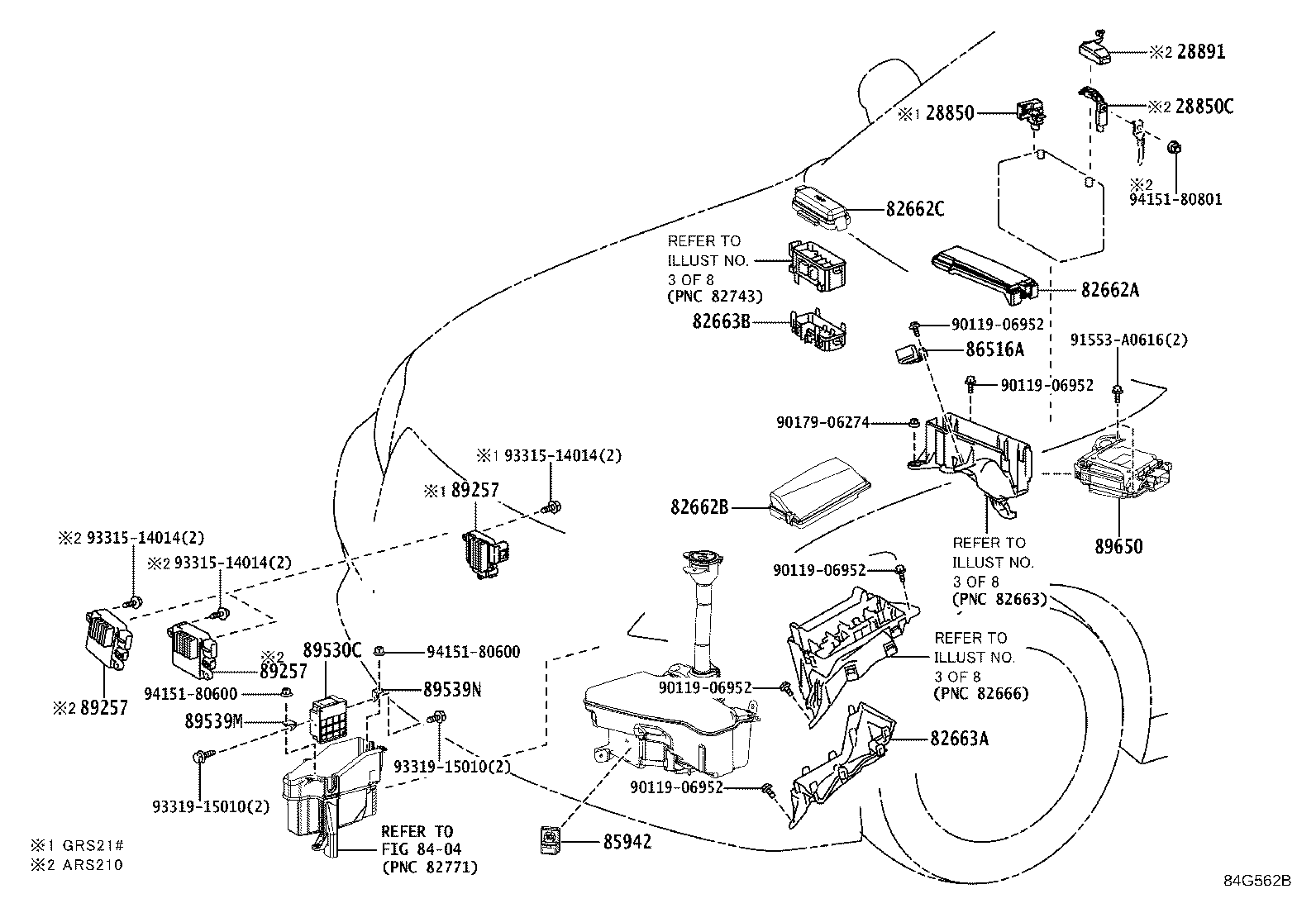

ILLUST NO. 2 OF 8(1509- )ARS210,GRS21#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-31020 |
2GRFSE,4GRFSE..GRS21# |
1 | ||
| 28850-31020 |
2GRFSE,4GRFSE..GRS21# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30B80 |
GRS21# |
1 | ||
| 82662-30F40 |
GRS21# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30E30 |
ARS210,GRS21# |
1 | ||
| 82662-30C40 |
GRS21# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30320 |
GRS21# |
1 | ||
| 82663-30320 |
ARS210,GRS21# |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30040 |
AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG |
1 | ||
| 85942-30040 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG |
1 | ||
| 86516A - CONDENSER | ||||
| 82930-30040 |
GRS21# |
1 | ||
| 82930-30040 |
ARS210,GRS21# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30090 |
GRS21# |
1 | ||
| 89257-30090 |
GRS21# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30090 |
GRS21# |
1 | ||
| 89257-30090 |
GRS21# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30090 |
GRS21# |
1 | ||
| 89257-30090 |
GRS21# |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89535-30190 |
GRS214 |
1 | ||
| 89535-30190 |
GRS214 |
1 | ||
| 89539M - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | ||||
| 89539-30110 |
GRS214 |
1 | ||
| 89539-30110 |
GRS214 |
1 | ||
| 89539N - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | ||||
| 89539-30120 |
GRS214 |
1 | ||
| 89539-30120 |
GRS214 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-30D50 |
GRS214 |
1 | ||
| 89650-30A80 |
GRS214 JTEKT/DENSO |
1 | ||
| 89650-30E30 |
GRS214 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90179-06274 | ||||
| 91553-A0616 | ||||
| 93315-14014 | ||||
| 93319-15010 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8404 | ||||

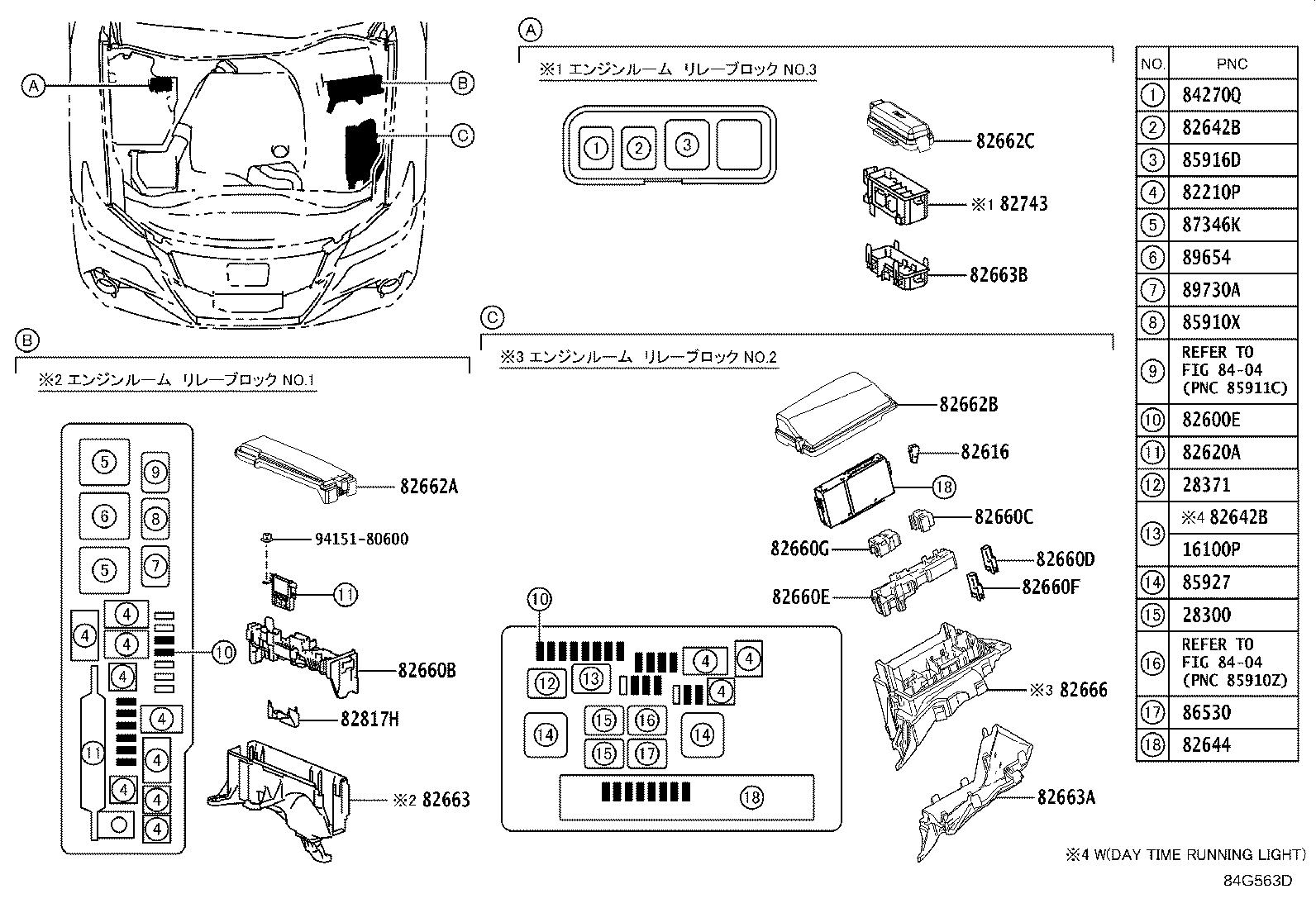

ILLUST NO. 3 OF 8(1509- )ARS210,GRS21#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2GRFSE,4GRFSE..GRS21# |
1 | ||
| 28300-21020 |
2GRFSE,4GRFSE..GRS21# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2ARFSE,2GR#,4GRFSE..AWS21#,GRS21#,GWS214 |
1 | ||
| 90987-02027 |
2ARFSE,8ARFTS,2GR#,4GRFSE..ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
GRS21# 50A,ﾒｽ端子,赤,識別符号:58V |
1 | ||
| 90982-08305 |
AWS21#,GRS21# 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08302 |
AWS21#,GRS21# 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08307 |
GRS21# 50A,ﾒｽ端子,赤,識別符号:32V |
1 | ||
| 90982-08294 |
AWS21#,GRS21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08304 |
GRS21# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08303 |
GRS21# 50A−50A−50A,ﾒｽ端子,赤茶 |
1 | ||
| 90982-08296 |
ARS210,GRS21# 50A,ﾒｽ端子,赤,識別符号:58V |
1 | ||
| 90982-08295 |
GRS21# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08301 |
AWS21#,GRS21# 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 90982-08295 |
ARS210,GRS21# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08302 |
ARS210,AWS211,215,GRS21#;AWS210..ATHG,ROY,ROYAL,ROYG 50A−30A−50A,ﾒｽ端子,黒 |
1 | ||
| 90982-08304 |
ARS210,GRS21# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08305 |
ARS210,AWS211,215,GRS21#;AWS210..ATHG,ROY,ROYAL,ROYG 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08303 |
ARS210,GRS21# 50A−50A−50A,ﾒｽ端子,赤茶 |
1 | ||
| 90982-08307 |
ARS210,GRS21# 50A,ﾒｽ端子,赤,識別符号:32V |
1 | ||
| 90982-08294 |
ARS210,AWS211,215,GRS21#;AWS210..ATHG,ROY,ROYAL,ROYG 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08301 |
ARS210,AWS211,215,GRS21#;AWS210..ATHG,ROY,ROYAL,ROYG 50A−30A−40A,ﾒｽ端子,青 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
AWS21#,GRS21# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09020 |
AWS21#,GRS21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
AWS21#,GRS21#,GWS214 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09020 |
ARS210,AWS211,215,GRS21#;AWS210..ATHG,ROY,ROYAL,ROYG 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09019 |
ARS210,AWS211,215,GRS21#;AWS210..ATHG,ROY,ROYAL,ROYG 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09022 |
AWS210..ATHG,ROY,ROYAL,ROYG;ARS210,AWS211,215,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
AWS210..ATHG,ROY,ROYAL,ROYG;ARS210,AWS211,215,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
AWS210..ATHG,ROY,ROYAL,ROYG;ARS210,AWS211,215,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
AWS210..ATHG,ROY,ROYAL,ROYG;ARS210,AWS211,215,GRS21#,GWS214 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82616-58010 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30260 |
GRS21# |
1 | ||
| 82620-30260 |
ARS210,GRS21# |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-02027 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-02027 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 82644 - COMPUTER, SEMICONDUCTOR POWER INTEGRATION | ||||
| 82644-30020 |
GRS21# |
1 | ||
| 82644-30021 |
ARS210,GRS21#,GWS214 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-30C60 |
ARS210,GRS21# |
1 | ||
| 82660-30C60 |
GRS21# |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82660-0H070 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-30C00 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 82660-30C00 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-30C70 |
GRS21# |
1 | ||
| 82660-30C70 |
ARS210,GRS21# |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-30D50 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 82660-30D50 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82660G - BLOCK ASSY, RELAY | ||||
| 82660-75010 |
ARS210,GRS21# |
1 | ||
| 82660-75010 |
GRS21# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-30F40 |
GRS21# |
1 | ||
| 82662-30B80 |
GRS21# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-30E30 |
ARS210,GRS21# |
1 | ||
| 82662-30C40 |
GRS21# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30310 |
ARS210,GRS21# |
1 | ||
| 82663-30310 |
GRS21# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-30320 |
GRS21# |
1 | ||
| 82663-30320 |
ARS210,GRS21# |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30C30 |
GRS21# |
1 | ||
| 82666-30C30 |
ARS210,GRS21# |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-30W30 |
ARS210,GRS21# |
1 | ||
| 82817-30W30 |
GRS21# |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 90987-02027 |
ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 90987-02025 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 90987-02027 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02025 |
ARS210,GRS21#,GWS214 寒冷地仕様 |
2 | ||
| 90987-02025 |
GRS21#,GWS214 寒冷地仕様 |
2 | ||
| 89654 - RELAY, POWER STEERING | ||||
| 90987-02025 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 90987-02025 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 90987-02027 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| Common parts | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 4 OF 8(1509- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ARS210,AWS21#,GRS21#,GWS214 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08306 |
AWS21#,GRS21#,GWS214 30A,ﾒｽ端子,桃 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ARS210,AWS21#,GRS21#,GWS214 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08306 |
AWS21#,GRS21#,GWS214 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09021 |
ARS210,AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
ARS210,AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
ARS210,AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
ARS210,AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09019 |
ARS210,AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09023 |
ARS210,AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09021 |
ARS210,AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
ARS210,AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
ARS210,AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
ARS210,AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09019 |
ARS210,AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09023 |
ARS210,AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09025 |
AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09019 |
AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09021 |
ARS210,AWS21#,GRS21#,GWS214 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
ARS210,AWS21#,GRS21#,GWS214 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09020 |
ARS210,AWS21#,GRS21#,GWS214 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09025 |
ARS210,AWS21#,GRS21#,GWS214 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09019 |
ARS210,AWS21#,GRS21#,GWS214 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09023 |
ARS210,AWS21#,GRS21#,GWS214 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-30430 |
AWS210,211,GRS21# |
1 | ||
| 82672-30630 |
ARS210,AWS210,211,GRS21# |
1 | ||
| 82730F - BLOCK ASSY, JUNCTION, LH | ||||
| 82730-30J20 |
AWS210,211,GRS21#..ATH,ATHG,ROYAL,ROYG |
1 | ||
| 82730-30M50 |
ARS210,AWS210,211,GRS21#..ATH,ATHG,ROYAL,ROYG |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-30020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 82878-30040 |
ARS210,GRS21# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 90986-01005 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 84340-30130 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 84550-16060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-30150 |
AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG |
1 | ||
| 85940-30150 |
ARS210,AWS21#,GRS21#,GWS214..ATHG,MJ,ROYG |
1 | ||
| 869A1 - COMPUTER, INTELLIGENT TRANSPORT SYSTEMS COMMUNICATION | ||||
| 869A0-30020 |
ARS210,GRS21#..ATHG,ATHS,ROY,ROYG ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り |
1 | ||
| 869A0-30080 |
ARS210,GRS21# ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り |
1 | ||
| 869A1 - COMPUTER, INTELLIGENT TRANSPORT SYSTEMS COMMUNICATION | ||||
| 869A0-30020 |
ARS210,GRS21#..ATHG,ATHS,ROY,ROYG ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り |
1 | ||
| 869A0-30080 |
ARS210,GRS21# ｲﾝﾌﾗ協調ｼｽﾃﾑ−有り |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-30131 |
GRS21#..ATHG,ATHS,ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,品番ﾗﾍﾞﾙ=88150−30131 |
1 | ||
| 88150-30340 |
ARS210,GRS21#..ATHG,ATHS,ROY,ROYG ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ |
1 | ||
| 88150-30420 |
ARS210,GRS21# |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-30151 |
GRS211;AWS210,GRS210,214,GWS214..ATH,ATHG,ATHS,MJ |
1 | ||
| 89100-30221 |
GRS211;ARS210,AWS21#,GRS210,214,GWS214..ATH,ATHG,ATHS,MJ,ROYG |
1 | ||
| 89100-30231 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ARS210,AWS21#,GRS21#,GWS214 |
1 | ||
| 89121-30020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 89181B - COMPUTER, STEERING CONTROL, FR | ||||
| 89181-30420 |
GRS214 |
1 | ||
| 89181-30320 |
GRS214 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-30D10 |
AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 89220-3A100 |
ARS210,AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 89220-3A640 |
ARS210,AWS210,211,GRS21#..ATHG,ROYG |
1 | ||
| 89220-3A120 |
ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 89220-3A660 |
ARS210,AWS210,211,GRS21#..ATH,ATHS,ROY,ROYAL |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-30070 |
GRS210,211..ATHG,ROYG;AWS21#,GRS214,GWS214..ATHG,ATHS,MJ,ROY,ROYG |
1 | ||
| 89227-30070 |
AWS210,211,GRS214..ATHG,ATHS,ROY,ROYG;ARS210,AWS215,GRS210,211,GWS214..ATHG,MJ,ROYG |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-30300 |
AWS210,211,GRS21#..ATHG |
1 | ||
| 89940-30360 |
ARS210,AWS210,211,GRS211,214..ATHG |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-30180 |
AWS210,GRS21#..ATH,ATHS |
1 | ||
| 89960-30260 |
ARS210,AWS210,211,GRS211,214..ATH,ATHS |
1 | ||
| Common parts | ||||
| 82715-30Q90 | ||||
| 82715-30R00 | ||||
| 82817-30W50 | ||||
| 82817-30W60 | ||||
| 869A2-30010 | ||||
| 90119-06952 | ||||
| 90153-50010 | ||||
| 90159-50327 | ||||
| 90159-60383 | ||||
| 90179-06110 | ||||
| 90179-06274 | ||||
| 91553-80610 | ||||
| 91673-80616 | ||||
| 93249-55010 | ||||
| 93313-14010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8615 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
