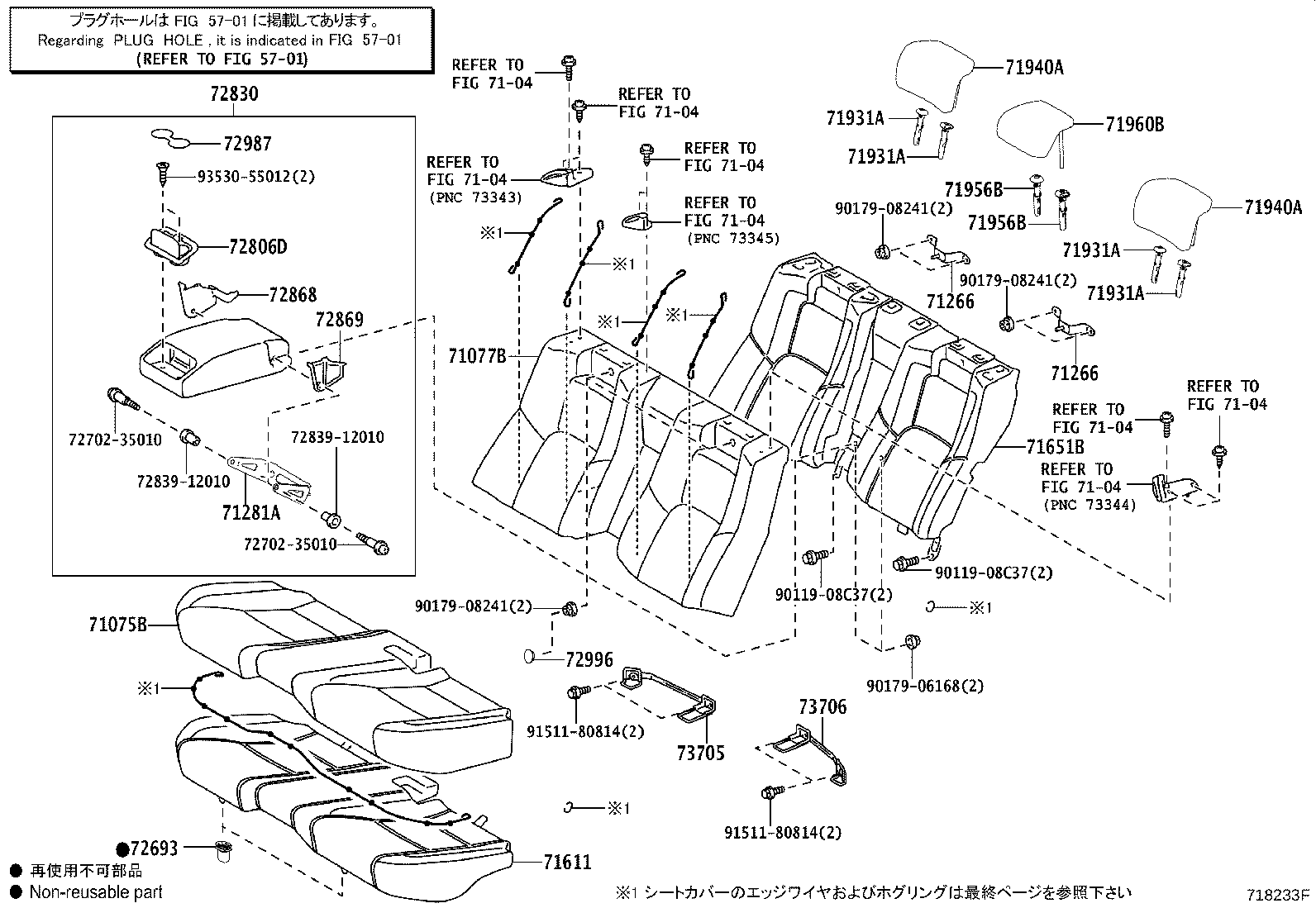

GRS214-AEZXH (2012)
Toyota Crown/Hybrid
(1212- )AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL ; (1509- )ARS210
ｺﾃｲｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-30F80C1 |
AWS210,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
1 | ||
| 71075-30G10C2 |
AWS210,GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71075-30F81C1 |
AWS210,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
1 | ||
| 71075-30F80D2 |
AWS210,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM3# |
1 | ||
| 71075-30F81C2 |
AWS210,211,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
1 | ||
| 71075-30F81D2 |
AWS210,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM30 |
1 | ||
| 71075-30G10C3 |
AWS210,211,GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71075-30F81D3 |
AWS210,211,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM3# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-30K20C2 |
AWS210,GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71077-30K01D3 |
AWS210,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM30 |
1 | ||
| 71077-30K01C2 |
AWS210,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
1 | ||
| 71077-30K01C3 |
AWS210,211,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
1 | ||
| 71077-30K00C2 |
AWS210,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
1 | ||
| 71077-30K01D4 |
AWS210,211,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM3# |
1 | ||
| 71077-30K00D3 |
AWS210,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM3# |
1 | ||
| 71077-30K20C3 |
AWS210,211,GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71266 - GUSSET, REAR SEAT BACK FRAME | ||||
| 71266-30130 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
2 | ||
| 71266 - GUSSET, REAR SEAT BACK FRAME | ||||
| 71266-30130 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
2 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-30240 |
AWS210,211,GRS21#..ATH,ATHG,ATHS |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-30290 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ付,BLACK,TRIM2#,3# |
2 | ||
| 71931-47010C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ無,BLACK,TRIM2#,3# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ付,BLACK,TRIM2#,3# |
2 | ||
| 71931-47010C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ無,BLACK,TRIM2#,3# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ付,BLACK,TRIM2#,3# |
2 | ||
| 71931-47010C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ無,BLACK,TRIM2#,3# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44020C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ付,BLACK,TRIM2#,3# |
2 | ||
| 71931-47010C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ無,BLACK,TRIM2#,3# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30D10C1 |
AWS210,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
2 | ||
| 71940-30D11C2 |
AWS210,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM3# |
2 | ||
| 71940-30D10C2 |
AWS210,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM3# |
2 | ||
| 71940-30D30C2 |
AWS210,GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
2 | ||
| 71940-30D11C1 |
AWS210,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
2 | ||
| 71940-30D11C3 |
AWS210,211,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
2 | ||
| 71940-30D30C4 |
AWS210,211,GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK/BLACK,TRIM2# |
2 | ||
| 71940-30D11C4 |
AWS210,211,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM3# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-30D10C1 |
AWS210,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
2 | ||
| 71940-30D11C2 |
AWS210,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM3# |
2 | ||
| 71940-30D10C2 |
AWS210,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM3# |
2 | ||
| 71940-30D30C2 |
AWS210,GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
2 | ||
| 71940-30D11C1 |
AWS210,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
2 | ||
| 71940-30D11C3 |
AWS210,211,GRS21#..ATH,ATHS BLACK/BLACK,TRIM2# |
2 | ||
| 71940-30D30C4 |
AWS210,211,GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK/BLACK,TRIM2# |
2 | ||
| 71940-30D11C4 |
AWS210,211,GRS21#..ATH,ATHS TERRA ROSSA/BLACK,TRIM3# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ無,BLACK,TRIM2#,3# |
1 | ||
| 71930-44020C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ付,BLACK,TRIM2#,3# |
1 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ無,BLACK,TRIM2#,3# |
1 | ||
| 71930-44020C0 |
AWS210,211,GRS21#..ATH,ATHS ﾛｯｸ付,BLACK,TRIM2#,3# |
1 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-30510C1 |
AWS210,GRS21#..ATH,ATHS BLACK/TERRA ROSSA,TRIM3# |
1 | ||
| 71960-30510C2 |
AWS210,GRS21#..ATH,ATHS BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 71960-30530C2 |
GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 71960-30511C1 |
AWS210,GRS21#..ATH,ATHS BLACK/TERRA ROSSA,TRIM3# |
1 | ||
| 71960-30511C2 |
AWS210,GRS21#..ATH,ATHS BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 71960-30511C3 |
AWS210,211,GRS21#..ATH,ATHS BLACK/TERRA ROSSA,TRIM3# |
1 | ||
| 71960-30511C4 |
AWS210,211,GRS21#..ATH,ATHS BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-30141C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 72806-30150C0 |
GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 72806-30141C1 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 72806-30140C0 |
AWS210,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 72806-30150C3 |
GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-30J10C4 |
AWS210,GRS21#..ATH,ATHS BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 72830-30J10C3 |
AWS210,GRS21#..ATH,ATHS BLACK/TERRA ROSSA,TRIM3# |
1 | ||
| 72830-30J11C4 |
AWS210,211,GRS21#..ATH,ATHS BLACK/CHOCOLATE BROWN,TRIM2# |
1 | ||
| 72830-30J11C3 |
AWS210,211,GRS21#..ATH,ATHS BLACK/TERRA ROSSA,TRIM3# |
1 | ||
| 72830-30J20C0 |
GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-30140C1 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 72869 - COVER, CENTER ARMREST HINGE, LH | ||||
| 72869-30110C1 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 72987 - COVER, REAR SEAT CENTER ARMREST | ||||
| 72987-22010C2 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 72987-22010C1 |
GRS21#..ATHS ﾚｻﾞｰｼｰﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2# |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-50100C0 |
AWS210,211..ATH;GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-30030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-30030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 72839-12010 | ||||
| 90119-08C37 | ||||
| 90179-06168 | ||||
| 90179-08241 | ||||
| 91511-80814 | ||||
| 93530-55012 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7104 | ||||
(1212- )AWS21#,GRS21#,GWS214 ; (1509- )ARS210
ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71227-30090 | ||||
| 71292-30010 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
