GRS214-AEZXH (2012)
Toyota Crown/Hybrid

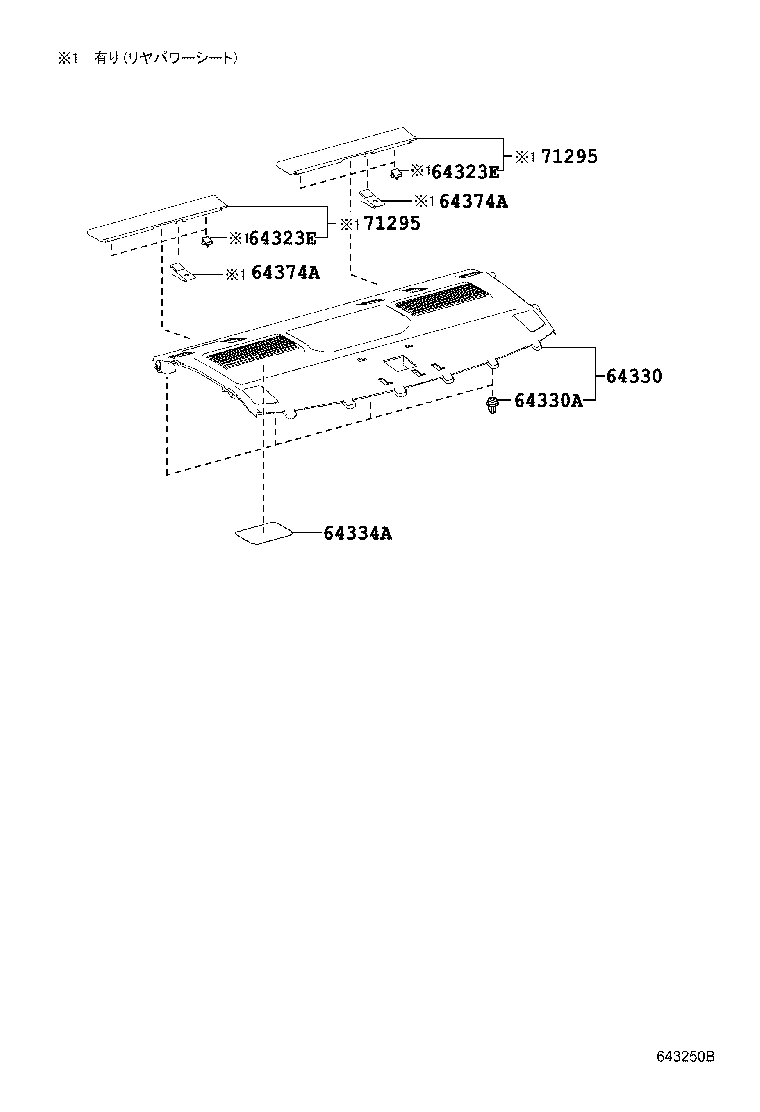

ILLUST NO. 2 OF 2(1212- )
ﾊﾟｯｹｰｼﾞﾄﾚｲ ﾄﾘﾑ:ﾅｼ(ｻﾝｼｪｰﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-30E20C0 |
AWS210,211,GRS21#..ATHS ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),BLACK,TRIM2#,3# |
1 | ||
| 64330-30D80C0 |
AWS210,211,GRS21#..ATHS BLACK,TRIM2#,3# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-10161 |
AWS21#,GRS21#,GWS214 |
4 | ||

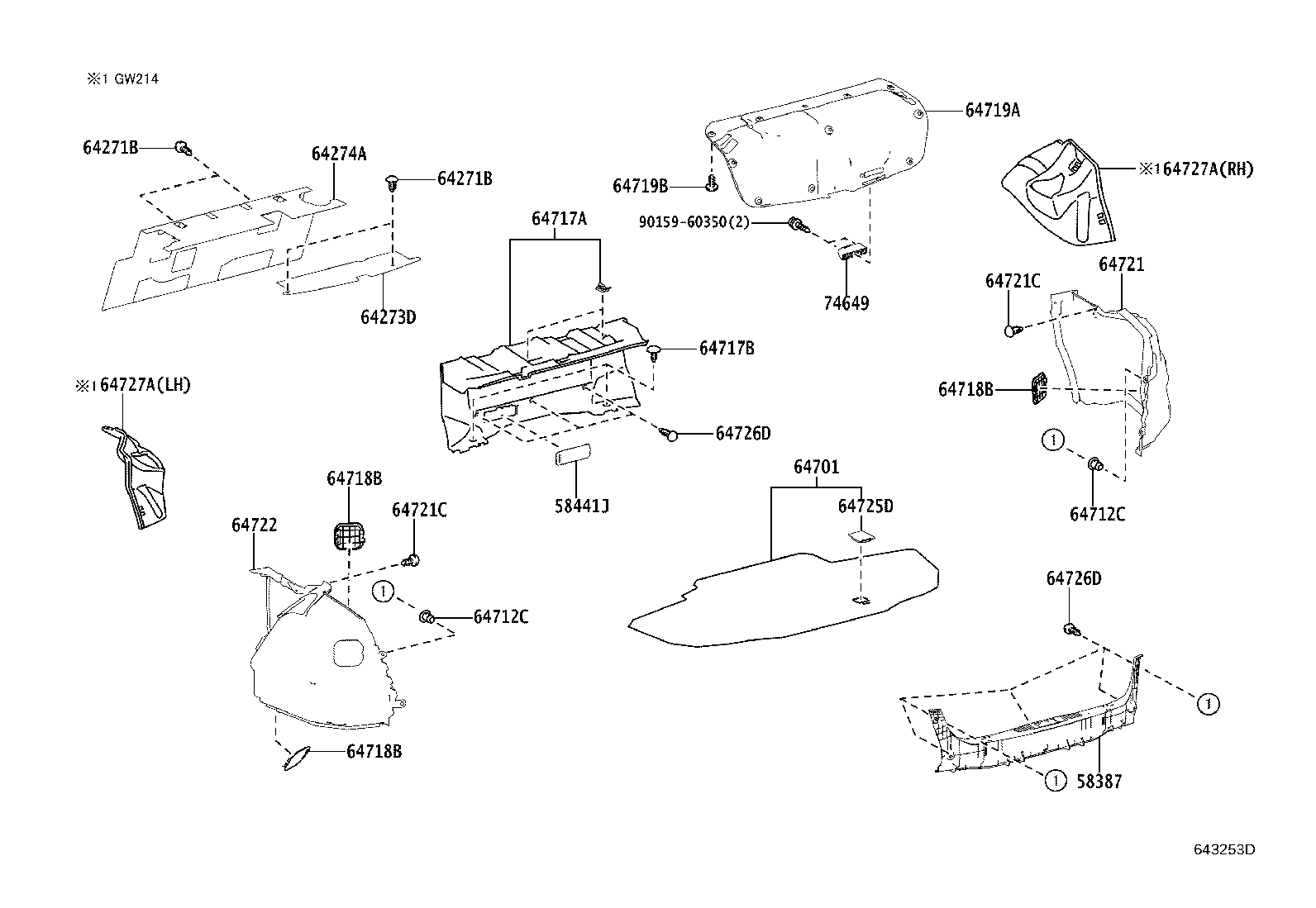

ILLUST NO. 1 OF 2(1212- )
ﾅｼ(ｽﾍﾟｱﾀｲﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-30200C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-08186C0 |
AWS21#,GRS21#,GWS214 BLACK |
4 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-08186C0 |
AWS21#,GRS21#,GWS214 BLACK |
4 | ||
| 64273D - PAD, ROOM PARTITION, NO.1 | ||||
| 64273-30210 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64274A - PAD, ROOM PARTITION, NO.2 | ||||
| 64274-30110 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
1 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64701-30060C1 |
GRS21#..ATH,ATHS ｽﾍﾟｱﾀｲﾔ−応急用(T155/70D17),BLACK,TRIM2#,3# |
1 | ||
| 64701-30060C1 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-12069 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-12069 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-30290C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-30430C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64719-30400C0 |
AWS210,211,GRS21#..ATHS ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#,3# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
13 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-30300C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-30250C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64726D - CLIP, LUGGAGE TRIM, REAR | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
8 | ||
| 64726D - CLIP, LUGGAGE TRIM, REAR | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
8 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64726-30060C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 75201A - BOX, TOOL | ||||
| 75201-30130C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| Common parts | ||||
| 90159-60350 | ||||
| 93560-54010 | ||||

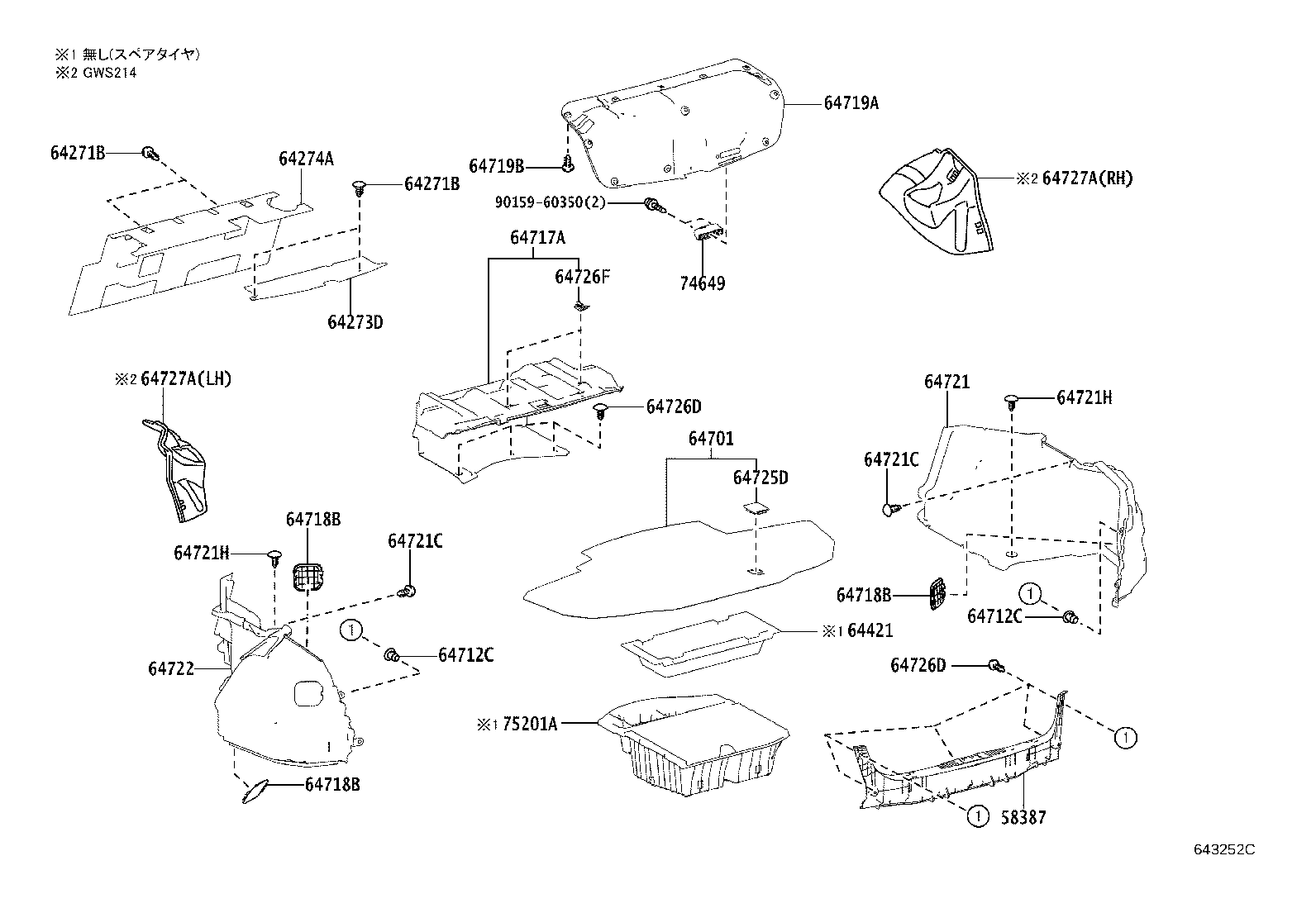

ILLUST NO. 1 OF 2(1212- )ARS210,GRS21#,GWS214
ﾅｼ(ｽﾍﾟｱﾀｲﾔ & ﾘﾔ ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-30200C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-08186C0 |
AWS21#,GRS21#,GWS214 BLACK |
4 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-08186C0 |
AWS21#,GRS21#,GWS214 BLACK |
4 | ||
| 64273D - PAD, ROOM PARTITION, NO.1 | ||||
| 64273-30210 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64274A - PAD, ROOM PARTITION, NO.2 | ||||
| 64274-30110 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
1 | ||
| 64421 - TRAY SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64421-30100C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64701-30060C1 |
GRS21#..ATH,ATHS ｽﾍﾟｱﾀｲﾔ−応急用(T155/70D17),BLACK,TRIM2#,3# |
1 | ||
| 64701-30060C1 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-12069 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-12069 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-30290C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-30430C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64719-30400C0 |
AWS210,211,GRS21#..ATHS ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#,3# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
13 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-30300C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-05164C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-05164C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-30250C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-50071 |
GRS21# |
1 | ||
| 64726D - CLIP, LUGGAGE TRIM, REAR | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
8 | ||
| 64726D - CLIP, LUGGAGE TRIM, REAR | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
8 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64726-30060C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 75201A - BOX, TOOL | ||||
| 75201-30130C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| Common parts | ||||
| 90159-60350 | ||||

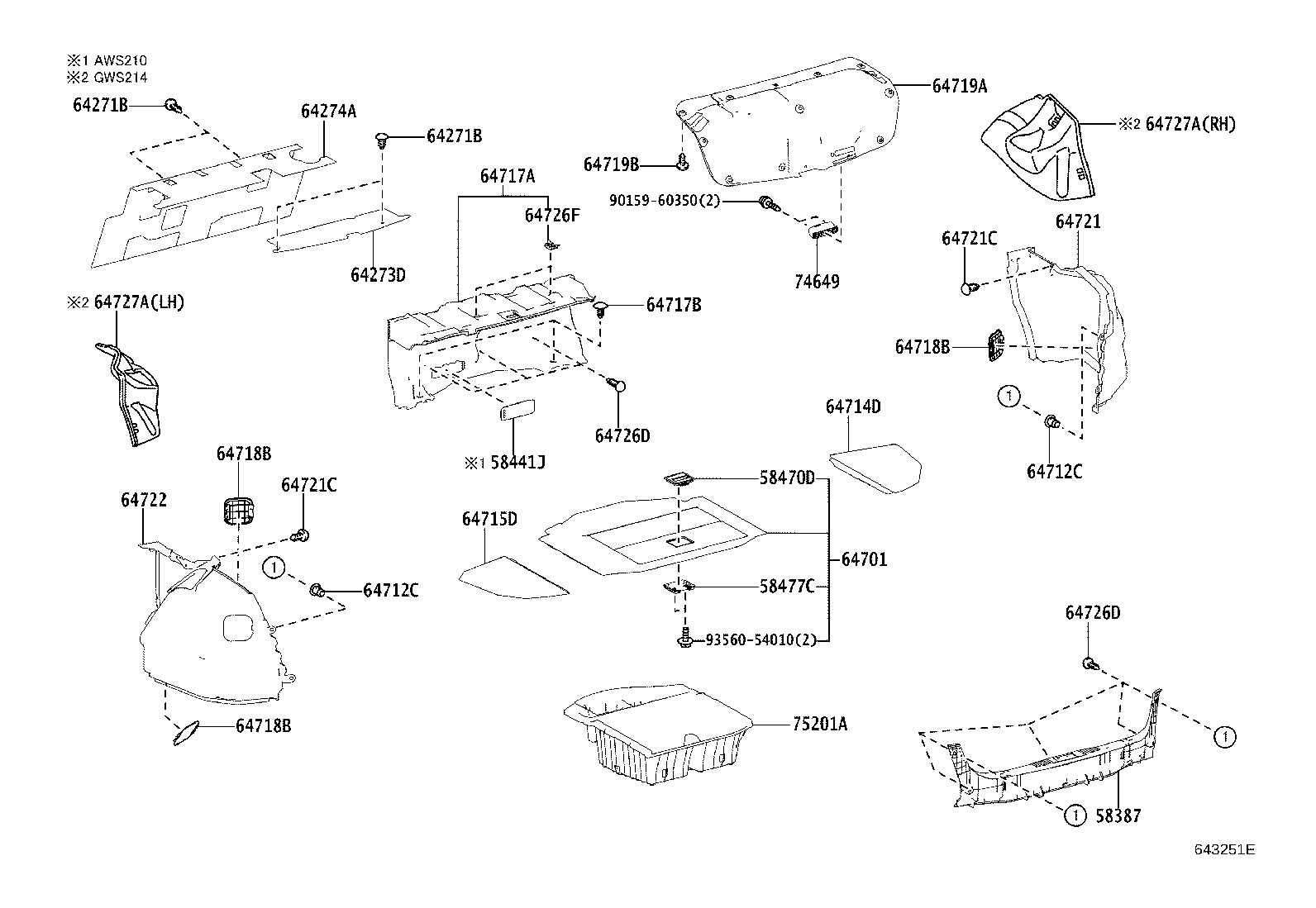

ILLUST NO. 1 OF 2(1301- )
ｱﾘ(ｽﾍﾟｱﾀｲﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-30200C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-08186C0 |
AWS21#,GRS21#,GWS214 BLACK |
4 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-08186C0 |
AWS21#,GRS21#,GWS214 BLACK |
4 | ||
| 64273D - PAD, ROOM PARTITION, NO.1 | ||||
| 64273-30210 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 64274A - PAD, ROOM PARTITION, NO.2 | ||||
| 64274-30110 |
AWS210,211,GRS21#,GWS214..ATH,ATHG,ATHS,MJ,ROY,ROYAL |
1 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64701-30060C1 |
GRS21#..ATH,ATHS ｽﾍﾟｱﾀｲﾔ−応急用(T155/70D17),BLACK,TRIM2#,3# |
1 | ||
| 64701-30060C1 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-12069 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-12069 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 64717A - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-30290C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-33010 |
AWS21#,GRS21#,GWS214 |
3 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-30430C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64719-30400C0 |
AWS210,211,GRS21#..ATHS ｱﾄﾞﾊﾞﾝｽﾄﾊﾟｯｹｰｼﾞ,BLACK,TRIM2#,3# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
13 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-30300C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
2 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-30250C0 |
GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-50071 |
GRS21# |
1 | ||
| 64726D - CLIP, LUGGAGE TRIM, REAR | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
8 | ||
| 64726D - CLIP, LUGGAGE TRIM, REAR | ||||
| 90467-08186C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
8 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,TRIM2#,3# |
1 | ||
| Common parts | ||||
| 90159-60350 | ||||
ILLUST NO. 2 OF 2(1212- )
ﾊﾟｯｹｰｼﾞﾄﾚｲ ﾄﾘﾑ:ｱﾘ(ｻﾝｼｪｰﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-30E20C0 |
AWS210,211,GRS21#..ATHS ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),BLACK,TRIM2#,3# |
1 | ||
| 64330-30D80C0 |
AWS210,211,GRS21#..ATHS BLACK,TRIM2#,3# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-10161 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 64340B - PANEL ASSY, PACKAGE TRAY TRIM, NO.2 | ||||
| 64340-30120C0 |
AWS210,211,GRS21#..ATHS ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),BLACK,TRIM2#,3# |
1 | ||
| 64350A - SHADE ASSY, REAR WINDOW | ||||
| 64350-30160 |
AWS210,211,GRS21#..ATHS,ROY ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ) |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90467-09240 | ||||
| Linked diagrams | ||||
| 8401 | ||||
