GRS211-AETYH (2012)
Toyota Crown/Hybrid

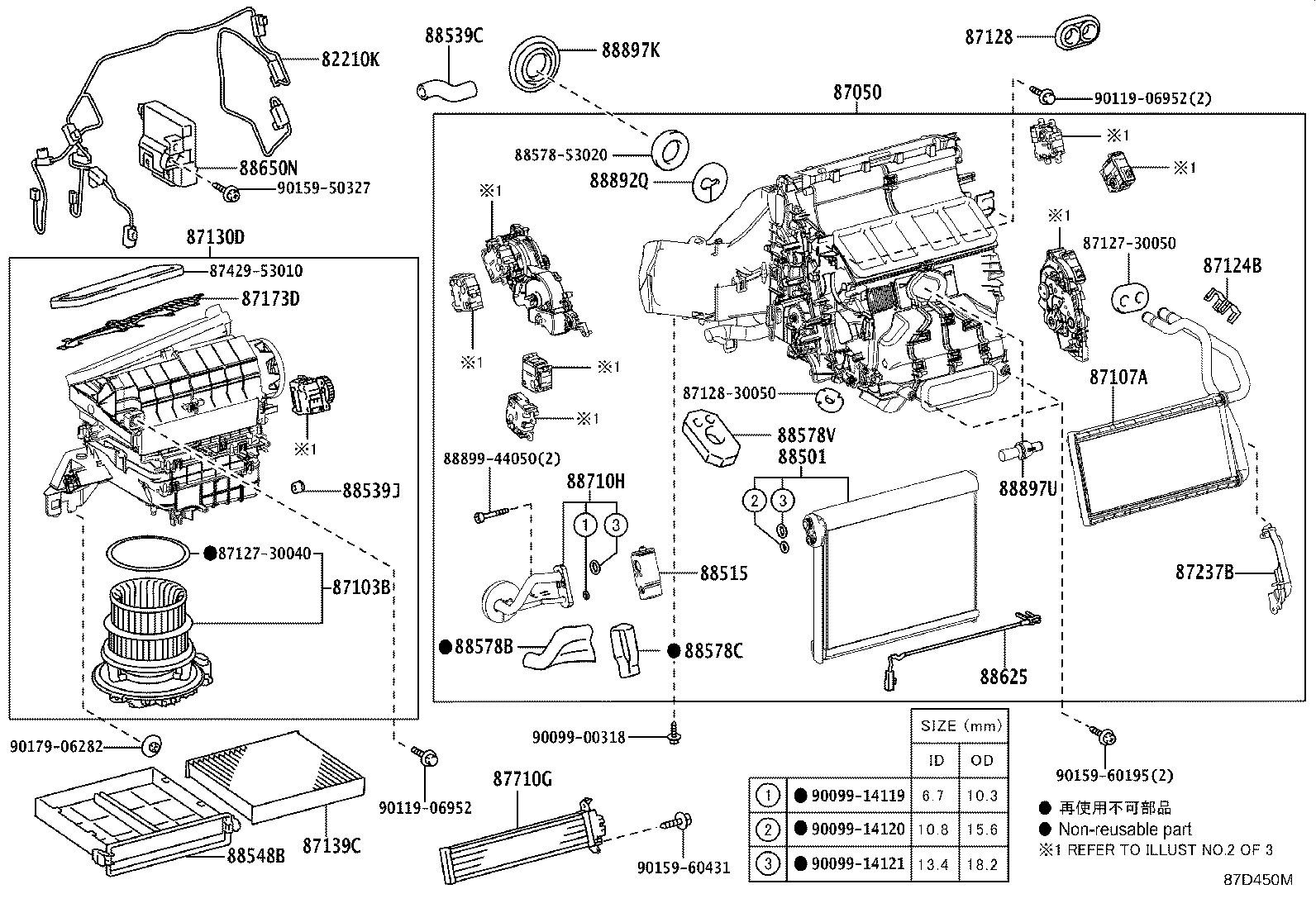

ILLUST NO. 1 OF 3(1212- )GRS21# ; (1509- )ARS210
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-30140 |
GRS21# |
1 | ||
| 82212-30120 |
AWS210,211,GWS214 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-30461 |
GRS21# |
1 | ||
| 87050-30460 |
GRS21# |
1 | ||
| 87050-30473 |
AWS210,211,GWS214 |
1 | ||
| 87050-30463 |
GRS21# |
1 | ||
| 87050-30580 |
AWS210,211,GWS214 |
1 | ||
| 87050-30472 |
AWS210,211,GWS214 |
1 | ||
| 87050-30462 |
GRS21# |
1 | ||
| 87050-30710 |
GRS21# |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-30480 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87103-30481 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30571 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87107-30580 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87107-30570 |
AWS210,GRS21# |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-30010 |
GRS21#,GWS214 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-35020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87128-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-30801 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87130-30802 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87173D - PROTECTOR HEATER | ||||
| 87173-53010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-30010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-30050 |
GRS21#,GWS214 寒冷地仕様 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-3A190 |
GRS21# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30780 |
GRS21# |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88839-30010 |
GRS21# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-30A00 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-3A090 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-30890 |
GRS21# |
1 | ||
| 88578-30890 |
GRS21# |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-3A010 |
GRS21# |
1 | ||
| 88578-3A010 |
GRS21# |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-30870 |
AWS210,GRS21# |
1 | ||
| 88578-52131 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88578-52130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-30050 |
GRS21# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-30Q20 |
GRS210,211..ATH,ROYAL 寒冷地仕様 |
1 | ||
| 88650-30W00 |
AWS210,211..ATH,ROYAL 寒冷地仕様 |
1 | ||
| 88650-30V80 |
AWS210,211..ATHG 寒冷地仕様 |
1 | ||
| 88650-30Q50 |
GRS210,211..ATH,ROYAL |
1 | ||
| 88650-30Q30 |
GRS21#..ATHG |
1 | ||
| 88650-30W30 |
AWS210,211..ATH,ROYAL |
1 | ||
| 88650-30W10 |
AWS210,211..ATHG |
1 | ||
| 88650-30Q00 |
GRS21#..ATHG 寒冷地仕様 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-3A410 |
GRS21# |
1 | ||
| 88710-3A410 |
GRS21# |
1 | ||
| 88892Q - PLATE, COOLER | ||||
| 88892-30620 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-35030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
GRS21# |
1 | ||
| 88897-32090 |
GRS21# |
1 | ||
| Common parts | ||||
| 87127-30040 | ||||
| 87127-30050 | ||||
| 87128-30050 | ||||
| 87429-53010 | ||||
| 88578-53020 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06952 | ||||
| 90159-50327 | ||||
| 90159-60195 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

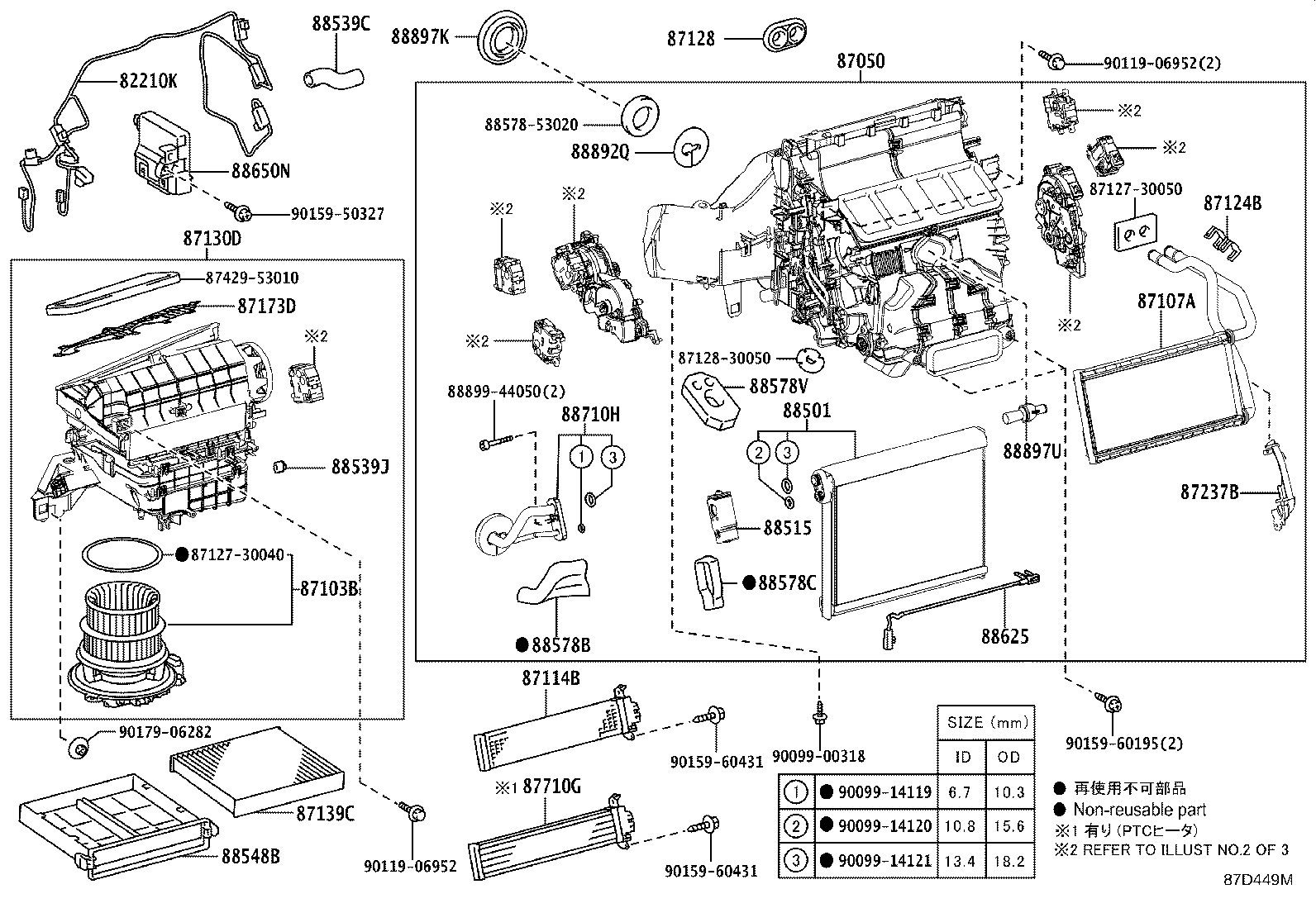

ILLUST NO. 1 OF 3(1301- )AWS210,211
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-30140 |
GRS21# |
1 | ||
| 82212-30120 |
AWS210,211,GWS214 |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-30461 |
GRS21# |
1 | ||
| 87050-30460 |
GRS21# |
1 | ||
| 87050-30473 |
AWS210,211,GWS214 |
1 | ||
| 87050-30463 |
GRS21# |
1 | ||
| 87050-30580 |
AWS210,211,GWS214 |
1 | ||
| 87050-30472 |
AWS210,211,GWS214 |
1 | ||
| 87050-30462 |
GRS21# |
1 | ||
| 87050-30710 |
GRS21# |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-30480 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87103-30481 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-30571 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87107-30580 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87107-30570 |
AWS210,GRS21# |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-35020 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87128-30060 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-30801 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87130-30802 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-30100 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87173D - PROTECTOR HEATER | ||||
| 87173-53010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87237B - COVER, HEATER PIPING | ||||
| 87237-30010 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-30050 |
GRS21#,GWS214 寒冷地仕様 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-3A190 |
GRS21# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-30780 |
GRS21# |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88839-30010 |
GRS21# |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-30A00 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88899-3A090 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-30890 |
GRS21# |
1 | ||
| 88578-30890 |
GRS21# |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-3A010 |
GRS21# |
1 | ||
| 88578-3A010 |
GRS21# |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-30870 |
AWS210,GRS21# |
1 | ||
| 88578-52131 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88578-52130 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-30050 |
GRS21# |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-30Q20 |
GRS210,211..ATH,ROYAL 寒冷地仕様 |
1 | ||
| 88650-30W00 |
AWS210,211..ATH,ROYAL 寒冷地仕様 |
1 | ||
| 88650-30V80 |
AWS210,211..ATHG 寒冷地仕様 |
1 | ||
| 88650-30Q50 |
GRS210,211..ATH,ROYAL |
1 | ||
| 88650-30Q30 |
GRS21#..ATHG |
1 | ||
| 88650-30W30 |
AWS210,211..ATH,ROYAL |
1 | ||
| 88650-30W10 |
AWS210,211..ATHG |
1 | ||
| 88650-30Q00 |
GRS21#..ATHG 寒冷地仕様 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-3A410 |
GRS21# |
1 | ||
| 88710-3A410 |
GRS21# |
1 | ||
| 88892Q - PLATE, COOLER | ||||
| 88892-30620 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-35030 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
GRS21# |
1 | ||
| 88897-32090 |
GRS21# |
1 | ||
| Common parts | ||||
| 87127-30040 | ||||
| 87127-30050 | ||||
| 87128-30050 | ||||
| 87429-53010 | ||||
| 88578-53020 | ||||
| 88899-44050 | ||||
| 90099-00318 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06952 | ||||
| 90159-50327 | ||||
| 90159-60195 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

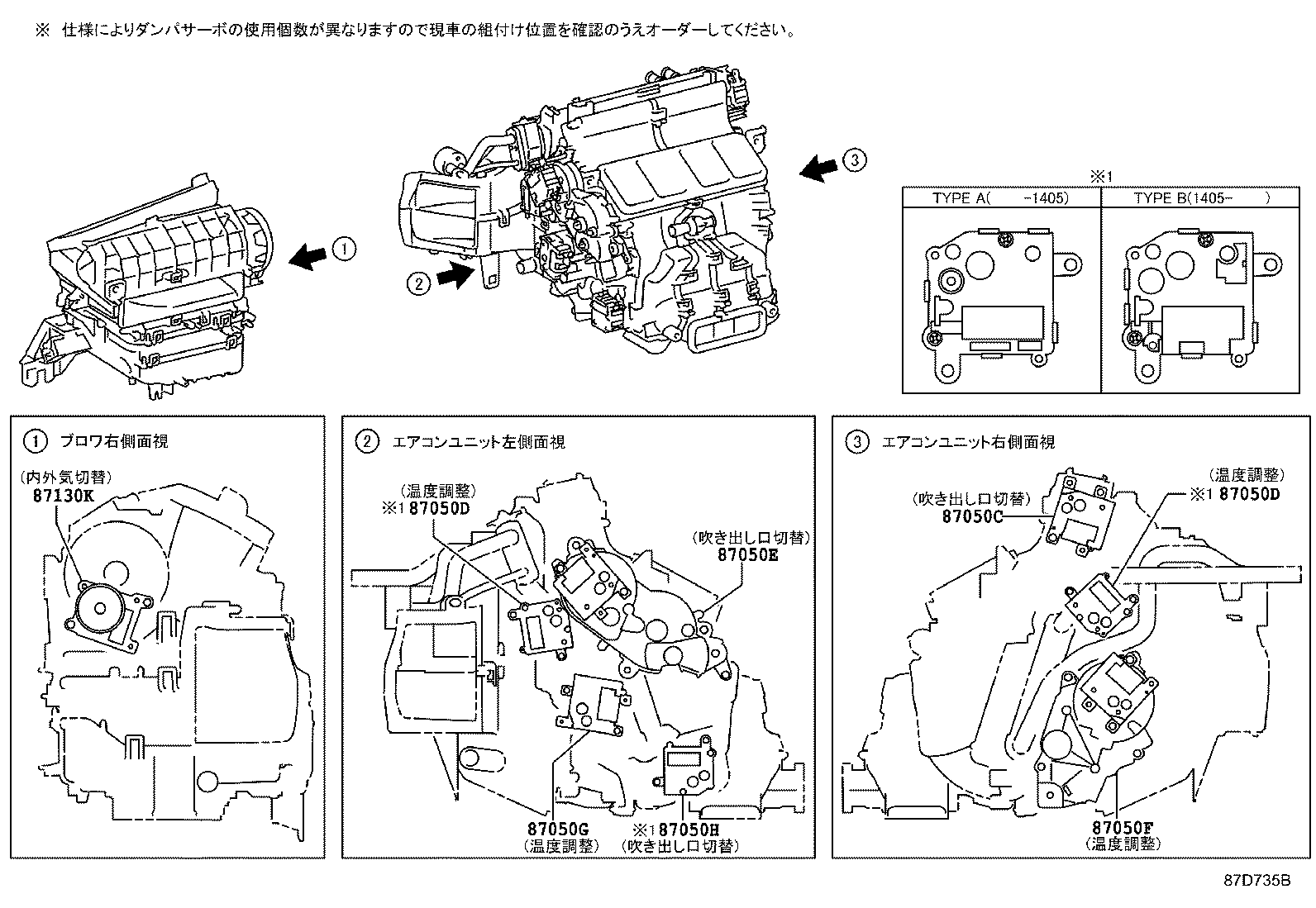

ILLUST NO. 2 OF 3(1212- )GRS21# ; (1509- )ARS210
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-30500 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-30610 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 87106-30530 |
AWS210,GRS21#,GWS214 |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-30610 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 87106-30530 |
AWS210,GRS21#,GWS214 |
2 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-30540 |
GRS21# |
1 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-30550 |
AWS210,211,GRS21#,GWS214 |
1 | ||
| 87050G - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5 | ||||
| 87106-30570 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-30520 |
AWS21#,GRS21#,GWS214 |
1 | ||

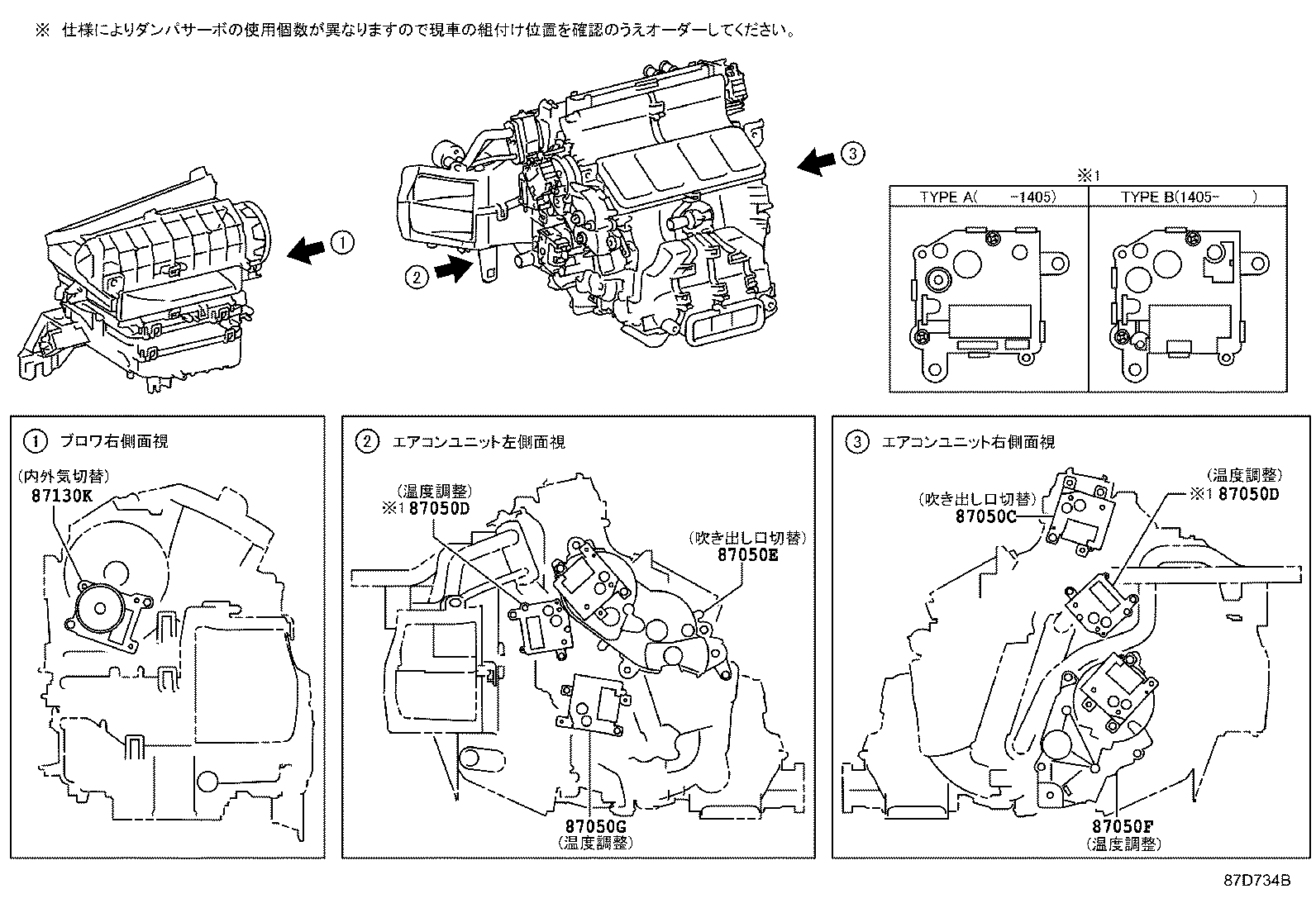

ILLUST NO. 2 OF 3(1301- )AWS210,211
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-30500 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-30610 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 87106-30530 |
AWS210,GRS21#,GWS214 |
2 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-30610 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 87106-30530 |
AWS210,GRS21#,GWS214 |
2 | ||
| 87050E - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3 | ||||
| 87106-30540 |
GRS21# |
1 | ||
| 87050F - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.4 | ||||
| 87106-30550 |
AWS210,211,GRS21#,GWS214 |
1 | ||
| 87050G - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.5 | ||||
| 87106-30570 |
AWS21#,GRS21#,GWS214 |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-30520 |
AWS21#,GRS21#,GWS214 |
1 | ||
