GRS211-AETYH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )AWS210,GRS210,211 ; (1212- )ARS210,AWS211,215,GRS214,GWS214..ATHG,ATH

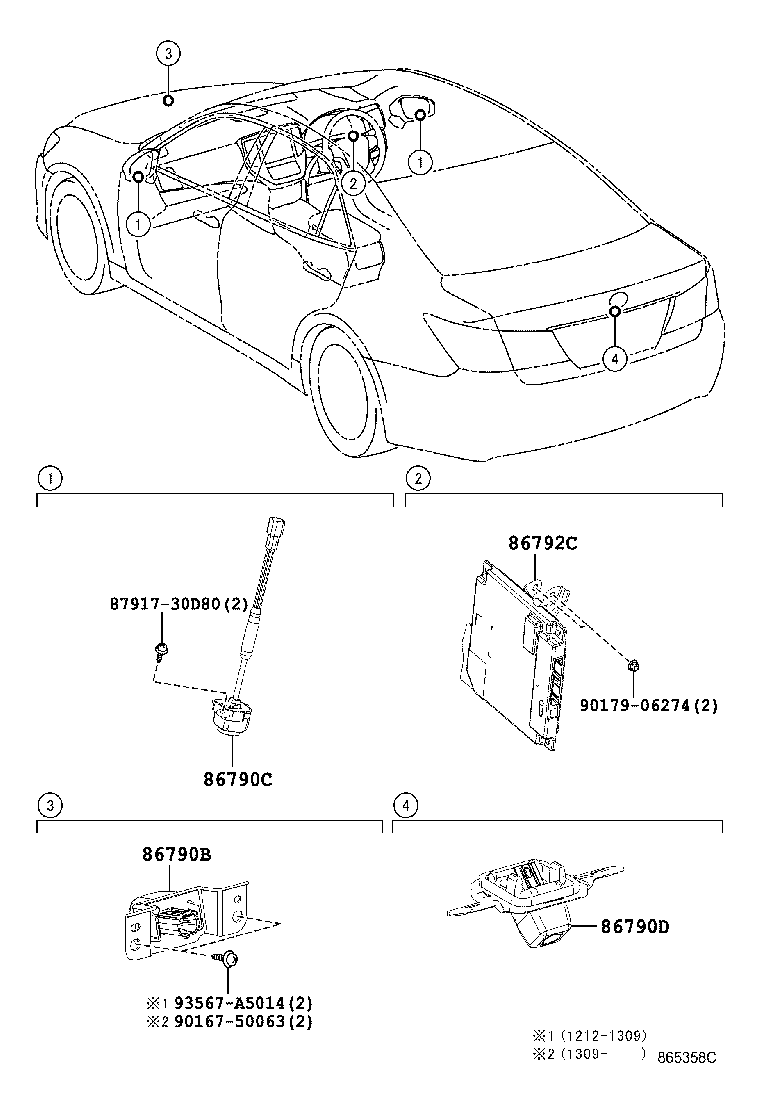

Click highlighted areas on diagram

diagram 86790B 86790C 86790D 86792C 8791730D80 9016750063 9017906274 93567A5014
Part # Description Qty Price
86790B - CAMERA ASSY, TELEVISION, FR
86790-30160B0

AWS210,GRS211..ATHG

ReBORN PINK*(P),GREY METALLIC,3T4

 1
86790-30160B0

AWS210,211,GRS21#..ATHG,ATHS

ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM),GREY METALLIC,062 ,1F7,1J6 ,202 ,219 ,3Q3

 1
86790C - CAMERA ASSY, TELEVISION, SIDE
86790-30190

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM),左側

 1
86790-30200

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM),右側

 1
86790D - CAMERA ASSY, TELEVISION, RR
86790-30180

AWS21#,GRS21#,GWS214..ATHG,ATHS,MJ,ROY,ROYG

 1
86792C - COMPUTER, PARKING ASSIST
86792-30261

AWS210,GRS21#..ATHG,ATHS

ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)

 1
86792-30262

AWS210,211,GRS21#..ATHG,ATHS

ﾊﾞｯｸﾓﾆﾀ(ﾘﾔﾃﾚﾋﾞｼﾞｮﾝｶﾒﾗ)−有り(*WVFM)

 1
Common parts
87917-30D80
90167-50063
90179-06274
93567-A5014
