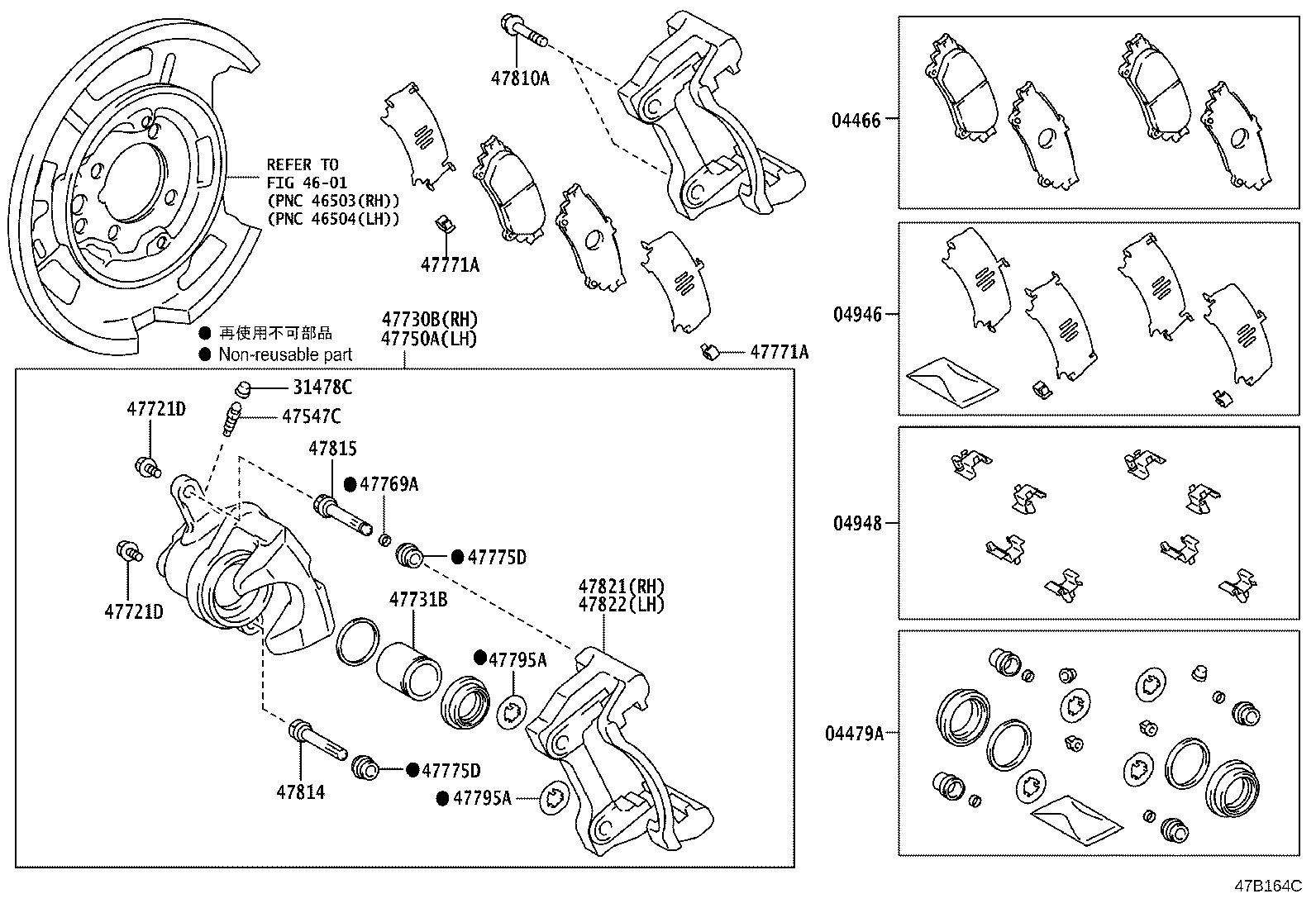

GRS211-AETYH (2012)
Toyota Crown/Hybrid
(1212-1308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-30330 |
AWS21#,GRS210,211 ﾏｰｸ AK NS254 |
1 | ||
| 04466-30230 |
AWS210,GRS210,211 ﾏｰｸ AK NS254 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-53070 |
AWS210,GRS210,211 |
1 | ||
| 04479-53090 |
AWS21#,GRS210,211 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-47080 |
AWS210,GRS210,211 |
1 | ||
| 04946-30110 |
AWS210,GRS210,211 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-30220 |
AWS210,GRS210,211 |
1 | ||
| 04948-30240 |
AWS210,GRS210,211 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
AWS210,GRS210,211 |
2 | ||
| 31478-30010 |
AWS210,GRS210,211 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-27030 |
AWS210,GRS210,211 |
2 | ||
| 47547-20010 |
AWS210,GRS210,211 |
2 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47830-30420 |
AWS21#,GRS210,211 |
1 | ||
| 47830-30370 |
AWS210,GRS210,211 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47831-30300 |
AWS210,GRS210,211 |
2 | ||
| 47831-30300 |
AWS210,GRS210,211 |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-30370 |
AWS210,GRS210,211 |
1 | ||
| 47850-30420 |
AWS21#,GRS210,211 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47879-30300 |
AWS210,GRS210,211 |
2 | ||
| 47879-33240 |
AWS210,GRS210,211 |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-33240 |
AWS210,GRS210,211 |
4 | ||
| 47875-30341 |
AWS210,GRS210,211 |
2 | ||
| 47795A - PLATE, REAR DISC BRAKE CALIPER, NO.1 | ||||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47795A - PLATE, REAR DISC BRAKE CALIPER, NO.1 | ||||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-12416 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-33240 |
AWS210,GRS210,211 |
2 | ||
| 47814-30300 |
AWS210,GRS210,211 |
2 | ||
| Linked diagrams | ||||
| 4601 | ||||

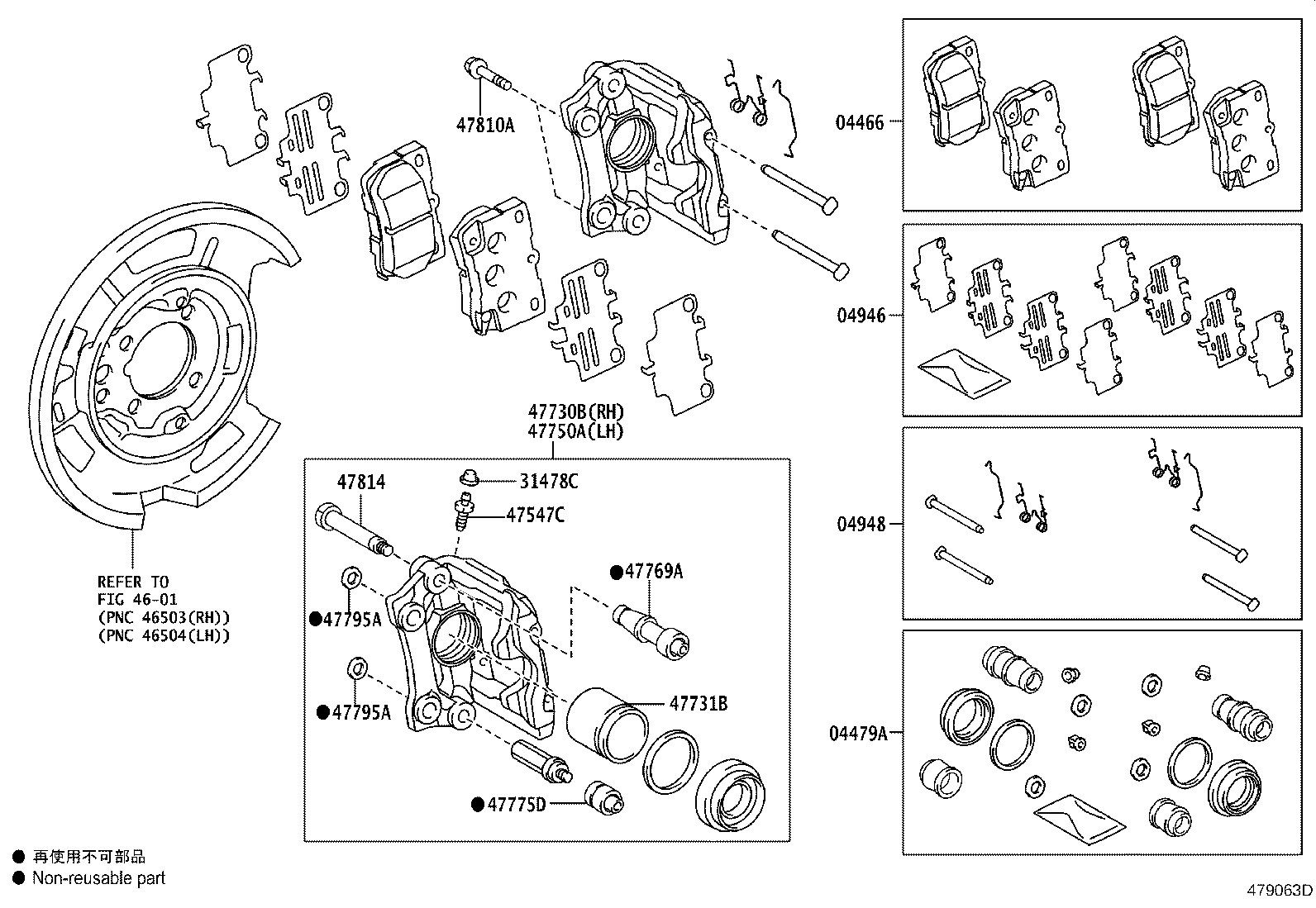

(1308-1406)AWS210,GRS210,211
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-30330 |
AWS21#,GRS210,211 ﾏｰｸ AK NS254 |
1 | ||
| 04466-30230 |
AWS210,GRS210,211 ﾏｰｸ AK NS254 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-53070 |
AWS210,GRS210,211 |
1 | ||
| 04479-53090 |
AWS21#,GRS210,211 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-47080 |
AWS210,GRS210,211 |
1 | ||
| 04946-30110 |
AWS210,GRS210,211 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-30220 |
AWS210,GRS210,211 |
1 | ||
| 04948-30240 |
AWS210,GRS210,211 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
AWS210,GRS210,211 |
2 | ||
| 31478-30010 |
AWS210,GRS210,211 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-27030 |
AWS210,GRS210,211 |
2 | ||
| 47547-20010 |
AWS210,GRS210,211 |
2 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47830-30420 |
AWS21#,GRS210,211 |
1 | ||
| 47830-30370 |
AWS210,GRS210,211 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47831-30300 |
AWS210,GRS210,211 |
2 | ||
| 47831-30300 |
AWS210,GRS210,211 |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-30370 |
AWS210,GRS210,211 |
1 | ||
| 47850-30420 |
AWS21#,GRS210,211 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47879-30300 |
AWS210,GRS210,211 |
2 | ||
| 47879-33240 |
AWS210,GRS210,211 |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-33240 |
AWS210,GRS210,211 |
4 | ||
| 47875-30341 |
AWS210,GRS210,211 |
2 | ||
| 47795A - PLATE, REAR DISC BRAKE CALIPER, NO.1 | ||||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47795A - PLATE, REAR DISC BRAKE CALIPER, NO.1 | ||||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-12416 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-33240 |
AWS210,GRS210,211 |
2 | ||
| 47814-30300 |
AWS210,GRS210,211 |
2 | ||
| Linked diagrams | ||||
| 4601 | ||||

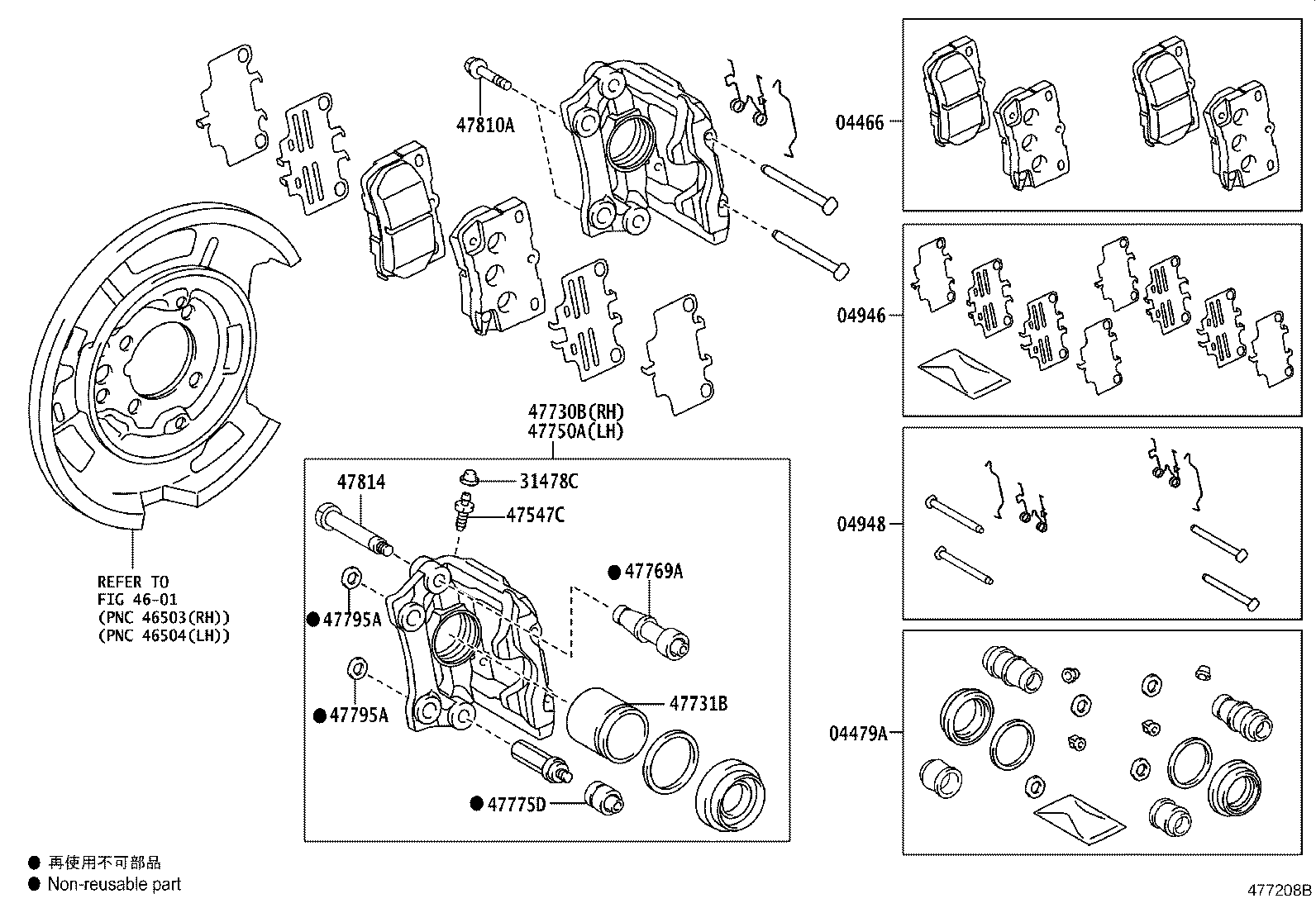

(1406- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-30330 |
AWS21#,GRS210,211 ﾏｰｸ AK NS254 |
1 | ||
| 04466-30230 |
AWS210,GRS210,211 ﾏｰｸ AK NS254 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-53070 |
AWS210,GRS210,211 |
1 | ||
| 04479-53090 |
AWS21#,GRS210,211 |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-47080 |
AWS210,GRS210,211 |
1 | ||
| 04946-30110 |
AWS210,GRS210,211 |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-30220 |
AWS210,GRS210,211 |
1 | ||
| 04948-30240 |
AWS210,GRS210,211 |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
AWS210,GRS210,211 |
2 | ||
| 31478-30010 |
AWS210,GRS210,211 |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-27030 |
AWS210,GRS210,211 |
2 | ||
| 47547-20010 |
AWS210,GRS210,211 |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08164 |
AWS210,GRS210,211 *8−1.00PX23−15 |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-08164 |
AWS210,GRS210,211 *8−1.00PX23−15 |
4 | ||
| 47730B - CYLINDER ASSY, REAR DISC BRAKE, RH | ||||
| 47830-30420 |
AWS21#,GRS210,211 |
1 | ||
| 47830-30370 |
AWS210,GRS210,211 |
1 | ||
| 47731B - PISTON, REAR DISC BRAKE | ||||
| 47831-30300 |
AWS210,GRS210,211 |
2 | ||
| 47831-30300 |
AWS210,GRS210,211 |
2 | ||
| 47750A - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-30370 |
AWS210,GRS210,211 |
1 | ||
| 47850-30420 |
AWS21#,GRS210,211 |
1 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47879-30300 |
AWS210,GRS210,211 |
2 | ||
| 47879-33240 |
AWS210,GRS210,211 |
2 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-72010 |
AWS210,GRS210,211 |
4 | ||
| 47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE) | ||||
| 47771-72010 |
AWS210,GRS210,211 |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-33240 |
AWS210,GRS210,211 |
4 | ||
| 47875-30341 |
AWS210,GRS210,211 |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-33240 |
AWS210,GRS210,211 |
4 | ||
| 47875-30341 |
AWS210,GRS210,211 |
2 | ||
| 47795A - PLATE, REAR DISC BRAKE CALIPER, NO.1 | ||||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47795A - PLATE, REAR DISC BRAKE CALIPER, NO.1 | ||||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47895-30300 |
AWS210,GRS210,211 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90119-12416 |
AWS21#,GRS21#,GWS214 |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-33240 |
AWS210,GRS210,211 |
2 | ||
| 47814-30300 |
AWS210,GRS210,211 |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-33240 |
AWS210,GRS210,211 |
2 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-30420 |
AWS21#,GRS210,211 |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-30420 |
AWS21#,GRS210,211 |
1 | ||
| Linked diagrams | ||||
| 4601 | ||||
