GRS211-AETYH (2012)

Toyota Crown/Hybrid

Production Dec 2012 - Sep 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1212- )

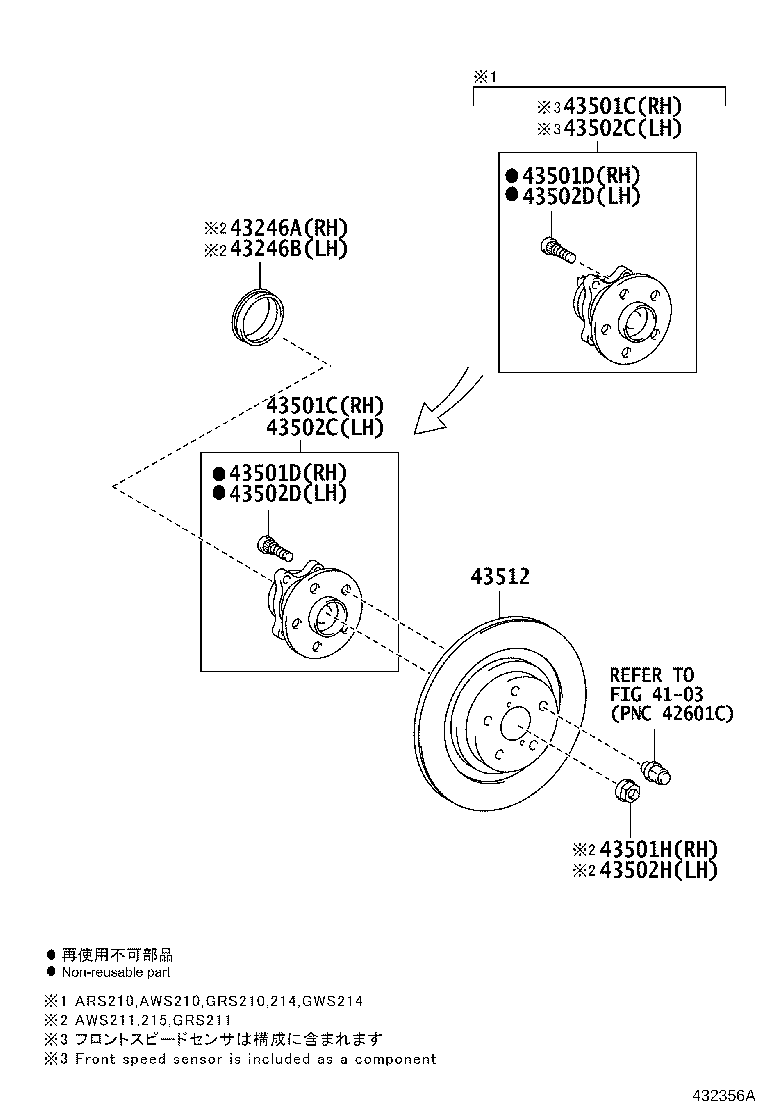

Click highlighted areas on diagram

diagram 4103 43246A 43246B 43501C 43501C 43501D 43501D 43501H 43502C 43502C 43502D 43502D 43502H 43512
Part # Description Qty Price
43246A - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 RH
43246-30010

AWS211,215,GRS211

 1
43246B - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1 LH
43246-30010

AWS211,215,GRS211

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-30030

AWS211,215,GRS211

 1
43550-30031

AWS211,215,GRS211

 1
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-30030

AWS211,215,GRS211

 1
43550-30031

AWS211,215,GRS211

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02070

AWS211,215,GRS211

 5
90942-02049

AWS211,215,GRS211

 5
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02070

AWS211,215,GRS211

 5
90942-02049

AWS211,215,GRS211

 5
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

AWS211,215,GRS211

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43560-30031

AWS211,215,GRS211

 1
43560-30030

AWS211,215,GRS211

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43560-30031

AWS211,215,GRS211

 1
43560-30030

AWS211,215,GRS211

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02070

AWS211,215,GRS211

 5
90942-02049

AWS211,215,GRS211

 5
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02070

AWS211,215,GRS211

 5
90942-02049

AWS211,215,GRS211

 5
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

AWS211,215,GRS211

 1
43512 - DISC, FRONT
43512-30310

AWS21#,GRS210,211

 2
Linked diagrams
4103
