GRS211-AETWH (2015)
Toyota Crown/Hybrid
Production
Sep 2015
-
Apr 2018
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1509- )ATH,ATHG,ATHS

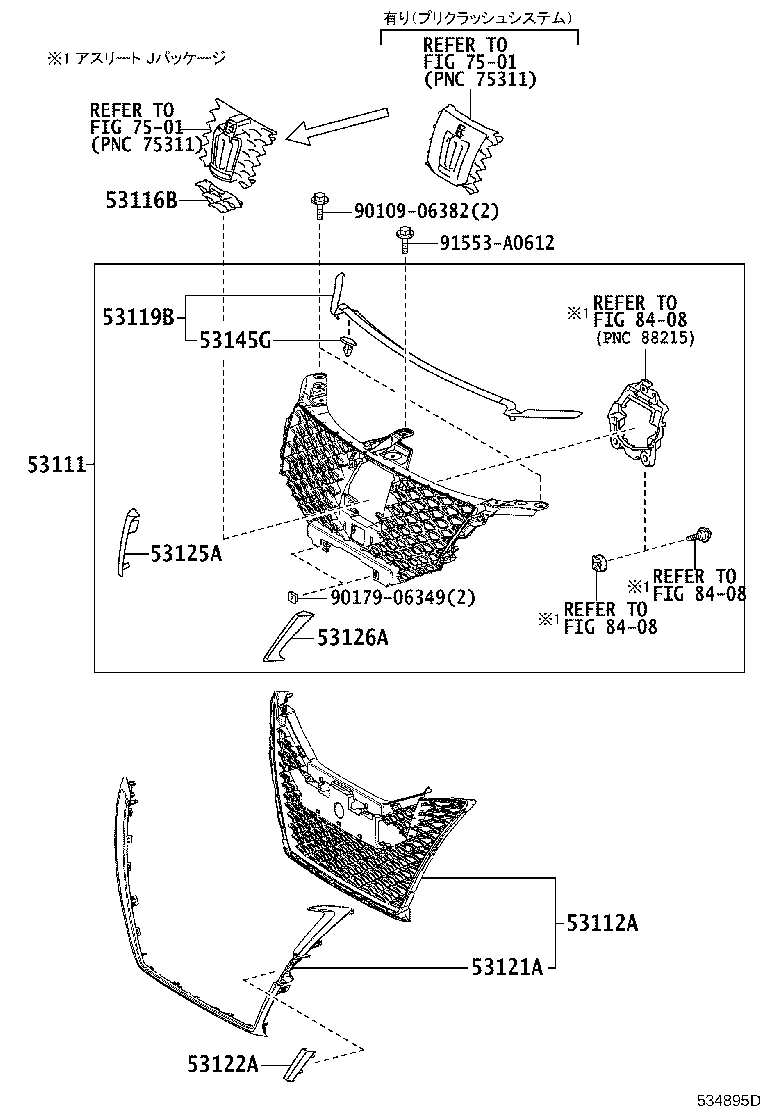

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53105-30070 |
AWS210,211,GRS21#..ATH,ATHG,ATHS ﾒｯｷ |
1 | ||
| 53101-30A70 |
AWS210,211,GRS211,214..ATH,ATHG,ATHS ﾒｯｷ |
1 | ||
| 53101-30C00 |
AWS210,211,GRS211,214..ATH,ATHG,ATHS ﾒｯｷ |
1 | ||
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53102-30150 |
AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 53116B - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53116-30160 |
AWS210,211,GRS21#..ATH,ATHG,ATHS |
1 | ||
| 53116-30240 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 53119B - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-30270 |
AWS210,211,GRS21#..ATH,ATHG,ATHS |
1 | ||
| 53119-30310 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 53121-30270 |
AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 53122A - MOULDING, RADIATOR GRILLE, LOWER | ||||
| 53126-30130 |
AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 53125A - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-30080 |
AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 53126A - MOULDING, RADIATOR GRILLE, CENTER LH | ||||
| 53126-30110 |
AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 53145G - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
GRS211,214..ATH,ATHG,ATHS |
20 | ||
| 53145-60030 |
ARS210,AWS210,211..ATH,ATHG,ATHS |
20 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90179-06349 | ||||
| 91553-A0612 | ||||
| Linked diagrams | ||||
| 7501 | ||||
| 8408 | ||||
