GRS211-AETWH (2015)
Toyota Crown/Hybrid

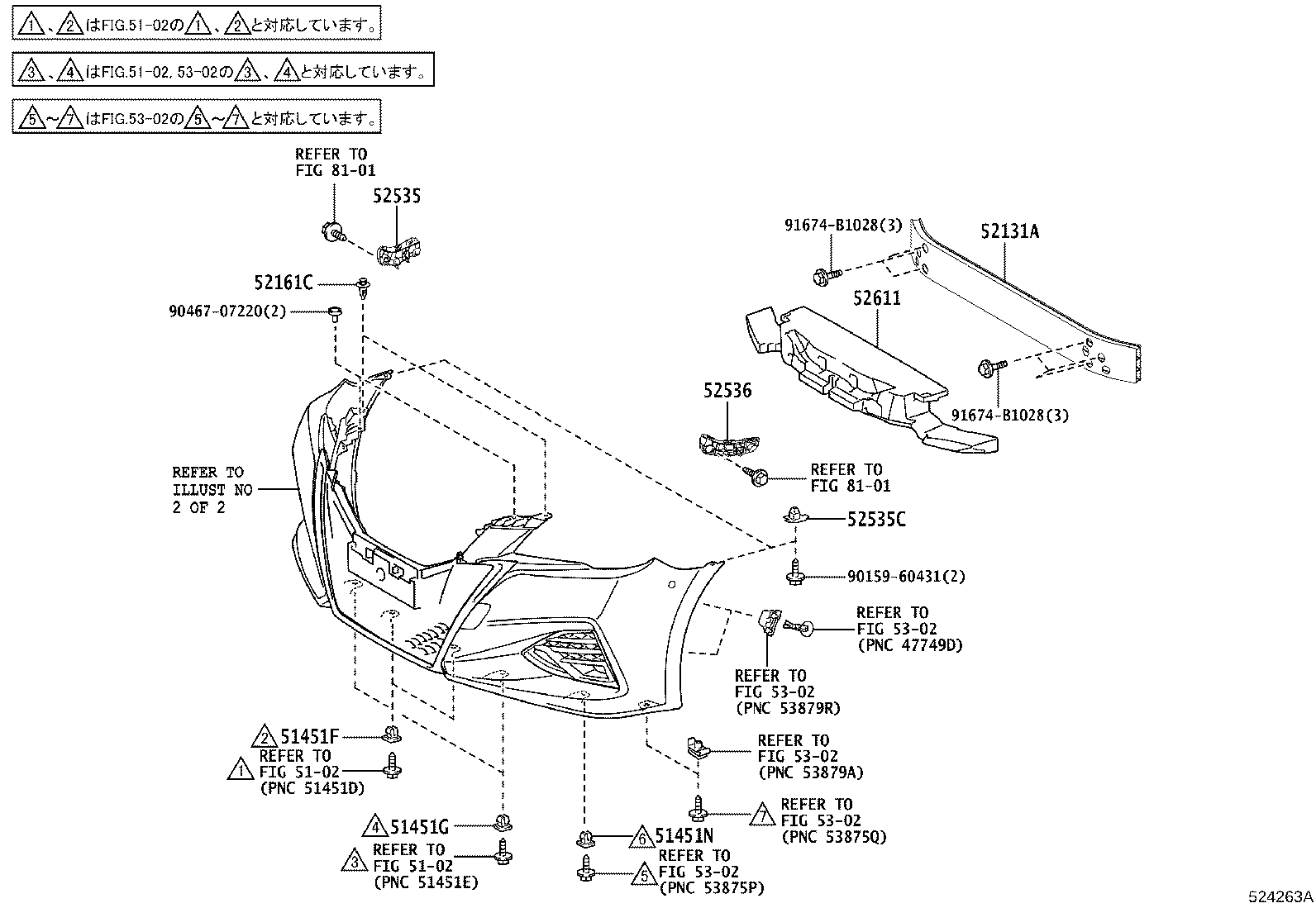

ILLUST NO. 1 OF 2(1509- )GRS211,214..ATH,ATHG,ATHS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451F - GROMMET, NO.1 | ||||
| 90189-06237 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 90189-06237 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 51451G - GROMMET, NO.2 | ||||
| 90189-06237 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 90189-06237 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 51451N - GROMMET, NO.3 | ||||
| 90189-06237 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 90189-06237 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30331 |
ARS210,AWS210,211 |
1 | ||
| 52131-30320 |
GRS21# |
1 | ||
| 52131-30320 |
GRS21# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 52161-16010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30260 |
AWS210,211,GRS21#..ATH,ATHG,ATHS |
1 | ||
| 52535-30261 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52535-50060 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30251 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 52536-30250 |
AWS210,211,GRS21#..ATH,ATHG,ATHS |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30440 |
GRS21#..ATH,ATHG,ATHS |
1 | ||
| 52611-30540 |
ARS210,AWS210,211..ATH,ATHG,ATHS |
1 | ||
| 52611-30530 |
GRS211,214..ATH,ATHG,ATHS |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90467-07220 | ||||
| 91674-B1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

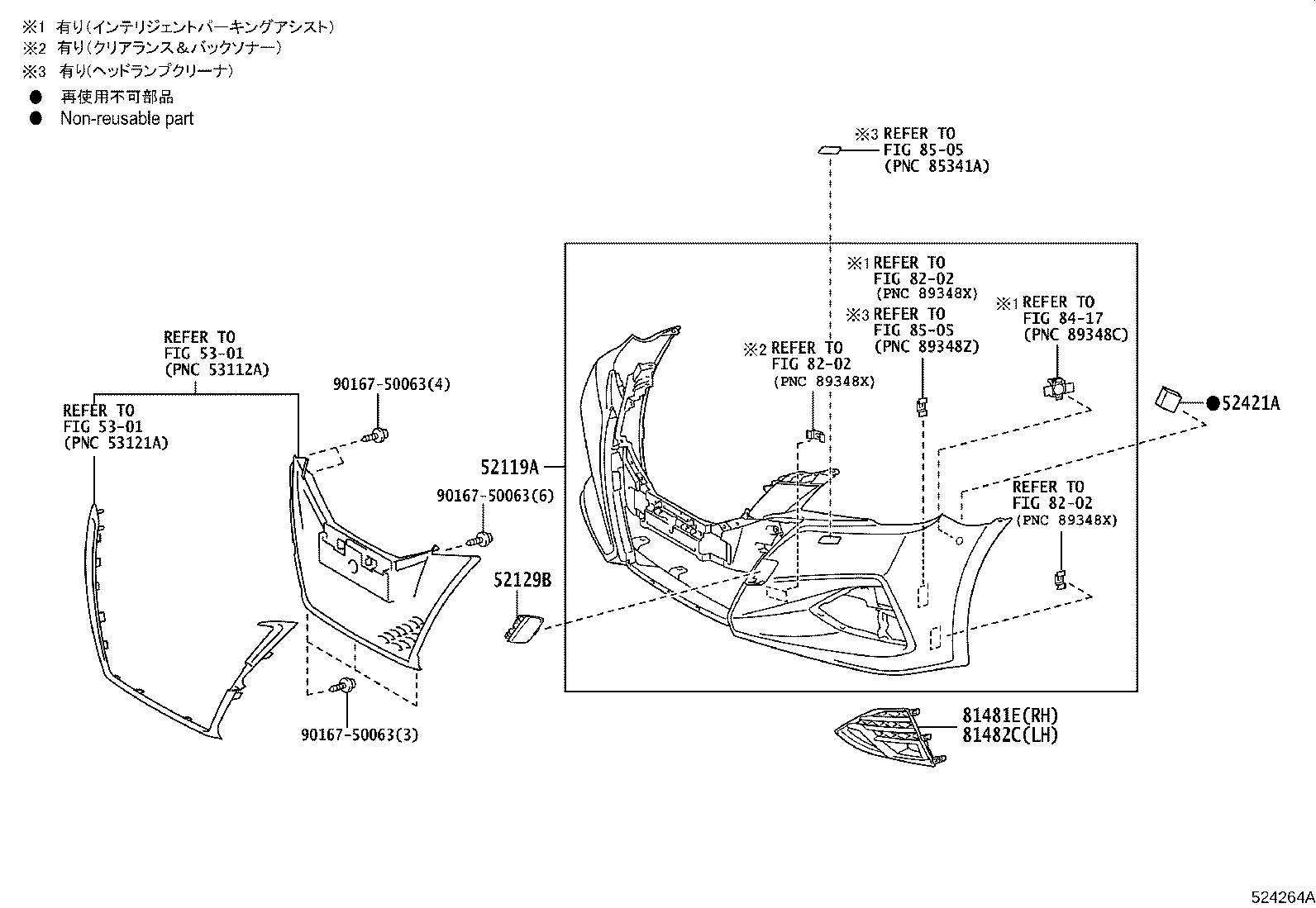

ILLUST NO. 2 OF 2(1509- )GRS211,214..ATH,ATHG,ATHS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30E60C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,202 |
1 | ||
| 52119-30E60B0 |
AWS210,211,GRS21#..ATH,ATHS SILVER ME.,1F7 |
1 | ||
| 52119-30E60B1 |
AWS210,211,GRS21#..ATH,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 52119-30E60D0 |
AWS210,211,GRS21#..ATH,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 52119-30E60C1 |
AWS210,211,GRS21#..ATH,ATHS PRECIOUS BLACK,219 |
1 | ||
| 52119-30E60A0 |
AWS210,211,GRS21#..ATH,ATHS WHITE PEARL CS.,062 |
1 | ||
| 52119-3F973B4 |
ARS210,AWS210,211,GRS211,214..ATH,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F973B3 |
GRS214..ATHS;ARS210,AWS210,211,GRS211..ATH SILVER ME.,1F7 |
1 | ||
| 52119-3F973D1 |
ARS210,AWS210,211,GRS211,214..ATH,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F973C3 |
ARS210,AWS210,211,GRS211,214..ATH,ATHS PRECIOUS BLACK,219 |
1 | ||
| 52119-3F973C2 |
ARS210,AWS210,211,GRS211..ATH,ATHS BLACK,202 |
1 | ||
| 52119-3F973A1 |
GRS214..ATHS;ARS210,AWS210,211,GRS211..ATH WHITE PEARL CS.,062 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-30150B1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 52129-30150C1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS BLACK,219 |
1 | ||
| 52129-30150D0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 52129-30150B0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS SILVER ME.,1F7 |
1 | ||
| 52129-30150A0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS WHITE PEARL CS.,062 |
1 | ||
| 52129-30150C0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS BLACK,202 |
1 | ||
| 52129-30190B0 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS SILVER ME.,1F7 |
1 | ||
| 52129-30190C0 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS BLACK,202 |
1 | ||
| 52129-30190C1 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS PRECIOUS BLACK,219 |
1 | ||
| 52129-30190A0 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS WHITE PEARL CS.,062 |
1 | ||
| 52129-30190B2 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 52129-30190D2 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 52129-30190J2 |
ARS210,AWS210,211,GRS211..ATH DK. BLUE,1F7 |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52422-30090 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-30090B1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 81481-30090A0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS WHITE PEARL CS.,062 |
1 | ||
| 81481-30090B0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS SILVER ME.,1F7 |
1 | ||
| 81481-30090C0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS BLACK,202 |
1 | ||
| 81481-30090C1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS BLACK,219 |
1 | ||
| 81481-30090D0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 81481-30230 |
ARS210,AWS210,211,GRS211..ATH,ATHG,ATHS |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-30190B1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 81482-30190D0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 81482-30190A0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS WHITE PEARL CS.,062 |
1 | ||
| 81482-30190C1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS BLACK,219 |
1 | ||
| 81482-30190B0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS SILVER ME.,1F7 |
1 | ||
| 81482-30190C0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS BLACK,202 |
1 | ||
| 81482-30250 |
ARS210,AWS210,211,GRS211..ATH,ATHG,ATHS |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8202 | ||||
| 8417 | ||||
| 8505 | ||||
ILLUST NO. 1 OF 2(1509- )ARS210,AWS210,211..ATH,ATHG,ATHS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451F - GROMMET, NO.1 | ||||
| 90189-06237 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 90189-06237 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 51451G - GROMMET, NO.2 | ||||
| 90189-06237 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 90189-06237 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 51451N - GROMMET, NO.3 | ||||
| 90189-06237 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 90189-06237 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-30331 |
ARS210,AWS210,211 |
1 | ||
| 52131-30320 |
GRS21# |
1 | ||
| 52131-30320 |
GRS21# |
1 | ||
| 52143E - PLATE, FRONT ENERGY ABSORBER MOUNTING | ||||
| 52143-30200 |
ARS210,AWS210,211 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 52161-16010 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-30260 |
AWS210,211,GRS21#..ATH,ATHG,ATHS |
1 | ||
| 52535-30261 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-50060 |
AWS21#,GRS21#,GWS214 |
2 | ||
| 52535-50060 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-30251 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 52536-30250 |
AWS210,211,GRS21#..ATH,ATHG,ATHS |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-30440 |
GRS21#..ATH,ATHG,ATHS |
1 | ||
| 52611-30540 |
ARS210,AWS210,211..ATH,ATHG,ATHS |
1 | ||
| 52611-30530 |
GRS211,214..ATH,ATHG,ATHS |
1 | ||
| 52621 - CHAMBER, POP UP HOOD | ||||
| 52621-30030 |
ARS210,AWS210,211 |
1 | ||
| Common parts | ||||
| 90119-06999 | ||||
| 90159-60431 | ||||
| 90467-07220 | ||||
| 90467-09227 | ||||
| 90925-06010 | ||||
| 91674-B1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 2(1509- )ARS210,AWS210,211..ATH,ATHG,ATHS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-30E60C0 |
AWS210,211,GRS21#..ATH,ATHS BLACK,202 |
1 | ||
| 52119-30E60B0 |
AWS210,211,GRS21#..ATH,ATHS SILVER ME.,1F7 |
1 | ||
| 52119-30E60B1 |
AWS210,211,GRS21#..ATH,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 52119-30E60D0 |
AWS210,211,GRS21#..ATH,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 52119-30E60C1 |
AWS210,211,GRS21#..ATH,ATHS PRECIOUS BLACK,219 |
1 | ||
| 52119-30E60A0 |
AWS210,211,GRS21#..ATH,ATHS WHITE PEARL CS.,062 |
1 | ||
| 52119-3F973B4 |
ARS210,AWS210,211,GRS211,214..ATH,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 52119-3F973B3 |
GRS214..ATHS;ARS210,AWS210,211,GRS211..ATH SILVER ME.,1F7 |
1 | ||
| 52119-3F973D1 |
ARS210,AWS210,211,GRS211,214..ATH,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 52119-3F973C3 |
ARS210,AWS210,211,GRS211,214..ATH,ATHS PRECIOUS BLACK,219 |
1 | ||
| 52119-3F973C2 |
ARS210,AWS210,211,GRS211..ATH,ATHS BLACK,202 |
1 | ||
| 52119-3F973A1 |
GRS214..ATHS;ARS210,AWS210,211,GRS211..ATH WHITE PEARL CS.,062 |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52129-30150B1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 52129-30150C1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS BLACK,219 |
1 | ||
| 52129-30150D0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 52129-30150B0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS SILVER ME.,1F7 |
1 | ||
| 52129-30150A0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS WHITE PEARL CS.,062 |
1 | ||
| 52129-30150C0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS BLACK,202 |
1 | ||
| 52129-30190B0 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS SILVER ME.,1F7 |
1 | ||
| 52129-30190C0 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS BLACK,202 |
1 | ||
| 52129-30190C1 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS PRECIOUS BLACK,219 |
1 | ||
| 52129-30190A0 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS WHITE PEARL CS.,062 |
1 | ||
| 52129-30190B2 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 52129-30190D2 |
ARS210,AWS210,211,GRS211,214..ATH,ATHG,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 52129-30190J2 |
ARS210,AWS210,211,GRS211..ATH DK. BLUE,1F7 |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52422-30090 |
ARS210,AWS21#,GRS21#,GWS214 |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-30090A0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS WHITE PEARL CS.,062 |
1 | ||
| 81481-30090B1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 81481-30090B0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS SILVER ME.,1F7 |
1 | ||
| 81481-30090C0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS BLACK,202 |
1 | ||
| 81481-30090C1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS BLACK,219 |
1 | ||
| 81481-30090D0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 81481-30230 |
ARS210,AWS210,211,GRS211..ATH,ATHG,ATHS |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-30190B1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS SILVER,1J6 |
1 | ||
| 81482-30190D0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS DK. RED M.M.,3Q3 |
1 | ||
| 81482-30190A0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS WHITE PEARL CS.,062 |
1 | ||
| 81482-30190C1 |
AWS210,211,GRS21#..ATH,ATHG,ATHS PRECIOUS BLACK,219 |
1 | ||
| 81482-30190B0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS SILVER ME.,1F7 |
1 | ||
| 81482-30190C0 |
AWS210,211,GRS21#..ATH,ATHG,ATHS BLACK,202 |
1 | ||
| 81482-30250 |
ARS210,AWS210,211,GRS211..ATH,ATHG,ATHS |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8202 | ||||
| 8417 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
